Description

TNF8SL64S overview

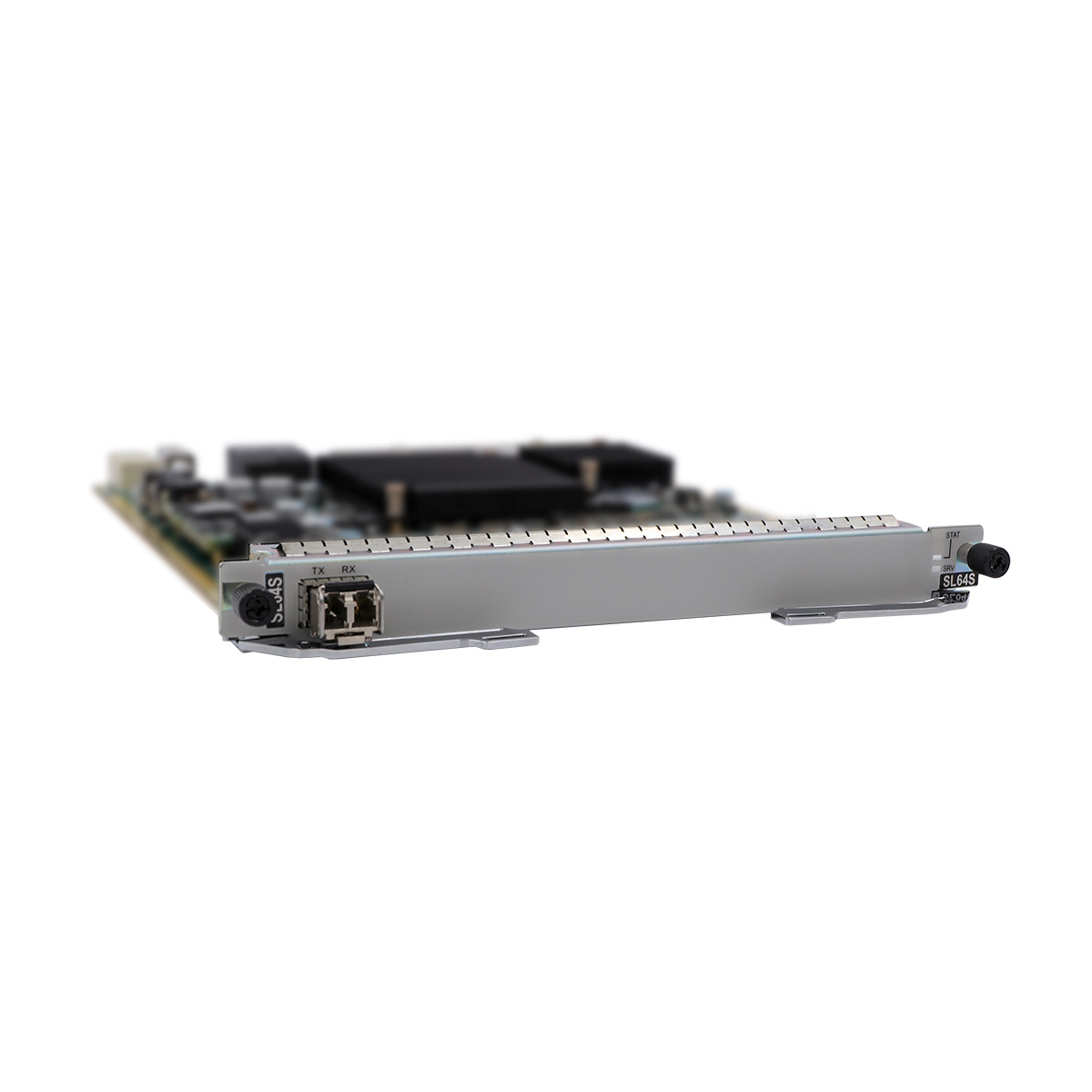

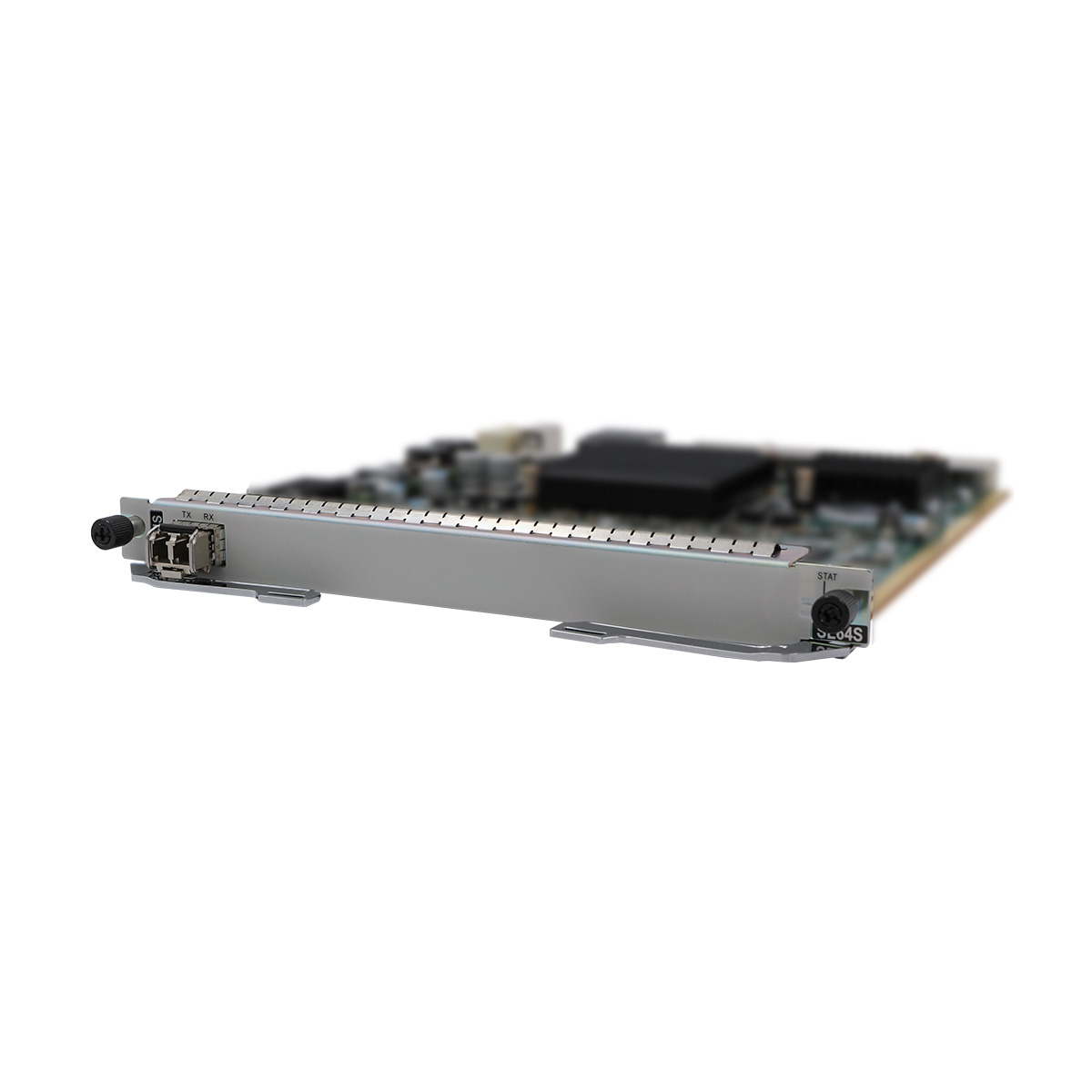

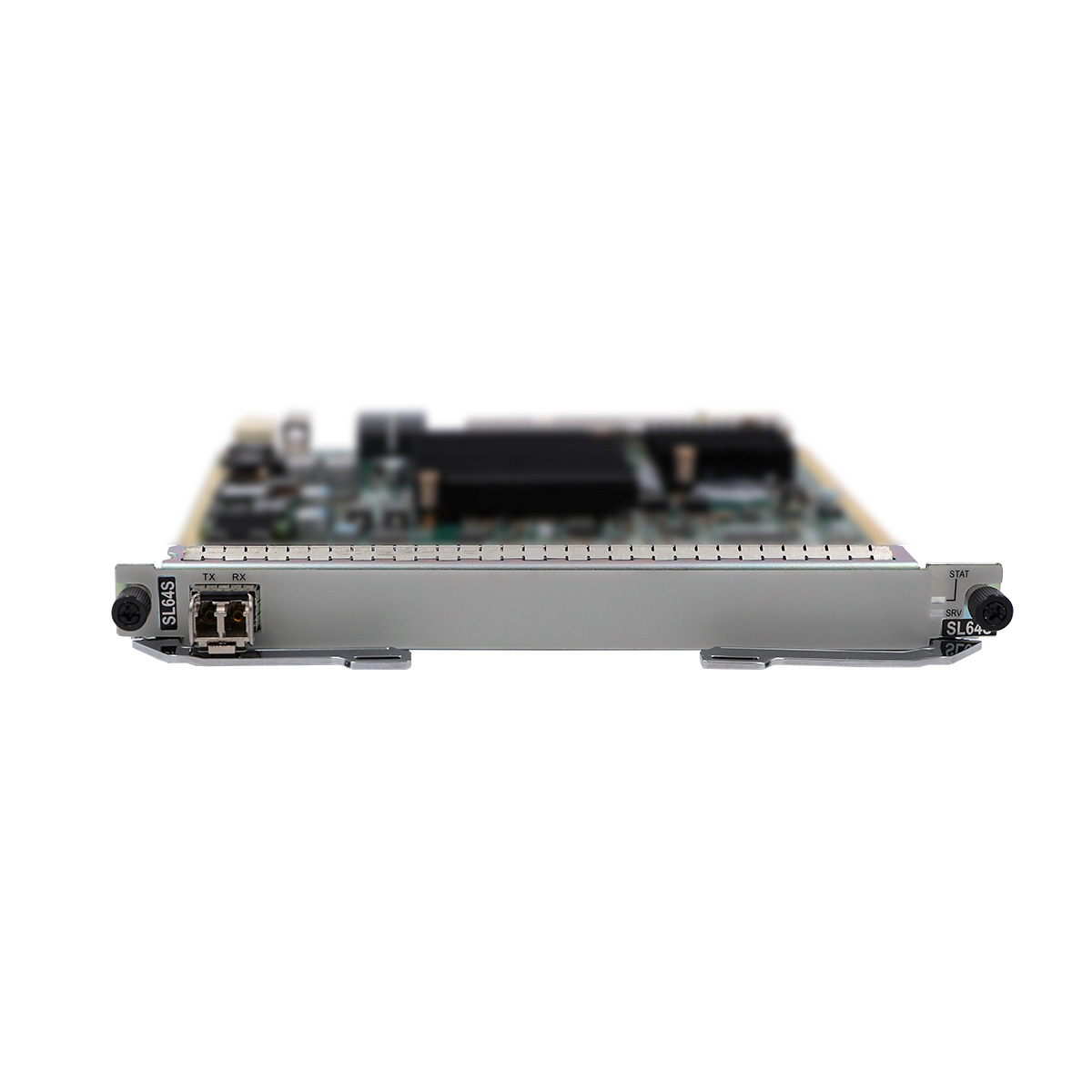

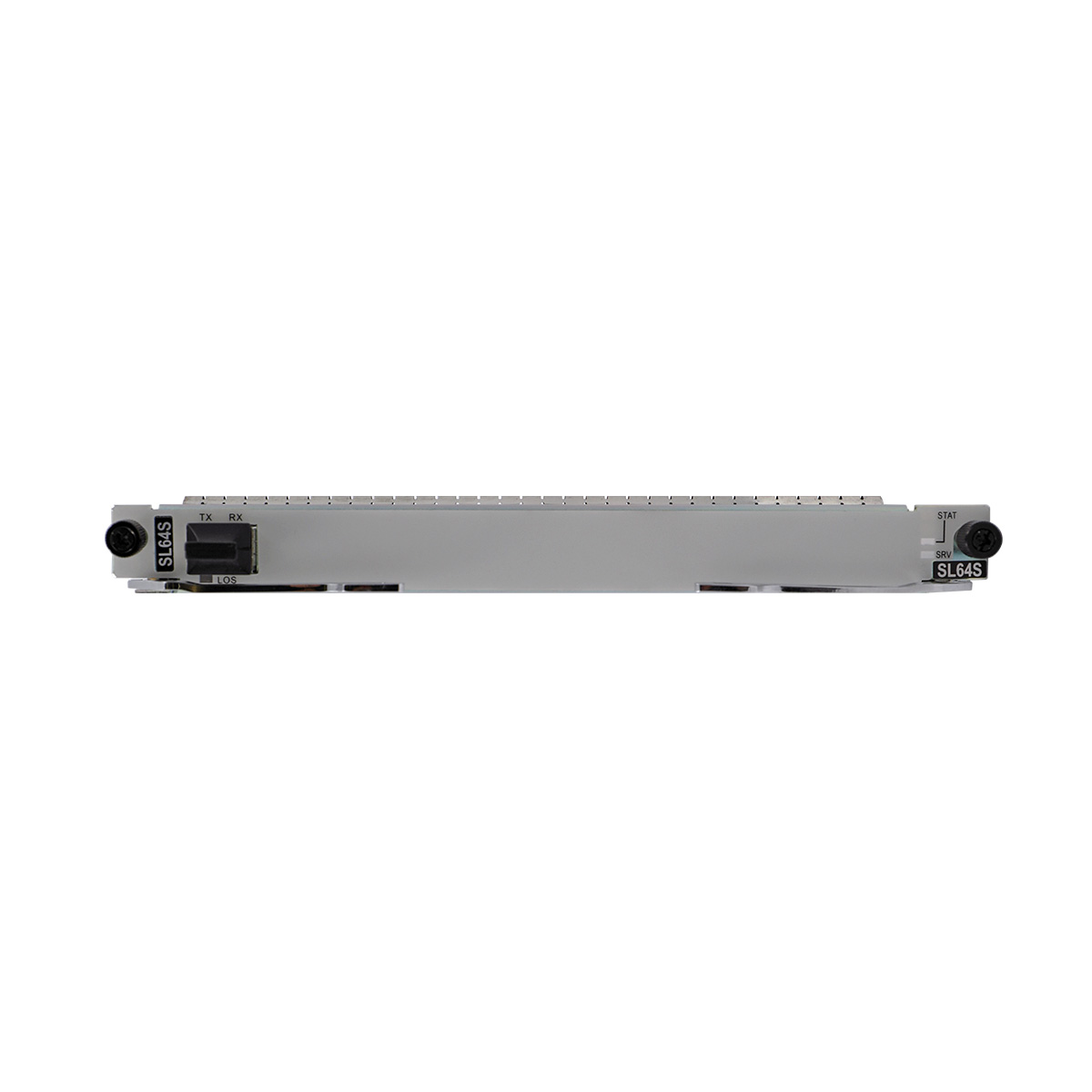

TNF8SL64S 1*STM-64 processing board applied to Huawei OSN 1800V.

The SL64S can be used to receive and transmit one STM-64 optical signal. The SL64S board converts the received optical signals into electrical signals and sends the electrical signals to the cross-connect side. In addition, the SL64S converts the electrical signals from the cross-connect side into optical signals and transmits the optical signals.

One SL64S board receives and transmits one channel of STM-64 optical signals, performs O/E conversion for STM-64 signals, extracts and inserts overhead bytes, and reports alarms generated on the line.



Show More Show Less
Item TNF8SL64S
Basic functions Receives and transmits one channel of STM-64 optical signals.
Optical port specifications
  • Gray optical ports: I-64.1, S-64.2b, and P1L1-2D2 optical ports.
  • Colored optical ports: DWDM (STM-64, 40km)
Service processing Processes VC-12/VC-3/VC-4 services and VC-4-4c/VC-4-16c/VC-4-64c concatenated services.
ALS Supported.
DCN Supports outband DCN.
Overhead processing
  • Processes section overheads of STM-64 signals.
  • Processes higher order path overheads.
  • Provides transparent DCCs and orderwire byte channels.
  • Supports the setting and querying of J0, J1, and C2 bytes.
Pointer processing Processes AU pointers.
Alarm and performance event Provides various alarms and performance events, facilitating equipment management and maintenance.
Protection schemes
  • Supports two-fiber bidirectional ring MSP.
  • Supports linear MSP.
  • Supports SNCP.
  • When working with TNZ5UXCMS, the board supports SNCTP.
Line clock source Supports one SDH line clock source.
Maintenance features
  • Inloops and outloops at optical ports
  • Inloops and outloops on VC-4 paths and outloops on VC-3/VC-12 paths for quick fault locating
  • PRBS test
  • Setting of overhead bytes to be sent/received
  • Enabling/Disabling SSMs on line optical ports
  • Pass-through tests of line K bytes
  • Setting of bit error threshold-crossing values and degrade thresholds
  • Warm resets and cold resets, with warm resets not affecting services
  • Querying of board manufacturing information
  • In-service FPGA loading
  • Hot board swapping
SDH ASON When working with TNZ5UXCMS, the board supports this function.
2M ASON When working with TNZ5UXCMS, the board supports this function.
Dimensions (W x H x D, unit: mm/in.) 193.8 x 19.8 x 205.9 (7.6 x 0.8 x 8.1)
Weight 0.60 kg (1.32 lb)
Power Consumption (W) 46-50

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item TNF8SL64S
Basic functions Receives and transmits one channel of STM-64 optical signals.
Optical port specifications
  • Gray optical ports: I-64.1, S-64.2b, and P1L1-2D2 optical ports.
  • Colored optical ports: DWDM (STM-64, 40km)
Service processing Processes VC-12/VC-3/VC-4 services and VC-4-4c/VC-4-16c/VC-4-64c concatenated services.
ALS Supported.
DCN Supports outband DCN.
Overhead processing
  • Processes section overheads of STM-64 signals.
  • Processes higher order path overheads.
  • Provides transparent DCCs and orderwire byte channels.
  • Supports the setting and querying of J0, J1, and C2 bytes.
Pointer processing Processes AU pointers.
Alarm and performance event Provides various alarms and performance events, facilitating equipment management and maintenance.
Protection schemes
  • Supports two-fiber bidirectional ring MSP.
  • Supports linear MSP.
  • Supports SNCP.
  • When working with TNZ5UXCMS, the board supports SNCTP.
Line clock source Supports one SDH line clock source.
Maintenance features
  • Inloops and outloops at optical ports
  • Inloops and outloops on VC-4 paths and outloops on VC-3/VC-12 paths for quick fault locating
  • PRBS test
  • Setting of overhead bytes to be sent/received
  • Enabling/Disabling SSMs on line optical ports
  • Pass-through tests of line K bytes
  • Setting of bit error threshold-crossing values and degrade thresholds
  • Warm resets and cold resets, with warm resets not affecting services
  • Querying of board manufacturing information
  • In-service FPGA loading
  • Hot board swapping
SDH ASON When working with TNZ5UXCMS, the board supports this function.
2M ASON When working with TNZ5UXCMS, the board supports this function.
Dimensions (W x H x D, unit: mm/in.) 193.8 x 19.8 x 205.9 (7.6 x 0.8 x 8.1)
Weight 0.60 kg (1.32 lb)
Power Consumption (W) 46-50
