TNG1M502DM overview



TNG1M502DM 2 x 100Gbit/s Service Multiplexing Into 1 x 200G or 2 x 100G Programable Wavelength Conversion Board applied to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG1M502DM board has only one variant: TNG1M502DMC01.

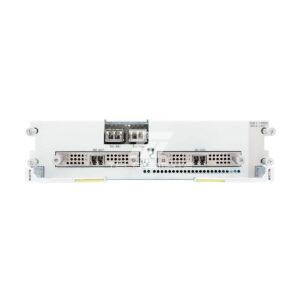

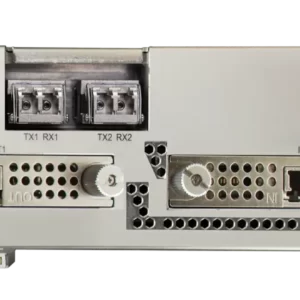

Front panel of the TNG1M502DM board

TNG1M502DM

Front panel of the TNG1M502DM board



Valid slots for the TNG1M502DM board in a M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 2 (IU1, IU2),(IU2, IU3),(IU3, IU4),(IU4, IU5) IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 2 (IU1, IU2), (IU2, IU3), ……, (IU11, IU12), (IU12, IU13) IU2 to IU13
OptiX OSN 9800 M24 2 (IU1, IU2), (IU2, IU3), ……, (IU22, IU23), (IU23, IU24) IU2 to IU6, IU8 to IU12, IU14 to IU18, IU20 to IU24
Show More Show Less
Item TNG1M502DM
Basic function The board can convert client-side services into OTU signals,the client-side service supports hybrid transmission of different services, for details about the service types, number of channels, and mapping paths supported by different ports, see Applications.
Client-side service type
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Service mapping mode
  • 100GE service: Supports bit transparent mapping(100G) and MAC transparent mapping(100G).
  • 10GE LAN service: Supports MAC transparent mapping(10.7G) and Bit Transparent Mapping(11.1G IMP+BMP).
NOTE:
The Bit Transparent Mapping(11.1G IMP+BMP) mode can be used for service interconnection with the Bit Transparent Mapping(11.1G) mode.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding On the client side:
  • Supports forward error correction (FEC) when the client-side service type is OTU4.
  • Supports RS_FEC coding when the client-side service type is 100GE.
On the WDM side:
  • Supports SDFEC2 and SDFEC coding.
Line modulation format
  • Transponder mode: Supports 100G QPSK, and 100G QPSK wDCM.
  • Muxponder mode: Supports 100G QPSK, and 100G QPSK wDCM, 200G 16QAM, 200G 16QAM-H, and 200G e16QAM.
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead
  • At the ODU4 layer:
    • Supports PM overhead processing when 100GE/10GE LAN services are received on the client side.
    • Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads.
  • At the ODU2 layer: Supports PM and TCM overhead processing.
  • At the ODUC2 layer: Supports PM and TCM overhead processing.
  • At the OTU4 layer: Supports SM overhead processing on the client and WDM sides.
  • At the OTUC2 layer: Supports SM overhead processing on the WDM side.
LPT Supports the LPT function when the client-side service is 10GE LAN.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
Client 1+1 protection Supported
NOTE:
  • When an MPO optical module is used on the client side, the M502DM board does not support client 1+1 protection.
  • When 100GE services are received on the client side, client 1+1 protection supports bidirectional switching rather than unidirectional switching. When OTU4 services are received on the client side, client 1+1 protection supports unidirectional switching.
ODUk SNCP Not supported
Tributary SNCP Not supported
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
L1 service encryption Supports the bidirectional service encryption when the client-side service is Ethernet service.
NOTE:
After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
LLDP Supports the LLDP function when the client-side service is 100GE/10GE LAN.
NOTE:
When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • When receiving 100GE services on the client side:
  • Synchronous Ethernet transparent transmission is supported in bit transparent mapping mode(100G).
  • Synchronous Ethernet processing is supported in MAC transparent mapping mode(100G).
NOTE:
The Bit Transparent Mapping(11.1G IMP+BMP) mode does not support synchronous Ethernet transparent transmission.
IEEE 1588v2
  • When the board receives 100GE services and the port mapping is MAC Transparent Mapping(100G) on its client side, the board can support IEEE 1588v2.
  • When the board receives 10GE LAN services and the port mapping is MAC Transparent Mapping(10.7G) on its client side, the board can support IEEE 1588v2.
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
Outband DCN Supports communication over ESCs.
Test frame
  • Supports the test frame function when the board receives 100GE services on its client side.
  • Supports the test frame function when the board receives 10GE LAN services and the port mapping is MAC Transparent Mapping(10.7G) on its client side.
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS Supports the PRBS function on the client side.
  • PRBS signals can be sent from the client-side optical port to the WDM side only when the client-side service type is OTU4 and the board works in Muxponder mode.
  • The PRBS function in the client-side optical port direction is supported only when the client-side service type is OTU4.
Supports the PRBS function on the WDM side.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Channel loopback
  • 100G line: supports ODU2 channel inloop and outloop.
  • 200G line: supports ODU2/ODU4 channel inloop and outloop.
  • Client-side: supports inloops and outloops when the client-side service is 10GE.
Port loopback
  • Supports inloops and outloops on the WDM side.
  • Supports inloops and outloops on the client side.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of CD and PMD performance.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.

Functions and Features of the TNG1M502DM Board (Regeneration)
Basic function The board applies to electrical regeneration sites to provide the electrical regeneration function for bidirectional optical signals.
Regeneration mode Bidirectional relay
Regeneration rate
  • OTUC2
  • OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding Supports SDFEC and SDFEC2 coding.
Line modulation format
  • 100G regeneration: Supports 100G QPSK, and 100G QPSK wDCM.
  • 200G regeneration: Supports 200G 16QAM, 200G 16QAM-H, and 200G e16QAM.
OTN overhead 200G regeneration:
  • ODUC2 layer: supports PM and TCM overhead processing.
  • OTUC2 layer: supports SM overhead processing.
100G regeneration:
  • ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU4 layer: supports SM overhead processing.
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
ALS Not supported
Outband DCN Supports communication over ESCs.
Latency measurement TCM section latency measurement is supported for OTU4/OTUC2 channels.
Port loopback Optical port outloop is supported.
NOTE:
Loopback of both ports is not supported.
Alarm and performance event monitoring
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of CD and PMD performance.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.
Dimensions (H x W x D)
  • 237.10 × 61.00 × 220.00 (mm)
  • 9.34 × 2.40 × 8.67 (in.)
Weight
  • 3.20 kg
  • 7.05 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNG1M502DM
Basic function The board can convert client-side services into OTU signals,the client-side service supports hybrid transmission of different services, for details about the service types, number of channels, and mapping paths supported by different ports, see Applications.
Client-side service type
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Service mapping mode
  • 100GE service: Supports bit transparent mapping(100G) and MAC transparent mapping(100G).
  • 10GE LAN service: Supports MAC transparent mapping(10.7G) and Bit Transparent Mapping(11.1G IMP+BMP).
NOTE:
The Bit Transparent Mapping(11.1G IMP+BMP) mode can be used for service interconnection with the Bit Transparent Mapping(11.1G) mode.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding On the client side:
  • Supports forward error correction (FEC) when the client-side service type is OTU4.
  • Supports RS_FEC coding when the client-side service type is 100GE.
On the WDM side:
  • Supports SDFEC2 and SDFEC coding.
Line modulation format
  • Transponder mode: Supports 100G QPSK, and 100G QPSK wDCM.
  • Muxponder mode: Supports 100G QPSK, and 100G QPSK wDCM, 200G 16QAM, 200G 16QAM-H, and 200G e16QAM.
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead
  • At the ODU4 layer:
    • Supports PM overhead processing when 100GE/10GE LAN services are received on the client side.
    • Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads.
  • At the ODU2 layer: Supports PM and TCM overhead processing.
  • At the ODUC2 layer: Supports PM and TCM overhead processing.
  • At the OTU4 layer: Supports SM overhead processing on the client and WDM sides.
  • At the OTUC2 layer: Supports SM overhead processing on the WDM side.
LPT Supports the LPT function when the client-side service is 10GE LAN.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
Client 1+1 protection Supported
NOTE:
  • When an MPO optical module is used on the client side, the M502DM board does not support client 1+1 protection.
  • When 100GE services are received on the client side, client 1+1 protection supports bidirectional switching rather than unidirectional switching. When OTU4 services are received on the client side, client 1+1 protection supports unidirectional switching.
ODUk SNCP Not supported
Tributary SNCP Not supported
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
L1 service encryption Supports the bidirectional service encryption when the client-side service is Ethernet service.
NOTE:
After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
LLDP Supports the LLDP function when the client-side service is 100GE/10GE LAN.
NOTE:
When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • When receiving 100GE services on the client side:
  • Synchronous Ethernet transparent transmission is supported in bit transparent mapping mode(100G).
  • Synchronous Ethernet processing is supported in MAC transparent mapping mode(100G).
NOTE:
The Bit Transparent Mapping(11.1G IMP+BMP) mode does not support synchronous Ethernet transparent transmission.
IEEE 1588v2
  • When the board receives 100GE services and the port mapping is MAC Transparent Mapping(100G) on its client side, the board can support IEEE 1588v2.
  • When the board receives 10GE LAN services and the port mapping is MAC Transparent Mapping(10.7G) on its client side, the board can support IEEE 1588v2.
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
Outband DCN Supports communication over ESCs.
Test frame
  • Supports the test frame function when the board receives 100GE services on its client side.
  • Supports the test frame function when the board receives 10GE LAN services and the port mapping is MAC Transparent Mapping(10.7G) on its client side.
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS Supports the PRBS function on the client side.
  • PRBS signals can be sent from the client-side optical port to the WDM side only when the client-side service type is OTU4 and the board works in Muxponder mode.
  • The PRBS function in the client-side optical port direction is supported only when the client-side service type is OTU4.
Supports the PRBS function on the WDM side.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Channel loopback
  • 100G line: supports ODU2 channel inloop and outloop.
  • 200G line: supports ODU2/ODU4 channel inloop and outloop.
  • Client-side: supports inloops and outloops when the client-side service is 10GE.
Port loopback
  • Supports inloops and outloops on the WDM side.
  • Supports inloops and outloops on the client side.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of CD and PMD performance.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.

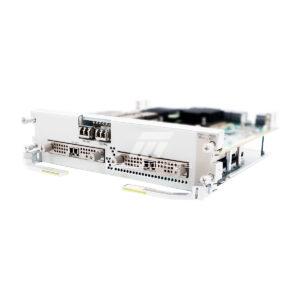

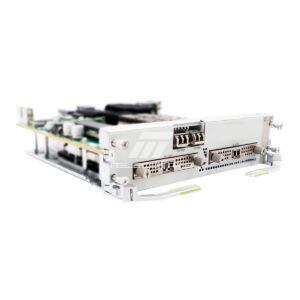

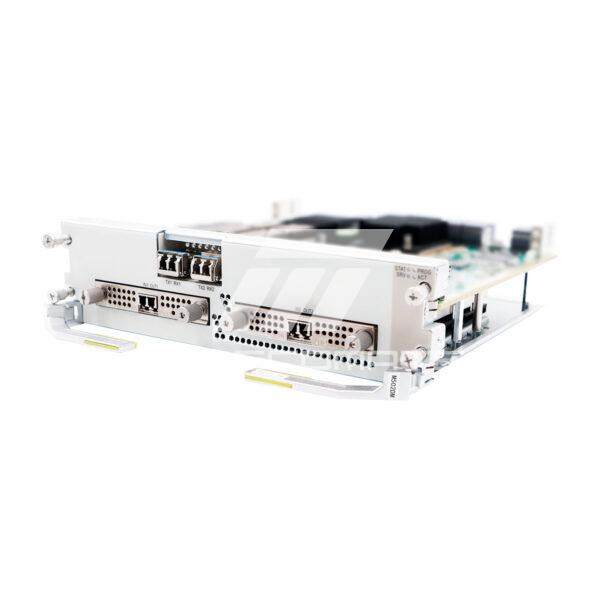

Functions and Features of the TNG1M502DM Board (Regeneration)
Basic function The board applies to electrical regeneration sites to provide the electrical regeneration function for bidirectional optical signals.
Regeneration mode Bidirectional relay
Regeneration rate
  • OTUC2
  • OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding Supports SDFEC and SDFEC2 coding.
Line modulation format
  • 100G regeneration: Supports 100G QPSK, and 100G QPSK wDCM.
  • 200G regeneration: Supports 200G 16QAM, 200G 16QAM-H, and 200G e16QAM.
OTN overhead 200G regeneration:
  • ODUC2 layer: supports PM and TCM overhead processing.
  • OTUC2 layer: supports SM overhead processing.
100G regeneration:
  • ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU4 layer: supports SM overhead processing.
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
ALS Not supported
Outband DCN Supports communication over ESCs.
Latency measurement TCM section latency measurement is supported for OTU4/OTUC2 channels.
Port loopback Optical port outloop is supported.
NOTE:
Loopback of both ports is not supported.
Alarm and performance event monitoring
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of CD and PMD performance.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.
Dimensions (H x W x D)
  • 237.10 × 61.00 × 220.00 (mm)
  • 9.34 × 2.40 × 8.67 (in.)
Weight
  • 3.20 kg
  • 7.05 lb.

Reviews

There are no reviews yet.

Be the first to review “TNG1M502DM”

Your email address will not be published. Required fields are marked *

Related products

J9550A-1
Quick view
Categories:

J9550A

R.F.Q
SKU2011972
J9536A-1
Quick view
Categories:

J9536A

R.F.Q
SKU2011969
J9548A-1
Quick view
Categories:

J9548A

R.F.Q
SKU2011968
J9537A-1
Quick view
Categories:

J9537A

R.F.Q
SKU2011974
Quick view
Categories:

ETP48400-C6A2

R.F.Q
SKU2017502
JL321A-1
Quick view
Categories:

JL321A

R.F.Q
PNJL321A
Main Menu
Back to Top

Search For Products

Popular
Product has been added to your cart
