Description

TNG1M520S overview



TNG1M520S 2 x 100Gbit/s Service Multiplexing Into 1 x 200G or 2 x 100G Programable Wavelength Conversion Board applied to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG1M520S board has only one variant: TNG1M520S01.

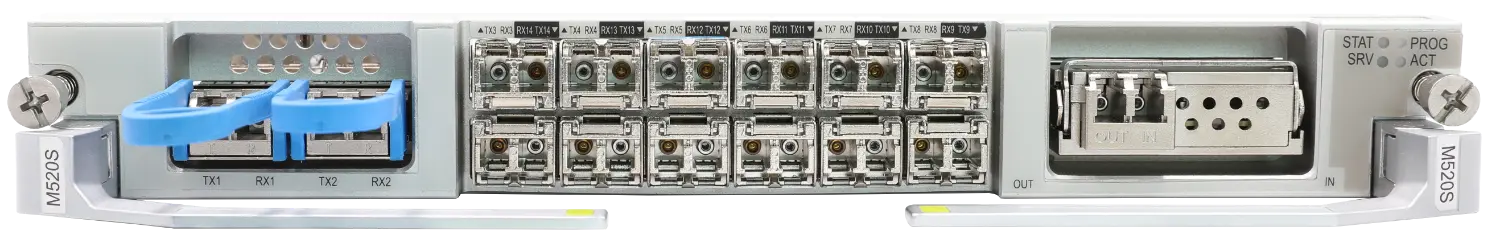

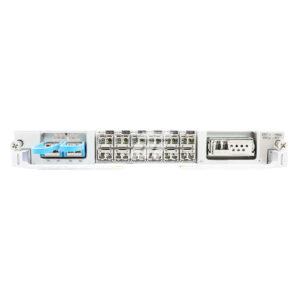

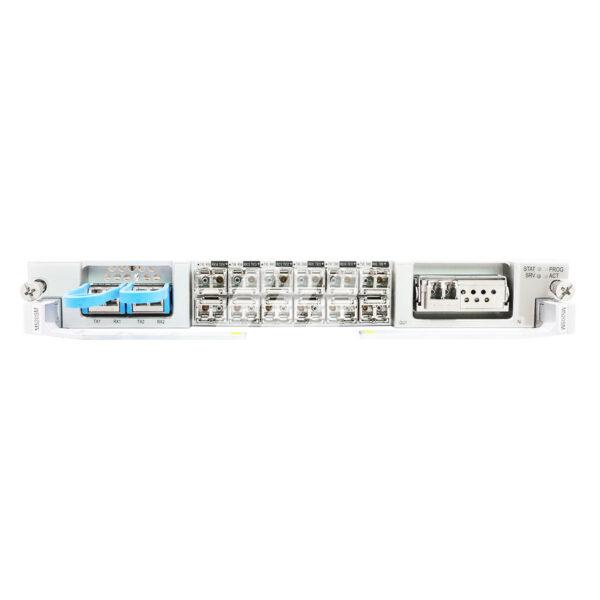

Front panel of the TNG1M520S board

TNG1M520S

Front panel of the TNG1M520S board



Valid slots for the TNG1M520S board in a M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU13 IU1 to IU13
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Show More Show Less
Item TNG1M520S
The board can convert client-side services into OTU signals,the client-side service supports hybrid transmission of different services, for details about the service types, number of channels, and mapping paths supported by different ports, see Applications.
Client-side service type SDH service:
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDH service at a rate of 9.95 Gbit/s
SONET service:
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
Ethernet service:
  • FE: Ethernet service at a rate of 125 Mbit/s. Supports FE optical signals.
  • GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals.
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
  • 25GE: Ethernet service at a rate of 25.78 Gbit/s
  • 40GE: Ethernet service at a rate of 41.25 Gbit/s
  • 50GE: Ethernet service at a rate of 51.5625 Gbit/s
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
OTN service:
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
  • OTU4: OTN service at a rate of 111.81 Gbit/s
SAN service:
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC100 Trunk-2: SAN service at a rate of 2 × 8.5Gbit/s
  • FC100 Trunk-4: SAN service at a rate of 4 × 8.5Gbit/s
  • FC100 Trunk-8: SAN service at a rate of 8 × 8.5Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC200 Trunk-2: SAN service at a rate of 2 × 8.5Gbit/s
  • FC200 Trunk-4: SAN service at a rate of 4 × 8.5Gbit/s
  • FC200 Trunk-8: SAN service at a rate of 8 × 8.5Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FC400 Trunk-2: SAN service at a rate of 2 × 8.5Gbit/s
  • FC400 Trunk-4: SAN service at a rate of 4 × 8.5Gbit/s
  • FC400 Trunk-8: SAN service at a rate of 8 × 8.5Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FC800 Trunk-2: SAN service at a rate of 2 × 8.5Gbit/s
  • FC800 Trunk-4: SAN service at a rate of 4 × 8.5Gbit/s
  • FC800 Trunk-8: SAN service at a rate of 8 × 8.5Gbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1200 Trunk-2: SAN service at a rate of 2 × 10.51Gbit/s
  • FC1200 Trunk-4: SAN service at a rate of 4 × 10.51Gbit/s
  • FC1200 Trunk-8: SAN service at a rate of 8 × 10.51Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • FC1600 Trunk-2: SAN service at a rate of 2 × 14.025Gbit/s
  • FC1600 Trunk-4: SAN service at a rate of 4 × 14.025Gbit/s
  • FC3200: SAN service at a rate of 28.05 Gbit/s
  • FC3200 Trunk-2: SAN service at a rate of 2 × 28.05Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FICON 4G: SAN service at a rate of 4.25 Gbit/s
  • FICON 8G: SAN service at a rate of 8.5 Gbit/s
  • FICON 10G: SAN service at a rate of 10.51 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
Video service:
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
Service mapping mode
  • GE service: Supports GFP-T/(TTT+GMP) mapping.
  • 10GE LAN service: Supports GFP-F/BMP/(IMP+BMP) mapping.
  • 40GE service: Supports (TTT+GMP) mapping.
  • 25GE/50GE service: Supports BMP/GFP-F mapping.
  • 100GE service: Supports GMP/GFP-F mapping.
NOTE:
The Bit Transparent Mapping(11.1G IMP+BMP) mode can be used for service interconnection with the Bit Transparent Mapping(11.1G) mode.
WDM specification Supports the DWDM specifications.
Tunable wavelength When a wavelength-tunable optical module is configured, WDM-side optical signals are tunable in Super C band (1524 nm to 1573 nm).
FEC coding Client side:
  • 25G/50G/100GE/FC3200: RS_FEC
  • OTU4: FEC
WDM side:
  • 200G 16QAM: SDFEC
  • 200G 16QAM-H: SDFEC
  • 200G e16QAMz: SDFEC2
  • 200G QPSK: SDFEC-M/SDFEC4
  • 100G QPSK: SDFEC2
  • 100G QPSK wDCM: SDFEC2
  • 200G m16QAM: SDFEC
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 200G e16QAM
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G QPSK
  • 200G m16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • Others modulation format: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • At the ODU0 layer:
    • Supports PM and TCM overhead processing.
  • At the ODU1/ODU2 layer:
    • Supports PM and TCM overhead processing.
    • Non-intrusive monitoring of PM and TCM overheads and SM overhead processing are supported when OTN services are configured.
  • At the ODU3 layer:
    • Supports PM and TCM overhead processing when 40GE services are received on the client side.
  • At the ODU4 layer:
    • Supports PM and TCM overhead processing when 100GE services are received on the client side.
    • Supports the processing and non-intrusive monitoring of PM and TCM overheads when OTU4 services are received on the client side.
    • Supports SM overhead processing at the OTU4 layer on the client side.
  • Supports PM and TCM overhead processing at the ODUflex layer.
  • Supports PM and TCM overhead processing at the ODUC2 layer.
  • Supports SM overhead processing at the OTUC2 and OTU4 layer on the WDM side.
LPT Supported
NOTE:
  • Supported when the client-side service type is FE, GE or 10GE LAN.
  • The port equipped with an electrical module does not support LPT.
Intra-board 1+1 protection Supported
NOTE:
  • Implemented with optical protection boards.
  • When this board works with the TNG2DCP board, bidirectional switching is supported.
Client 1+1 protection Supported
NOTE:
  • When a MPO module is used on the client side, the M520SM board does not support client 1+1 protection.
  • Client 1+1 protection cannot be configured for ports configured with FC Trunk services.
  • When 100GE, 50GE, 40GE, 25GE, 10GE and GE services with a LC module are received on the client side, client 1+1 protection supports unidirectional switching and the bidirectional switching.
ODUk SNCP Not Supported
Tributary SNCP Supported
NOTE:
Supports intra-board tributary SNCP protection.
Optical-layer ASON Supported
NOTE:
Optical-layer ASON is not supported when the TX1/RX1 port works in line mode.
L1 service encryption Supported
NOTE:
  • When working in ODU1 convergence mode or the OTU4 service is accessed, the board does not support encryption.
  • The client-side ports do not support broadcast cross-connection and encryption function at the same time.
  • After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
NOTE:
The port equipped with an electrical module does not support ALS.
LLDP Supported
NOTE:
  • The LLDP function is supported when the client-side service is Ethernet.
  • LLDP is not supported when 10GE WAN, GE, or FE services are received on the client side.
  • When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted
Physical clock
  • Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE(GMP)/50GE (BMP)/40GE (TTT+GMP)/25GE (BMP)/10GE LAN(BMP)/GE (TTT+GMP) services on the client side.
  • Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving 100GE(GFP-F)/50GE (GFP-F)/25GE (GFP-F)/10GE LAN(GFP-F)/GE (GFP-T)/100G FlexE Unaware services on the client side.
NOTE:
  • Synchronous Ethernet transparent transmission is not supported when 10GE LAN (IMP+BMP) services are received.
  • When the TX1/RX1 and TX2/RX2 ports receive 4 x 10GE services, only the first 10GE channel of the 4 x 10GE supports physical-layer clocks.
IEEE 1588v2 Supported
NOTE:
  • Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
  • When the TX1/RX1 and TX2/RX2 ports receive 4 x 10GE services, only the first 10GE channel of the 4 x 10GE supports IEEE 1588v2.
ITU-T G.8275.1 Supported
NOTE:
  • Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
  • When the TX1/RX1 and TX2/RX2 ports receive 4 x 10GE services, only the first 10GE channel of the 4 x 10GE supports ITU-T G.8275.1.
ITU-T G.8273.2 Supported
High-precision clock synchronization Supported
NOTE:
  • This function is not supported when the board uses the QSFP28,1310,100GE,-3.1dBm,4dBm,-4.5dBm,LC,SMF,2km,PAM4 module.
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide.
  • Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
Outband DCN Supported
NOTE:
Supported when OTUk services are received.
Test frame
  • Supported when the client-side service type is 100GE/50GE(GFP-F)/40GE/25GE(GFP-F)/10GE LAN(GFP-F)/GE (GFP-T).
  • Supported only in ODU1 convergence mode when receiving FE services on the client side.
PRBS
  • Supports the PRBS function on the WDM side.
  • The PRBS function in the client-side optical port direction is supported only when the service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2, OTU2e or OTU4.
  • PRBS signals can be sent from the client-side optical port to the system side.
NOTE:
  • The client-side PRBS function is not supported when the board accesses 4 x 10GE signals.
  • The PRBS test function on the line side cannot be configured for ports configured with FC Trunk services.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
  • In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
  • When the board receives FC100 Trunk-2/FC200 Trunk-2/FC400 Trunk-2/FC800 Trunk-2/FC1200 Trunk-2/FC1600 Trunk-2/FC3200 Trunk-2 services,
    • A maximum of four Trunk-2 services are supported, and each service needs to use a combination of two client-side ports, which are ports TX5/RX5 to TX6/RX6, ports TX7/RX7 to TX8/RX8, ports TX11/RX11 to TX12/RX12 or ports TX13/RX13 to TX14/RX14.
    • Ports TX5/RX5, TX7/RX7, TX11/RX11 and TX13/RX13 support latency measurement. Ports TX6/RX6, TX8/RX8, TX12/RX12 and TX14/RX14 do not support latency measurement.
  • When the board receives FC100 Trunk-4/FC200 Trunk-4/FC400 Trunk-4/FC800 Trunk-4/FC1200 Trunk-4/FC1600 Trunk-4 services,
    • A maximum of two Trunk-4 services are supported, and each service needs to use a combination of four client-side ports, which are ports TX5/RX5 to TX8/RX8 or ports TX11/RX11 to TX14/RX14.
    • Ports TX5/RX5 and TX11/RX11 support latency measurement. Ports TX6/RX6 to TX8/RX8 and TX12/RX12 to TX14/RX14 do not support latency measurement.
  • When the board receives FC100 Trunk-8/FC200 Trunk-8/FC400 Trunk-8/FC800 Trunk-8/FC1200 Trunk-8 services,
    • Only one Trunk-8 services are supported, and each service needs to use a combination of eight client-side ports, which are ports TX3/RX3 to TX10/RX10.
    • Ports TX3/RX3 support latency measurement. Ports TX4/RX4 to TX10/RX10 do not support latency measurement.
Channel loopback When a client-side port accesses 4 x 10GE signals, channel loopback is supported.
Port loopback
  • Supports the client-side inloop and outloop.
  • Supports the client-side ODUk inloop and outloop.
  • Supports the WDM-side inloop and outloop.
NOTE:
  • Client-side loopback is not supported when the port accesses 4 x 10GE LAN signals.
  • When the line-side rate is 100 Gbit/s and 100GE/OTU4 services are received on the client side, the board does not support WDM-side port loopback.
  • When no cross-connection is configured on a client-side port, inloops cannot be configured on the client-side port.
  • When the board receives FC100 Trunk-2/FC200 Trunk-2/FC400 Trunk-2/FC800 Trunk-2/FC1200 Trunk-2/FC1600 Trunk-2/FC3200 Trunk-2 services,
    • A maximum of four Trunk-2 services are supported, and each service needs to use a combination of two client-side ports, which are ports TX5/RX5 to TX6/RX6, ports TX7/RX7 to TX8/RX8, ports TX11/RX11 to TX12/RX12 or ports TX13/RX13 to TX14/RX14.
    • Ports TX5/RX5, TX7/RX7, TX11/RX11 and TX13/RX13 support client-side inloops and outloops. Ports TX6/RX6, TX8/RX8, TX12/RX12 and TX14/RX14 support only outloops. An outloop can be configured for only one port in the same group.
  • When the board receives FC100 Trunk-4/FC200 Trunk-4/FC400 Trunk-4/FC800 Trunk-4/FC1200 Trunk-4/FC1600 Trunk-4 services,
    • A maximum of two Trunk-4 services are supported, and each service needs to use a combination of four client-side ports, which are ports TX5/RX5 to TX8/RX8 or ports TX11/RX11 to TX14/RX14.
    • Ports TX5/RX5 and TX11/RX11 support client-side inloops and outloops. Ports TX6/RX6 to TX8/RX8 and TX12/RX12 to TX14/RX14 support only outloops. An outloop can be configured for only one port in the same group.
  • When the board receives FC100 Trunk-8/FC200 Trunk-8/FC400 Trunk-8/FC800 Trunk-8/FC1200 Trunk-8 services,
    • Only one Trunk-8 services are supported, and each service needs to use a combination of eight client-side ports, which are ports TX3/RX3 to TX10/RX10.
    • Ports TX3/RX3 support client-side inloops and outloops. Ports TX4/RX4 to TX10/RX10 support only outloops. An outloop can be configured for only one port in the same group.
  • The client-side ODUk inloop and outloop cannot be configured for ports configured with FC Trunk services.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of CD and PMD performance.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.

Functions and Features of the TNG1M520S Board (Regeneration)
Basic function Applies to electrical regeneration sites to provide the electrical regeneration function for optical signals.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU4
  • OTUC2
WDM specification Supports the DWDM specifications.
Tunable wavelength When a wavelength-tunable optical module is configured, WDM-side optical signals are tunable in Super C band (1524 nm to 1573 nm).
FEC coding
  • SDFEC2
  • SDFEC
  • SDFEC-M
  • SDFEC4
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 200G e16QAM
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G QPSK
  • 200G m16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • Others modulation format: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Uses the frame formats and overhead processing methods defined in ITU-T G.709.
OTN overhead
  • 200G regeneration:
    • ODUC2 layer: supports PM and TCM overhead processing.
    • OTUC2 layer: supports SM overhead processing.
  • 100G regeneration:
    • ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
    • OTU4 layer: supports SM overhead processing.
Optical-layer ASON Supported
NOTE:
For the WDM-side A15/A24 optical module, the receive and transmit wavelengths must be the same.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supported
Test frame Not supported.
PRBS Not supported.
Port loopback Not supported.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of CD and PMD performance.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 2.30 kg
  • 5.07 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty

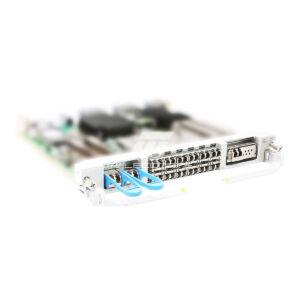

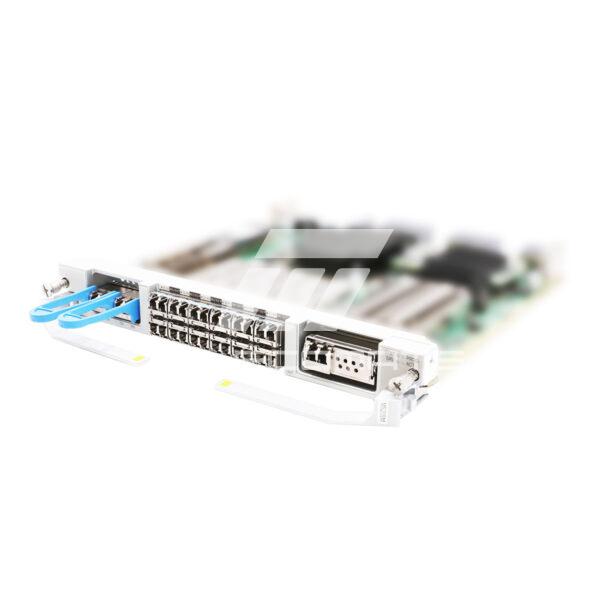

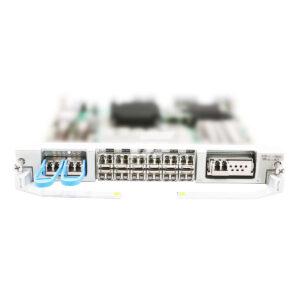

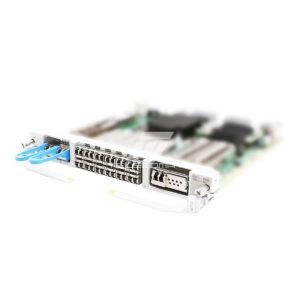

Item TNG1M520S
The board can convert client-side services into OTU signals,the client-side service supports hybrid transmission of different services, for details about the service types, number of channels, and mapping paths supported by different ports, see Applications.
Client-side service type SDH service:
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDH service at a rate of 9.95 Gbit/s
SONET service:
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
Ethernet service:
  • FE: Ethernet service at a rate of 125 Mbit/s. Supports FE optical signals.
  • GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals.
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
  • 25GE: Ethernet service at a rate of 25.78 Gbit/s
  • 40GE: Ethernet service at a rate of 41.25 Gbit/s
  • 50GE: Ethernet service at a rate of 51.5625 Gbit/s
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
OTN service:
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
  • OTU4: OTN service at a rate of 111.81 Gbit/s
SAN service:
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC100 Trunk-2: SAN service at a rate of 2 × 8.5Gbit/s
  • FC100 Trunk-4: SAN service at a rate of 4 × 8.5Gbit/s
  • FC100 Trunk-8: SAN service at a rate of 8 × 8.5Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC200 Trunk-2: SAN service at a rate of 2 × 8.5Gbit/s
  • FC200 Trunk-4: SAN service at a rate of 4 × 8.5Gbit/s
  • FC200 Trunk-8: SAN service at a rate of 8 × 8.5Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FC400 Trunk-2: SAN service at a rate of 2 × 8.5Gbit/s
  • FC400 Trunk-4: SAN service at a rate of 4 × 8.5Gbit/s
  • FC400 Trunk-8: SAN service at a rate of 8 × 8.5Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FC800 Trunk-2: SAN service at a rate of 2 × 8.5Gbit/s
  • FC800 Trunk-4: SAN service at a rate of 4 × 8.5Gbit/s
  • FC800 Trunk-8: SAN service at a rate of 8 × 8.5Gbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1200 Trunk-2: SAN service at a rate of 2 × 10.51Gbit/s
  • FC1200 Trunk-4: SAN service at a rate of 4 × 10.51Gbit/s
  • FC1200 Trunk-8: SAN service at a rate of 8 × 10.51Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • FC1600 Trunk-2: SAN service at a rate of 2 × 14.025Gbit/s
  • FC1600 Trunk-4: SAN service at a rate of 4 × 14.025Gbit/s
  • FC3200: SAN service at a rate of 28.05 Gbit/s
  • FC3200 Trunk-2: SAN service at a rate of 2 × 28.05Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FICON 4G: SAN service at a rate of 4.25 Gbit/s
  • FICON 8G: SAN service at a rate of 8.5 Gbit/s
  • FICON 10G: SAN service at a rate of 10.51 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
Video service:
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
Service mapping mode
  • GE service: Supports GFP-T/(TTT+GMP) mapping.
  • 10GE LAN service: Supports GFP-F/BMP/(IMP+BMP) mapping.
  • 40GE service: Supports (TTT+GMP) mapping.
  • 25GE/50GE service: Supports BMP/GFP-F mapping.
  • 100GE service: Supports GMP/GFP-F mapping.
NOTE:
The Bit Transparent Mapping(11.1G IMP+BMP) mode can be used for service interconnection with the Bit Transparent Mapping(11.1G) mode.
WDM specification Supports the DWDM specifications.
Tunable wavelength When a wavelength-tunable optical module is configured, WDM-side optical signals are tunable in Super C band (1524 nm to 1573 nm).
FEC coding Client side:
  • 25G/50G/100GE/FC3200: RS_FEC
  • OTU4: FEC
WDM side:
  • 200G 16QAM: SDFEC
  • 200G 16QAM-H: SDFEC
  • 200G e16QAMz: SDFEC2
  • 200G QPSK: SDFEC-M/SDFEC4
  • 100G QPSK: SDFEC2
  • 100G QPSK wDCM: SDFEC2
  • 200G m16QAM: SDFEC
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 200G e16QAM
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G QPSK
  • 200G m16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • Others modulation format: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • At the ODU0 layer:
    • Supports PM and TCM overhead processing.
  • At the ODU1/ODU2 layer:
    • Supports PM and TCM overhead processing.
    • Non-intrusive monitoring of PM and TCM overheads and SM overhead processing are supported when OTN services are configured.
  • At the ODU3 layer:
    • Supports PM and TCM overhead processing when 40GE services are received on the client side.
  • At the ODU4 layer:
    • Supports PM and TCM overhead processing when 100GE services are received on the client side.
    • Supports the processing and non-intrusive monitoring of PM and TCM overheads when OTU4 services are received on the client side.
    • Supports SM overhead processing at the OTU4 layer on the client side.
  • Supports PM and TCM overhead processing at the ODUflex layer.
  • Supports PM and TCM overhead processing at the ODUC2 layer.
  • Supports SM overhead processing at the OTUC2 and OTU4 layer on the WDM side.
LPT Supported
NOTE:
  • Supported when the client-side service type is FE, GE or 10GE LAN.
  • The port equipped with an electrical module does not support LPT.
Intra-board 1+1 protection Supported
NOTE:
  • Implemented with optical protection boards.
  • When this board works with the TNG2DCP board, bidirectional switching is supported.
Client 1+1 protection Supported
NOTE:
  • When a MPO module is used on the client side, the M520SM board does not support client 1+1 protection.
  • Client 1+1 protection cannot be configured for ports configured with FC Trunk services.
  • When 100GE, 50GE, 40GE, 25GE, 10GE and GE services with a LC module are received on the client side, client 1+1 protection supports unidirectional switching and the bidirectional switching.
ODUk SNCP Not Supported
Tributary SNCP Supported
NOTE:
Supports intra-board tributary SNCP protection.
Optical-layer ASON Supported
NOTE:
Optical-layer ASON is not supported when the TX1/RX1 port works in line mode.
L1 service encryption Supported
NOTE:
  • When working in ODU1 convergence mode or the OTU4 service is accessed, the board does not support encryption.
  • The client-side ports do not support broadcast cross-connection and encryption function at the same time.
  • After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
NOTE:
The port equipped with an electrical module does not support ALS.
LLDP Supported
NOTE:
  • The LLDP function is supported when the client-side service is Ethernet.
  • LLDP is not supported when 10GE WAN, GE, or FE services are received on the client side.
  • When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted
Physical clock
  • Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE(GMP)/50GE (BMP)/40GE (TTT+GMP)/25GE (BMP)/10GE LAN(BMP)/GE (TTT+GMP) services on the client side.
  • Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving 100GE(GFP-F)/50GE (GFP-F)/25GE (GFP-F)/10GE LAN(GFP-F)/GE (GFP-T)/100G FlexE Unaware services on the client side.
NOTE:
  • Synchronous Ethernet transparent transmission is not supported when 10GE LAN (IMP+BMP) services are received.
  • When the TX1/RX1 and TX2/RX2 ports receive 4 x 10GE services, only the first 10GE channel of the 4 x 10GE supports physical-layer clocks.
IEEE 1588v2 Supported
NOTE:
  • Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
  • When the TX1/RX1 and TX2/RX2 ports receive 4 x 10GE services, only the first 10GE channel of the 4 x 10GE supports IEEE 1588v2.
ITU-T G.8275.1 Supported
NOTE:
  • Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
  • When the TX1/RX1 and TX2/RX2 ports receive 4 x 10GE services, only the first 10GE channel of the 4 x 10GE supports ITU-T G.8275.1.
ITU-T G.8273.2 Supported
High-precision clock synchronization Supported
NOTE:
  • This function is not supported when the board uses the QSFP28,1310,100GE,-3.1dBm,4dBm,-4.5dBm,LC,SMF,2km,PAM4 module.
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide.
  • Supported only when the client-side service type is 100GE(GFP-F)/50GE(GFP-F)/25GE(GFP-F)/10GE LAN(GFP-F)/GE(GFP-T).
Outband DCN Supported
NOTE:
Supported when OTUk services are received.
Test frame
  • Supported when the client-side service type is 100GE/50GE(GFP-F)/40GE/25GE(GFP-F)/10GE LAN(GFP-F)/GE (GFP-T).
  • Supported only in ODU1 convergence mode when receiving FE services on the client side.
PRBS
  • Supports the PRBS function on the WDM side.
  • The PRBS function in the client-side optical port direction is supported only when the service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2, OTU2e or OTU4.
  • PRBS signals can be sent from the client-side optical port to the system side.
NOTE:
  • The client-side PRBS function is not supported when the board accesses 4 x 10GE signals.
  • The PRBS test function on the line side cannot be configured for ports configured with FC Trunk services.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
  • In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
  • When the board receives FC100 Trunk-2/FC200 Trunk-2/FC400 Trunk-2/FC800 Trunk-2/FC1200 Trunk-2/FC1600 Trunk-2/FC3200 Trunk-2 services,
    • A maximum of four Trunk-2 services are supported, and each service needs to use a combination of two client-side ports, which are ports TX5/RX5 to TX6/RX6, ports TX7/RX7 to TX8/RX8, ports TX11/RX11 to TX12/RX12 or ports TX13/RX13 to TX14/RX14.
    • Ports TX5/RX5, TX7/RX7, TX11/RX11 and TX13/RX13 support latency measurement. Ports TX6/RX6, TX8/RX8, TX12/RX12 and TX14/RX14 do not support latency measurement.
  • When the board receives FC100 Trunk-4/FC200 Trunk-4/FC400 Trunk-4/FC800 Trunk-4/FC1200 Trunk-4/FC1600 Trunk-4 services,
    • A maximum of two Trunk-4 services are supported, and each service needs to use a combination of four client-side ports, which are ports TX5/RX5 to TX8/RX8 or ports TX11/RX11 to TX14/RX14.
    • Ports TX5/RX5 and TX11/RX11 support latency measurement. Ports TX6/RX6 to TX8/RX8 and TX12/RX12 to TX14/RX14 do not support latency measurement.
  • When the board receives FC100 Trunk-8/FC200 Trunk-8/FC400 Trunk-8/FC800 Trunk-8/FC1200 Trunk-8 services,
    • Only one Trunk-8 services are supported, and each service needs to use a combination of eight client-side ports, which are ports TX3/RX3 to TX10/RX10.
    • Ports TX3/RX3 support latency measurement. Ports TX4/RX4 to TX10/RX10 do not support latency measurement.
Channel loopback When a client-side port accesses 4 x 10GE signals, channel loopback is supported.
Port loopback
  • Supports the client-side inloop and outloop.
  • Supports the client-side ODUk inloop and outloop.
  • Supports the WDM-side inloop and outloop.
NOTE:
  • Client-side loopback is not supported when the port accesses 4 x 10GE LAN signals.
  • When the line-side rate is 100 Gbit/s and 100GE/OTU4 services are received on the client side, the board does not support WDM-side port loopback.
  • When no cross-connection is configured on a client-side port, inloops cannot be configured on the client-side port.
  • When the board receives FC100 Trunk-2/FC200 Trunk-2/FC400 Trunk-2/FC800 Trunk-2/FC1200 Trunk-2/FC1600 Trunk-2/FC3200 Trunk-2 services,
    • A maximum of four Trunk-2 services are supported, and each service needs to use a combination of two client-side ports, which are ports TX5/RX5 to TX6/RX6, ports TX7/RX7 to TX8/RX8, ports TX11/RX11 to TX12/RX12 or ports TX13/RX13 to TX14/RX14.
    • Ports TX5/RX5, TX7/RX7, TX11/RX11 and TX13/RX13 support client-side inloops and outloops. Ports TX6/RX6, TX8/RX8, TX12/RX12 and TX14/RX14 support only outloops. An outloop can be configured for only one port in the same group.
  • When the board receives FC100 Trunk-4/FC200 Trunk-4/FC400 Trunk-4/FC800 Trunk-4/FC1200 Trunk-4/FC1600 Trunk-4 services,
    • A maximum of two Trunk-4 services are supported, and each service needs to use a combination of four client-side ports, which are ports TX5/RX5 to TX8/RX8 or ports TX11/RX11 to TX14/RX14.
    • Ports TX5/RX5 and TX11/RX11 support client-side inloops and outloops. Ports TX6/RX6 to TX8/RX8 and TX12/RX12 to TX14/RX14 support only outloops. An outloop can be configured for only one port in the same group.
  • When the board receives FC100 Trunk-8/FC200 Trunk-8/FC400 Trunk-8/FC800 Trunk-8/FC1200 Trunk-8 services,
    • Only one Trunk-8 services are supported, and each service needs to use a combination of eight client-side ports, which are ports TX3/RX3 to TX10/RX10.
    • Ports TX3/RX3 support client-side inloops and outloops. Ports TX4/RX4 to TX10/RX10 support only outloops. An outloop can be configured for only one port in the same group.
  • The client-side ODUk inloop and outloop cannot be configured for ports configured with FC Trunk services.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of CD and PMD performance.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.

Functions and Features of the TNG1M520S Board (Regeneration)
Basic function Applies to electrical regeneration sites to provide the electrical regeneration function for optical signals.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU4
  • OTUC2
WDM specification Supports the DWDM specifications.
Tunable wavelength When a wavelength-tunable optical module is configured, WDM-side optical signals are tunable in Super C band (1524 nm to 1573 nm).
FEC coding
  • SDFEC2
  • SDFEC
  • SDFEC-M
  • SDFEC4
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
  • 200G e16QAM
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G QPSK
  • 200G m16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • Others modulation format: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Uses the frame formats and overhead processing methods defined in ITU-T G.709.
OTN overhead
  • 200G regeneration:
    • ODUC2 layer: supports PM and TCM overhead processing.
    • OTUC2 layer: supports SM overhead processing.
  • 100G regeneration:
    • ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
    • OTU4 layer: supports SM overhead processing.
Optical-layer ASON Supported
NOTE:
For the WDM-side A15/A24 optical module, the receive and transmit wavelengths must be the same.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supported
Test frame Not supported.
PRBS Not supported.
Port loopback Not supported.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of CD and PMD performance.
  • Supports the monitoring of the bias current of the laser.
  • Supports the monitoring of the temperature of the laser.
  • Supports the monitoring of the optical power.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 2.30 kg
  • 5.07 lb.

Reviews

There are no reviews yet.

Be the first to review “TNG1M520S”

Your email address will not be published. Required fields are marked *

Related products

JL002A-1
Quick view
Categories:

JL002A

R.F.Q
SKU2011929
Quick view
Categories:

EX4400-48P

R.F.Q
SKU2011533
J9535A-1
Quick view
Categories:

J9535A

R.F.Q
SKU2011970
J9534A-1
Quick view
Categories:

J9534A

R.F.Q
SKU2011973
JL324A-1
Quick view
Categories:

JL324A

R.F.Q
PNJL324A
J9536A-1
Quick view
Categories:

J9536A

R.F.Q
SKU2011969
Main Menu
Back to Top

Search For Products

Popular
Product has been added to your cart
