Description

TNG1T212 overview

Huawei OptiX OSN 9800 board TNG1T212 12*10 Gbit/s Tributary Service Processing Board.

The T212 board is an OTN tributary board that supports the hybrid transmission of ODU0, ODU1, ODU2(e), and ODUflex signals. In the 1:1 mode, it supports a maximum access capability of 100 Gbit/s services; in the 1:3 mode, it supports a maximum access capability of 120 Gbit/s services.

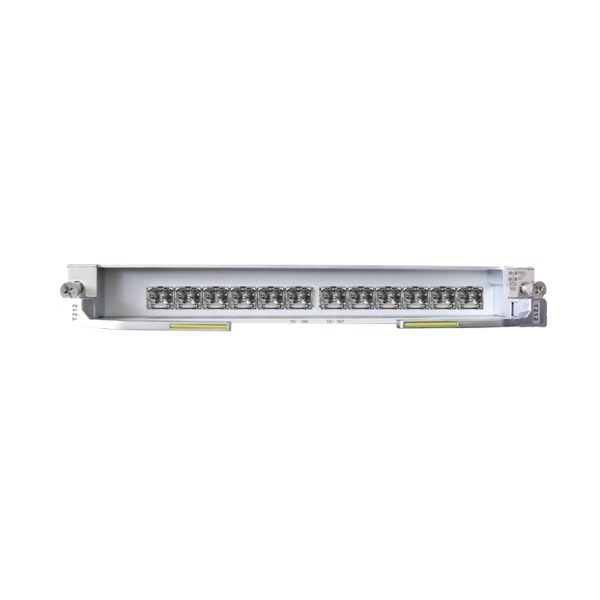

Appearance of the TNG1T212

TNG1T212

Valid slots

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Item
TNG1T212
Backplane capacity The total bandwidth is 120 Gbit/s.
NOTE:
In the 1:1 mode, supports the cross-connection of up to 100 Gbit/s ODUk signals. In the 1:3 mode, supports the cross-connection of up to 120 Gbit/s ODUk signals.
Client-side service type SDH service:
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDH service at a rate of 9.95 Gbit/s
SONET service:
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
Ethernet service:
  • FE: Ethernet service at a rate of 125 Mbit/s
  • GE: Ethernet service at a rate of 1.25 Gbit/s.
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
OTN service:
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
SAN service:
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FICON4G: SAN service at a rate of 4.25 Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FICON8G: SAN service at a rate of 8.5 Gbit/s
  • FICON10G: SAN service at a rate of 10.51 Gbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
Video service:
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
NOTE:
Supports FE optical signals. Supports GE optical signals and GE electrical signals.
Service mapping mode
  • Supports encapsulating GE services into GE (TTT-GMP) or GE (GFP-T) services.
  • Supports encapsulating 10GE LAN services into bit transparent mapping (11.1G) or MAC transparent mapping (10.7G) services.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU1/OTU2 layer: supports SM overhead processing.
NOTE:
Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Supported on the client side when FE/GE/10GE LAN services are received.
NOTE:
The port equipped with an electrical module does not support LPT.
Client 1+1 protection Supported
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
The board supports tributary SNCP protection only when the client-side service type is OTN, SDH or SONET.
Electrical-layer ASON Supported
L1 Service Encryption Supported
NOTE:
Supports setting the encryption function by port. When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS Supported on the client side when non-OTN services are received.
LLDP Not supported
Physical clock
  • Supports synchronous Ethernet processing when receiving GE(GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
  • Supports synchronous Ethernet transparent transmission when receiving GE(TTT-GMP)/10GE LAN(Bit Transparent Mapping(11.1G)) services on the client side.
NOTE:
The port equipped with an electrical module does not support synchronous Ethernet processing and synchronous Ethernet transparent transmission.
IEEE 1588v2 Supported
NOTE:
  • The board supports the TC, TC+OC, BC, and OC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support IEEE 1588v2.
ITU-T G.8275.1 Supported
NOTE:
  • The board supports the BC mode when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support ITU-T G.8275.1.
ITU-T G.8273.2 Supported
Outband DCN Supported communication over ESCs when the client-side service type is OTU1/OTU2/OTU2e.
Test frame Supported
NOTE:
  • Supports this function only in ODU1 convergence mode when receiving FE services on the client side.
  • Supports this function when receiving GE (GFP-T) services on the client side.
  • Supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
PRBS Supported
NOTE:
  • A maximum of three ports on a TNG1T206 board support PRBS testing.
  • When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction.
  • The PRBS function on the client side is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2 or OTU2e.
Delay measurement Supported
NOTE:
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Supports inloops and outloops on channels.
NOTE:
ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback. For details.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item
TNG1T212
Backplane capacity The total bandwidth is 120 Gbit/s.
NOTE:
In the 1:1 mode, supports the cross-connection of up to 100 Gbit/s ODUk signals. In the 1:3 mode, supports the cross-connection of up to 120 Gbit/s ODUk signals.
Client-side service type SDH service:
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDH service at a rate of 9.95 Gbit/s
SONET service:
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
Ethernet service:
  • FE: Ethernet service at a rate of 125 Mbit/s
  • GE: Ethernet service at a rate of 1.25 Gbit/s.
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
OTN service:
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
SAN service:
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FICON4G: SAN service at a rate of 4.25 Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FICON8G: SAN service at a rate of 8.5 Gbit/s
  • FICON10G: SAN service at a rate of 10.51 Gbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
Video service:
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
NOTE:
Supports FE optical signals. Supports GE optical signals and GE electrical signals.
Service mapping mode
  • Supports encapsulating GE services into GE (TTT-GMP) or GE (GFP-T) services.
  • Supports encapsulating 10GE LAN services into bit transparent mapping (11.1G) or MAC transparent mapping (10.7G) services.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU1/OTU2 layer: supports SM overhead processing.
NOTE:
Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Supported on the client side when FE/GE/10GE LAN services are received.
NOTE:
The port equipped with an electrical module does not support LPT.
Client 1+1 protection Supported
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
The board supports tributary SNCP protection only when the client-side service type is OTN, SDH or SONET.
Electrical-layer ASON Supported
L1 Service Encryption Supported
NOTE:
Supports setting the encryption function by port. When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS Supported on the client side when non-OTN services are received.
LLDP Not supported
Physical clock
  • Supports synchronous Ethernet processing when receiving GE(GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
  • Supports synchronous Ethernet transparent transmission when receiving GE(TTT-GMP)/10GE LAN(Bit Transparent Mapping(11.1G)) services on the client side.
NOTE:
The port equipped with an electrical module does not support synchronous Ethernet processing and synchronous Ethernet transparent transmission.
IEEE 1588v2 Supported
NOTE:
  • The board supports the TC, TC+OC, BC, and OC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support IEEE 1588v2.
ITU-T G.8275.1 Supported
NOTE:
  • The board supports the BC mode when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support ITU-T G.8275.1.
ITU-T G.8273.2 Supported
Outband DCN Supported communication over ESCs when the client-side service type is OTU1/OTU2/OTU2e.
Test frame Supported
NOTE:
  • Supports this function only in ODU1 convergence mode when receiving FE services on the client side.
  • Supports this function when receiving GE (GFP-T) services on the client side.
  • Supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
PRBS Supported
NOTE:
  • A maximum of three ports on a TNG1T206 board support PRBS testing.
  • When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction.
  • The PRBS function on the client side is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2 or OTU2e.
Delay measurement Supported
NOTE:
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Supports inloops and outloops on channels.
NOTE:
ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback. For details.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
