Huawei OptiX OSN 9800 TNG1TPSE Two TNG2PD1 boards and one TNG1DMSE board work together to provide tributary protection switching (TPS)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG1TPSE overview



TNG1TPSE Two TNG2PD1 boards and one TNG1DMSE board work together to provide tributary protection switching (TPS) applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG1TPSE board has only one variant, that is TNG1TPSE.

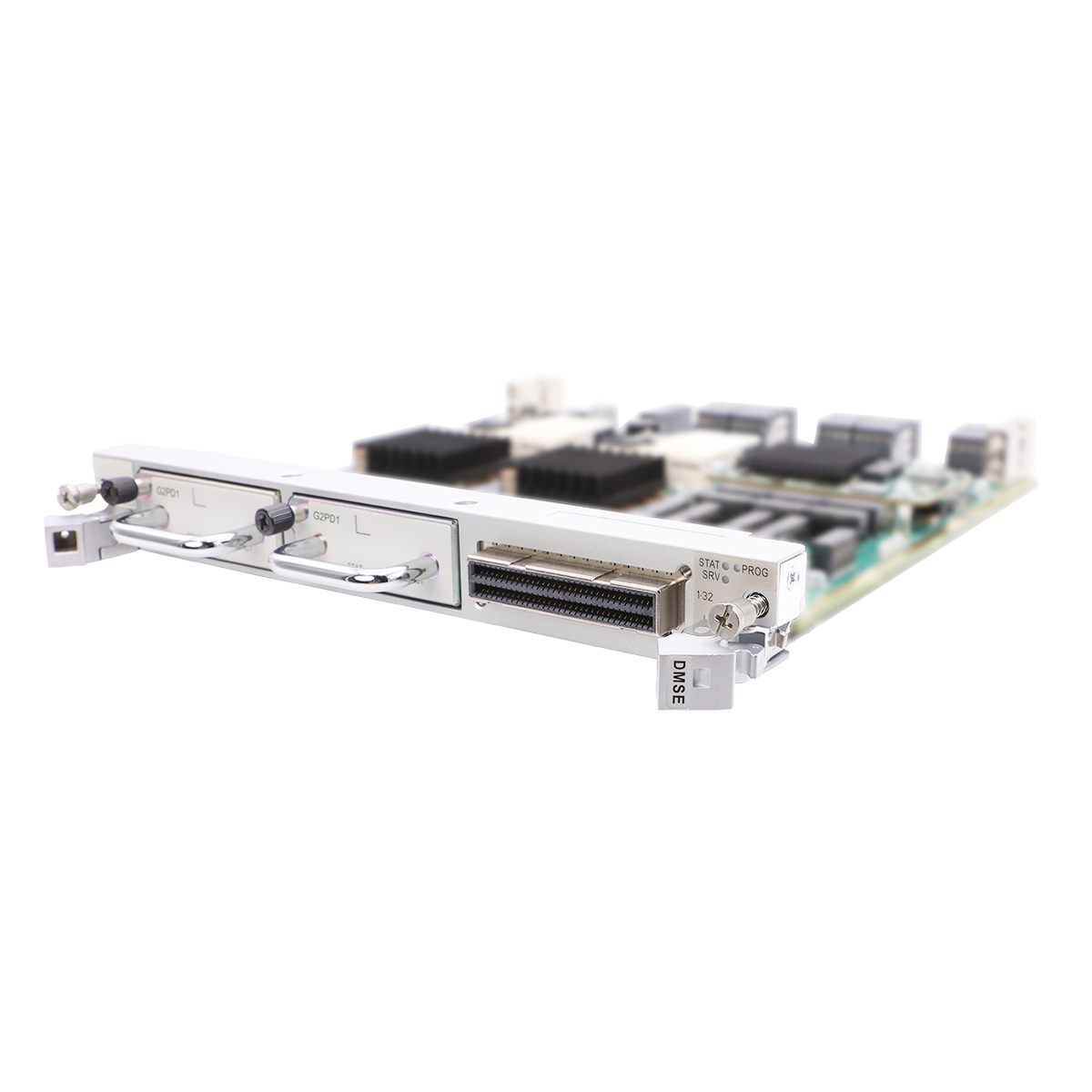

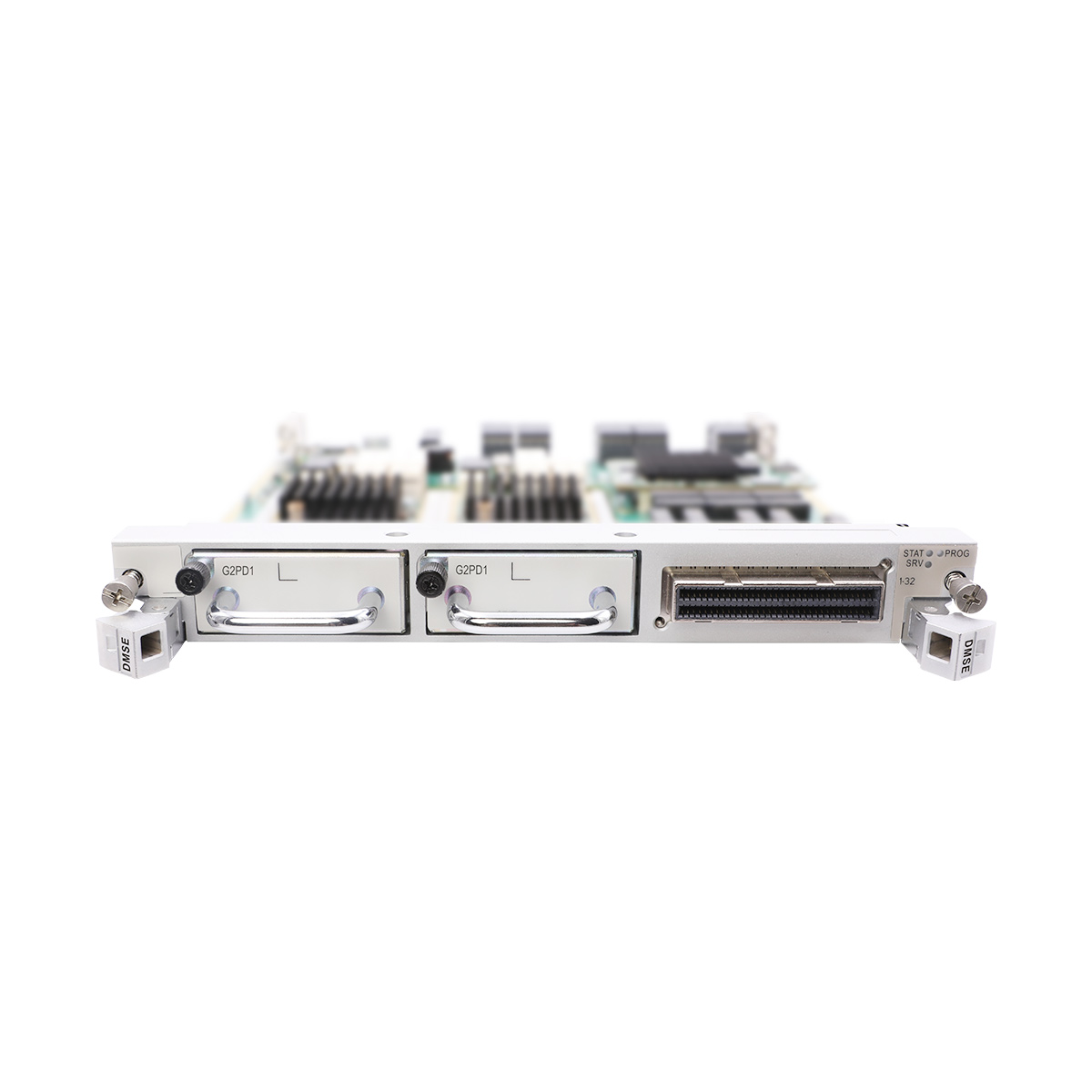

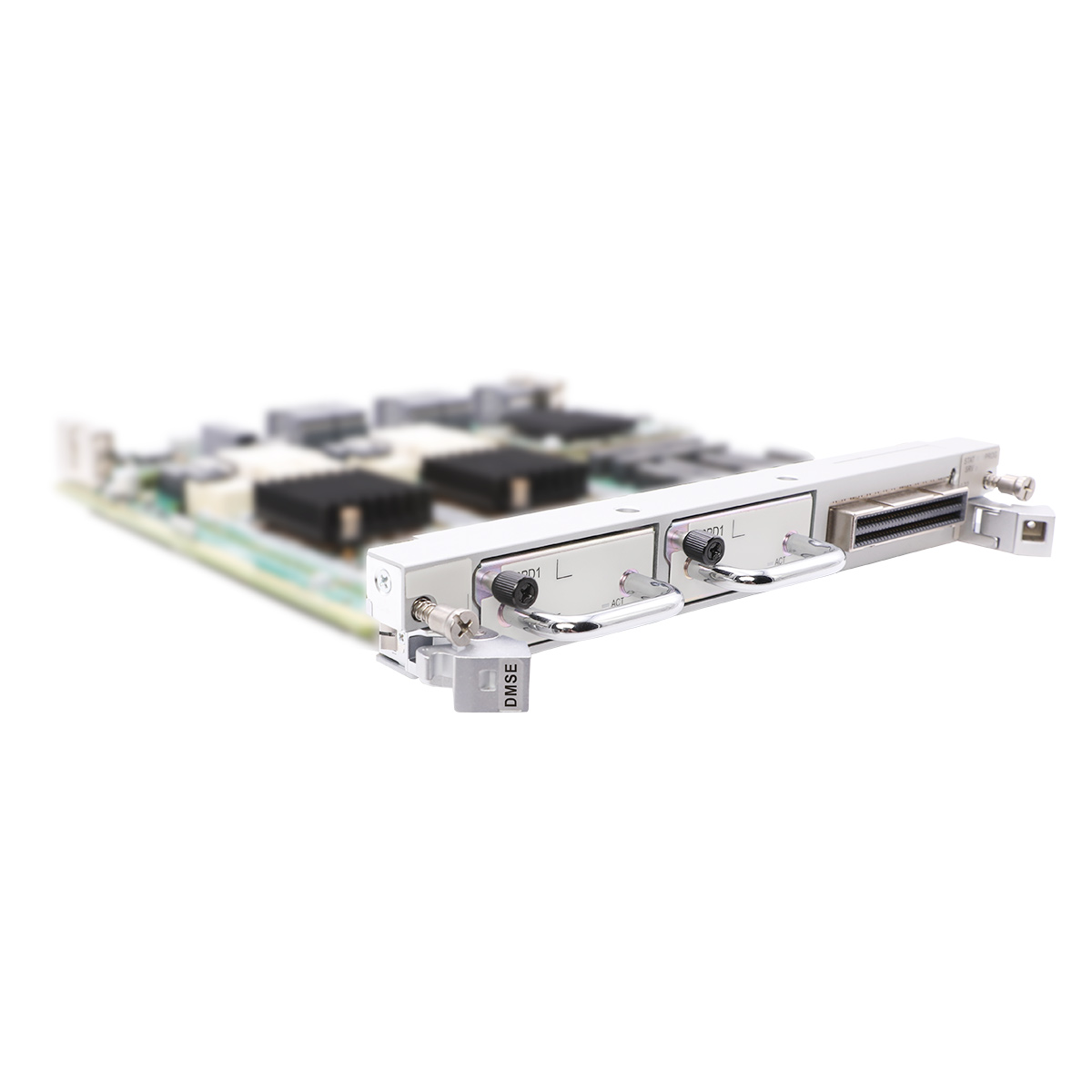

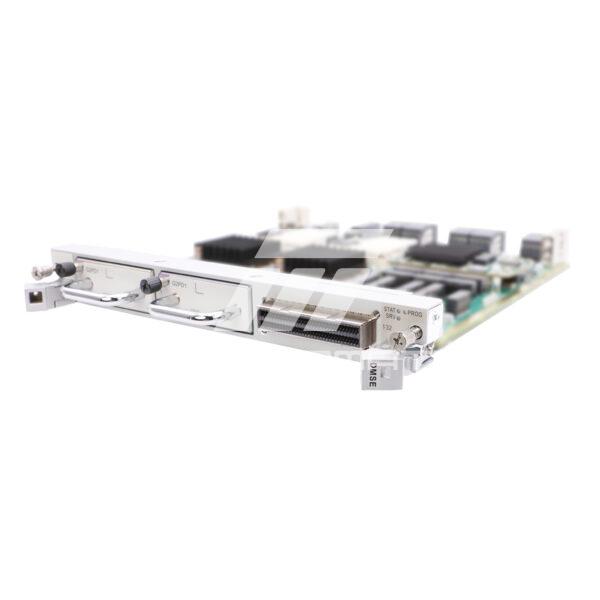

Front panel of the TNG1TPSE board

TNG1TPSE

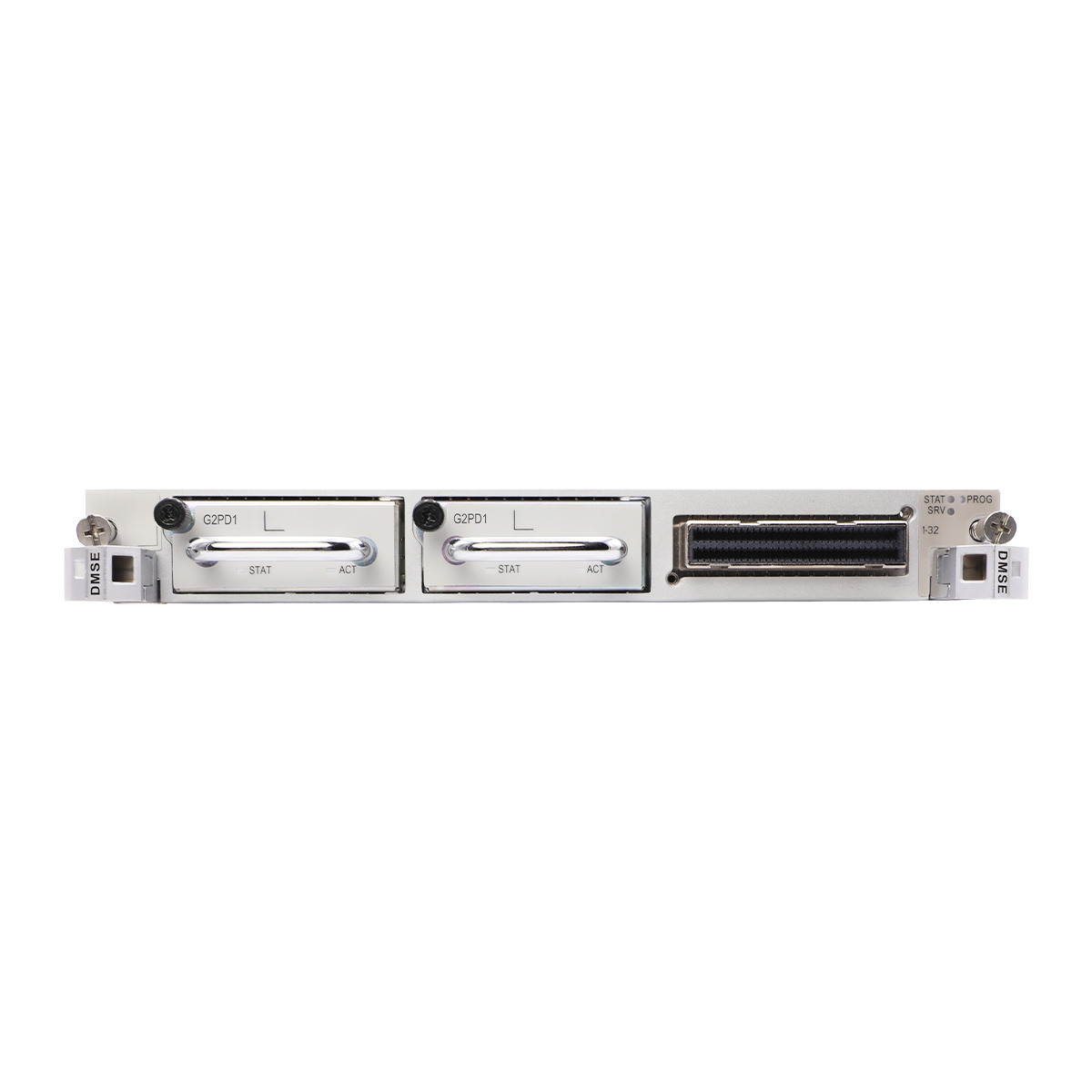

Front panel of the TNG1TPSE board



Valid slots for the TNG1TPSE board in a M24 subrack

Device Logical slots for the PD1 (primary, secondary) Slot Valid for the DMSE
OptiX OSN 9800 M24 subrack 142, 190 IU1
153, 201 IU12
154, 202 IU13
159, 207 IU24



Item TNG1TPSE
Basic function Receives, transmits, and processes 32 channels of E1 signals.
Overhead processing Processes path overheads at the VC-12 level such as J2 and V5.
Port specifications Supports thirty-two 75 Ω/120 Ω E1 ports.
TPS Supported
PRBS Supported
Reset Supports warm reset and cold reset.
Manufacturer information querying Supported
Hot swapping Supported
Port loopback Supports inloops and outloops at electrical ports.
2M ASON Supported
Tributary clock sources DMSE:
  • Supports source selection for E1 clocks.
PD1:
  • Supports input of tributary clocks.
  • Extracts clock signals from the first and seventeenth channels, the first and seventeenth channels correspond to the first and second channels on the NCE.
  • Supports E1 retiming.
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.66 kg
  • 3.66 lb.

Additional information

Item TNG1TPSE
Basic function Receives, transmits, and processes 32 channels of E1 signals.
Overhead processing Processes path overheads at the VC-12 level such as J2 and V5.
Port specifications Supports thirty-two 75 Ω/120 Ω E1 ports.
TPS Supported
PRBS Supported
Reset Supports warm reset and cold reset.
Manufacturer information querying Supported
Hot swapping Supported
Port loopback Supports inloops and outloops at electrical ports.
2M ASON Supported
Tributary clock sources DMSE:
  • Supports source selection for E1 clocks.
PD1:
  • Supports input of tributary clocks.
  • Extracts clock signals from the first and seventeenth channels, the first and seventeenth channels correspond to the first and second channels on the NCE.
  • Supports E1 retiming.
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.66 kg
  • 3.66 lb.
