Huawei OptiX OSN 9800 TNG2A212 12*10G Any Service Processing General Board(OTN Tributary,OTN and SDH Mixed Line,SDH Line)

Description

TNG2A212 overview



TNG2A212 12*10G Any Service Processing General Board(OTN Tributary,OTN and SDH Mixed Line,SDH Line) applied to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG2A212 board has two variants:TNG2A212S01 and TNG2A212S06. The two variants are interchangeable.

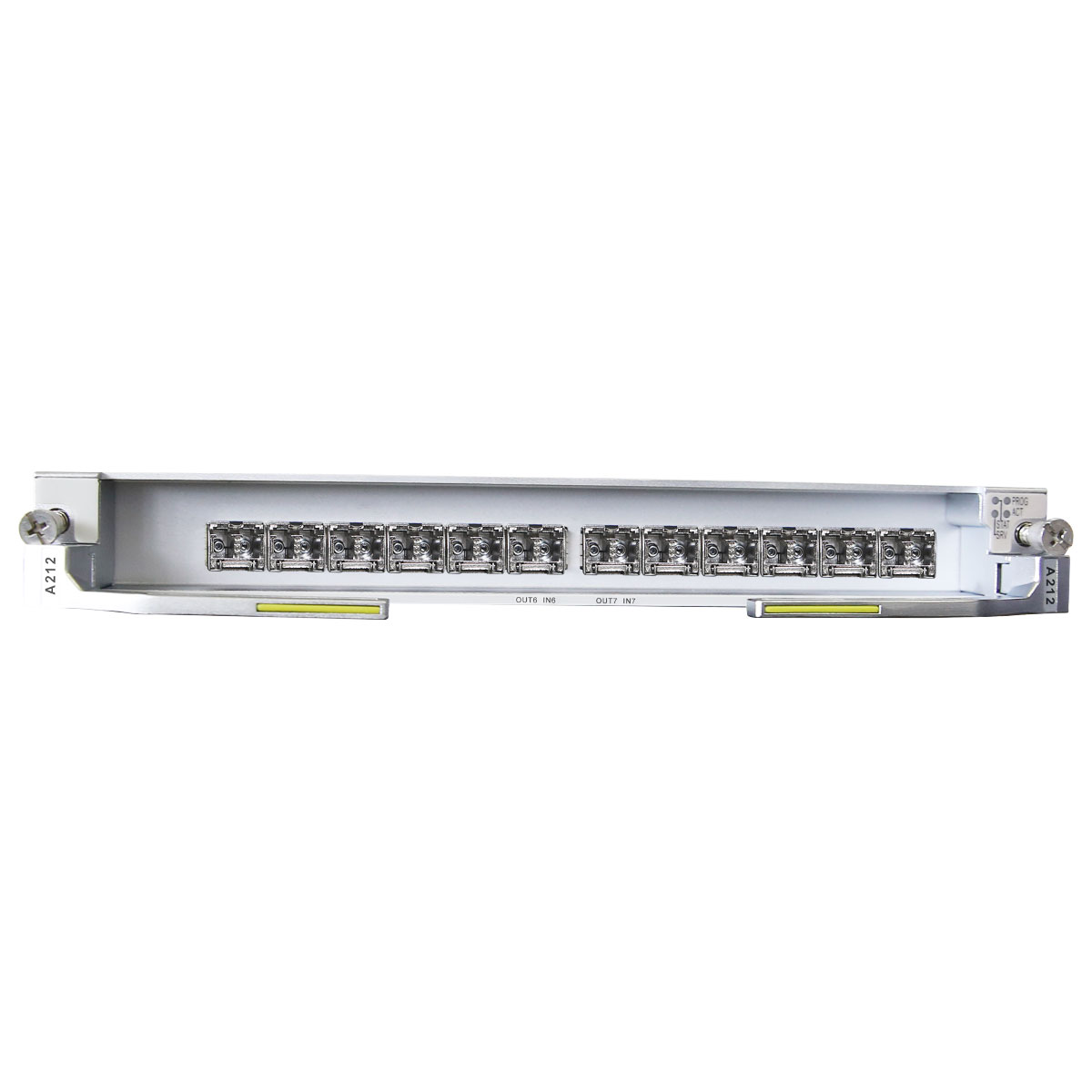

Front panel of the TNG2A212 board

TNG2A212

Front panel of the TNG2A212 board



Valid slots for the TNG2A212 board in a  M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU13 IU1 to IU13
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Item TNG2A212
Backplane capacity
  • In the 1:1 mode, supports the cross-connection of up to 100 Gbit/s ODUk signals.
  • In the 1:3 mode, supports the cross-connection of up to 120 Gbit/s ODUk signals.
Client-side service type
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDHservice at a rate of 9.95 Gbit/s
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
  • FE: Ethernet service at a rate of 125 Mbit/s
  • GE: Ethernet service at a rate of 1.25 Gbit/s.
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FICON 4G: SAN service at a rate of 4.25 Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FICON 8G: SAN service at a rate of 8.5 Gbit/s
  • FICON 10G: SAN service at a rate of 10.51 Gbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
Service mapping mode
  • Supports encapsulating 10GE LAN services into bit transparent mapping (11.1G) or MAC transparent mapping (10.7G) services.
  • Supports encapsulation of GE services in GE(GFP-T) or GE(TTT-GMP).
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
OTN overhead
  • ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU1/OTU2 layer: supports SM overhead processing.
  • ODUflex layer: supports PM overhead processing.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Supported on the client side when FE/GE/10GE LAN services are received.
NOTE:
The port equipped with an electrical module does not support LPT.
Client 1+1 protection Supported
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
The board supports tributary SNCP protection only when the client-side service type is OTN, SDH, SONET or 10G WAN.
Electrical-layer ASON Supported
L1 service encryption Supported
NOTE:
When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS Supported on the client side when non-OTN services are received.
NOTE:
The port equipped with an electrical module does not support ALS.
LLDP Not Supported
Physical clock
  • When receiving GE(GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side, the board can support synchronous Ethernet processing.
  • When receiving GE(TTT-GMP)/10GE LAN(Bit Transparent Mapping(11.1G)) services on the client side, the board can support synchronous Ethernet transparent transmission.
NOTE:
The port equipped with an electrical module does not support synchronous Ethernet transparent transmission or synchronous Ethernet processing.
IEEE 1588v2 Supported
NOTE:
  • Supports the TC, TC+OC, BC, and OC modes when receiving GE (GFP-T)/10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
  • The port equipped with an electrical module does not support IEEE 1588v2.
ITU-T G.8275.1 Supported
NOTE:
  • The board supports the BC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support ITU-T G.8275.1.
ITU-T G.8273.2 Supported
Outband DCN Supported communication over ESCs when the client-side service type is OTU1/OTU2/OTU2e.
Test frame Support test frames when receiving FE/GE (GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
NOTE:
Supports this function only in ODU1 convergence mode when receiving FE services on the client side.
PRBS Support the PRBS test function on the client side only when receiving STM-1/OC–3, STM-4/OC-12, STM-16/OC-48, STM-64/OC-192, OTU2, OU2e or OTU1 services.
NOTE:
A maximum of three ports on a G220 board support PRBS testing.When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Supports inloops and outloops on channels.
NOTE:
ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the remote monitoring (RMON) of Ethernet services.

Functions and Features of the TNG2A212 Board (OTN Line)

Backplane capacity The total backplane bandwidth is 100 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
FEC coding FEC, AFEC-2
Line modulation format NRZ
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU2 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction):
  • When higher-order cross-connections are created on the line board, TCM section latency measurement is supported for higher-order channels.
  • When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback ODUk (k=0, 1, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.

Functions and Features of the TNG2A212 Board (SDH)

Backplane capacity The total backplane bandwidth is 40 Gbit/s.
Service processing Supports the VC-12, VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
Overhead processing
  • Processes the section overheads of STM-n (n=1, 4, 16, 64) signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • A maximum of eight ports support DCC transparent transmission. The transparent transmission bytes are D1-D3 and D4-D12.
SDH SNCP Supported
Linear MSP Supported
Ring MSP
  • Supports two-fiber bidirectional ring MSP
  • Supports four-fiber bidirectional ring MSP
SDH ASON Supported
ALS Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC-3, VC-4, and VC-12 channel loopbacks.
Port loopback
  • Supports optical port inloops and outloops.
  • Supports VP inloops and outloops.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNG2A212 Board (Regeneration)

Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU2
  • OTU2e
WDM specification Supports the DWDM specifications.
Tunable wavelength
  • Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
  • Supports tunable wavelength optical modules that provide for 40 wavelengths tunable in the C band with 100 GHz channel spacing
FEC coding FEC, AFEC-2
Line modulation format NRZ
OTN overhead
  • WDM-side OTU2 layer: supports SM overhead processing.
  • ODU2 layer: supports PM and TCM overhead processing.
  • ODU2 layer: supports non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.60 kg
  • 3.53 lb.

Additional information

Item TNG2A212
Backplane capacity
  • In the 1:1 mode, supports the cross-connection of up to 100 Gbit/s ODUk signals.
  • In the 1:3 mode, supports the cross-connection of up to 120 Gbit/s ODUk signals.
Client-side service type
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDHservice at a rate of 9.95 Gbit/s
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
  • FE: Ethernet service at a rate of 125 Mbit/s
  • GE: Ethernet service at a rate of 1.25 Gbit/s.
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FICON 4G: SAN service at a rate of 4.25 Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FICON 8G: SAN service at a rate of 8.5 Gbit/s
  • FICON 10G: SAN service at a rate of 10.51 Gbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
Service mapping mode
  • Supports encapsulating 10GE LAN services into bit transparent mapping (11.1G) or MAC transparent mapping (10.7G) services.
  • Supports encapsulation of GE services in GE(GFP-T) or GE(TTT-GMP).
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
OTN overhead
  • ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU1/OTU2 layer: supports SM overhead processing.
  • ODUflex layer: supports PM overhead processing.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Supported on the client side when FE/GE/10GE LAN services are received.
NOTE:
The port equipped with an electrical module does not support LPT.
Client 1+1 protection Supported
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
The board supports tributary SNCP protection only when the client-side service type is OTN, SDH, SONET or 10G WAN.
Electrical-layer ASON Supported
L1 service encryption Supported
NOTE:
When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS Supported on the client side when non-OTN services are received.
NOTE:
The port equipped with an electrical module does not support ALS.
LLDP Not Supported
Physical clock
  • When receiving GE(GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side, the board can support synchronous Ethernet processing.
  • When receiving GE(TTT-GMP)/10GE LAN(Bit Transparent Mapping(11.1G)) services on the client side, the board can support synchronous Ethernet transparent transmission.
NOTE:
The port equipped with an electrical module does not support synchronous Ethernet transparent transmission or synchronous Ethernet processing.
IEEE 1588v2 Supported
NOTE:
  • Supports the TC, TC+OC, BC, and OC modes when receiving GE (GFP-T)/10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
  • The port equipped with an electrical module does not support IEEE 1588v2.
ITU-T G.8275.1 Supported
NOTE:
  • The board supports the BC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support ITU-T G.8275.1.
ITU-T G.8273.2 Supported
Outband DCN Supported communication over ESCs when the client-side service type is OTU1/OTU2/OTU2e.
Test frame Support test frames when receiving FE/GE (GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
NOTE:
Supports this function only in ODU1 convergence mode when receiving FE services on the client side.
PRBS Support the PRBS test function on the client side only when receiving STM-1/OC–3, STM-4/OC-12, STM-16/OC-48, STM-64/OC-192, OTU2, OU2e or OTU1 services.
NOTE:
A maximum of three ports on a G220 board support PRBS testing.When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Supports inloops and outloops on channels.
NOTE:
ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the remote monitoring (RMON) of Ethernet services.

Functions and Features of the TNG2A212 Board (OTN Line)

Backplane capacity The total backplane bandwidth is 100 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
FEC coding FEC, AFEC-2
Line modulation format NRZ
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU2 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction):
  • When higher-order cross-connections are created on the line board, TCM section latency measurement is supported for higher-order channels.
  • When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback ODUk (k=0, 1, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.

Functions and Features of the TNG2A212 Board (SDH)

Backplane capacity The total backplane bandwidth is 40 Gbit/s.
Service processing Supports the VC-12, VC-3, VC-4 services, VC-4-4c concatenation services, VC-4-16c concatenation services, and VC-4-64c concatenation services.
Overhead processing
  • Processes the section overheads of STM-n (n=1, 4, 16, 64) signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • A maximum of eight ports support DCC transparent transmission. The transparent transmission bytes are D1-D3 and D4-D12.
SDH SNCP Supported
Linear MSP Supported
Ring MSP
  • Supports two-fiber bidirectional ring MSP
  • Supports four-fiber bidirectional ring MSP
SDH ASON Supported
ALS Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC-3, VC-4, and VC-12 channel loopbacks.
Port loopback
  • Supports optical port inloops and outloops.
  • Supports VP inloops and outloops.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNG2A212 Board (Regeneration)

Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU2
  • OTU2e
WDM specification Supports the DWDM specifications.
Tunable wavelength
  • Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.
  • Supports tunable wavelength optical modules that provide for 40 wavelengths tunable in the C band with 100 GHz channel spacing
FEC coding FEC, AFEC-2
Line modulation format NRZ
OTN overhead
  • WDM-side OTU2 layer: supports SM overhead processing.
  • ODU2 layer: supports PM and TCM overhead processing.
  • ODU2 layer: supports non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.60 kg
  • 3.53 lb.

Reviews

There are no reviews yet.

Be the first to review “TNG2A212”

Your email address will not be published. Required fields are marked *

Back to Top

Search For Products

Product has been added to your cart
