Huawei OptiX OSN 9800 TNG2M60 60-channel multiplexing board (Super C-band)

Description

TNG2M60 overview



TNG2M60 60-channel multiplexing board (Super C-band) applied to Huawei OptiX OSN 9800 M24/M12/M05.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG3D48 board has two variants: TNG2M6001 and TNG2M6002.

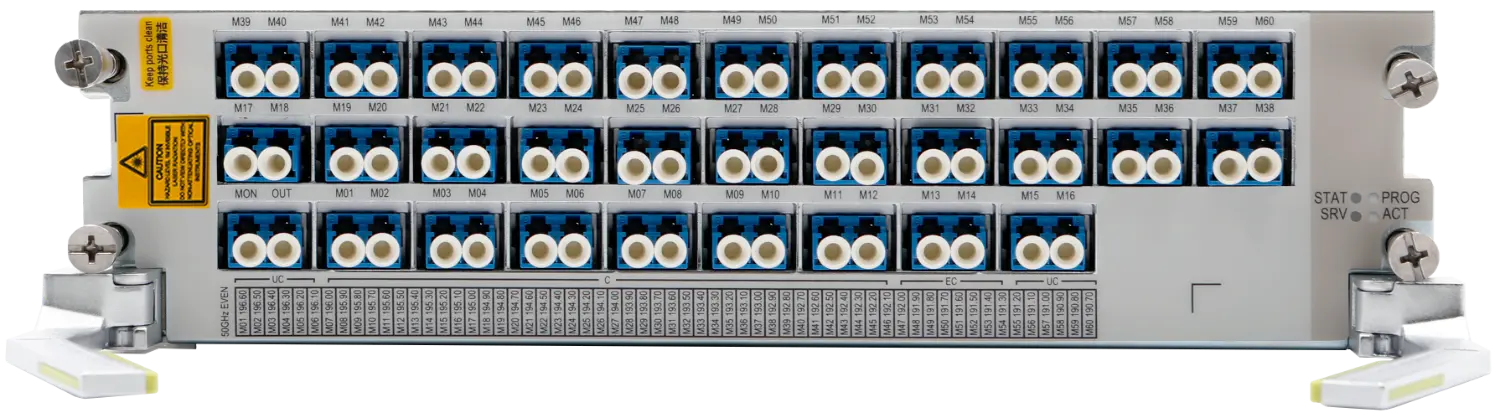

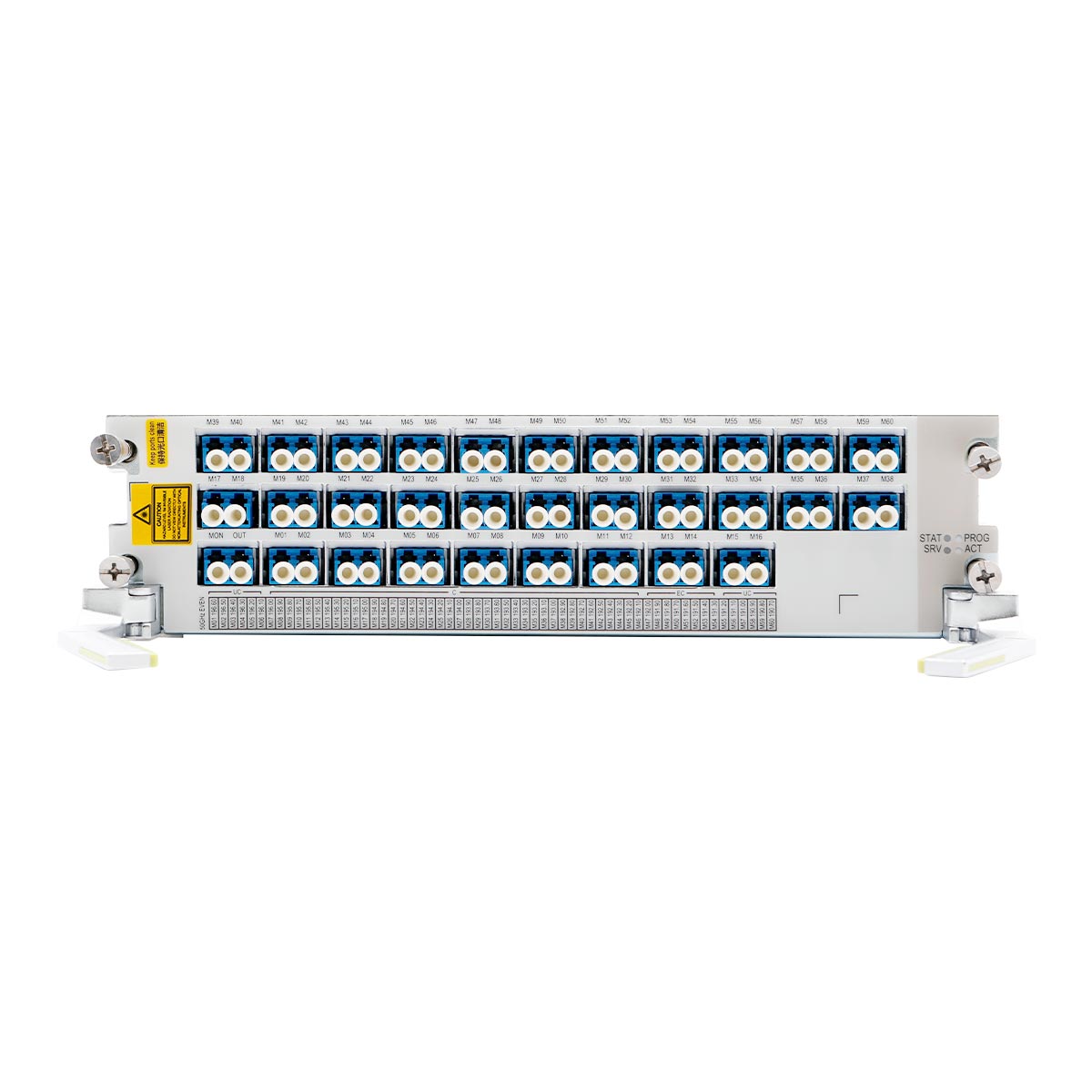

Front panel of the TNG2M6001 board

TNG2M6001

Front panel of the TNG2M6001 board

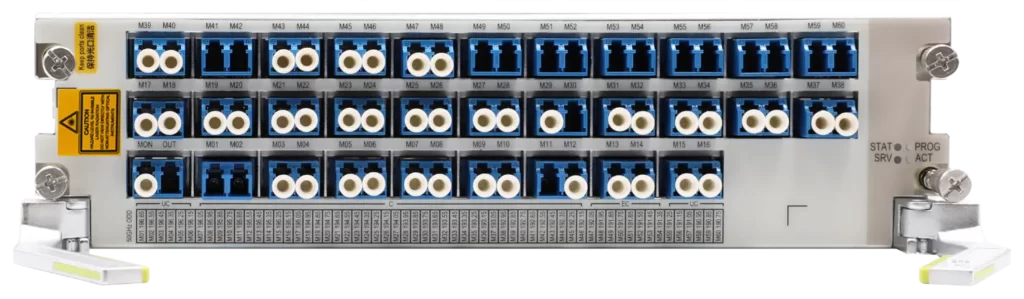

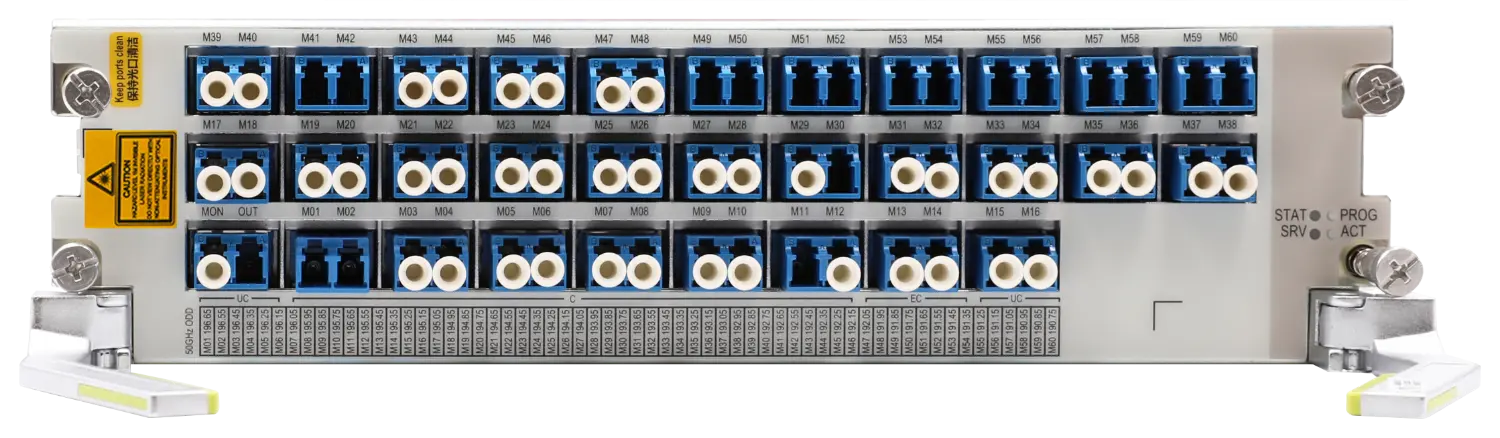

Front panel of the TNG2M6002 board

TNG2M6002

Front panel of the TNG2M6002 board



Valid slots for the TNG2M60 board in a M24/M12/M05 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
OptiX OSN 9800 M12 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
(IU5, IU6) IU5
(IU6, IU7) IU6
(IU7, IU8) IU7
(IU8, IU9) IU8
(IU9, IU10) IU9
(IU10, IU11) IU10
(IU11, IU12) IU11
(IU12, IU13) IU12
OptiX OSN 9800 M24 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
(IU5, IU6) IU5
(IU7, IU8) IU7
(IU8, IU9) IU8
(IU9, IU10) IU9
(IU10, IU11) IU10
(IU11, IU12) IU11
(IU13, IU14) IU13
(IU14, IU15) IU14
(IU15, IU16) IU15
(IU16, IU17) IU16
(IU17, IU18) IU17
(IU19, IU20) IU19
(IU20, IU21) IU20
(IU21, IU22) IU21
(IU22, IU23) IU22
(IU23, IU24) IU23



Item TNG2M60
Basic function
  • M60 board: multiplexes a maximum of 60 wavelength signals into one multi-wavelength signal.
  • M6001: multiplexes 60 channels of even-wavelength optical signals with a fixed channel spacing of 100 GHz into one multi-wavelength signal.
  • M6002: multiplexes 60 channels of odd-wavelength optical signals with a fixed channel spacing of 100 GHz into one multi-wavelength signal.
WDM specification Supports the DWDM specifications.
Spectrum application Supports super C-band.
Online optical performance monitoring Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Optical-layer ASON Supported
Optical power adjustment Not supported
Alarm and performance event monitoring Detects the optical power and reports the alarms and performance events for the board.
Dimensions (H x W x D)
  • 237.10 × 61.00 × 220.00 (mm)
  • 9.34 × 2.40 × 8.67 (in.)
Weight
  • 2.10 kg
  • 4.63 lb.

Additional information

Item TNG2M60
Basic function
  • M60 board: multiplexes a maximum of 60 wavelength signals into one multi-wavelength signal.
  • M6001: multiplexes 60 channels of even-wavelength optical signals with a fixed channel spacing of 100 GHz into one multi-wavelength signal.
  • M6002: multiplexes 60 channels of odd-wavelength optical signals with a fixed channel spacing of 100 GHz into one multi-wavelength signal.
WDM specification Supports the DWDM specifications.
Spectrum application Supports super C-band.
Online optical performance monitoring Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Optical-layer ASON Supported
Optical power adjustment Not supported
Alarm and performance event monitoring Detects the optical power and reports the alarms and performance events for the board.
Dimensions (H x W x D)
  • 237.10 × 61.00 × 220.00 (mm)
  • 9.34 × 2.40 × 8.67 (in.)
Weight
  • 2.10 kg
  • 4.63 lb.
