Description

TNG2M604SM overview



TNG2M604SM 4 x 100Gbit/s Service Multiplexing Into 1 x 400G/200G Programable Wavelength Conversion Board applied to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG1M520SM board has two variants: TNG2M604SMT32 and TNG2M604SMT33.

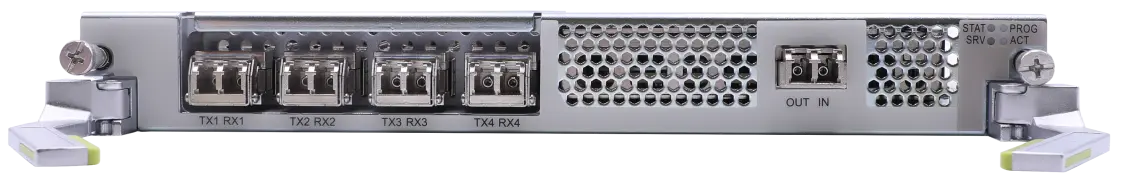

Front panel of the TNG2M604SM board

TNG2M604SM

Front panel of the TNG2M604SM board



Valid slots for the TNG2M604SM board in a  M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU13 IU1 to IU13
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Show More Show Less
Item TNG2M604SM
Basic function The board can convert client-side services into OTU signals,the client-side service supports hybrid transmission of different services, for details about the service types, number of channels, and mapping paths supported by different ports, see Applications.
Client-side service type
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • 40GE: Ethernet service at a rate of 41.25 Gbit/s
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Service mapping mode
  • 40GE service: Supports (TTT+GMP) mapping.
  • 10GE LAN service: Supports GFP-F/(IMP+BMP) mapping.
  • 100GE service: Supports GMP/GFP-F mapping.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • Client side: Supports FEC coding when the client-side service type is OTU4.
  • Client side: Supports RS_FEC coding when the client-side service type is 100GE.
  • WDM side: Supports SDFEC2 coding.
Line modulation format
  • 200G QPSK wDCM
  • 200G QPSK
  • 400G 16QAM
Typical channel spacing
  • 200G QPSK wDCM: 100GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK, 400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead
  • ODU2/ODU3/ODUC2/ODUC4 layer: supports PM and TCM overhead processing.
  • ODUflex layer: supports TCM overhead processing.
  • ODU4 layer:
    • Supports PM and TCM overhead processing when 100GE services are received on the client side.
    • Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads.
  • Supports SM overhead processing at the OTU4 layer on the client side.
  • OTUC2/OTUC4 layer: supports SM overhead processing on the WDM side.
LPT Supports the LPT function when the client-side service is 10GE LAN.
Intra-board 1+1 protection Supported
NOTE:
implemented with optical protection boards.
Client 1+1 protection Supported
NOTE:
  • When an MPO optical module is used on the client side, the M604SM board does not support client 1+1 protection.
  • When 100GE/40GE services are received on the client side, client 1+1 protection supports bidirectional switching rather than unidirectional switching. When OTU4 services are received on the client side, client 1+1 protection supports unidirectional switching.
ODUk SNCP Not supported
Tributary SNCP Not supported
Optical-layer ASON Supported
L1 service encryption When the client-side service type is 10GE/40GE/100GE, the board supports the bidirectional service encryption.
NOTE:
After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
LLDP When the client-side service type is 10GE LAN/40GE/100GE, the board supports the LLDP function.
NOTE:
When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving 100GE(MAC transparent mapping)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
  • Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE(Bit Transparent Mapping)/40GE(TTT+GMP) services on the client side.
NOTE:
The Bit Transparent Mapping (11.1G IMP+BMP) mode does not support synchronous Ethernet transparent transmission.
IEEE 1588v2 Supported when the client-side service type is 100GE (MAC transparent mapping ODU4). Supported when the client-side service type is 10GE LAN (MAC transparent mapping (10.7G)).
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
Outband DCN Supports ESC communication.
Test frame Supported when the client-side service type is 100GE/40GE/10GE LAN(MAC transparent mapping(10.7G)).
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS
  • Supports the PRBS function on the WDM side.
  • The PRBS function in the client-side optical port direction is supported only when the service type is OTU4.
  • PRBS signals can be sent from the client-side optical port to the system side.
NOTE:
The client-side PRBS function is not supported when the board accesses 4 x 10GE signals.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Port loopback
  • Supports inloops and outloops on the WDM side.
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • Client-side loopback is not supported when the port accesses 4 x 10GE LAN signals.
  • If the client-side service rate of the same service is the same as that of the WDM-side service, the WDM-side optical interface loopback is not supported.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of CD and PMD performance.

Functions and Features of the TNG2M604SM Board (Multi-function Mode)
Basic function Port on the tributary side can perform the following signal conversions:
  • 100GE<->ODUflex (MAC transparent mapping)
  • 100GE<->ODU4 (Bit transparent mapping/MAC transparent mapping)
  • 4 x 10GE<->ODU2 (Bit transparent mapping (11.1G IMP+BMP)/MAC transparent mapping (10.7G))
  • 4 x 10GE<->ODUflex (MAC transparent mapping)
  • 40GE<->ODU3 (TTT+GMP)
  • OTU4<->ODU4
The line port can perform the following signal conversions:
  • ODUk (k = 0, 1, 2, 2e, 3, 4, flex)<->ODU4<->ODUC2<->OTUC2
  • ODUk (k = 0, 1, 2, 2e, 3, 4, flex)<->ODU4<->ODUC4<->OTUC4
NOTE:
  • After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
  • Cross-connection configuration description:
    • The service capacity scheduled from the client side and line side to the backplane must not exceed the cross-connect capacity of the backplane (200 Gbit/s).
    • The service capacity scheduled from the client side and backplane to the line side must not exceed the mode rate set on the line side.
    • The board does not support the configuration of cross-connections between tributary-side ports on the board.
  • Mode switching description:
    • Before switching from the multi-function mode to another board-level mode, ensure that the Port Working Mode client-side ports are set to None (not for ports).
    • If a board is switched to the multi-function mode or from the multi-function mode to another board-level mode, the board will undergo a cold reset. In this case, wait six minutes before performing other operations on the board.
Backplane capacity The total backplane bandwidth is 200 Gbit/s.
Client-side service type
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • 40GE: Ethernet service at a rate of 41.25 Gbit/s
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Service mapping mode
  • 40GE service: Supports (TTT+GMP) mapping.
  • 10GE LAN service: Supports GFP-F/(IMP+BMP) mapping.
  • 100GE service: Supports GMP/GFP-F mapping.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • Client side: Supports FEC coding when the client-side service type is OTU4.
  • Client side: Supports RS_FEC coding when the client-side service type is 100GE.
  • WDM side: Supports SDFEC2 coding.
Line modulation format
  • 200G QPSK wDCM
  • 200G QPSK
  • 400G 16QAM
Typical channel spacing
  • 200G QPSK wDCM: 100GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK, 400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead
  • ODU2/ODU3/ODUC2/ODUC4 layer: supports PM and TCM overhead processing.
  • ODUflex layer: supports TCM overhead processing.
  • ODU4 layer:
    • Supports PM and TCM overhead processing when 100GE services are received on the client side.
    • Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads.
  • Supports SM overhead processing at the OTU4 layer on the client side.
  • OTUC2/OTUC4 layer: supports SM overhead processing on the WDM side.
LPT Supports the LPT function when the client-side service is 10GE LAN.
Intra-board 1+1 protection Supported
NOTE:
implemented with optical protection boards.
Client 1+1 protection Supported
NOTE:
  • When an MPO optical module is used on the client side, the M604SM board does not support client 1+1 protection.
  • When 100GE/40GE services are received on the client side, client 1+1 protection supports bidirectional switching rather than unidirectional switching. When OTU4 services are received on the client side, client 1+1 protection supports unidirectional switching.
ODUk SNCP Supported
NOTE:
  • The ODUk SNCP protection group cannot be configured on different channels of the line-side port of the board.
  • when cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time.
  • ODUk SNCP protection and encryption function cannot be configured on a port at the same time.
Tributary SNCP Supported
NOTE:
when cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
L1 service encryption When the client-side service type is 10GE/40GE/100GE, the board supports the bidirectional service encryption.
NOTE:
  • ODUk SNCP protection and encryption function cannot be configured on a port at the same time.
  • After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
LLDP When the client-side service type is 10GE LAN/40GE/100GE, the board supports the LLDP function.
NOTE:
When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving 100GE(MAC transparent mapping)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
  • Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE(Bit Transparent Mapping)/40GE(TTT+GMP) services on the client side.
NOTE:
The Bit Transparent Mapping (11.1G IMP+BMP) mode does not support synchronous Ethernet transparent transmission.
IEEE 1588v2 Supported when the client-side service type is 100GE (MAC transparent mapping ODU4). Supported when the client-side service type is 10GE LAN (MAC transparent mapping (10.7G)).
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
Outband DCN Supports ESC communication.
Test frame Supported when the client-side service type is 100GE/40GE/10GE LAN(MAC transparent mapping(10.7G)).
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS
  • Supports the PRBS function on the WDM side.
  • The PRBS function in the client-side optical port direction is supported only when the service type is OTU4.
  • PRBS signals can be sent from the client-side optical port to the system side.
NOTE:
The client-side PRBS function is not supported when the board accesses 4 x 10GE signals.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Channel loopback
  • 200G line: ODU2, ODU3, ODU4 and ODUflex channel inloop and outloop
  • 400G line: ODU2, ODU3, ODU4 and ODUflex channel inloop and outloop
NOTE:
The board does not support the channel loopback and ODUk loopback at the same time. When a client-side port accesses 4 x 10GE signals, only channel loopback is supported. When cross-connections are set up between the client-side port and the line side of the board only, channel loopback is not supported.
Port loopback
  • Supports inloops and outloops on the WDM side.
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • Client-side loopback is not supported when the port accesses 4 x 10GE LAN signals.
  • When cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time.
  • When the functions as an OTU board, if the client-side service rate of the same service is the same as the WDM-side service rate, the WDM-side optical interface loopback is not supported.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of CD and PMD performance.

Functions and Features of the TNG2M604SM Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTUC2
  • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 200G QPSK wDCM
  • 200G QPSK
  • 400G 16QAM
OTN overhead 200G regeneration:
  • ODUC2 layer: supports PM and TCM overhead processing.
  • OTUC2 layer: supports SM overhead processing.
400G regeneration:
  • ODUC4 layer: supports PM and TCM overhead processing.
  • OTUC4 layer: supports SM overhead processing.
Optical-layer ASON Supported
ALS Supported
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports CD and PMD performance monitoring.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
weight
  • 2.50 kg
  • 5.51 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty

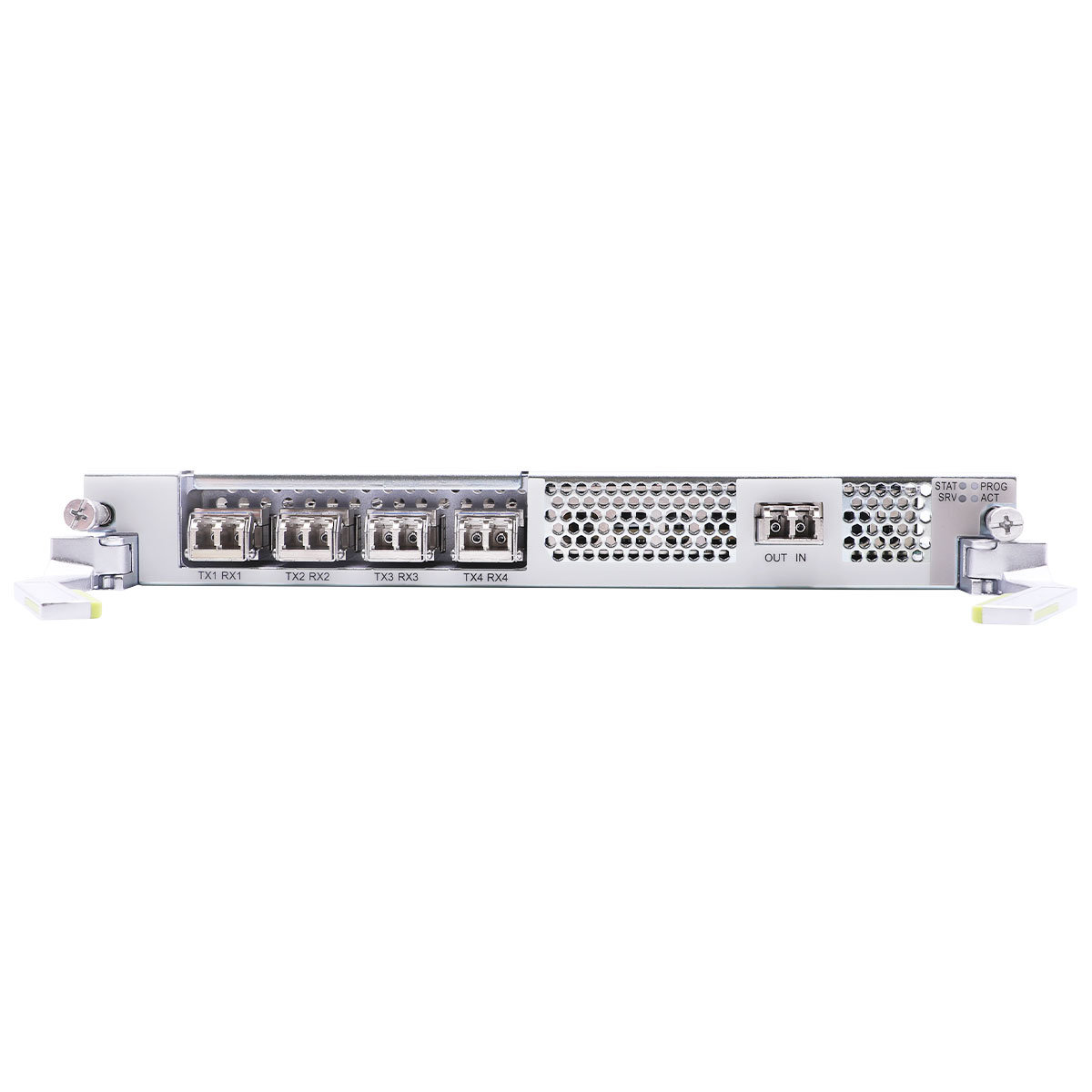

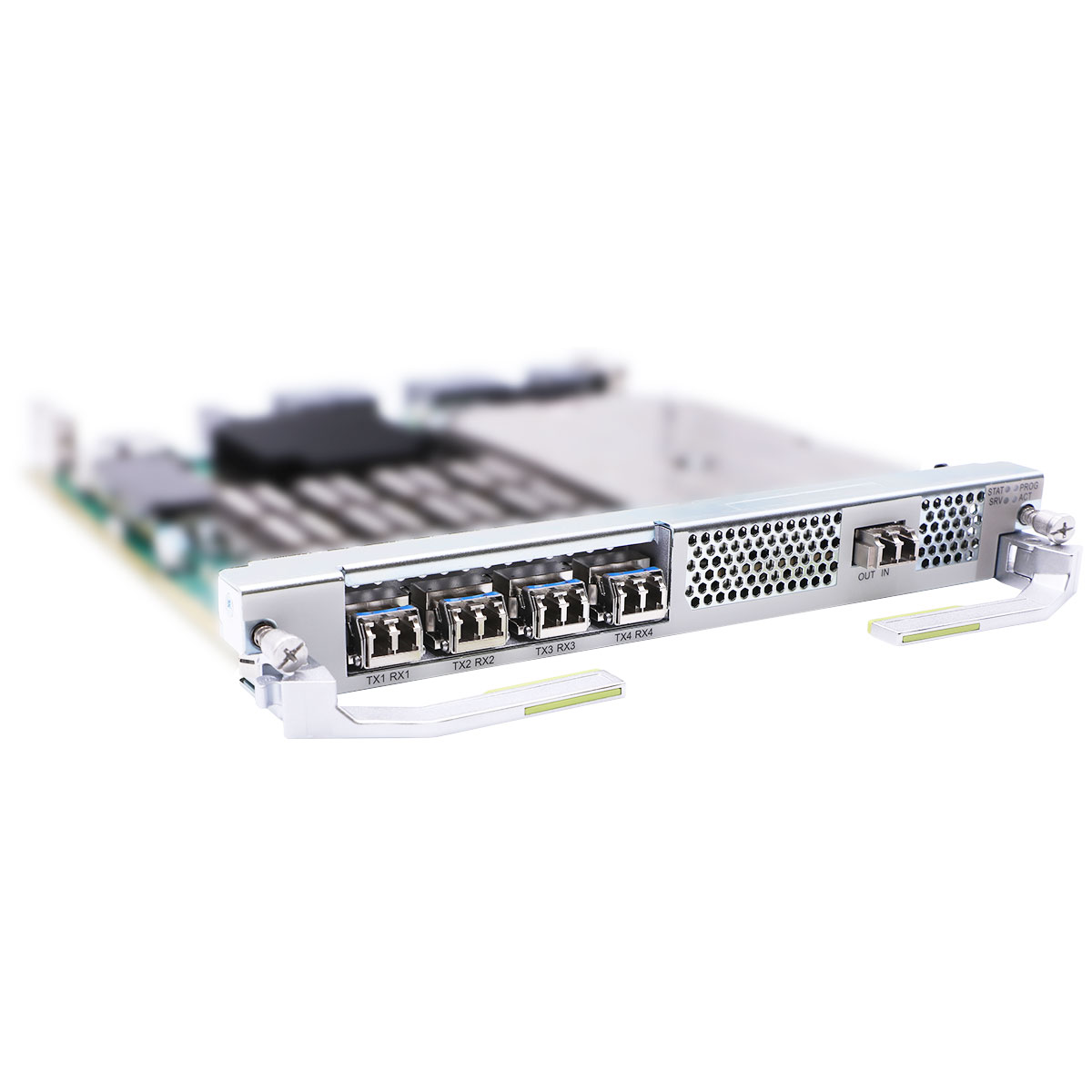

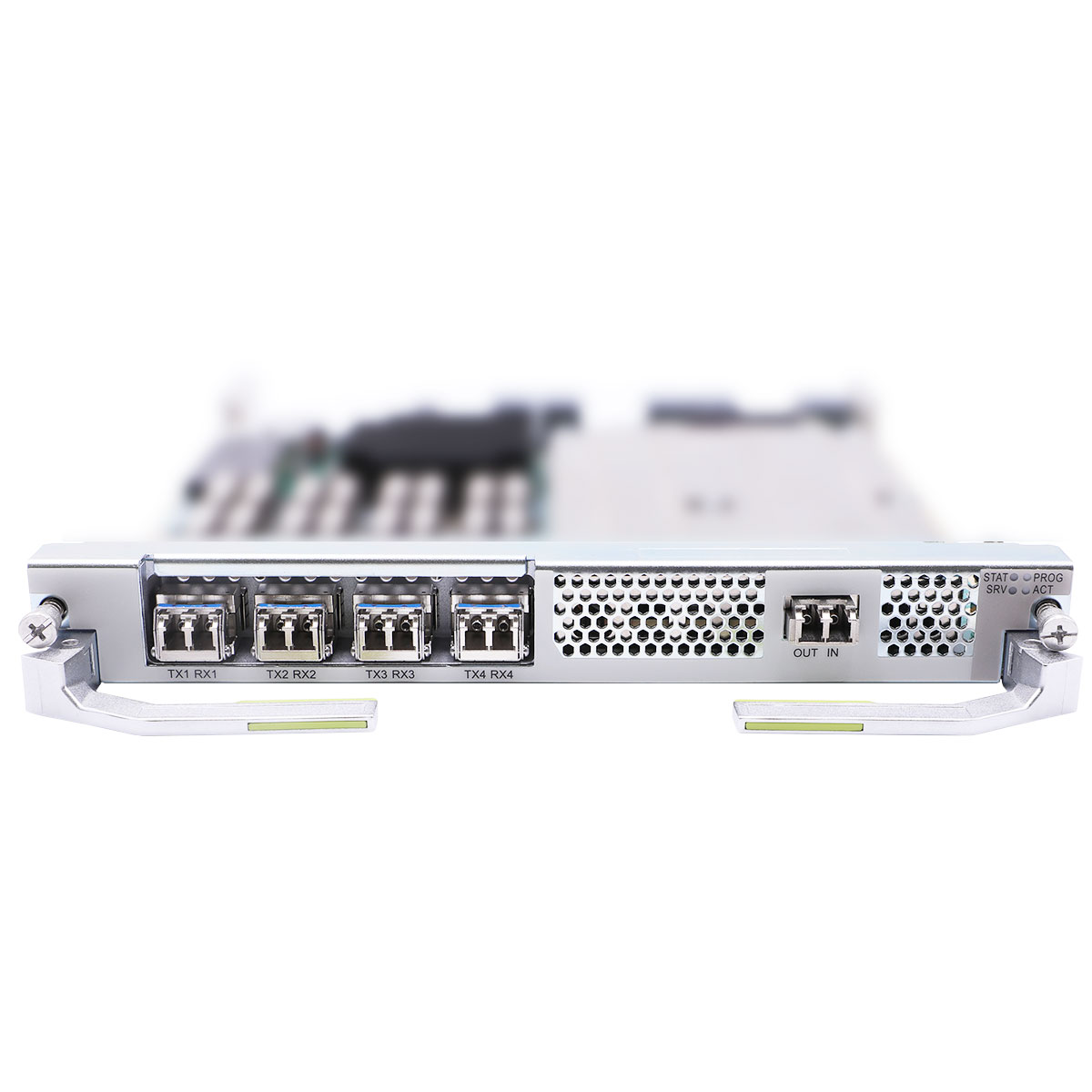

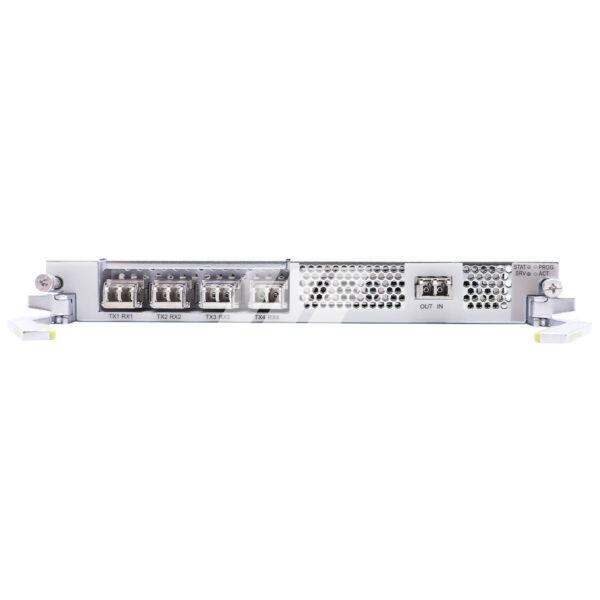

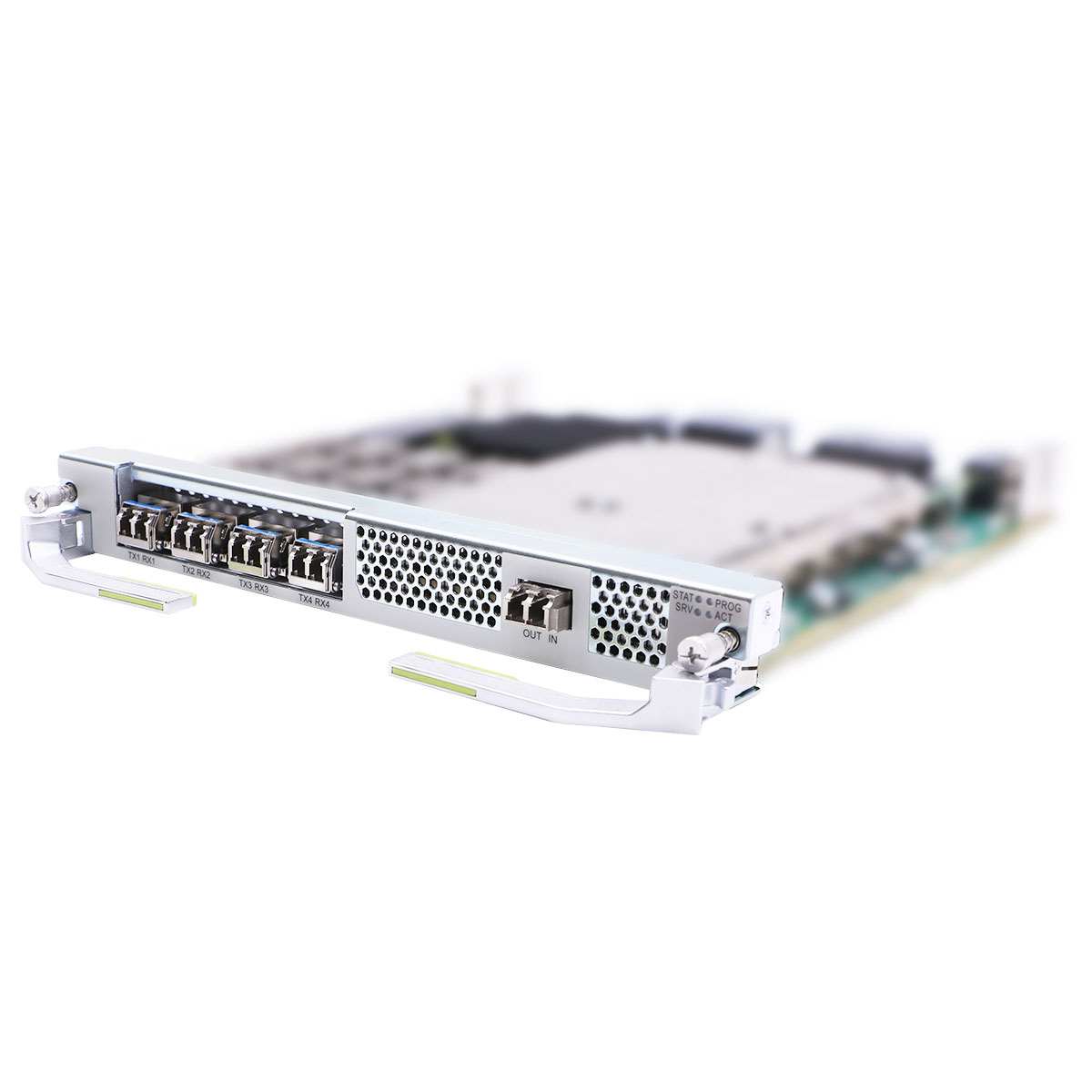

Item TNG2M604SM
Basic function The board can convert client-side services into OTU signals,the client-side service supports hybrid transmission of different services, for details about the service types, number of channels, and mapping paths supported by different ports, see Applications.
Client-side service type
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • 40GE: Ethernet service at a rate of 41.25 Gbit/s
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Service mapping mode
  • 40GE service: Supports (TTT+GMP) mapping.
  • 10GE LAN service: Supports GFP-F/(IMP+BMP) mapping.
  • 100GE service: Supports GMP/GFP-F mapping.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • Client side: Supports FEC coding when the client-side service type is OTU4.
  • Client side: Supports RS_FEC coding when the client-side service type is 100GE.
  • WDM side: Supports SDFEC2 coding.
Line modulation format
  • 200G QPSK wDCM
  • 200G QPSK
  • 400G 16QAM
Typical channel spacing
  • 200G QPSK wDCM: 100GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK, 400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead
  • ODU2/ODU3/ODUC2/ODUC4 layer: supports PM and TCM overhead processing.
  • ODUflex layer: supports TCM overhead processing.
  • ODU4 layer:
    • Supports PM and TCM overhead processing when 100GE services are received on the client side.
    • Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads.
  • Supports SM overhead processing at the OTU4 layer on the client side.
  • OTUC2/OTUC4 layer: supports SM overhead processing on the WDM side.
LPT Supports the LPT function when the client-side service is 10GE LAN.
Intra-board 1+1 protection Supported
NOTE:
implemented with optical protection boards.
Client 1+1 protection Supported
NOTE:
  • When an MPO optical module is used on the client side, the M604SM board does not support client 1+1 protection.
  • When 100GE/40GE services are received on the client side, client 1+1 protection supports bidirectional switching rather than unidirectional switching. When OTU4 services are received on the client side, client 1+1 protection supports unidirectional switching.
ODUk SNCP Not supported
Tributary SNCP Not supported
Optical-layer ASON Supported
L1 service encryption When the client-side service type is 10GE/40GE/100GE, the board supports the bidirectional service encryption.
NOTE:
After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
LLDP When the client-side service type is 10GE LAN/40GE/100GE, the board supports the LLDP function.
NOTE:
When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving 100GE(MAC transparent mapping)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
  • Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE(Bit Transparent Mapping)/40GE(TTT+GMP) services on the client side.
NOTE:
The Bit Transparent Mapping (11.1G IMP+BMP) mode does not support synchronous Ethernet transparent transmission.
IEEE 1588v2 Supported when the client-side service type is 100GE (MAC transparent mapping ODU4). Supported when the client-side service type is 10GE LAN (MAC transparent mapping (10.7G)).
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
Outband DCN Supports ESC communication.
Test frame Supported when the client-side service type is 100GE/40GE/10GE LAN(MAC transparent mapping(10.7G)).
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS
  • Supports the PRBS function on the WDM side.
  • The PRBS function in the client-side optical port direction is supported only when the service type is OTU4.
  • PRBS signals can be sent from the client-side optical port to the system side.
NOTE:
The client-side PRBS function is not supported when the board accesses 4 x 10GE signals.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Port loopback
  • Supports inloops and outloops on the WDM side.
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • Client-side loopback is not supported when the port accesses 4 x 10GE LAN signals.
  • If the client-side service rate of the same service is the same as that of the WDM-side service, the WDM-side optical interface loopback is not supported.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of CD and PMD performance.

Functions and Features of the TNG2M604SM Board (Multi-function Mode)
Basic function Port on the tributary side can perform the following signal conversions:
  • 100GE<->ODUflex (MAC transparent mapping)
  • 100GE<->ODU4 (Bit transparent mapping/MAC transparent mapping)
  • 4 x 10GE<->ODU2 (Bit transparent mapping (11.1G IMP+BMP)/MAC transparent mapping (10.7G))
  • 4 x 10GE<->ODUflex (MAC transparent mapping)
  • 40GE<->ODU3 (TTT+GMP)
  • OTU4<->ODU4
The line port can perform the following signal conversions:
  • ODUk (k = 0, 1, 2, 2e, 3, 4, flex)<->ODU4<->ODUC2<->OTUC2
  • ODUk (k = 0, 1, 2, 2e, 3, 4, flex)<->ODU4<->ODUC4<->OTUC4
NOTE:
  • After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
  • Cross-connection configuration description:
    • The service capacity scheduled from the client side and line side to the backplane must not exceed the cross-connect capacity of the backplane (200 Gbit/s).
    • The service capacity scheduled from the client side and backplane to the line side must not exceed the mode rate set on the line side.
    • The board does not support the configuration of cross-connections between tributary-side ports on the board.
  • Mode switching description:
    • Before switching from the multi-function mode to another board-level mode, ensure that the Port Working Mode client-side ports are set to None (not for ports).
    • If a board is switched to the multi-function mode or from the multi-function mode to another board-level mode, the board will undergo a cold reset. In this case, wait six minutes before performing other operations on the board.
Backplane capacity The total backplane bandwidth is 200 Gbit/s.
Client-side service type
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • 40GE: Ethernet service at a rate of 41.25 Gbit/s
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Service mapping mode
  • 40GE service: Supports (TTT+GMP) mapping.
  • 10GE LAN service: Supports GFP-F/(IMP+BMP) mapping.
  • 100GE service: Supports GMP/GFP-F mapping.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • Client side: Supports FEC coding when the client-side service type is OTU4.
  • Client side: Supports RS_FEC coding when the client-side service type is 100GE.
  • WDM side: Supports SDFEC2 coding.
Line modulation format
  • 200G QPSK wDCM
  • 200G QPSK
  • 400G 16QAM
Typical channel spacing
  • 200G QPSK wDCM: 100GHz+n*6.25GHz(n=0,1,2...)
  • 200G QPSK, 400G 16QAM: 75GHz+n*6.25GHz(n=0,1,2...)
OTN overhead
  • ODU2/ODU3/ODUC2/ODUC4 layer: supports PM and TCM overhead processing.
  • ODUflex layer: supports TCM overhead processing.
  • ODU4 layer:
    • Supports PM and TCM overhead processing when 100GE services are received on the client side.
    • Supports PM and TCM overhead processing when OTU4 services are received on the client side. This board supports non-intrusive monitoring of PM and TCM overheads.
  • Supports SM overhead processing at the OTU4 layer on the client side.
  • OTUC2/OTUC4 layer: supports SM overhead processing on the WDM side.
LPT Supports the LPT function when the client-side service is 10GE LAN.
Intra-board 1+1 protection Supported
NOTE:
implemented with optical protection boards.
Client 1+1 protection Supported
NOTE:
  • When an MPO optical module is used on the client side, the M604SM board does not support client 1+1 protection.
  • When 100GE/40GE services are received on the client side, client 1+1 protection supports bidirectional switching rather than unidirectional switching. When OTU4 services are received on the client side, client 1+1 protection supports unidirectional switching.
ODUk SNCP Supported
NOTE:
  • The ODUk SNCP protection group cannot be configured on different channels of the line-side port of the board.
  • when cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time.
  • ODUk SNCP protection and encryption function cannot be configured on a port at the same time.
Tributary SNCP Supported
NOTE:
when cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
L1 service encryption When the client-side service type is 10GE/40GE/100GE, the board supports the bidirectional service encryption.
NOTE:
  • ODUk SNCP protection and encryption function cannot be configured on a port at the same time.
  • After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Supports the ALS function on the client side when client services are non-OTN services.
LLDP When the client-side service type is 10GE LAN/40GE/100GE, the board supports the LLDP function.
NOTE:
When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving 100GE(MAC transparent mapping)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
  • Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE(Bit Transparent Mapping)/40GE(TTT+GMP) services on the client side.
NOTE:
The Bit Transparent Mapping (11.1G IMP+BMP) mode does not support synchronous Ethernet transparent transmission.
IEEE 1588v2 Supported when the client-side service type is 100GE (MAC transparent mapping ODU4). Supported when the client-side service type is 10GE LAN (MAC transparent mapping (10.7G)).
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
Outband DCN Supports ESC communication.
Test frame Supported when the client-side service type is 100GE/40GE/10GE LAN(MAC transparent mapping(10.7G)).
NOTE:
For Ethernet test frames, only one interface can be used to send them at a time.
PRBS
  • Supports the PRBS function on the WDM side.
  • The PRBS function in the client-side optical port direction is supported only when the service type is OTU4.
  • PRBS signals can be sent from the client-side optical port to the system side.
NOTE:
The client-side PRBS function is not supported when the board accesses 4 x 10GE signals.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
NOTE:
In a mapping path, the maximum granularity ODUk channel is the higher-order ODU channel, and other ODUk channels are lower-order ODUk channels.
Channel loopback
  • 200G line: ODU2, ODU3, ODU4 and ODUflex channel inloop and outloop
  • 400G line: ODU2, ODU3, ODU4 and ODUflex channel inloop and outloop
NOTE:
The board does not support the channel loopback and ODUk loopback at the same time. When a client-side port accesses 4 x 10GE signals, only channel loopback is supported. When cross-connections are set up between the client-side port and the line side of the board only, channel loopback is not supported.
Port loopback
  • Supports inloops and outloops on the WDM side.
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • Client-side loopback is not supported when the port accesses 4 x 10GE LAN signals.
  • When cross-connections are created between the port and the line side of this board and between the port and the line side of other boards, the port does not support the SNCP protection and port inloop loopback at the same time.
  • When the functions as an OTU board, if the client-side service rate of the same service is the same as the WDM-side service rate, the WDM-side optical interface loopback is not supported.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
  • Supports the monitoring of CD and PMD performance.

Functions and Features of the TNG2M604SM Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTUC2
  • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 200G QPSK wDCM
  • 200G QPSK
  • 400G 16QAM
OTN overhead 200G regeneration:
  • ODUC2 layer: supports PM and TCM overhead processing.
  • OTUC2 layer: supports SM overhead processing.
400G regeneration:
  • ODUC4 layer: supports PM and TCM overhead processing.
  • OTUC4 layer: supports SM overhead processing.
Optical-layer ASON Supported
ALS Supported
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports CD and PMD performance monitoring.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
weight
  • 2.50 kg
  • 5.51 lb.

Reviews

There are no reviews yet.

Be the first to review “TNG2M604SM”

Your email address will not be published. Required fields are marked *

Related products

JL322A-1
Quick view
Categories:

JL322A

R.F.Q
PNJL322A
JL095A-1
Quick view
Categories:

JL095A

R.F.Q
SKU2011943
WS-C3850-48P-S
Quick view
Categories:

WS-C3850-48P-S

R.F.Q
SKU2011323
WS-C3850-24U-S
Quick view
Categories:

WS-C3850-24U-S

R.F.Q
SKU2011326
J9783A-1
Quick view
Categories:

J9783A

R.F.Q
SKU2011896
J9534A-1
Quick view
Categories:

J9534A

R.F.Q
SKU2011973
Main Menu
Back to Top

Search For Products

Popular
Product has been added to your cart
