Huawei OptiX OSN 9800 TNG2TPS Two TNG2PD1 boards and one TNG1DMS board work together to provide tributary protection switching (TPS)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG2TPS overview



TNG2TPS Two TNG2PD1 boards and one TNG1DMS board work together to provide tributary protection switching (TPS) applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG2TPS board has only one variant, that is TNG2TPS.

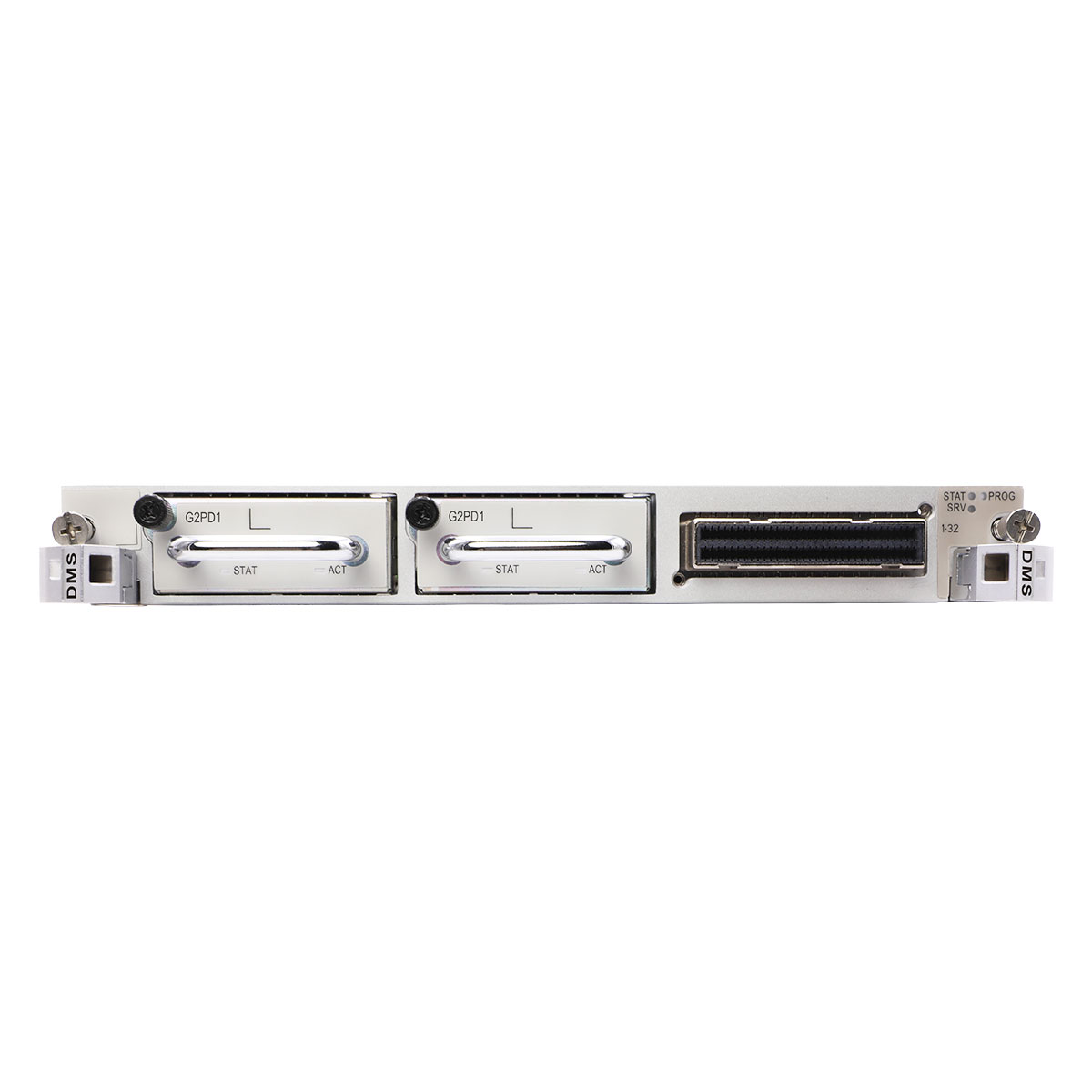

Front panel of the TNG2TPS board

TNG2TPS

Front panel of the TNG2TPS board



Valid slots for the TNG2TPS board in a M24 subrack

Device Logical slots for the PD1 (primary, secondary) Slot Valid for the DMS
OptiX OSN 9800 M24 subrack

142, 190

IU1

153, 201

IU12

154, 202

IU13

159, 207

IU24



Show More Show Less
Item TNG2TPS
Basic function Receives, transmits, and processes 32 channels of E1/T1 signals.
Overhead processing Processes path overheads at the VC-12 level such as J2 and V5.
Port specifications Supports thirty-two 75 Ω/120 Ω E1 or 100 Ω T1 ports.
TPS Supported
PRBS Supported
Reset Supports warm reset and cold reset.
Manufacturer information querying Supported
Hot swapping Supported
Port loopback Supports inloops and outloops at electrical ports
2M ASON Supported
Tributary clock sources DMS:
  • Supports source selection for E1 clocks.
PD1:
  • Supports input of tributary clocks.
  • Extracts clock signals from the first and seventeenth channels, the first and seventeenth channels correspond to the first and second channels on the NCE.
  • Supports E1 retiming.
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.55 kg
  • 3.42 lb.

Additional information

Brand
Lead Time
Ship From
Warranty
Condition
Item TNG2TPS
Basic function Receives, transmits, and processes 32 channels of E1/T1 signals.
Overhead processing Processes path overheads at the VC-12 level such as J2 and V5.
Port specifications Supports thirty-two 75 Ω/120 Ω E1 or 100 Ω T1 ports.
TPS Supported
PRBS Supported
Reset Supports warm reset and cold reset.
Manufacturer information querying Supported
Hot swapping Supported
Port loopback Supports inloops and outloops at electrical ports
2M ASON Supported
Tributary clock sources DMS:
  • Supports source selection for E1 clocks.
PD1:
  • Supports input of tributary clocks.
  • Extracts clock signals from the first and seventeenth channels, the first and seventeenth channels correspond to the first and second channels on the NCE.
  • Supports E1 retiming.
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.55 kg
  • 3.42 lb.
