Huawei OptiX OSN 9800 TNG2UD40 40-port demultiplexer board (Super C-band)

Description

TNG2UD40 overview



TNG2UD40 40-port demultiplexer board (Super C-band) applied to Huawei OptiX OSN 9800 M24/M12/M05.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG2UD40 board has two variants: TNG2UD4001 and TNG2UD4002.

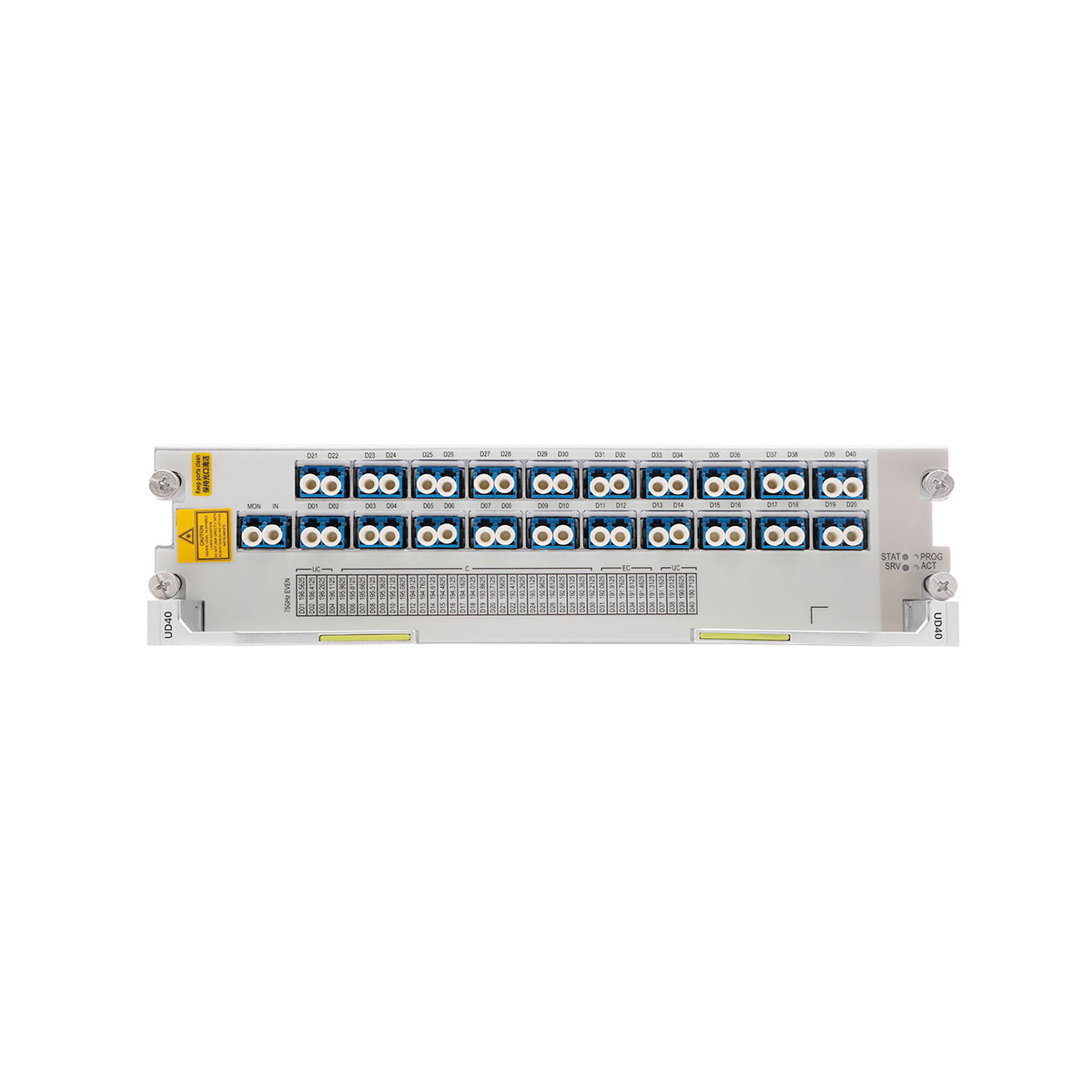

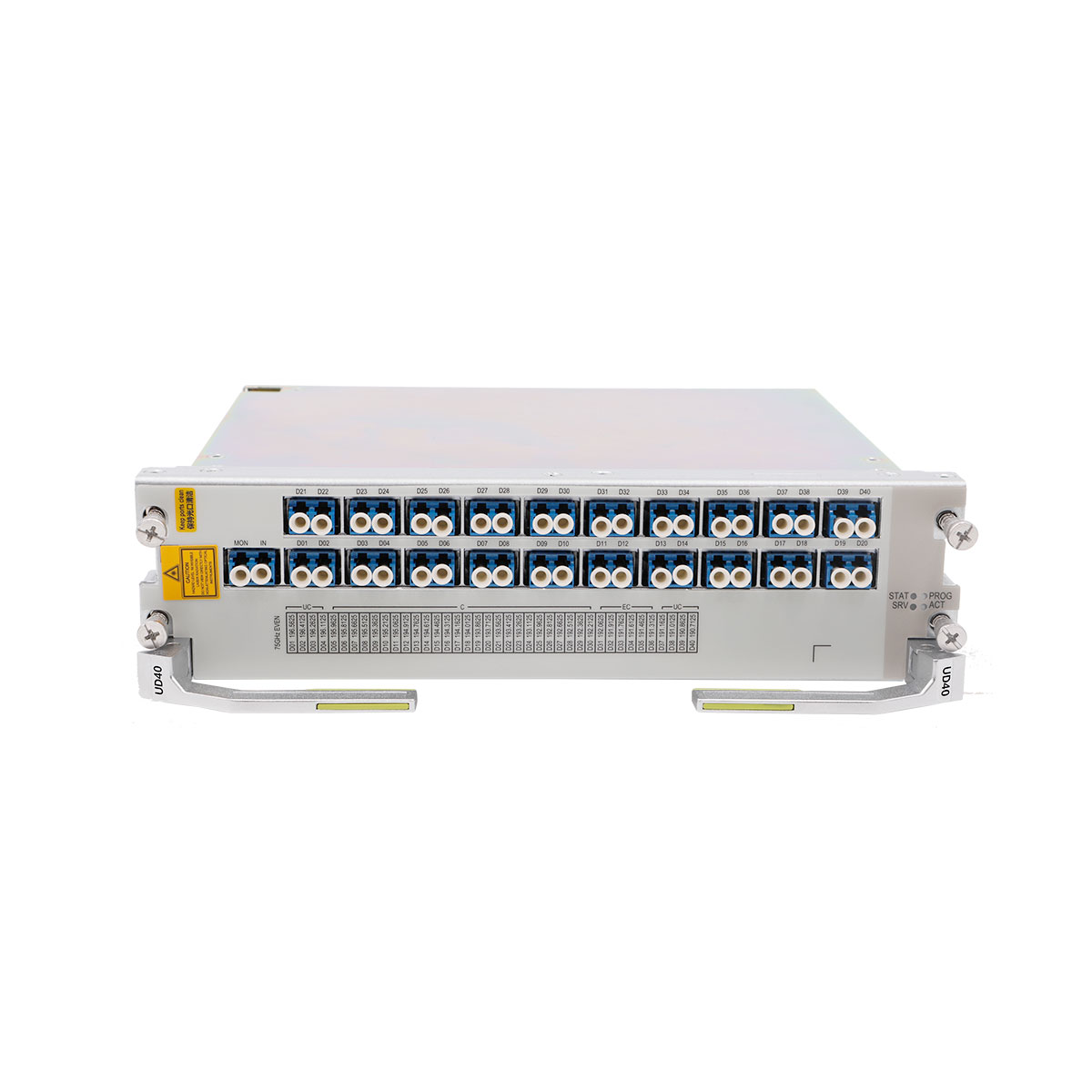

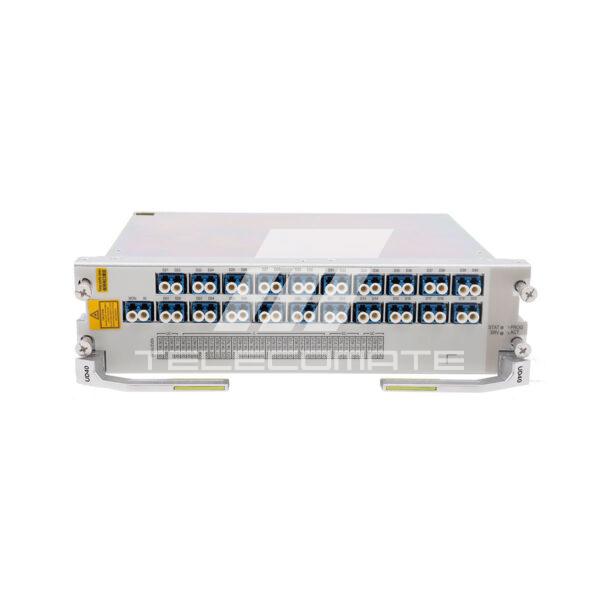

Front panel of the TNG2UD4001 board

TNG2UD4001

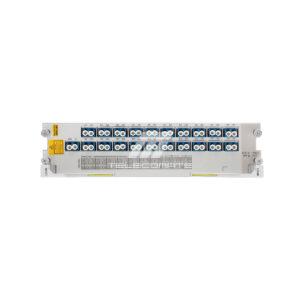

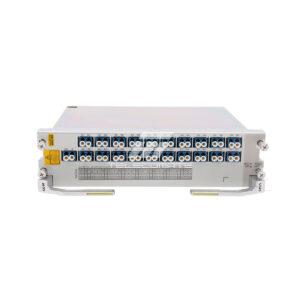

Front panel of the TNG2UD4001 board



Front panel of the TNG2UD4002 board

TNG2UD4002

Front panel of the TNG2UD4002 board



Valid slots for the TNG2UD40 board in a M24/M12/M05 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
OptiX OSN 9800 M12 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
(IU5, IU6) IU5
(IU6, IU7) IU6
(IU7, IU8) IU7
(IU8, IU9) IU8
(IU9, IU10) IU9
(IU10, IU11) IU10
(IU11, IU12) IU11
(IU12, IU13) IU12
OptiX OSN 9800 M24 2 (IU1, IU2) IU1
(IU2, IU3) IU2
(IU3, IU4) IU3
(IU4, IU5) IU4
(IU5, IU6) IU5
(IU7, IU8) IU7
(IU8, IU9) IU8
(IU9, IU10) IU9
(IU10, IU11) IU10
(IU11, IU12) IU11
(IU13, IU14) IU13
(IU14, IU15) IU14
(IU15, IU16) IU15
(IU16, IU17) IU16
(IU17, IU18) IU17
(IU19, IU20) IU19
(IU20, IU21) IU20
(IU21, IU22) IU21
(IU22, IU23) IU22
(IU23, IU24) IU23



Item TNG2UD40
Basic function
  • UD40 board: Demultiplexes one multi-wavelength signal into a maximum of 40 wavelength signals.
  • UD4001: demultiplexes one multi-wavelength signal into 40 C_EVEN wavelength signals with a 150 GHz channel spacing.
  • UD4002: demultiplexes one multi-wavelength signal into 40 C_ODD wavelength signals with a 150 GHz channel spacing.
WDM specification Supports the DWDM specifications.
Spectrum application Supports super C-band.
Online optical performance monitoring Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Optical-layer ASON Supported
Optical power adjustment Not Supported
Alarm and performance event monitoring Detects the optical power and reports the alarms and performance events for the board.
Dimensions (H x W x D)
  • 237.10 × 61.00 × 220.00 (mm)
  • 9.34 × 2.40 × 8.67 (in.)
Weight
  • 1.90 kg
  • 4.19 lb.

Additional information

Brand
Lead Time
Ship From
Warranty
Condition
Item TNG2UD40
Basic function
  • UD40 board: Demultiplexes one multi-wavelength signal into a maximum of 40 wavelength signals.
  • UD4001: demultiplexes one multi-wavelength signal into 40 C_EVEN wavelength signals with a 150 GHz channel spacing.
  • UD4002: demultiplexes one multi-wavelength signal into 40 C_ODD wavelength signals with a 150 GHz channel spacing.
WDM specification Supports the DWDM specifications.
Spectrum application Supports super C-band.
Online optical performance monitoring Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Optical-layer ASON Supported
Optical power adjustment Not Supported
Alarm and performance event monitoring Detects the optical power and reports the alarms and performance events for the board.
Dimensions (H x W x D)
  • 237.10 × 61.00 × 220.00 (mm)
  • 9.34 × 2.40 × 8.67 (in.)
Weight
  • 1.90 kg
  • 4.19 lb.
