Huawei OptiX OSN 9800 TNG2WDAP OA base board with C band pluggable port and L band pluggable port

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG2WDAP overview



TNG2WDAP OA base board with C band pluggable port and L band pluggable port to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG2ERPC board has only one variant: TNG2ERPC01.

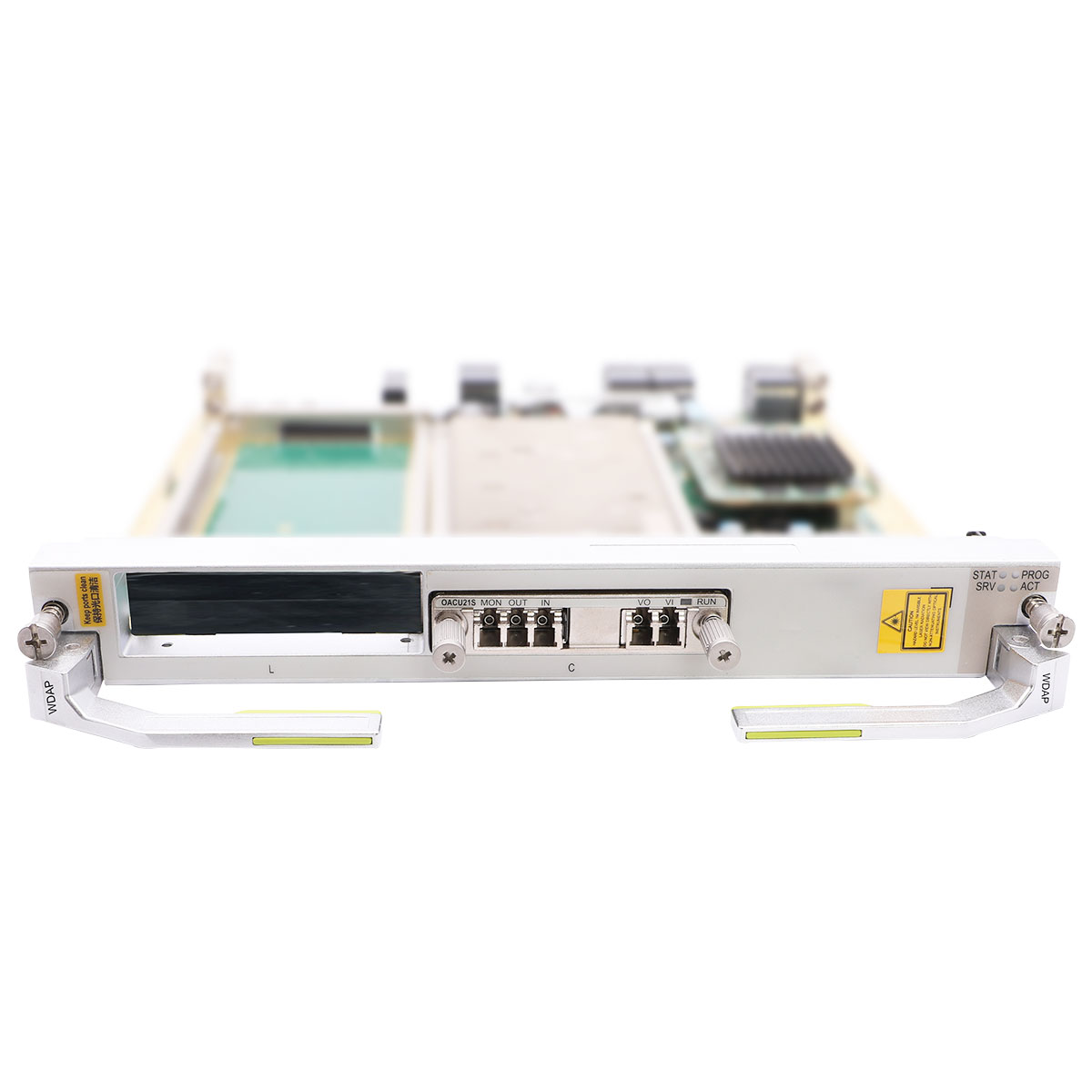

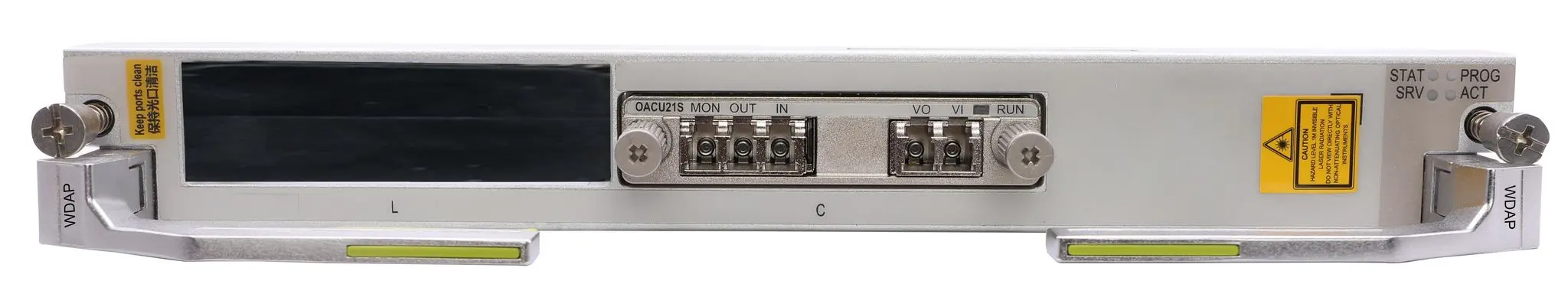

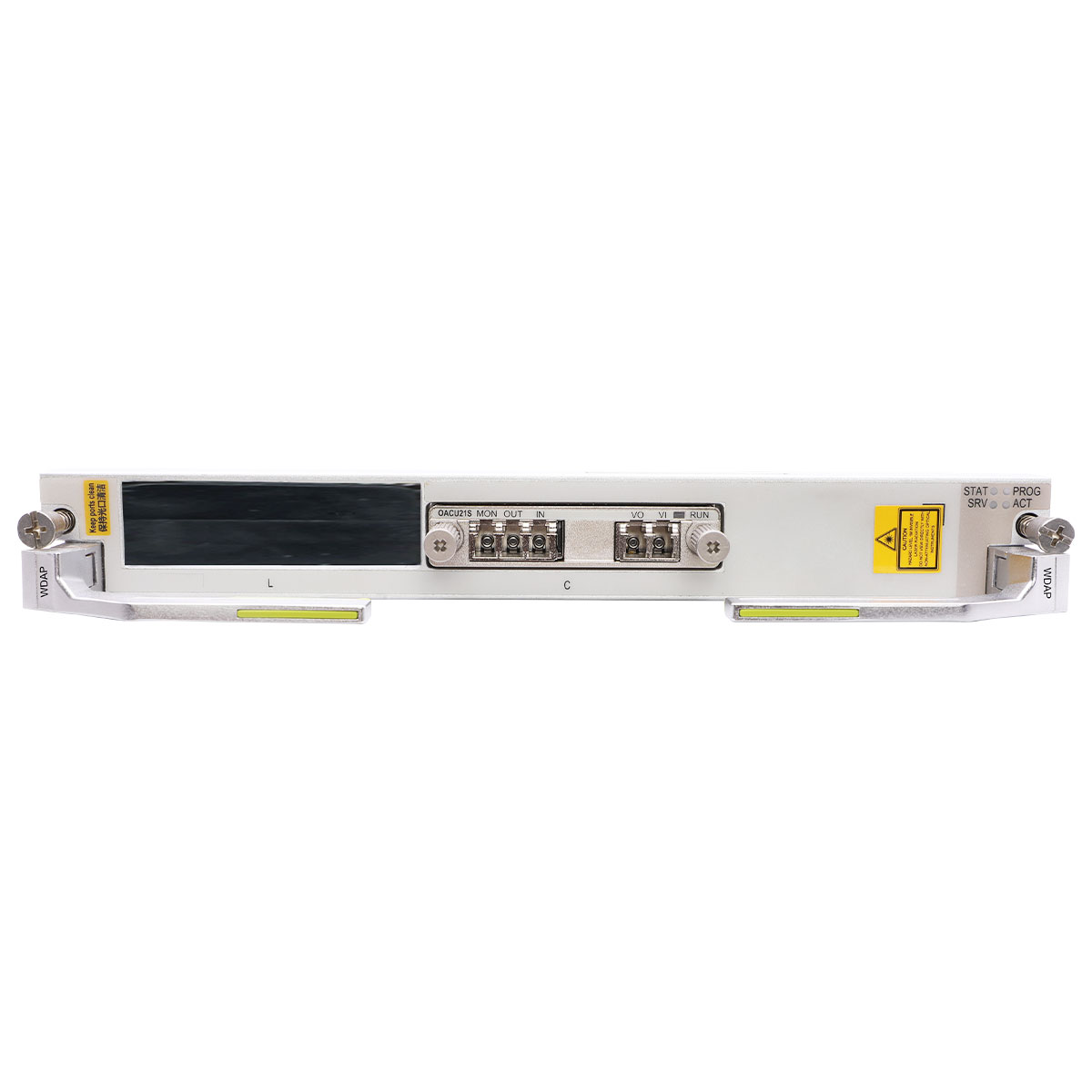

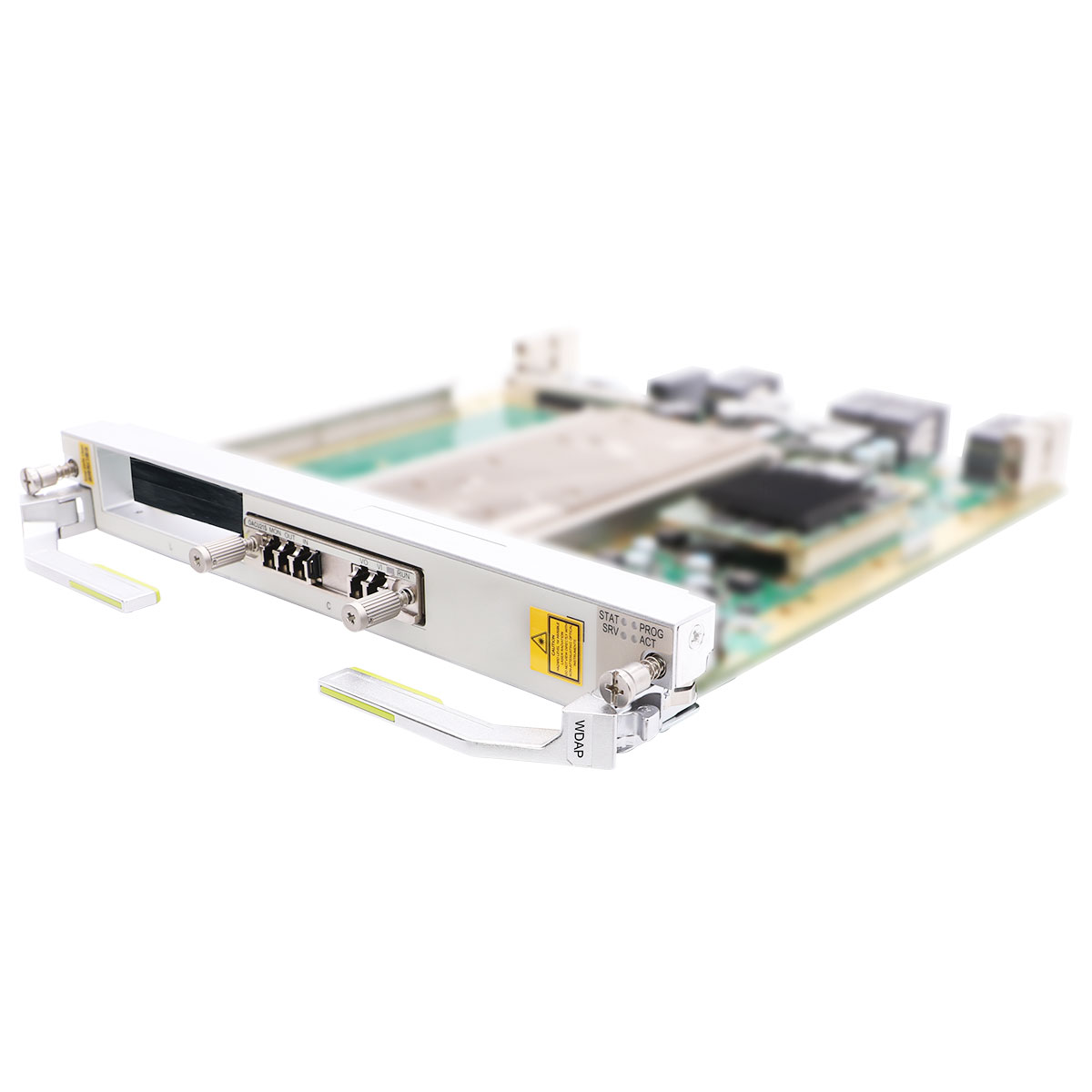

Front panel of the TNG2WDAP board

TNG2WDAP

Front panel of the TNG2WDAP board



Valid slots for the TNG2WDAP board in a  M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU13 IU1 to IU13
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Show More Show Less
Item TNG2WDAP
Basic function
  • Amplifies optical signals over Super C-band wavelengths within the range from 1524.3 nm to 1572.5 nm. L-band reserved.
  • Supports service transmission with varying fiber spans without using electrical regeneration.
WDM specification Supports the DWDM specifications.
Pluggable amplifier optical module Supports C120 wavelengths optical amplifier modules:
  • TNG1OACU21S/TNG1OACU25S/TNG1OACU32S
  • TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H
  • TNG2OACU23U/TNG2OACU27U/TNG2OACU34U/TNG2OBCU22S
The L band optical amplifier module is reserved, and is not supported by the current version.
Working mode
  • Supports the gain locking, power locking and APC modes.
  • In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default.
  • The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present.
  • Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Gain adjustment
  • TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power.
  • TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power.
  • TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
  • TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power.
  • TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TNG2OACU23U: Continually adjusts the gain from 18 dB to 23 dB based on the input signal power.
  • TNG2OACU27U: Continually adjusts the gain from 21 dB to 27 dB based on the input signal power.
  • TNG2OACU34U: Continually adjusts the gain from 25 dB to 34 dB based on the input signal power.
  • TNG2OBCU22S: Continually adjusts the gain from 19 dB to 22 dB based on the input signal power.
Transient control The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Online optical performance monitoring Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Optical Doctor Supported
Optical-layer ASON Supported
Alarm and performance event monitoring
  • Detects and reports optical power levels.
  • Monitors the temperature of the pump laser.
  • Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 2.20 kg
  • 4.85 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNG2WDAP
Basic function
  • Amplifies optical signals over Super C-band wavelengths within the range from 1524.3 nm to 1572.5 nm. L-band reserved.
  • Supports service transmission with varying fiber spans without using electrical regeneration.
WDM specification Supports the DWDM specifications.
Pluggable amplifier optical module Supports C120 wavelengths optical amplifier modules:
  • TNG1OACU21S/TNG1OACU25S/TNG1OACU32S
  • TNG2OACU21S/TNG2OACU25S/TNG2OACU32S/TNG2OACU14S/TNG2OACU25H/TNG2OACU32H
  • TNG2OACU23U/TNG2OACU27U/TNG2OACU34U/TNG2OBCU22S
The L band optical amplifier module is reserved, and is not supported by the current version.
Working mode
  • Supports the gain locking, power locking and APC modes.
  • In the gain locking mode, the gain of the board is tunable and the user can query the actual gain of the board. The gain locking mode is enabled by default.
  • The power locking mode is used to lock the output power of the board in scenarios in which only dummy lights are present.
  • Automatic Power Control (APC) is one type of power locking modes. Compared with traditional power locking, APC gradually increases optical power and has no light output if no light input is present.
Gain adjustment
  • TNG1OACU21S/TNG2OACU21S: Continually adjusts the gain from 16 dB to 21 dB based on the input signal power.
  • TNG1OACU25S/TNG2OACU25S: Continually adjusts the gain from 19 dB to 25 dB based on the input signal power.
  • TNG1OACU32S/TNG2OACU32S: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TNG2OACU14S: Continually adjusts the gain from 8 dB to 14 dB based on the input signal power.
  • TNG2OACU25H: Continually adjusts the gain from 18 dB to 25 dB based on the input signal power.
  • TNG2OACU32H: Continually adjusts the gain from 23 dB to 32 dB based on the input signal power.
  • TNG2OACU23U: Continually adjusts the gain from 18 dB to 23 dB based on the input signal power.
  • TNG2OACU27U: Continually adjusts the gain from 21 dB to 27 dB based on the input signal power.
  • TNG2OACU34U: Continually adjusts the gain from 25 dB to 34 dB based on the input signal power.
  • TNG2OBCU22S: Continually adjusts the gain from 19 dB to 22 dB based on the input signal power.
Transient control The EDFA inside the board has the transient state control function. When channels are added or dropped, the board can suppress the power fluctuation inside the signal channels to support smooth upgrades and expansions.
Online optical performance monitoring Provides an online monitoring optical port (MON). Through this optical port, a small number of optical signals can be output to an optical spectrum analyzer or an optical spectrum analyzer board. In this manner, the spectrum and optical performance of the multiplexed optical signals can be monitored without interrupting services.
Optical Doctor Supported
Optical-layer ASON Supported
Alarm and performance event monitoring
  • Detects and reports optical power levels.
  • Monitors the temperature of the pump laser.
  • Detects the drive current, pump cooling current, and temperature of the pump laser and the ambient temperature of the board.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 2.20 kg
  • 4.85 lb.
