Huawei OptiX OSN 9800 TNG2WOLP Optical line protection board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG2WOLP overview



TNG2WOLP Optical line protection board applied  to Huawei OptiX OSN 9800 M05/M12/M24.

The new generation of “M” series subracks have the characteristics of ultra-large capacity, optoelectronic integration, and compact size. They are suitable for comprehensive carrying application scenarios such as broadband video, mobile backhaul, government and enterprise dedicated lines, and DCI interconnection, providing end-to-end optimal transmission solutions from backbone, aggregation to access. The M24 subrack supports two cross-connection modes, 1:1 and 1:3, which differ in the number of cross-connection board configurations, the number of available service board slots, cross-connection capacity, and application scenarios.

The TNG2WOLP board has only one variant: TNG2WOLP05.

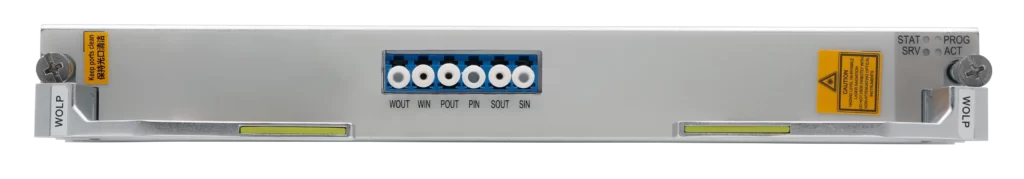

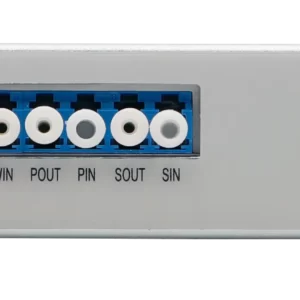

Front panel of the TNG2WOLP board

TNG2WOLP

Front panel of the TNG2WOLP board



Valid slots for the TNG2WOLP board in a  M05/M12/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU13 IU1 to IU13
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Show More Show Less
Item TNG2WOLP
Basic function Implements optical line protection to ensure that services can be normally received even if the optical line is faulty. Provides intra-board 1+1 protection to protect services for the OTU boards that do not have the dual-fed and selective receiving function.
Spectrum application Supports the super C+L band. Currently, L band is reserved.
Optical-layer ASON Supported
Protection scheme Dual-fed and selective receiving. (At the transmit end, the protected signal is dually fed to the working and protection paths. At the receive end, the working or protection signal is selected if it has the higher power level.)
NOTE:
After being powered off, the board works in the protection channel by default.
IPA Supported
Active/Standby optical power leveling Not Supported
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.40 kg
  • 3.09 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNG2WOLP
Basic function Implements optical line protection to ensure that services can be normally received even if the optical line is faulty. Provides intra-board 1+1 protection to protect services for the OTU boards that do not have the dual-fed and selective receiving function.
Spectrum application Supports the super C+L band. Currently, L band is reserved.
Optical-layer ASON Supported
Protection scheme Dual-fed and selective receiving. (At the transmit end, the protected signal is dually fed to the working and protection paths. At the receive end, the working or protection signal is selected if it has the higher power level.)
NOTE:
After being powered off, the board works in the protection channel by default.
IPA Supported
Active/Standby optical power leveling Not Supported
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.40 kg
  • 3.09 lb.
