Huawei OptiX OSN 9800 TNG3ITL Interleaver board (Extended C-band)

Description

TNG3ITL overview



TNG3ITL Interleaver board (Extended C-band) applied to Huawei OptiX OSN 9800 M24/M12/M05.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG3ITL board has only one variant: TNG3ITL06.

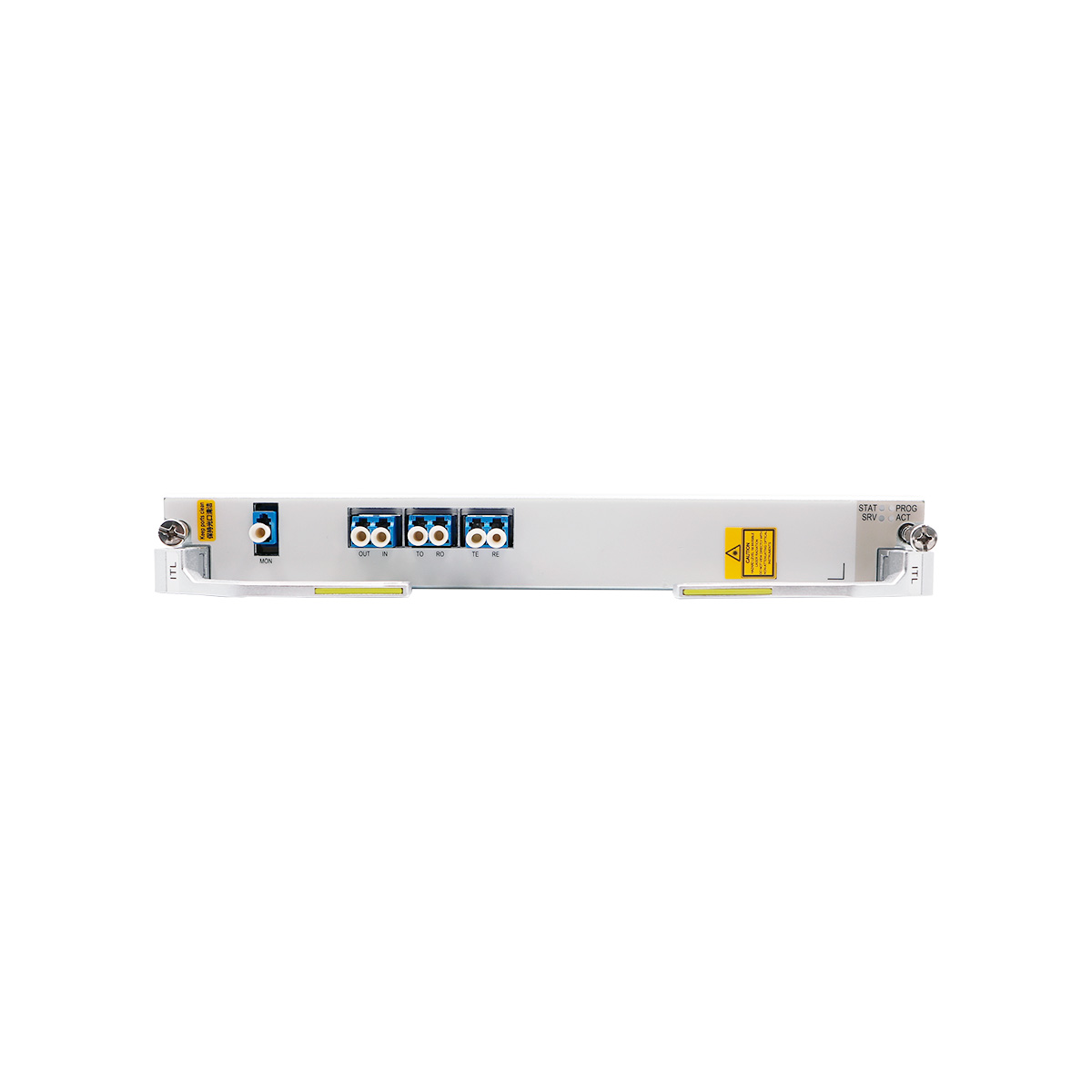

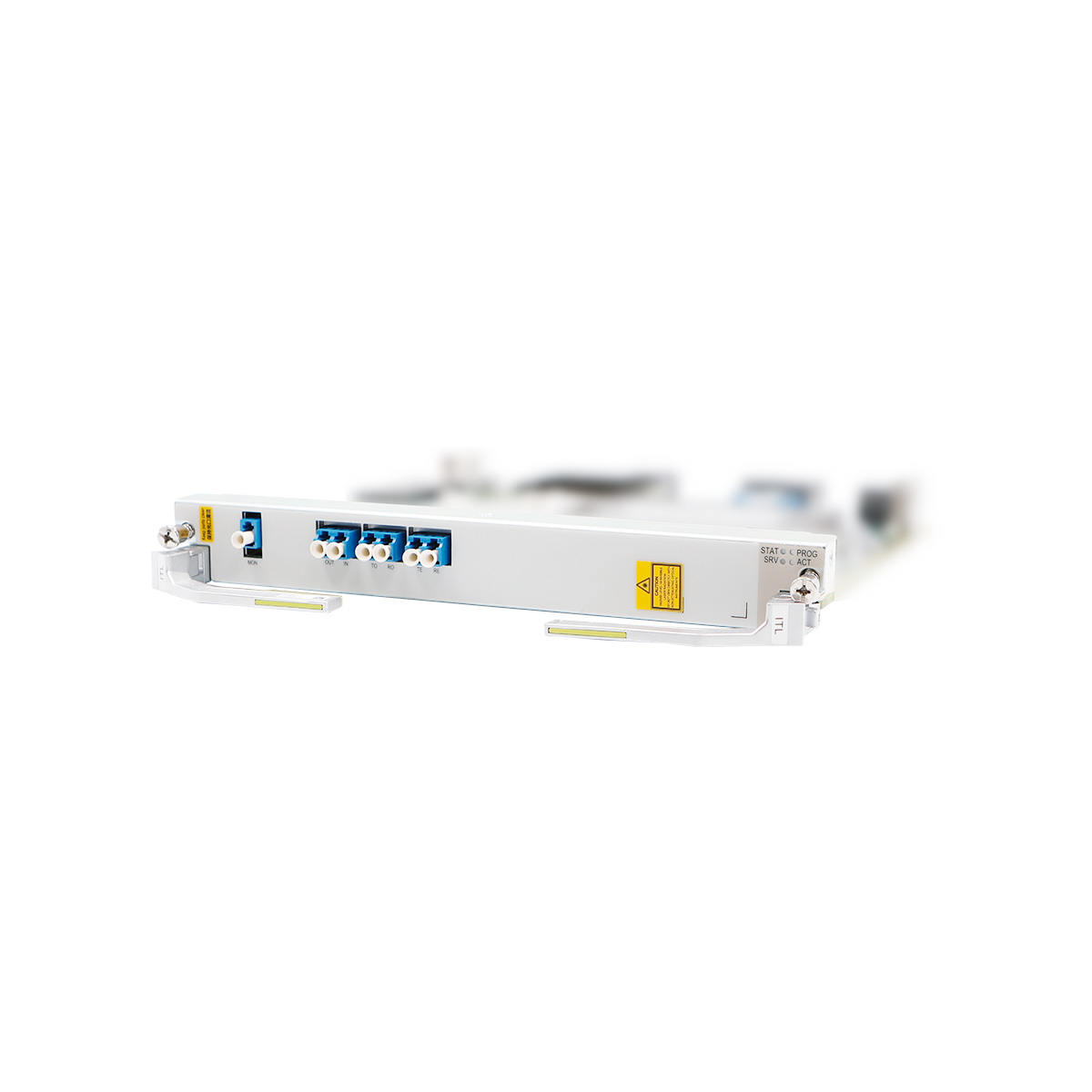

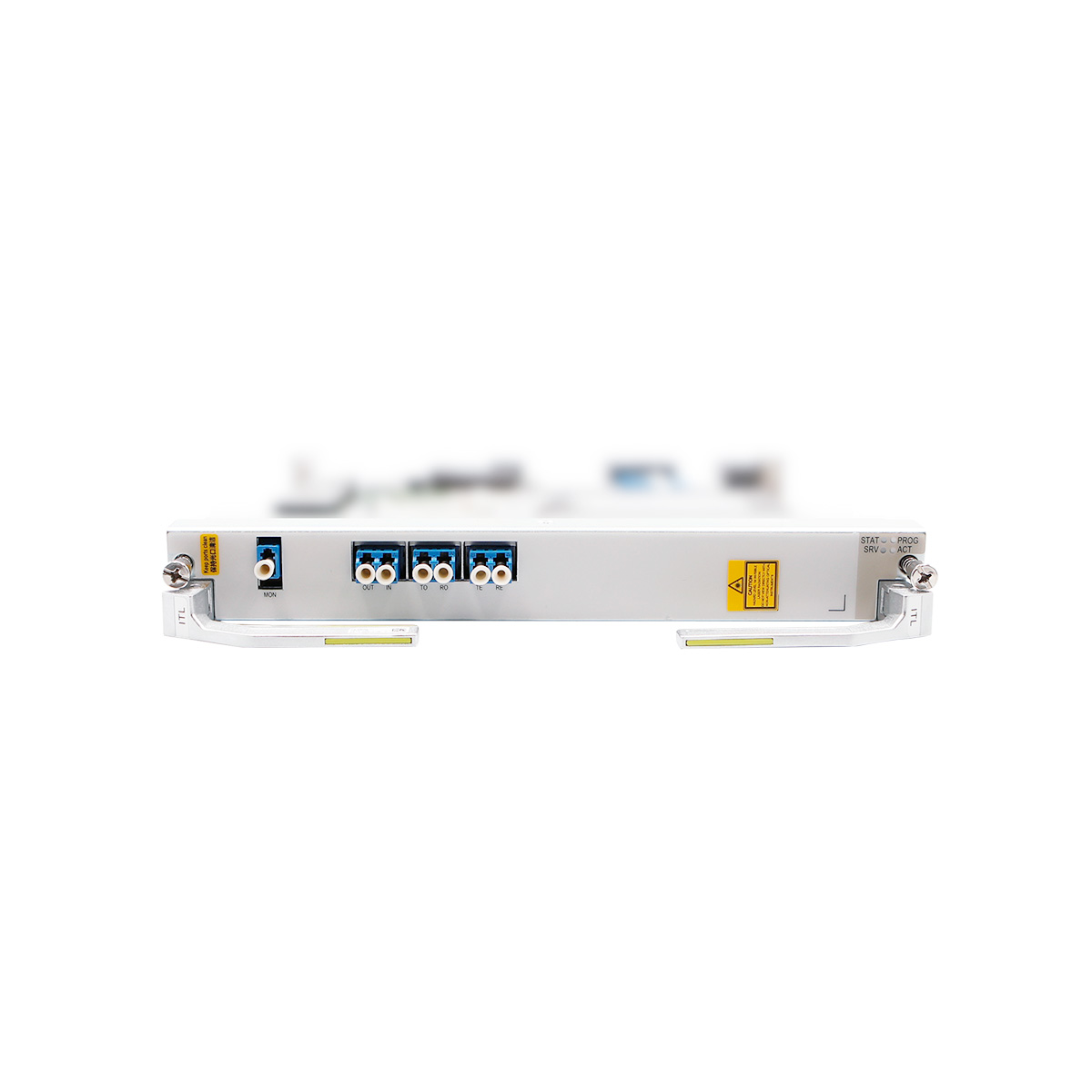

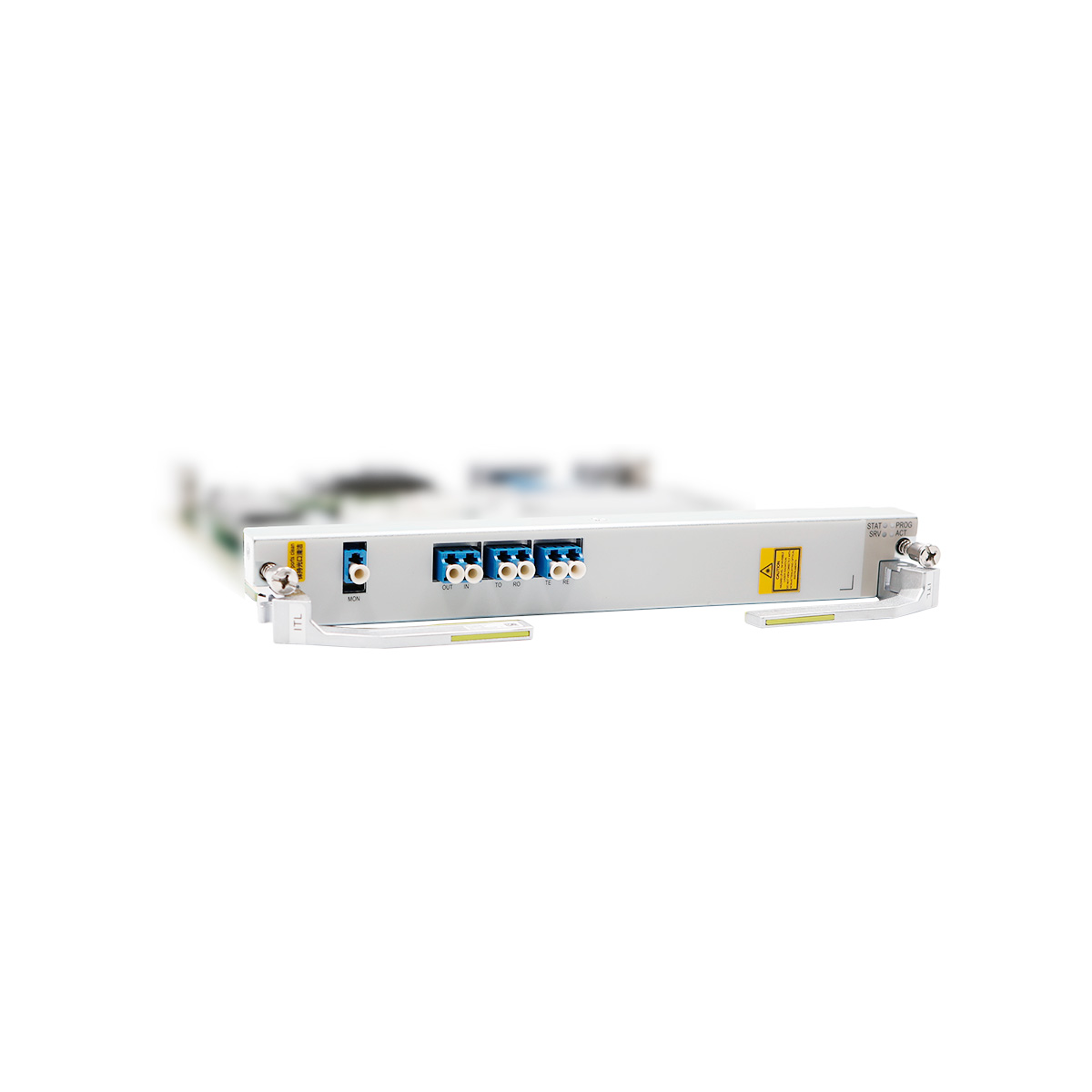

Front panel of the TNG3ITL board

TNG3ITL

Front panel of the TNG3ITL board



Valid slots for the TNG3ITL board in a M24/M12/M05 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M05 1 IU1, IU2, IU3, IU4, IU5 IU1, IU2, IU3, IU4, IU5
OptiX OSN 9800 M12 1 IU1 to IU13 IU1 to IU13
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24



Item TNG3ITL
Basic function The ITL board multiplexes and demultiplexes wavelength signals with 50 or 100 GHz channel spacing.
WDM specification Supports the DWDM specifications.
Spectrum application Supports extended C-band.
Optical power detection Detects the input or output optical power of multiplexed or demultiplexed wavelengths.
Online optical performance monitoring Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Optical-layer ASON Supported
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.36 kg
  • 3.00 lb.

Additional information

Item TNG3ITL
Basic function The ITL board multiplexes and demultiplexes wavelength signals with 50 or 100 GHz channel spacing.
WDM specification Supports the DWDM specifications.
Spectrum application Supports extended C-band.
Optical power detection Detects the input or output optical power of multiplexed or demultiplexed wavelengths.
Online optical performance monitoring Provides an in-service monitoring port. This port connects to an optical spectrum analyzer or spectrum analyzer unit to monitor the spectrum and optical performance of the multiplexed signal without affecting traffic.
Optical-layer ASON Supported
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.36 kg
  • 3.00 lb.
