Huawei OptiX OSN 9800 TNG3N401 1*100G Line Service Processing Board (CFP2,OTN&OTN+&SDH)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG3N401 overview



TNG3N401 1*100G Line Service Processing Board (CFP2,OTN&OTN+&SDH) applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG3N401 board has only one variant, that is, TNG3N401C01.

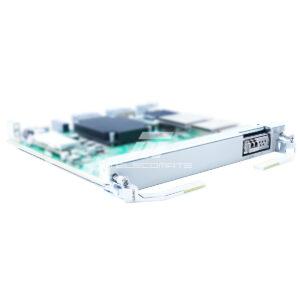

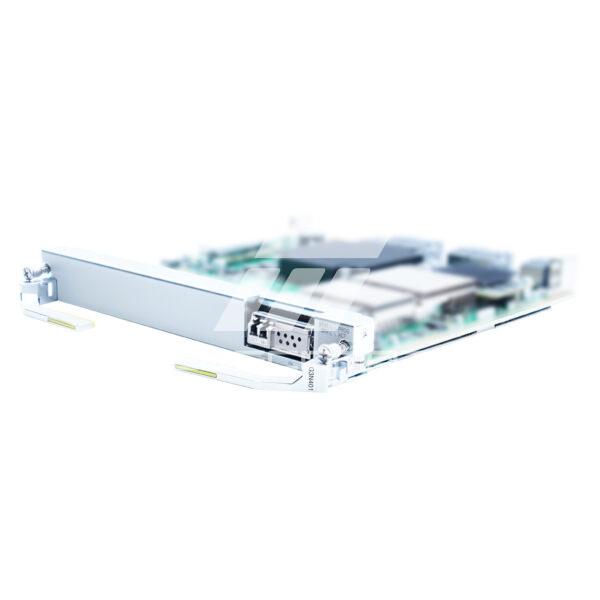

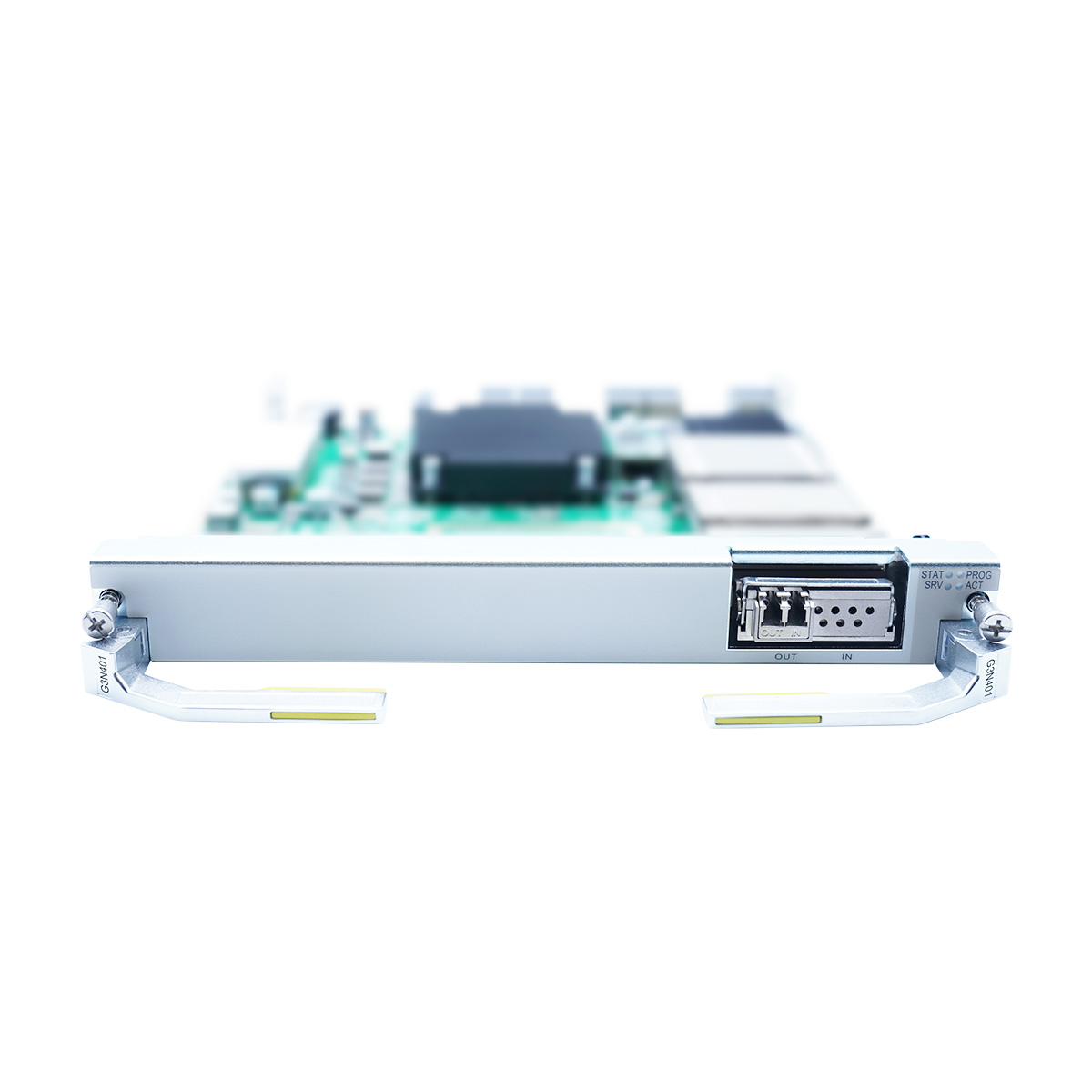

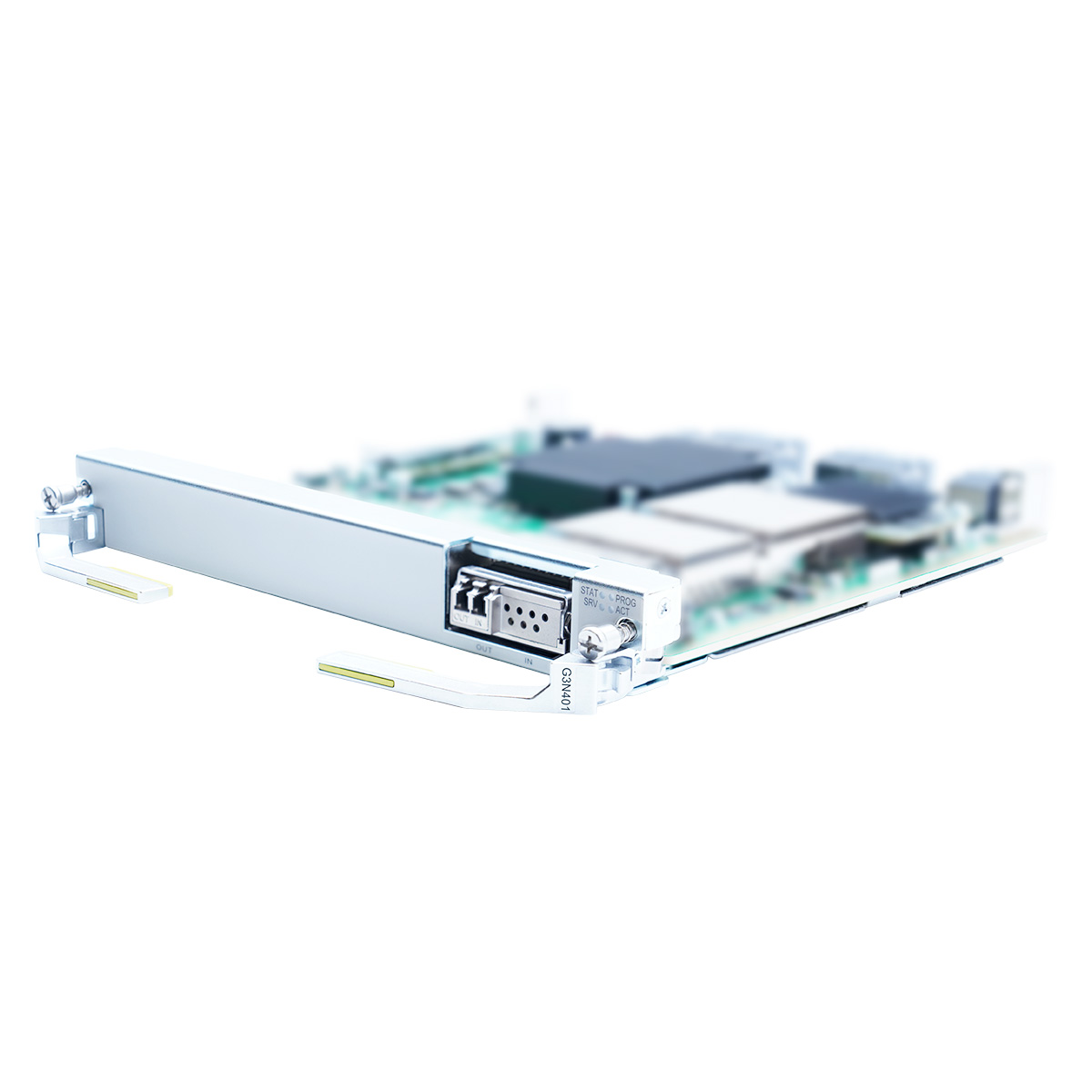

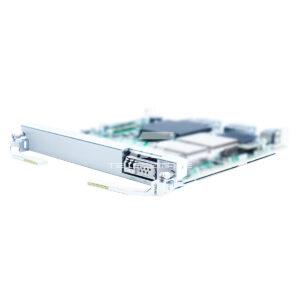

Front panel of the TNG3N401 board

TNG3N401

Front panel of the TNG3N401 board



Valid slots for the TNG3N401 board in a M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24



Show More Show Less
Item TNG3N401
Functions and Features of the TNG3N401 Board (OTN Line)
Backplane capacity The maximum capacity is 100 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength
  • Supports tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
  • Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
Typical channel spacing 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
  • OSUflex layer: supports PM and TCM overhead processing.
  • OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU Supported
NOTE:
The OSU function requires a license.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
OSUflex SNCP Supported
NOTE:
The board supports a maximum of 2000 OSUflex SNCP protection groups.
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement.
  • When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement.
  • Supports PM and TCM latency measurement at the OSUflex layer.
NOTE:
In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback
  • Supports OSUflex channel loopbacks
  • Supports ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
NOTE:
The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Functions and Features of the TNG3N401 Board (SDH)
Basic function
  • Receives/Transmits 4 x STM-64 optical signals.
  • Receives/Transmits 16 x STM-16 optical signals.
Backplane capacity The total backplane bandwidth is 40 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
  • Provides orderwire byte channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.
Functions and Features of the TNG3N401 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
  • ODUk(k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
ALS Supported
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.56 kg
  • 3.44 lb.
