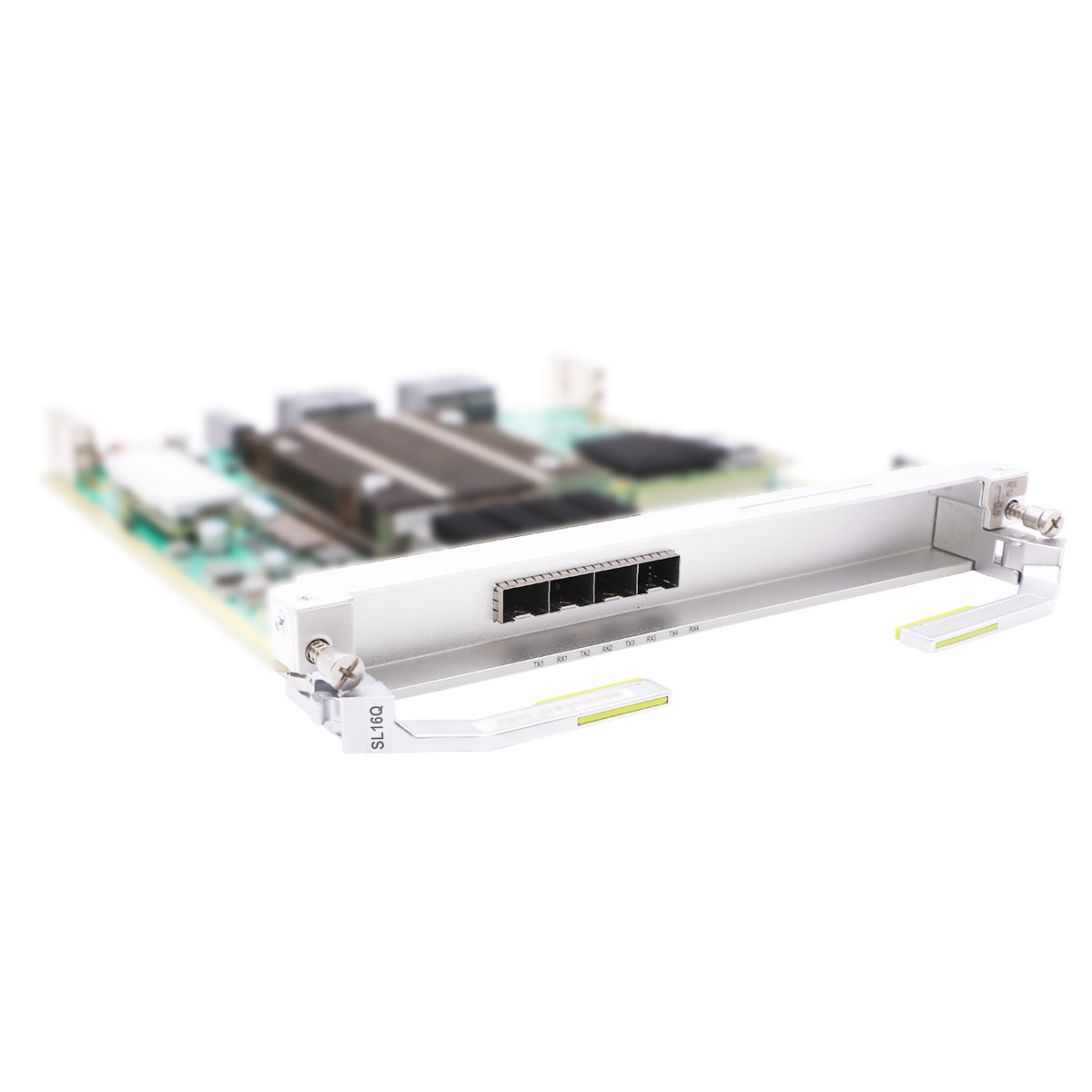

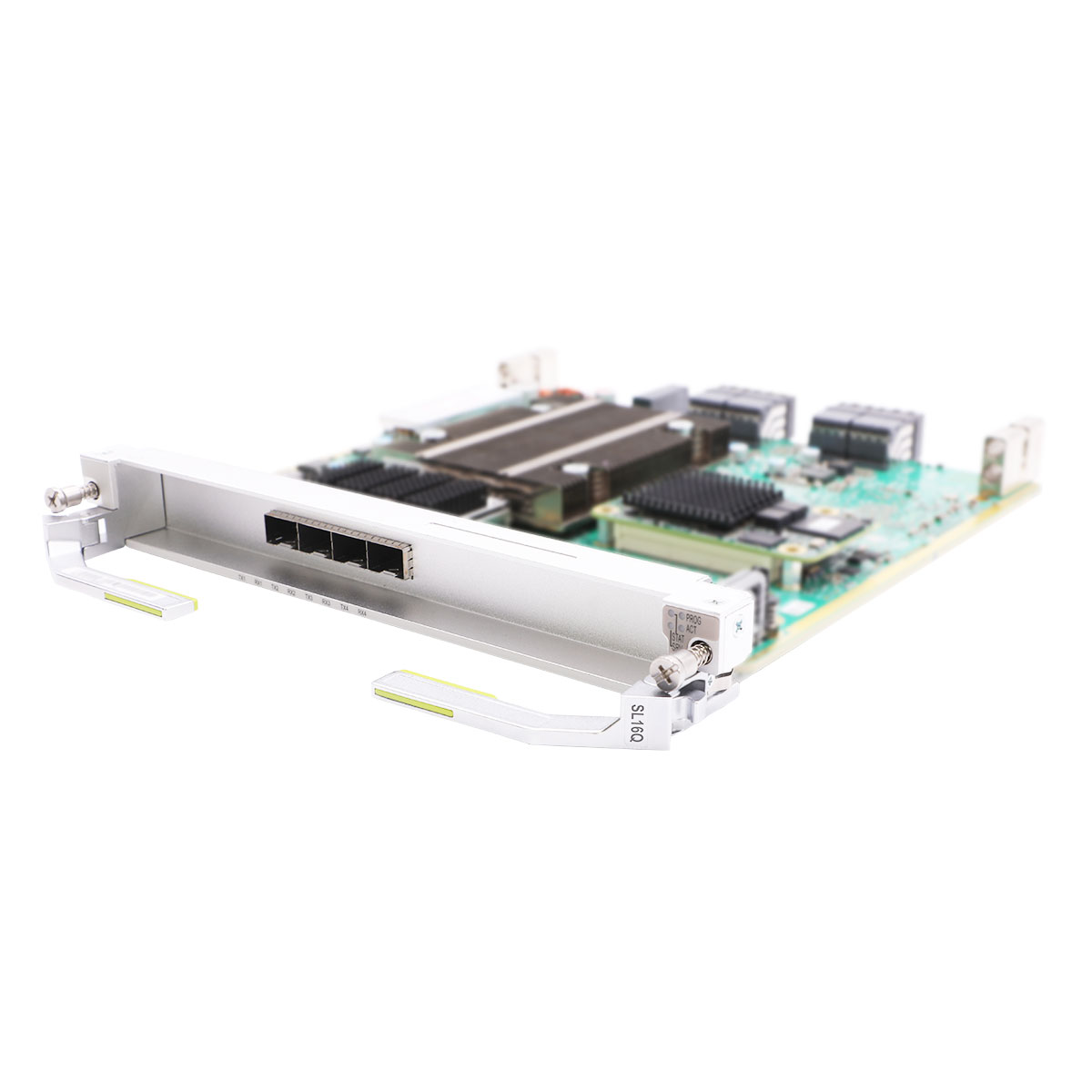

Huawei OptiX OSN 9800 TNG3SL16Q 4 x STM-16 processing board

Description

TNG3SL16Q overview



TNG3SL16Q 4 x STM-16 processing board applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG3SL16Q board has only one variant, that is, TNG3SL16QS01.

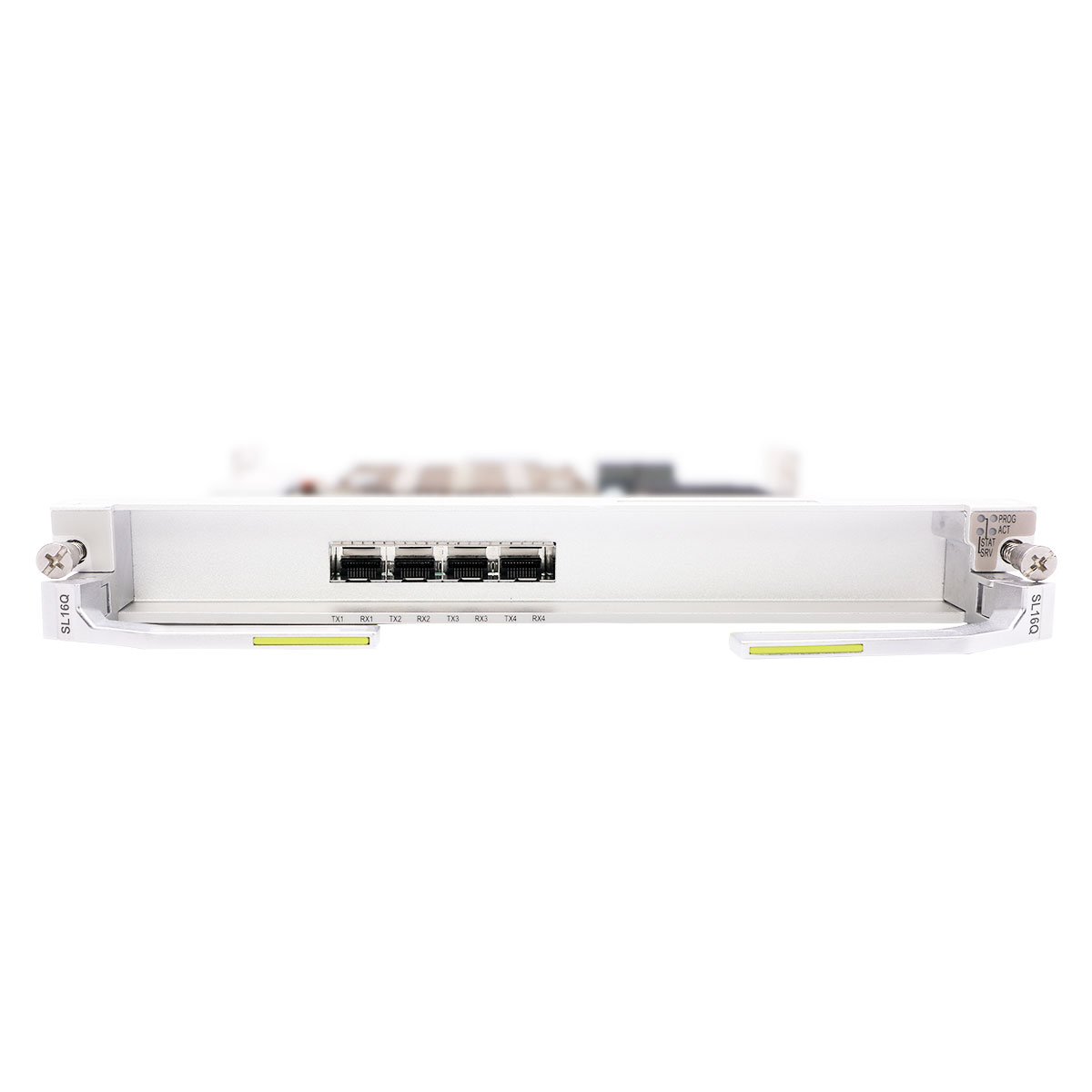

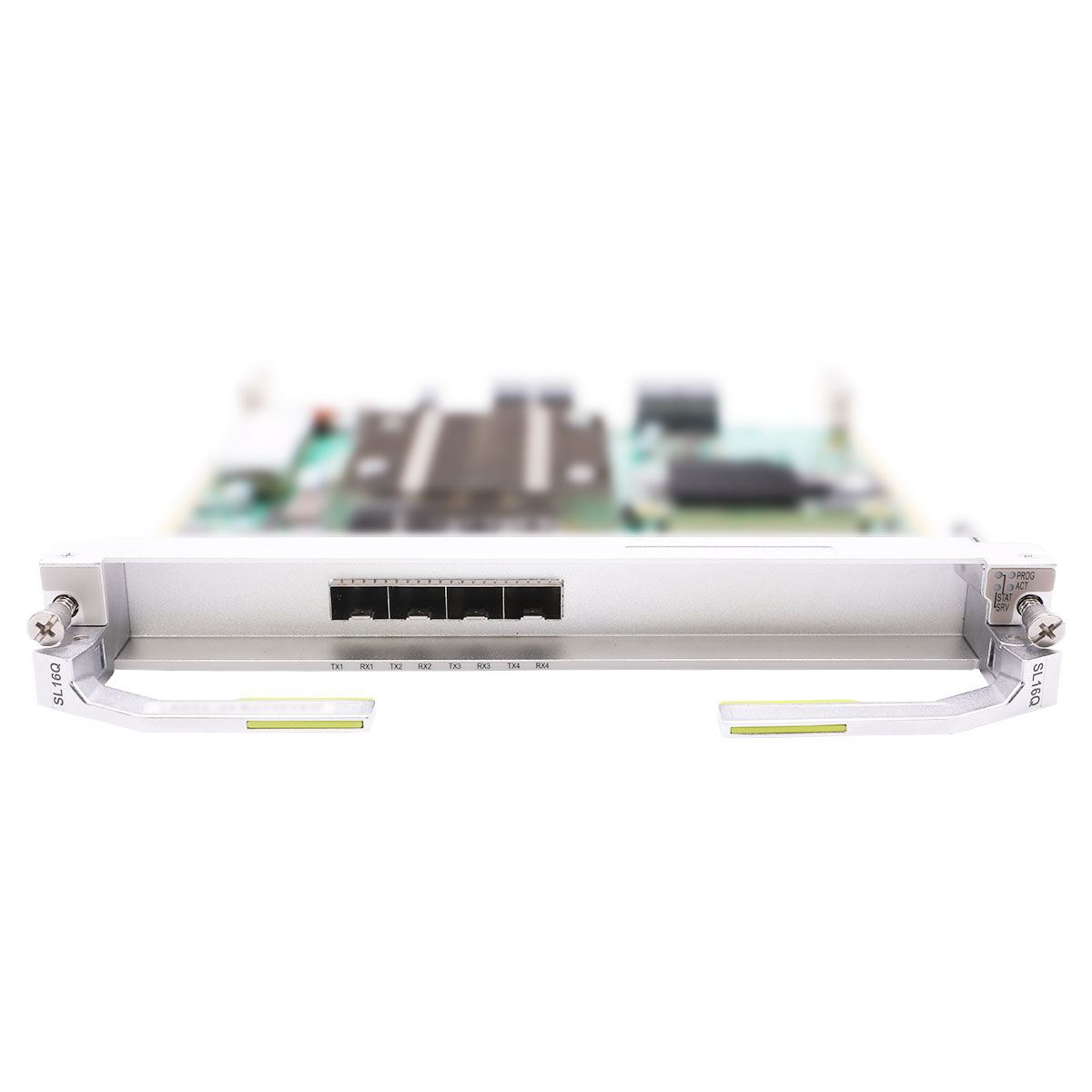

Front panel of the TTNG3SL16Q board

TNG3SL16Q

Front panel of the TNG3SL16Q board



Valid slots for the TNG3SL16Q board in a  M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24
Item TNG3SL16Q
Basic function Receives/Transmits 4 x STM-16 optical signals.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c
NOTE:
In an M24 subrack, VC-12 and VC-3 services can be supported only when G1CXP/G3CXP+SXCL boards are used.
Overhead processing
  • Supports OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709.
  • Processes the section overheads of STM-16 signals.
  • Supports transparent transmission and termination of path overheads.
  • Supports setting and query of J0/J1/C2 bytes.
  • Supports ECC communication.
  • Supports DCC transparent transmission for a maximum of any four ports. Bytes D1-D3 and D4-D12 are transparently transmitted.
NOTE:
Deleting a logical port that receives STM-16 services interrupts DCN communication on the port.
Port specifications
  • Supports SFP+/eSFP pluggable optical modules.
  • Supports SFP+/eSFP pluggable optical modules.
  • Provides the ALS function. The optical port supports the setting of the on/off state of a laser.
SDH SNCP Supported
Linear MSP Supported
Ring MSP
  • Supports two-fiber bidirectional ring MSP
  • Supports four-fiber bidirectional ring MSP
SDH ASON Supported
ALS Supported (comply with ITU-T G.664).
SSM enable status control at a line optical port Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
PRBS Supported
Bit Error Threshold-Crossing/Degradation Threshold Setting Supported
Reset Supports warm reset and cold reset, the warm reset does not affect services.
Manufacturer information querying Supported
In-service FPGA loading Supported
Hot swapping Supported
Channel loopback
  • Inloops on VC-4 paths, outloops on VC-4 paths
  • Outloops on VC-3 paths
  • Outloops on VC-12 paths
Port loopback Inloops, outloops
2M ASON Supported
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.52 kg
  • 3.35 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNG3SL16Q
Basic function Receives/Transmits 4 x STM-16 optical signals.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c
NOTE:
In an M24 subrack, VC-12 and VC-3 services can be supported only when G1CXP/G3CXP+SXCL boards are used.
Overhead processing
  • Supports OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709.
  • Processes the section overheads of STM-16 signals.
  • Supports transparent transmission and termination of path overheads.
  • Supports setting and query of J0/J1/C2 bytes.
  • Supports ECC communication.
  • Supports DCC transparent transmission for a maximum of any four ports. Bytes D1-D3 and D4-D12 are transparently transmitted.
NOTE:
Deleting a logical port that receives STM-16 services interrupts DCN communication on the port.
Port specifications
  • Supports SFP+/eSFP pluggable optical modules.
  • Supports SFP+/eSFP pluggable optical modules.
  • Provides the ALS function. The optical port supports the setting of the on/off state of a laser.
SDH SNCP Supported
Linear MSP Supported
Ring MSP
  • Supports two-fiber bidirectional ring MSP
  • Supports four-fiber bidirectional ring MSP
SDH ASON Supported
ALS Supported (comply with ITU-T G.664).
SSM enable status control at a line optical port Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
PRBS Supported
Bit Error Threshold-Crossing/Degradation Threshold Setting Supported
Reset Supports warm reset and cold reset, the warm reset does not affect services.
Manufacturer information querying Supported
In-service FPGA loading Supported
Hot swapping Supported
Channel loopback
  • Inloops on VC-4 paths, outloops on VC-4 paths
  • Outloops on VC-3 paths
  • Outloops on VC-12 paths
Port loopback Inloops, outloops
2M ASON Supported
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.52 kg
  • 3.35 lb.
