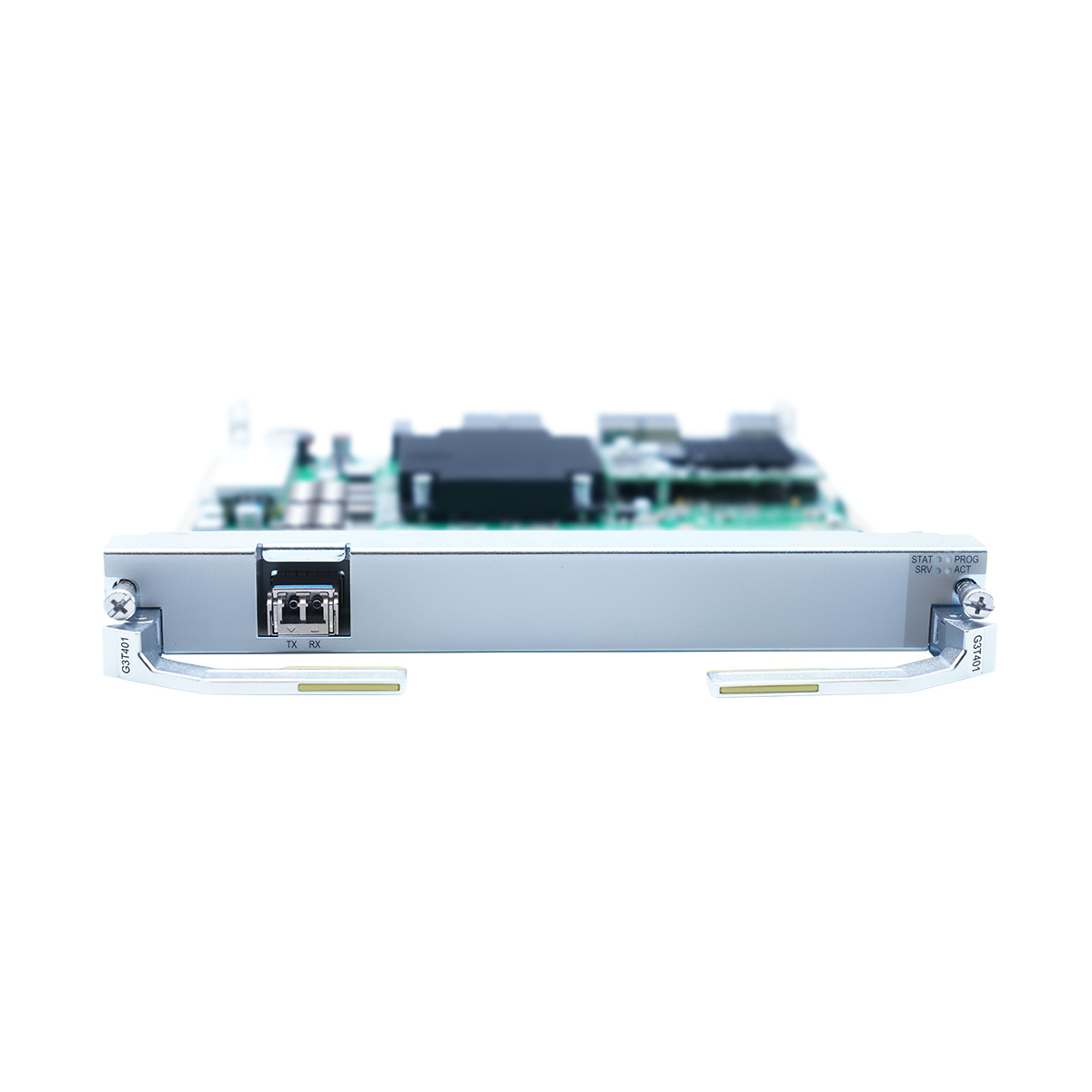

TNG3T401 1
TNG3T401 2

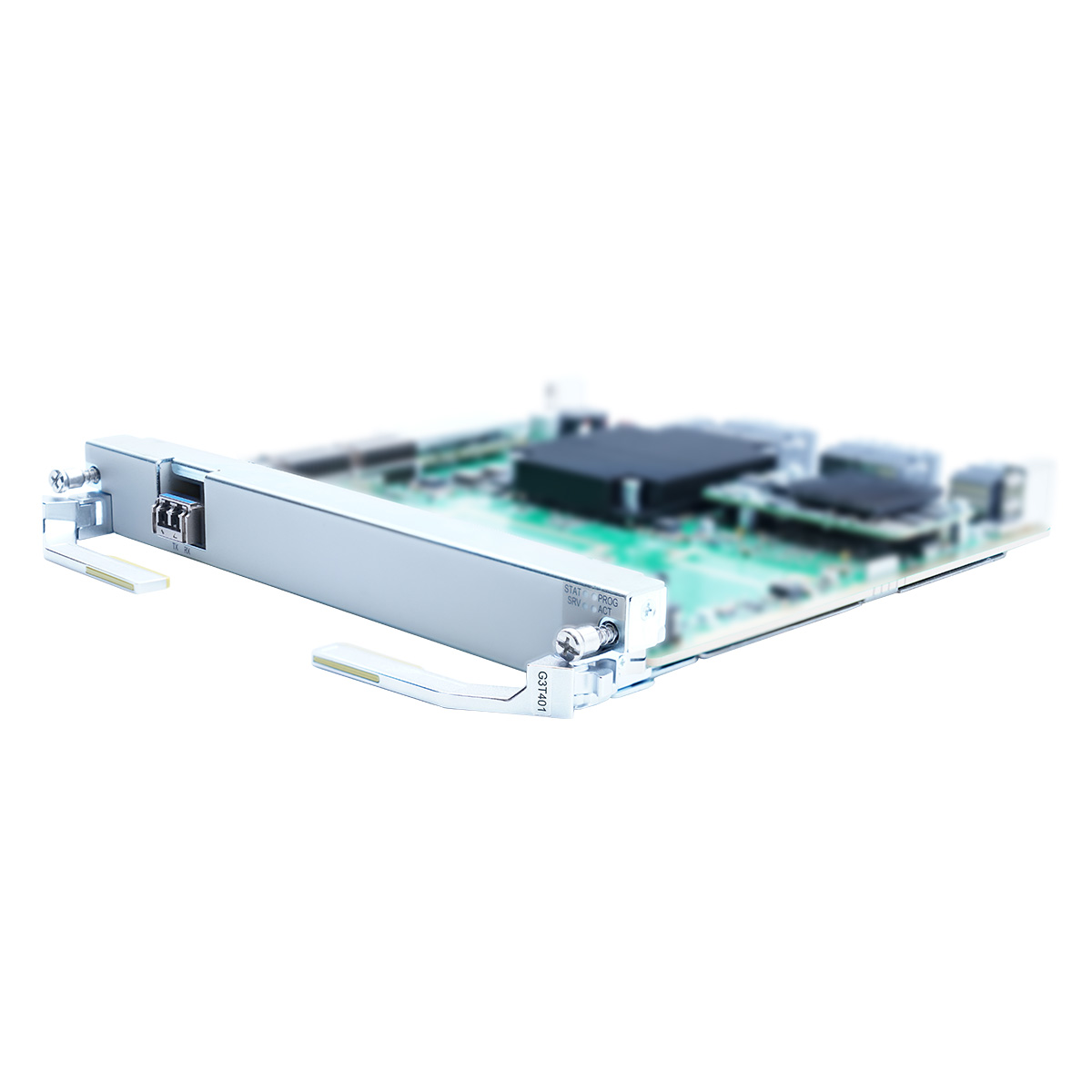

TNG3T401 3
TNG3T401 4
Categories:

TNG3T401

0 Reviews Write a review
SKU2016641
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OptiX OSN 9800 TNG3T401 1*100G Tributary Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNG3T401 overview



TNG3T401 1*100G Tributary Service Processing Board applied to Huawei OptiX OSN 9800 M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNG3T401 board has only one variant, that is, TNG3T401Q01.

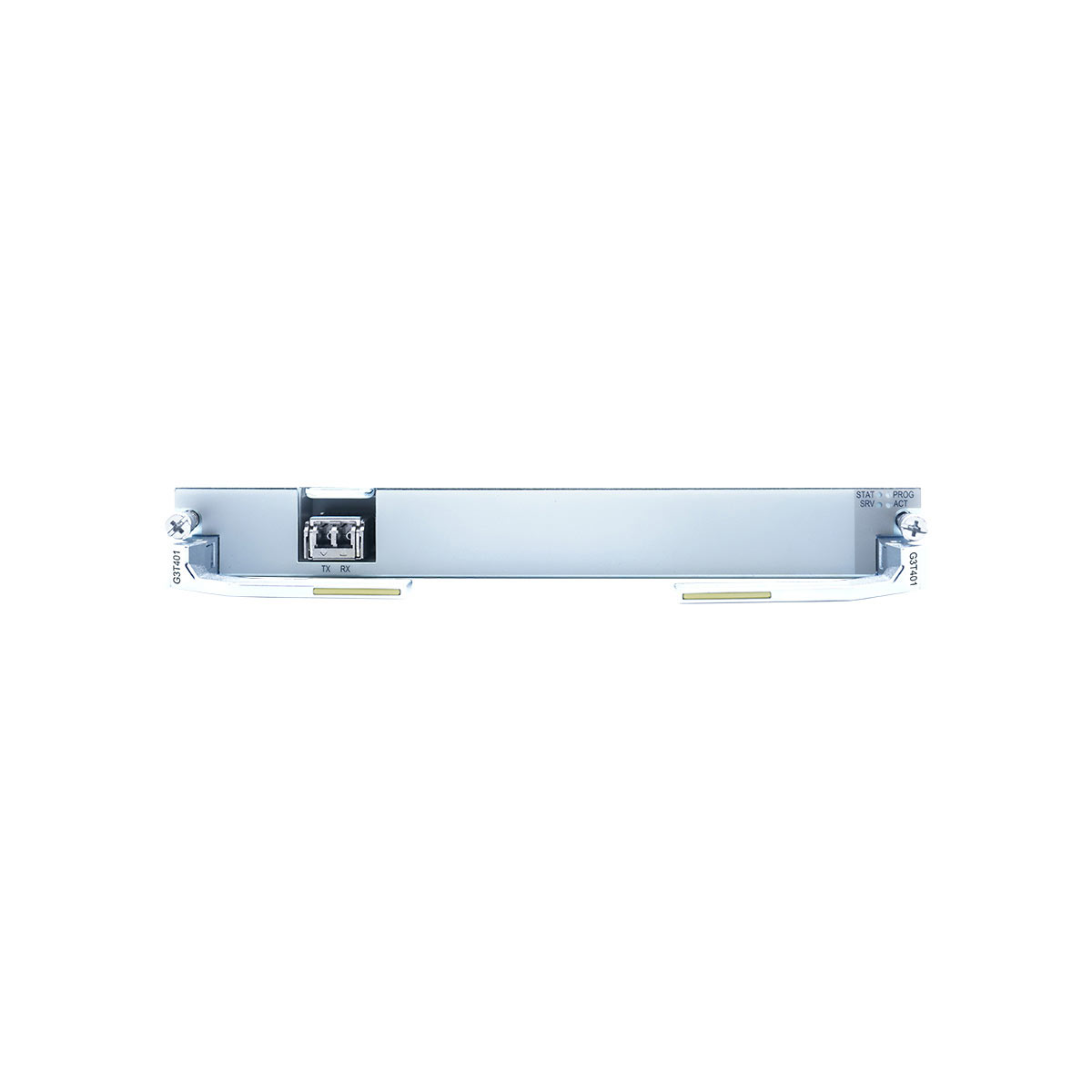

Front panel of the TNG3T401 board

TNG3T401

Front panel of the TNG3T401 board



Valid slots for the TNG3T401 board in a M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 1 IU1 to IU24 IU1 to IU24



Show More Show Less
Item TNG3T401
Functions and Features of the TNG3T401 Board (OTN Tributary)
Backplane capacity The total bandwidth is 100 Gbit/s.
Client-side service type
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • 50GE: Ethernet service at a rate of 51.5625 Gbit/s
  • 40GE: Ethernet service at a rate of 41.25 Gbit/s
  • 4 x 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 50G FlexE unaware: flexible Ethernet service at a rate of 51.5625 Gbit/s
  • 100G FlexE unaware: flexible Ethernet service at a rate of 103.125 Gbit/s
Service mapping mode
  • 100GE: GMP, GFP-F
  • 50GE: BMP, GFP-F
  • 40GE: TTT+GMP, MAC Transparent Mapping (GFP-F)
  • 10GE LAN: GFP-F, IMP+BMP
  • FlexE: Bit Transparent Mapping
FEC coding
  • FlexE/100GE/50GE: RS-FEC
  • OTU4: FEC
NOTE:
The boards using different error correction coding modes cannot be interconnected.
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU3 layer: supports PM overhead processing.
  • ODU4 layer: When the client-side service type is 100GE, supports PM overhead processing.
  • ODU4 layer: When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU4 layer: supports SM overhead processing.
LPT Supports the LPT function when the client-side service is 10GE LAN.
NOTE:
When LPT works in protocol mode, LPT and ALS are mutually exclusive.
Client 1+1 protection Supported
NOTE:
  • In the case of FlexE services, the T401 board does not support client 1+1 protection.
  • Client 1+1 protection is not supported when MPO optical modules are used on the client side.
ODUk SNCP Supported
Tributary SNCP Supported
L1 service encryption Supports setting the encryption function by port.
NOTE:
  • When the OTU4 service is accessed, the board does not support encryption.
  • The client-side ports do not support broadcast cross-connection and encryption function at the same time.
  • After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
ALS Supported when client services are non-OTN services.
LLDP Supported when the client-side service type is ethernet service.
NOTE:
  • LLDP is not supported in the case of FlexE services.
  • When service mapping mode is MAC transparent mapping, the LLDP mode of the port is the receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • When receiving 100GE(GFP-T)/50GE(GFP-T)/10GE LAN(GFP-T) services on the client side, the board can support synchronous Ethernet processing.
  • When receiving 100GE(GMP)/50GE(BMP)/40GE(TTT+GMP)/FlexE Unaware(100G) services on the client side, the board can support synchronous Ethernet transparent transmission.
IEEE 1588v2
  • The board supports IEEE 1588v2 when 100GE/50GE/10GE LAN services are received on the client side, and the port service mapping mode is MAC Transparent Mapping.
  • The board supports IEEE 1588v2 when 100G FlexE unaware services are received on the client side.
ITU-T G.8275.1
  • The board supports ITU-T G.8275.1 when 100GE/50GE/10GE LAN services are received on the client side, and the port service mapping mode is MAC Transparent Mapping.
  • The board supports ITU-T G.8275.1 when 100G FlexE unaware services are received on the client side.
ITU-T G.8273.2 Supported
High-precision clock synchronization Supported
NOTE:
  • This function is not supported when the board uses the QSFP28,1310,100GE,-3.1dBm,4dBm,-4.5dBm,LC,SMF,2km,PAM4 module.
  • The board supports high-precision clock synchronization only when 100GE/50GE/10GE LAN services are received on the client side, and the port service mapping mode is MAC transparent mapping.
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide.
Outband DCN Supports when the client-side service type is OTU4.
Test frame Supported when the client-side service type is 100GE/50GE(GFP-F)/40GE/10GE LAN(GFP-F).
PRBS
  • When the board receives OTU4 services, the PRBS test function is supported in both the optical port direction and the backplane direction.
  • When the board receives 100GE/50GE/40GE/FlexE Unaware(50G/100G) services, the PRBS test function is supported only in the backplane direction.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
Channel loopback When a client-side port accesses 4 x 10GE signals, channel loopback is supported.
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
  • Supports inloops and outloops in a FlexE group.
NOTE:
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback. For details.
Alarm and performance event monitoring
  • Monitors BIP8 bytes to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Provides remote monitoring (RMON) of the Ethernet service.

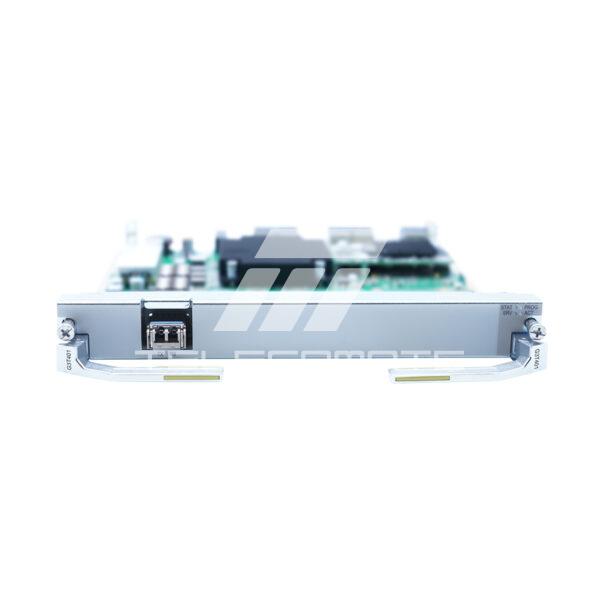

Functions and Features of the TNG3T401 Board (OTN Line)
Backplane capacity The total backplane bandwidth is 100 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Not supported
FEC coding FEC
NOTE:
The boards using different error correction coding modes cannot be interconnected.
Line modulation format NRZ
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • OSUflex layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
  • OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU Supported
NOTE:
The OSU function requires a license.
Intra-board 1+1 protection Not supported
ODUk SNCP Supported
OSUflex SNCP Supported
NOTE:
The board supports a maximum of 2000 OSUflex SNCP protection groups.
Tributary SNCP Supported
Optical-layer ASON Not supported
Electrical-layer ASON Supported
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supported
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement.
  • When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement.
  • Supports PM and TCM latency measurement at the OSUflex layer.
NOTE:
In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback
  • ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
  • OSUflex channel Loopback
Port loopback Supports WDM side loopback
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Functions and Features of the TNG3T401 Board (SDH)
Basic function
  • Receives/Transmits 4 x STM-64 optical signals.
  • Receives/Transmits 16 x STM-16 optical signals.
Backplane capacity The total backplane bandwidth is 40 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports DCC transparent transmission.
  • Provides orderwire byte channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Spported
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate line failures.
  • Monitors B2 bytes to help locate line failures.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.39 kg
  • 3.06 lb.

Additional information

Brand
Lead Time
Ship From
Warranty
Condition
Item TNG3T401
Functions and Features of the TNG3T401 Board (OTN Tributary)
Backplane capacity The total bandwidth is 100 Gbit/s.
Client-side service type
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s
  • OTU4: OTN service at a rate of 111.81 Gbit/s
  • 50GE: Ethernet service at a rate of 51.5625 Gbit/s
  • 40GE: Ethernet service at a rate of 41.25 Gbit/s
  • 4 x 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 50G FlexE unaware: flexible Ethernet service at a rate of 51.5625 Gbit/s
  • 100G FlexE unaware: flexible Ethernet service at a rate of 103.125 Gbit/s
Service mapping mode
  • 100GE: GMP, GFP-F
  • 50GE: BMP, GFP-F
  • 40GE: TTT+GMP, MAC Transparent Mapping (GFP-F)
  • 10GE LAN: GFP-F, IMP+BMP
  • FlexE: Bit Transparent Mapping
FEC coding
  • FlexE/100GE/50GE: RS-FEC
  • OTU4: FEC
NOTE:
The boards using different error correction coding modes cannot be interconnected.
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU3 layer: supports PM overhead processing.
  • ODU4 layer: When the client-side service type is 100GE, supports PM overhead processing.
  • ODU4 layer: When the client-side service type is OTU4, supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU4 layer: supports SM overhead processing.
LPT Supports the LPT function when the client-side service is 10GE LAN.
NOTE:
When LPT works in protocol mode, LPT and ALS are mutually exclusive.
Client 1+1 protection Supported
NOTE:
  • In the case of FlexE services, the T401 board does not support client 1+1 protection.
  • Client 1+1 protection is not supported when MPO optical modules are used on the client side.
ODUk SNCP Supported
Tributary SNCP Supported
L1 service encryption Supports setting the encryption function by port.
NOTE:
  • When the OTU4 service is accessed, the board does not support encryption.
  • The client-side ports do not support broadcast cross-connection and encryption function at the same time.
  • After the encryption function is configured, the WDM-side rate of the board cannot be switched, but the modulation formats of the same rate can be switched.
ALS Supported when client services are non-OTN services.
LLDP Supported when the client-side service type is ethernet service.
NOTE:
  • LLDP is not supported in the case of FlexE services.
  • When service mapping mode is MAC transparent mapping, the LLDP mode of the port is the receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • When receiving 100GE(GFP-T)/50GE(GFP-T)/10GE LAN(GFP-T) services on the client side, the board can support synchronous Ethernet processing.
  • When receiving 100GE(GMP)/50GE(BMP)/40GE(TTT+GMP)/FlexE Unaware(100G) services on the client side, the board can support synchronous Ethernet transparent transmission.
IEEE 1588v2
  • The board supports IEEE 1588v2 when 100GE/50GE/10GE LAN services are received on the client side, and the port service mapping mode is MAC Transparent Mapping.
  • The board supports IEEE 1588v2 when 100G FlexE unaware services are received on the client side.
ITU-T G.8275.1
  • The board supports ITU-T G.8275.1 when 100GE/50GE/10GE LAN services are received on the client side, and the port service mapping mode is MAC Transparent Mapping.
  • The board supports ITU-T G.8275.1 when 100G FlexE unaware services are received on the client side.
ITU-T G.8273.2 Supported
High-precision clock synchronization Supported
NOTE:
  • This function is not supported when the board uses the QSFP28,1310,100GE,-3.1dBm,4dBm,-4.5dBm,LC,SMF,2km,PAM4 module.
  • The board supports high-precision clock synchronization only when 100GE/50GE/10GE LAN services are received on the client side, and the port service mapping mode is MAC transparent mapping.
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide.
Outband DCN Supports when the client-side service type is OTU4.
Test frame Supported when the client-side service type is 100GE/50GE(GFP-F)/40GE/10GE LAN(GFP-F).
PRBS
  • When the board receives OTU4 services, the PRBS test function is supported in both the optical port direction and the backplane direction.
  • When the board receives 100GE/50GE/40GE/FlexE Unaware(50G/100G) services, the PRBS test function is supported only in the backplane direction.
Latency measurement
  • Supports PM and TCM latency measurement for upstream higher-order ODU channels.
  • Supports PM and TCM latency measurement for upstream lower-order ODU channels when non-OTN services are received on the client side.
  • Supports TCM latency measurement for downstream lower-order ODU channels when OTN services are received on the client side.
Channel loopback When a client-side port accesses 4 x 10GE signals, channel loopback is supported.
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
  • Supports inloops and outloops in a FlexE group.
NOTE:
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback. For details.
Alarm and performance event monitoring
  • Monitors BIP8 bytes to help locate line failures.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Provides remote monitoring (RMON) of the Ethernet service.
Functions and Features of the TNG3T401 Board (OTN Line)
Backplane capacity The total backplane bandwidth is 100 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Not supported
FEC coding FEC
NOTE:
The boards using different error correction coding modes cannot be interconnected.
Line modulation format NRZ
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • OSUflex layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
  • OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU Supported
NOTE:
The OSU function requires a license.
Intra-board 1+1 protection Not supported
ODUk SNCP Supported
OSUflex SNCP Supported
NOTE:
The board supports a maximum of 2000 OSUflex SNCP protection groups.
Tributary SNCP Supported
Optical-layer ASON Not supported
Electrical-layer ASON Supported
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supported
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When only one ODUk granularity level exists in the mapping path, ODUk channels support only TCM latency measurement.
  • When multiple ODUk granularity levels exist in the mapping path, ODUk channels with the smallest granularity support only TCM latency measurement, and other ODUk channels support PM and TCM latency measurement.
  • Supports PM and TCM latency measurement at the OSUflex layer.
NOTE:
In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback
  • ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
  • OSUflex channel Loopback
Port loopback Supports WDM side loopback
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Functions and Features of the TNG3T401 Board (SDH)
Basic function
  • Receives/Transmits 4 x STM-64 optical signals.
  • Receives/Transmits 16 x STM-16 optical signals.
Backplane capacity The total backplane bandwidth is 40 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports DCC transparent transmission.
  • Provides orderwire byte channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Spported
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate line failures.
  • Monitors B2 bytes to help locate line failures.
Dimensions (H x W x D)
  • 237.10 × 30.50 × 220.00 (mm)
  • 9.34 × 1.20 × 8.67 (in.)
Weight
  • 1.39 kg
  • 3.06 lb.
