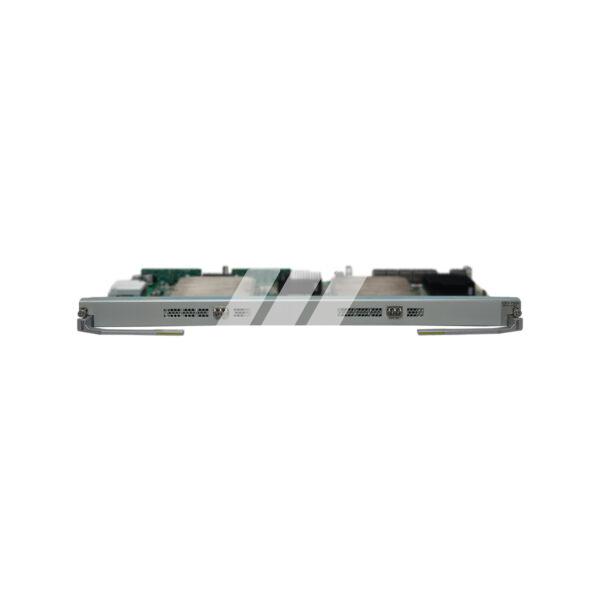

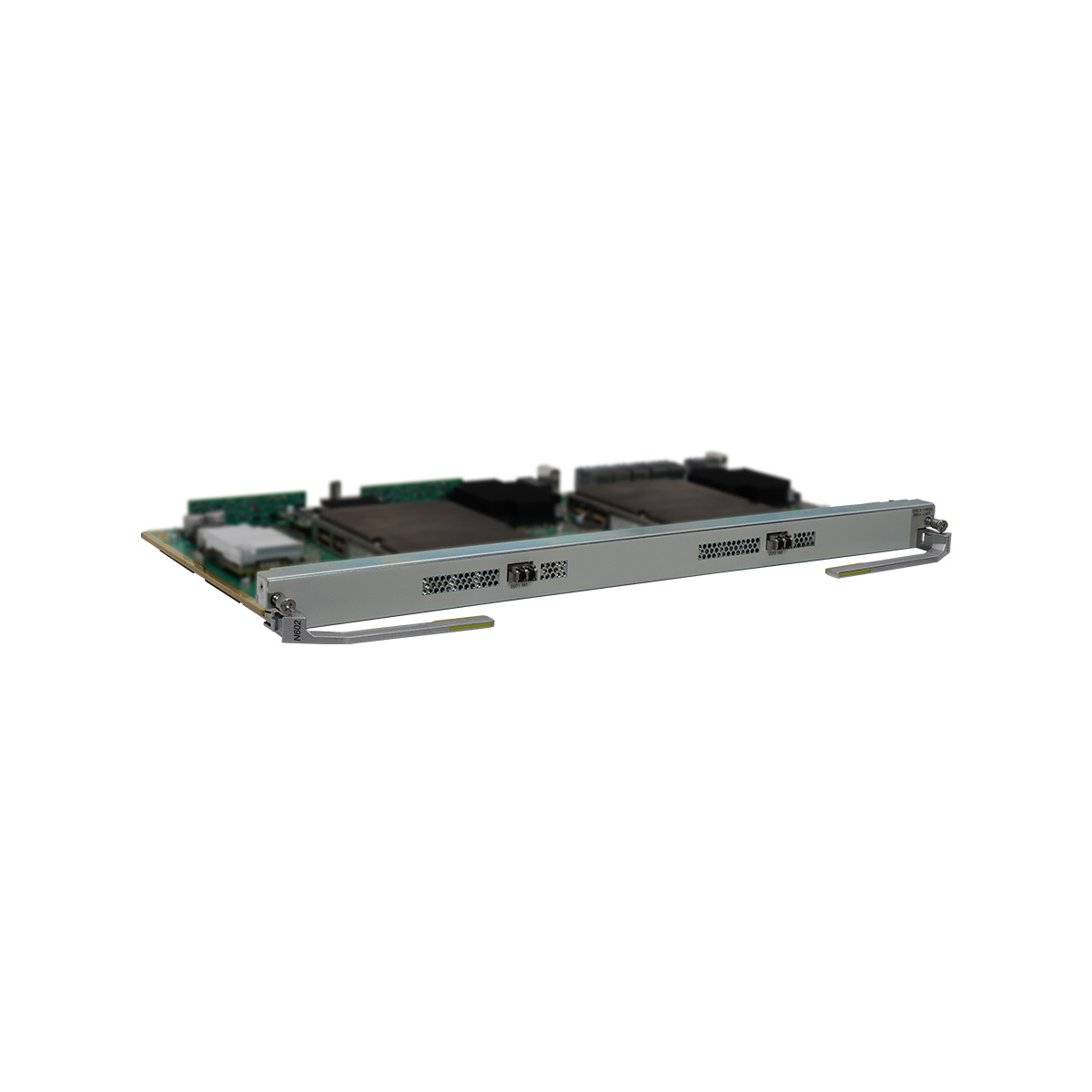

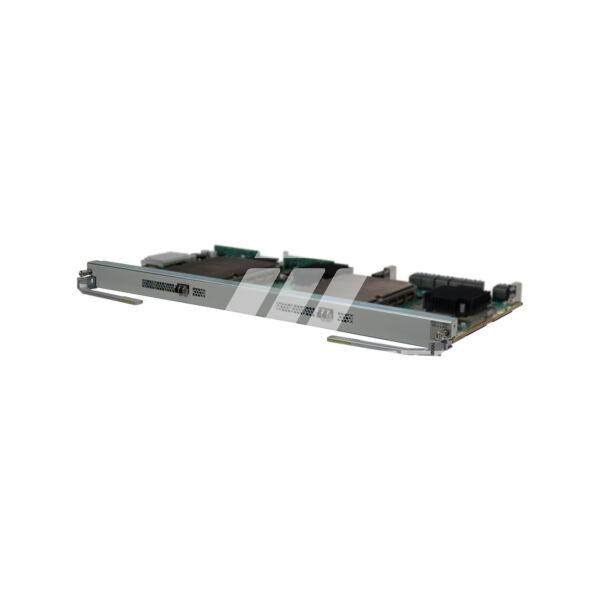

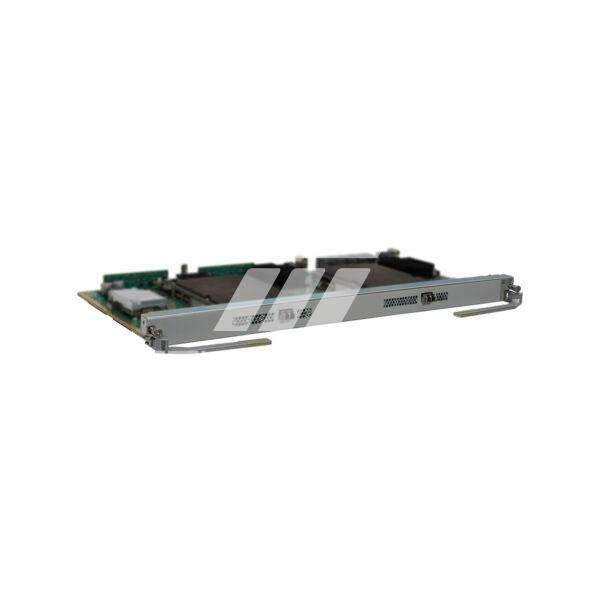

Huawei OptiX OSN 9800 TNS1N602 2 x 400G Line Service Processing Board (OTN & SDH)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNS1N602 overview



TNS1N602 2 x 400G Line Service Processing Board (OTN & SDH) applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV6T216 board has two variants: TNS1N602T72 and TNS1N602T73.

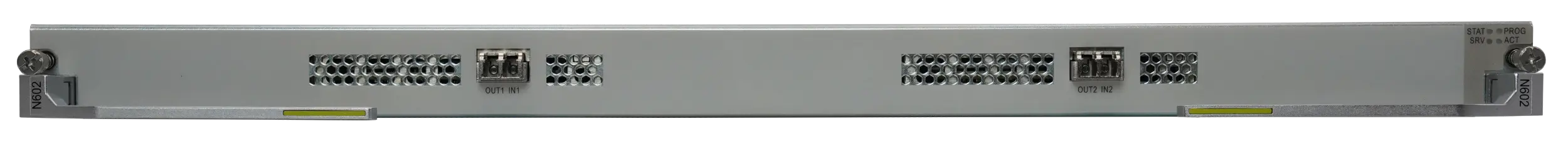

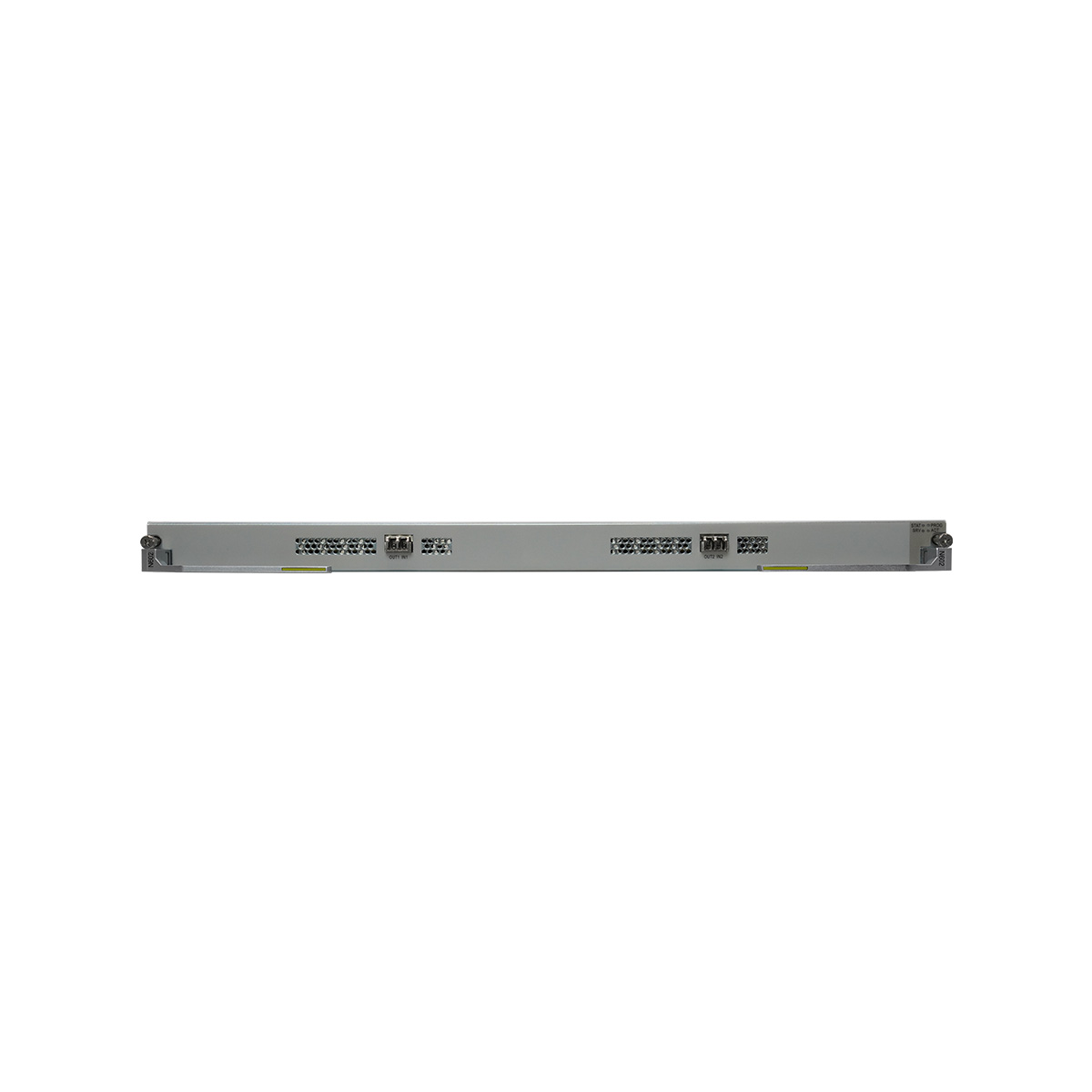

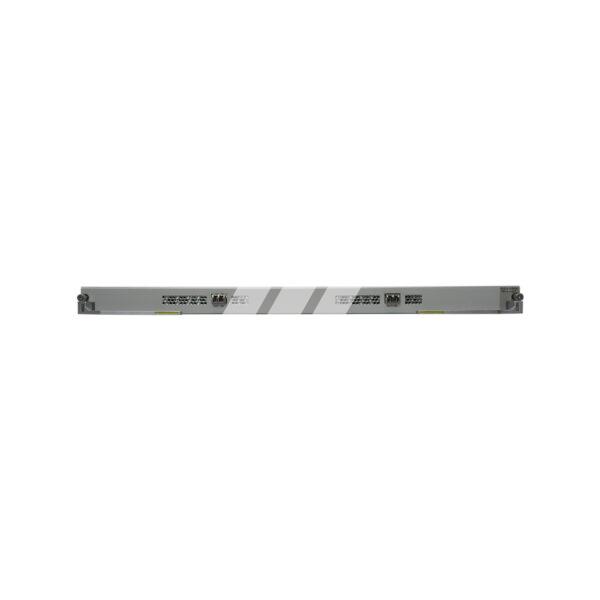

Front panel of the TNS1N602 board

TNS1N602

Front panel of the TNS1N602 board



Valid slots for the TNS1N602 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64



Show More Show Less
Item TNS1N602
Functions and Features of the TNS1N602 Board (OTN Line)
Basic function
  • TNS1N602T73: Implements mutual conversion between OTN signals and two OTUC4 signal.
  • TNS1N602T72: Implements mutual conversion between OTN signals and two OTUC2/OTUC4 signal.
Backplane capacity The maximum capacity is 800 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC3
Line modulation format
  • TNS1N602T73:
    • 400G s16QAM
  • TNS1N602T72:
    • 200G e16QAM
    • 400G s16QAM
NOTE:
The U32 enhanced subrack (2:2 cross-connect mode) and M24 subrack (1:1 cross-connect mode) support 200G e16QAM, but do not support 400G s16QAM.
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz (n=0,1,2...)
  • 400G s16QAM: 100GHz+n*6.25GHz (n=0,1,2...)
NOTE:
Due to high filtering penalty, 400G s16QAM cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • TNS1N602T73:
    • WDM-side OTUC4 layer: supports SM overhead processing.
    • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
  • TNS1N602T72:
    • WDM-side OTUC2/OTUC4 layer: supports SM overhead processing.
    • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with the optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Not supported
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • Supports PM and TCM latency measurement at the ODUCn layer.
Channel loopback Supports ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel inloops and outloops.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Functions and Features of the TNS1N602 Board (SDH)
Basic function
  • TNS1N602T73: Implements mutual conversion between SDH signals and one OTUC4 signal.
  • TNS1N602T72: Implements mutual conversion between SDH signals and one OTUC2/OTUC4 signal.
NOTE:
Only the IN1/OUT1 port of the TNS1N602 board supports SDH services.
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.
Functions and Features of the TNS1N602 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • TNS1N602T73:
    • OTUC4
  • TNS1N602T72:
    • OTUC2
    • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC3
Line modulation format
  • TNS1N602T73:
    • 400G s16QAM
  • TNS1N602T72:
    • 200G e16QAM
    • 400G s16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz (n=0,1,2...)
  • 400G s16QAM: 100GHz+n*6.25GHz (n=0,1,2...)
NOTE:
Due to high filtering penalty, 400G s16QAM cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • TNS1N602T73:
    • WDM-side OTUC4 layer: supports SM overhead processing.
    • ODUC4 layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
  • TNS1N602T72:
    • WDM-side OTUC2/OTUC4 layer: supports SM overhead processing.
    • ODUC2/ODUC4 layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock mode is not supported.
Outband DCN Supports ESC communication.
Test frame Not supported
PRBS Not supported
Port loopback Not supported
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 4.31 kg
  • 9.50 lb.

Additional information

Brand
Lead Time
Ship From
Warranty
Condition
Item TNS1N602
Functions and Features of the TNS1N602 Board (OTN Line)
Basic function
  • TNS1N602T73: Implements mutual conversion between OTN signals and two OTUC4 signal.
  • TNS1N602T72: Implements mutual conversion between OTN signals and two OTUC2/OTUC4 signal.
Backplane capacity The maximum capacity is 800 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC3
Line modulation format
  • TNS1N602T73:
    • 400G s16QAM
  • TNS1N602T72:
    • 200G e16QAM
    • 400G s16QAM
NOTE:
The U32 enhanced subrack (2:2 cross-connect mode) and M24 subrack (1:1 cross-connect mode) support 200G e16QAM, but do not support 400G s16QAM.
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz (n=0,1,2...)
  • 400G s16QAM: 100GHz+n*6.25GHz (n=0,1,2...)
NOTE:
Due to high filtering penalty, 400G s16QAM cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • TNS1N602T73:
    • WDM-side OTUC4 layer: supports SM overhead processing.
    • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
  • TNS1N602T72:
    • WDM-side OTUC2/OTUC4 layer: supports SM overhead processing.
    • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with the optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
ALS Not supported
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • Supports PM and TCM latency measurement at the ODUCn layer.
Channel loopback Supports ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel inloops and outloops.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Functions and Features of the TNS1N602 Board (SDH)
Basic function
  • TNS1N602T73: Implements mutual conversion between SDH signals and one OTUC4 signal.
  • TNS1N602T72: Implements mutual conversion between SDH signals and one OTUC2/OTUC4 signal.
NOTE:
Only the IN1/OUT1 port of the TNS1N602 board supports SDH services.
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.
Functions and Features of the TNS1N602 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • TNS1N602T73:
    • OTUC4
  • TNS1N602T72:
    • OTUC2
    • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC3
Line modulation format
  • TNS1N602T73:
    • 400G s16QAM
  • TNS1N602T72:
    • 200G e16QAM
    • 400G s16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz (n=0,1,2...)
  • 400G s16QAM: 100GHz+n*6.25GHz (n=0,1,2...)
NOTE:
Due to high filtering penalty, 400G s16QAM cannot be used with 100G optical-layer boards with fixed channel spacing, such as TNG2D60 and TNG2M60.
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • TNS1N602T73:
    • WDM-side OTUC4 layer: supports SM overhead processing.
    • ODUC4 layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
  • TNS1N602T72:
    • WDM-side OTUC2/OTUC4 layer: supports SM overhead processing.
    • ODUC2/ODUC4 layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock mode is not supported.
Outband DCN Supports ESC communication.
Test frame Not supported
PRBS Not supported
Port loopback Not supported
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 4.31 kg
  • 9.50 lb.
