Description
TNS1STD overview
TNS1STD System Clock Distribution Board, applied to Huawei OptiX OSN 9800 U64/U32/M24.
To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.
The TNS1STD board variant is TNS1STD.

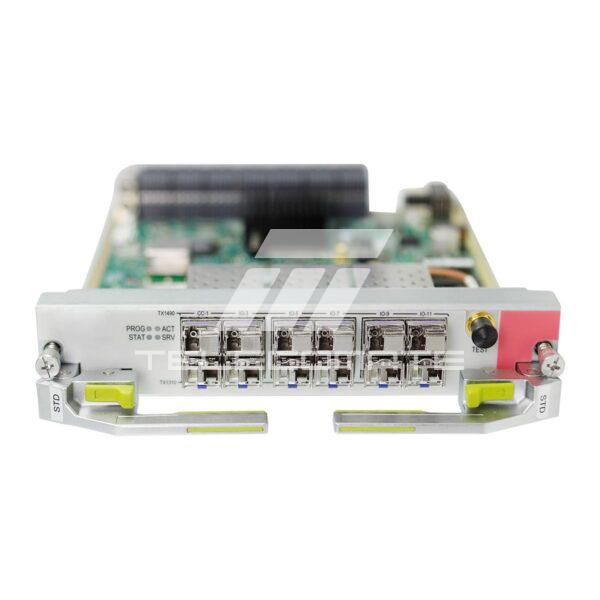

Front panel of the TNS1STD board
Front panel of the TNS1STD board
Valid slots for the TNS1STD board in a U6 subrack
Device | Number of Occupied Slots | Physical Slot | Logical Slot |
---|---|---|---|
OptiX OSN 9800 U16 | 1 | IU75, IU77 | IU75, IU77 |
