Description

TNS2N502 overview



TNS2N502 2*200G/100G Programable Hybrid Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNS2N502 board has two variants: TNS2N502C01、TNS2N502C09.

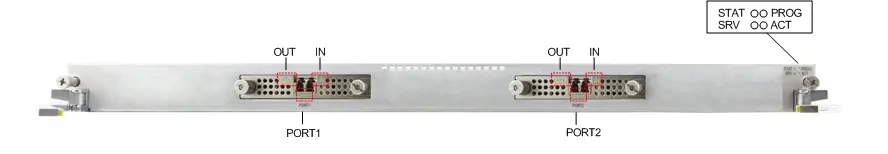

Front panel of the TNS2N502 board

TNS2N502

Front panel of the TNS2N502 board



Valid slots for the TNS2N502 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64
Show More Show Less
Item TNS2N502
Backplane capacity The total backplane bandwidth is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding 100G line mode:
  • SDFEC2
200G line mode:
  • 200G 16QAM: SDFEC
  • 200G 16QAM-H: SDFEC
  • 200G e16QAM: SDFEC2
400G line mode:
  • 400G 16QAM(Dual_Ports): SDFEC
  • 400G 16QAM-H(Dual_Ports): SDFEC
  • 400G e16QAM(Dual_Ports): SDFEC2
Line modulation format 100G line mode:
  • 100G QPSK wDCM
  • 100G QPSK
200G line mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
400G line mode:
  • 400G 16QAM(Dual_Ports)
  • 400G 16QAM-H(Dual_Ports)
  • 400G e16QAM(Dual_Ports)
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
  • 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
400G line mode:
  • WDM-side OTUC4 layer: supports SM overhead processing.
  • ODUC4 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards. Port in 400G mode: Do not support intra-board 1+1 protection.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement
  • The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
  • The board supports PM and TCM latency measurement at the ODUCn layer.
NOTE:
When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Channel loopback
  • 100G line mode:ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
  • 200G line mode:ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
  • 400G line mode:ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.

Functions and Features of the TNS2N502 Board (SDH)
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of B2 bytes to help locate line faults.

Functions and Features of the TNS2N502 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU4
  • OTUC2
  • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding 100G line mode:
  • SDFEC2
200G line mode:
  • 200G 16QAM: SDFEC
  • 200G 16QAM-H: SDFEC
  • 200G e16QAM: SDFEC2
400G line mode:
  • 400G 16QAM(Dual_Ports): SDFEC
  • 400G 16QAM-H(Dual_Ports): SDFEC
  • 400G e16QAM(Dual_Ports): SDFEC2
Line modulation format 100G mode:
  • 100G QPSK wDCM
  • 100G QPSK
200G mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
400G mode:
  • 400G 16QAM(Dual_Ports)
  • 400G 16QAM-H(Dual_Ports)
  • 400G e16QAM(Dual_Ports)
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
  • 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead 100G mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
200G mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
400G mode:
  • WDM-side OTUC4 layer: supports SM overhead processing.
  • ODUC4 layer: supports PM and TCM overhead processing.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
  • For the WDM-side A23 optical module, the receive and transmit wavelengths must be the same. A23 module does not support wavelength change by configuring regeneration boards.
ALS Supported
NOTE:
When using the WDM-side A23 optical module, the board does not support the regeneration ALS function.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.80 kg
  • 6.17 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNS2N502
Backplane capacity The total backplane bandwidth is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding 100G line mode:
  • SDFEC2
200G line mode:
  • 200G 16QAM: SDFEC
  • 200G 16QAM-H: SDFEC
  • 200G e16QAM: SDFEC2
400G line mode:
  • 400G 16QAM(Dual_Ports): SDFEC
  • 400G 16QAM-H(Dual_Ports): SDFEC
  • 400G e16QAM(Dual_Ports): SDFEC2
Line modulation format 100G line mode:
  • 100G QPSK wDCM
  • 100G QPSK
200G line mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
400G line mode:
  • 400G 16QAM(Dual_Ports)
  • 400G 16QAM-H(Dual_Ports)
  • 400G e16QAM(Dual_Ports)
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
  • 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
400G line mode:
  • WDM-side OTUC4 layer: supports SM overhead processing.
  • ODUC4 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards. Port in 400G mode: Do not support intra-board 1+1 protection.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement
  • The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
  • The board supports PM and TCM latency measurement at the ODUCn layer.
NOTE:
When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Channel loopback
  • 100G line mode:ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
  • 200G line mode:ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
  • 400G line mode:ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.

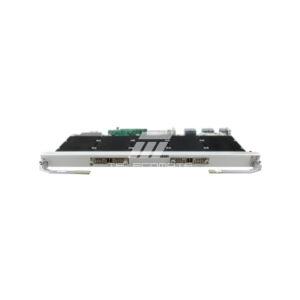

Functions and Features of the TNS2N502 Board (SDH)
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of B2 bytes to help locate line faults.

Functions and Features of the TNS2N502 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU4
  • OTUC2
  • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding 100G line mode:
  • SDFEC2
200G line mode:
  • 200G 16QAM: SDFEC
  • 200G 16QAM-H: SDFEC
  • 200G e16QAM: SDFEC2
400G line mode:
  • 400G 16QAM(Dual_Ports): SDFEC
  • 400G 16QAM-H(Dual_Ports): SDFEC
  • 400G e16QAM(Dual_Ports): SDFEC2
Line modulation format 100G mode:
  • 100G QPSK wDCM
  • 100G QPSK
200G mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
400G mode:
  • 400G 16QAM(Dual_Ports)
  • 400G 16QAM-H(Dual_Ports)
  • 400G e16QAM(Dual_Ports)
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
  • 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead 100G mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
200G mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
400G mode:
  • WDM-side OTUC4 layer: supports SM overhead processing.
  • ODUC4 layer: supports PM and TCM overhead processing.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
  • For the WDM-side A23 optical module, the receive and transmit wavelengths must be the same. A23 module does not support wavelength change by configuring regeneration boards.
ALS Supported
NOTE:
When using the WDM-side A23 optical module, the board does not support the regeneration ALS function.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.80 kg
  • 6.17 lb.

Reviews

There are no reviews yet.

Be the first to review “TNS2N502”

Your email address will not be published. Required fields are marked *

Related products

J9537A-1
Quick view
Categories:

J9537A

R.F.Q
SKU2011974
J9549A-1
Quick view
Categories:

J9549A

R.F.Q
SKU2011967
J9534A-1
Quick view
Categories:

J9534A

R.F.Q
SKU2011973
Quick view
Categories:

EX4400-24T-DC

R.F.Q
SKU2011893
J9535A-1
Quick view
Categories:

J9535A

R.F.Q
SKU2011970
WS-C3850-24U-S
Quick view
Categories:

WS-C3850-24U-S

R.F.Q
SKU2011326
Main Menu
Back to Top

Search For Products

Popular
Product has been added to your cart
