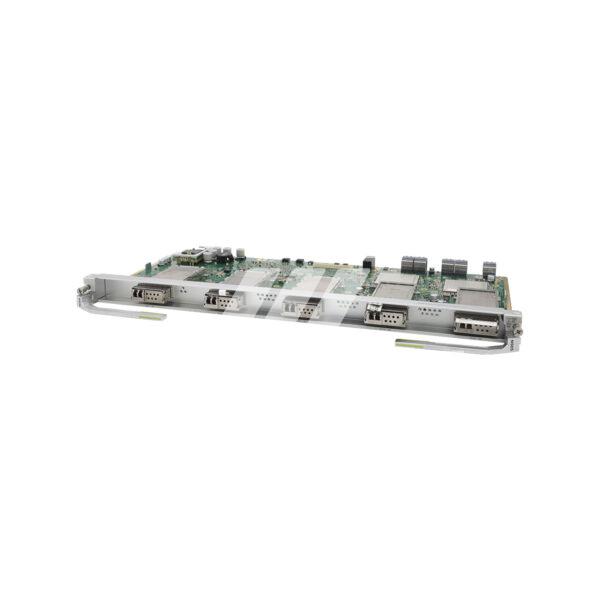

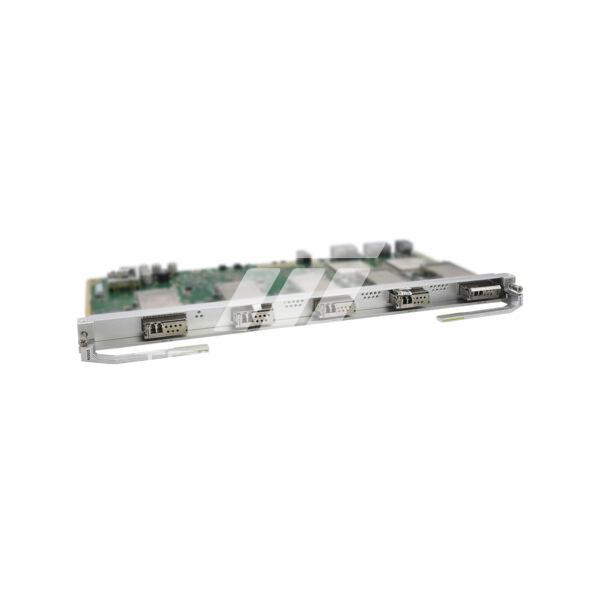

Huawei OptiX OSN 9800 TNS3N505 5*200G/100G Line Service Processing Board

Description

TNS3N505 overview



TNS3N505 5*200G/100G Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNS3N505 board has only one variant: TNS3N505C21.





Front panel of the TNS3N505 board

TNS3N505

Front panel of the TNS3N505 board



Valid slots for the TNS3N505 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
Function and Feature Description
Basic function Implements mutual conversion between OTN signals and five OTUC2/OTU4 signals.
Backplane capacity The total backplane bandwidth is 1 Tbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 200G QPSK: SDFEC4
  • 200G 16QAM/200G 16QAM-H: SDFEC
  • 200G e16QAM/100G QPSK/100G QPSK wDCM: SDFEC2
Line modulation format
  • 200G QPSK
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
  • 100G QPSK
  • 100G QPSK wDCM
Typical channel spacing
  • 200G 16QAM/200G 16QAM-H/100G QPSK/100G QPSK wDCM: 50GHz*n(n=1,2,...)(Only the standard center frequency of 50 GHz is supported)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTUC2/OTU4 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) Layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
OSU Not supported
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
NOTE:
When the cross-connect granularity is ODUflex, the board does not support ODUk SNCP protection.
OSUflex SNCP Not supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Not supported
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Delay measurement in the WDM-side optical port direction (upstream direction) is supported.
  • Supports TCM delay measurement for higher-order ODU4 channels when creating ODU4 higher-order cross-connections.
  • When lower order ODUk cross-connections are created, PM/TCM of higher order ODU4 channels and TCM delay measurement of lower order ODUk channels are supported.
  • Supports PM and TCM delay measurement at the ODUCn layer.
Channel loopback Supports ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel inloops and outloops.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.

Functions and Features of the TNS3N505 Board (SDH)

Basic function Provides five line ports for conversion between SDH signals and ODUk signals on the backplane.
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC-4 channel loopbacks.
Port loopback
  • Supports VP inloops and outloops.
  • Supports optical port inloops and outloops.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNS3N505 Board (Regeneration)

Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode TX1/RX1-TX4/RX4 supports bidirectional relay, and TX5/RX5 supports unidirectional relay.
Regeneration rate
  • OTUC2
  • OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 200G QPSK: SDFEC4
  • 200G 16QAM/200G 16QAM-H: SDFEC
  • 200G e16QAM/100G QPSK/100G QPSK wDCM: SDFEC2
Line modulation format
  • 200G QPSK
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
  • 100G QPSK
  • 100G QPSK wDCM
Typical channel spacing
  • 200G 16QAM/200G 16QAM-H/100G QPSK/100G QPSK wDCM: 50GHz*n(n=1,2,...)(Only the standard center frequency of 50 GHz is supported)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTUC2/OTU4 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) Layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supports ESC communication.
Test frame Not supported
PRBS Not supported
Port loopback Not supported
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.30 kg
  • 7.28 lb.

Additional information

Function and Feature Description
Basic function Implements mutual conversion between OTN signals and five OTUC2/OTU4 signals.
Backplane capacity The total backplane bandwidth is 1 Tbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 200G QPSK: SDFEC4
  • 200G 16QAM/200G 16QAM-H: SDFEC
  • 200G e16QAM/100G QPSK/100G QPSK wDCM: SDFEC2
Line modulation format
  • 200G QPSK
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
  • 100G QPSK
  • 100G QPSK wDCM
Typical channel spacing
  • 200G 16QAM/200G 16QAM-H/100G QPSK/100G QPSK wDCM: 50GHz*n(n=1,2,...)(Only the standard center frequency of 50 GHz is supported)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTUC2/OTU4 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) Layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
OSU Not supported
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
NOTE:
When the cross-connect granularity is ODUflex, the board does not support ODUk SNCP protection.
OSUflex SNCP Not supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Not supported
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Delay measurement in the WDM-side optical port direction (upstream direction) is supported.
  • Supports TCM delay measurement for higher-order ODU4 channels when creating ODU4 higher-order cross-connections.
  • When lower order ODUk cross-connections are created, PM/TCM of higher order ODU4 channels and TCM delay measurement of lower order ODUk channels are supported.
  • Supports PM and TCM delay measurement at the ODUCn layer.
Channel loopback Supports ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel inloops and outloops.
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.

Functions and Features of the TNS3N505 Board (SDH)

Basic function Provides five line ports for conversion between SDH signals and ODUk signals on the backplane.
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC-4 channel loopbacks.
Port loopback
  • Supports VP inloops and outloops.
  • Supports optical port inloops and outloops.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNS3N505 Board (Regeneration)

Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode TX1/RX1-TX4/RX4 supports bidirectional relay, and TX5/RX5 supports unidirectional relay.
Regeneration rate
  • OTUC2
  • OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 200G QPSK: SDFEC4
  • 200G 16QAM/200G 16QAM-H: SDFEC
  • 200G e16QAM/100G QPSK/100G QPSK wDCM: SDFEC2
Line modulation format
  • 200G QPSK
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
  • 100G QPSK
  • 100G QPSK wDCM
Typical channel spacing
  • 200G 16QAM/200G 16QAM-H/100G QPSK/100G QPSK wDCM: 50GHz*n(n=1,2,...)(Only the standard center frequency of 50 GHz is supported)
  • 200G QPSK: 75GHz+n*6.25GHz(n=0,1,2...)
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTUC2/OTU4 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) Layer: supports PM and TCM overhead processing and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode. The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
ALS Supported
Clock In relay mode, transparent transmission of the physical clock is supported, but the physical clock synchronization is not supported.
Outband DCN Supports ESC communication.
Test frame Not supported
PRBS Not supported
Port loopback Not supported
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.30 kg
  • 7.28 lb.
