TNS3N602 overview
TNS3N602 2*400G Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.
To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.
The TNS3N602 board has only one variant: TNS3N602AF4.

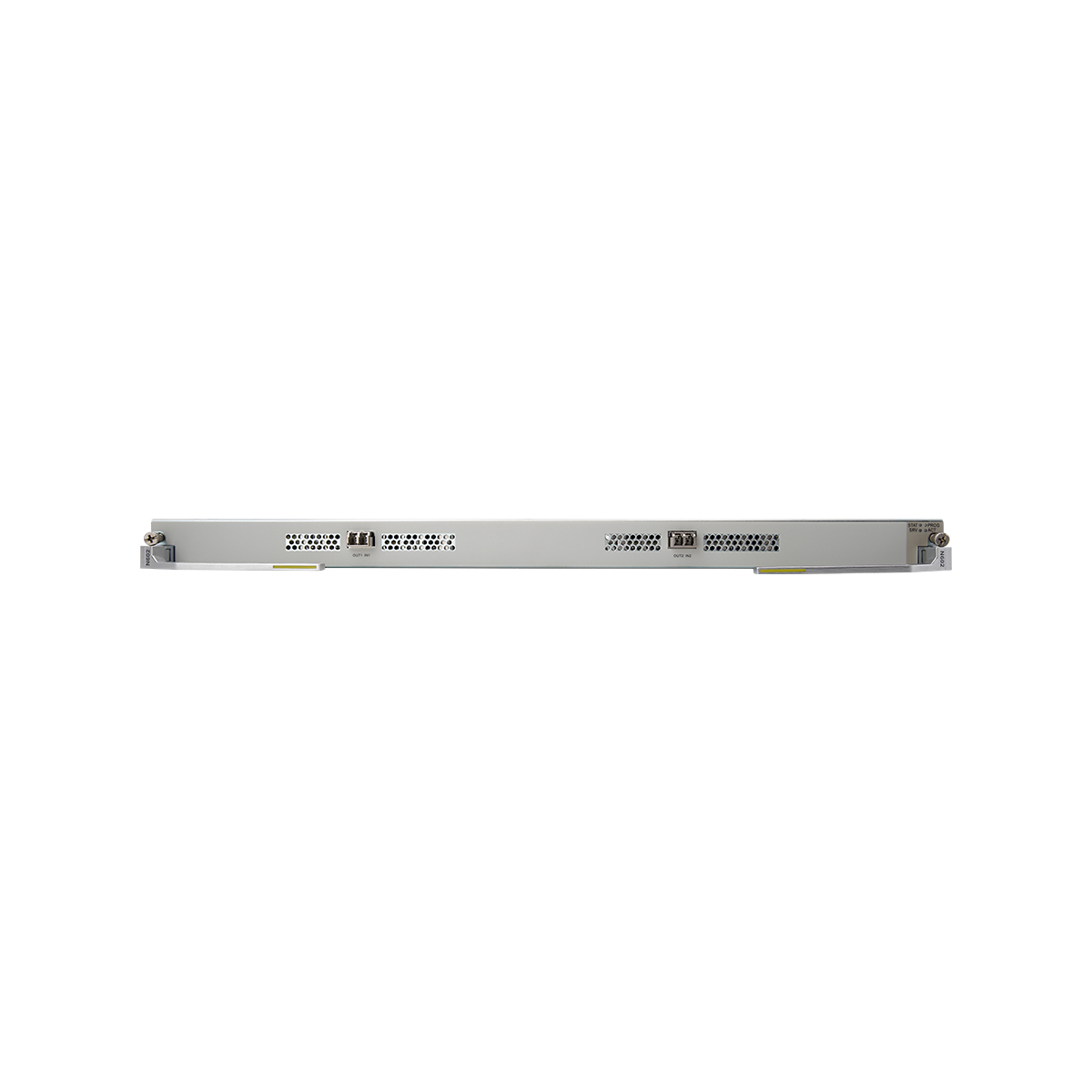

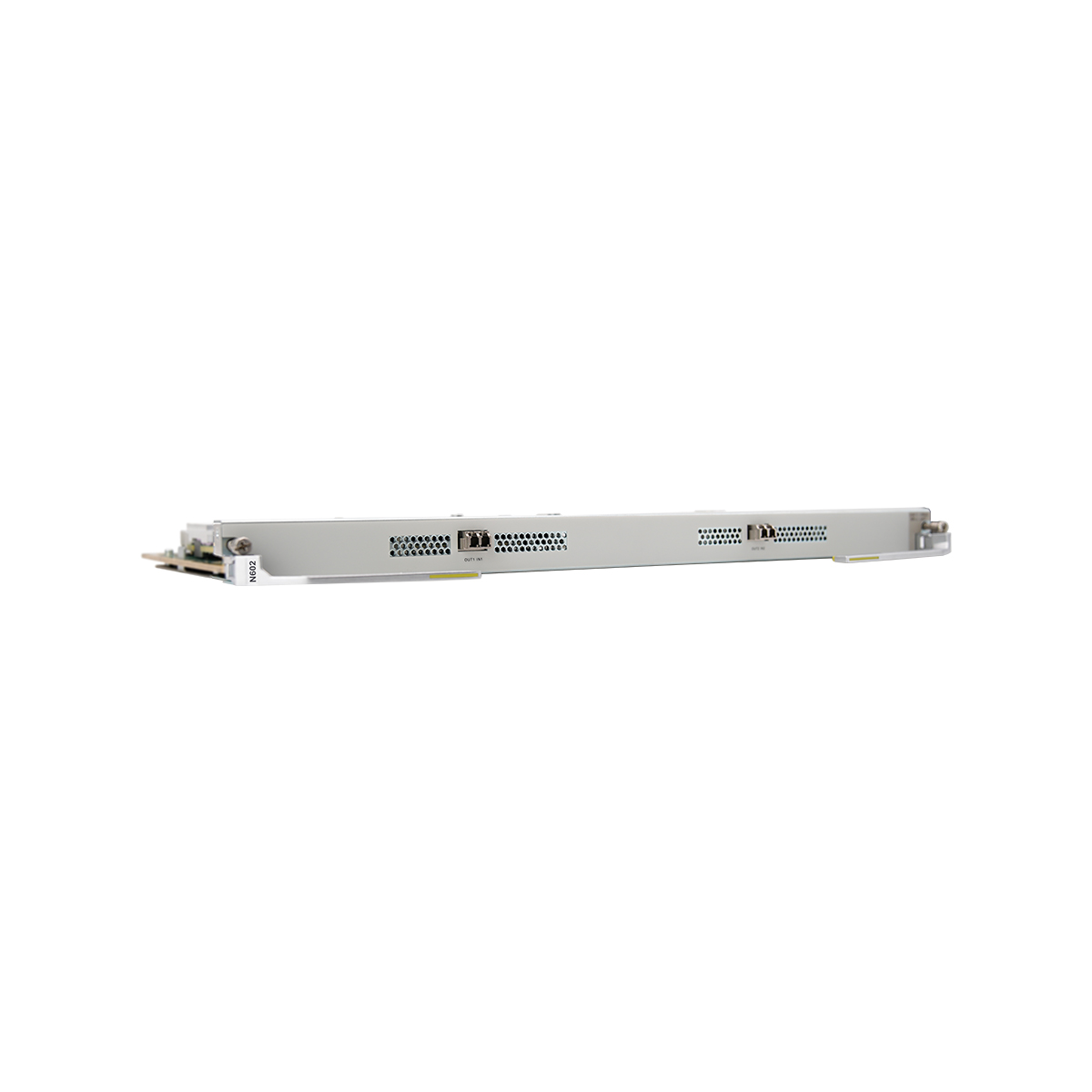

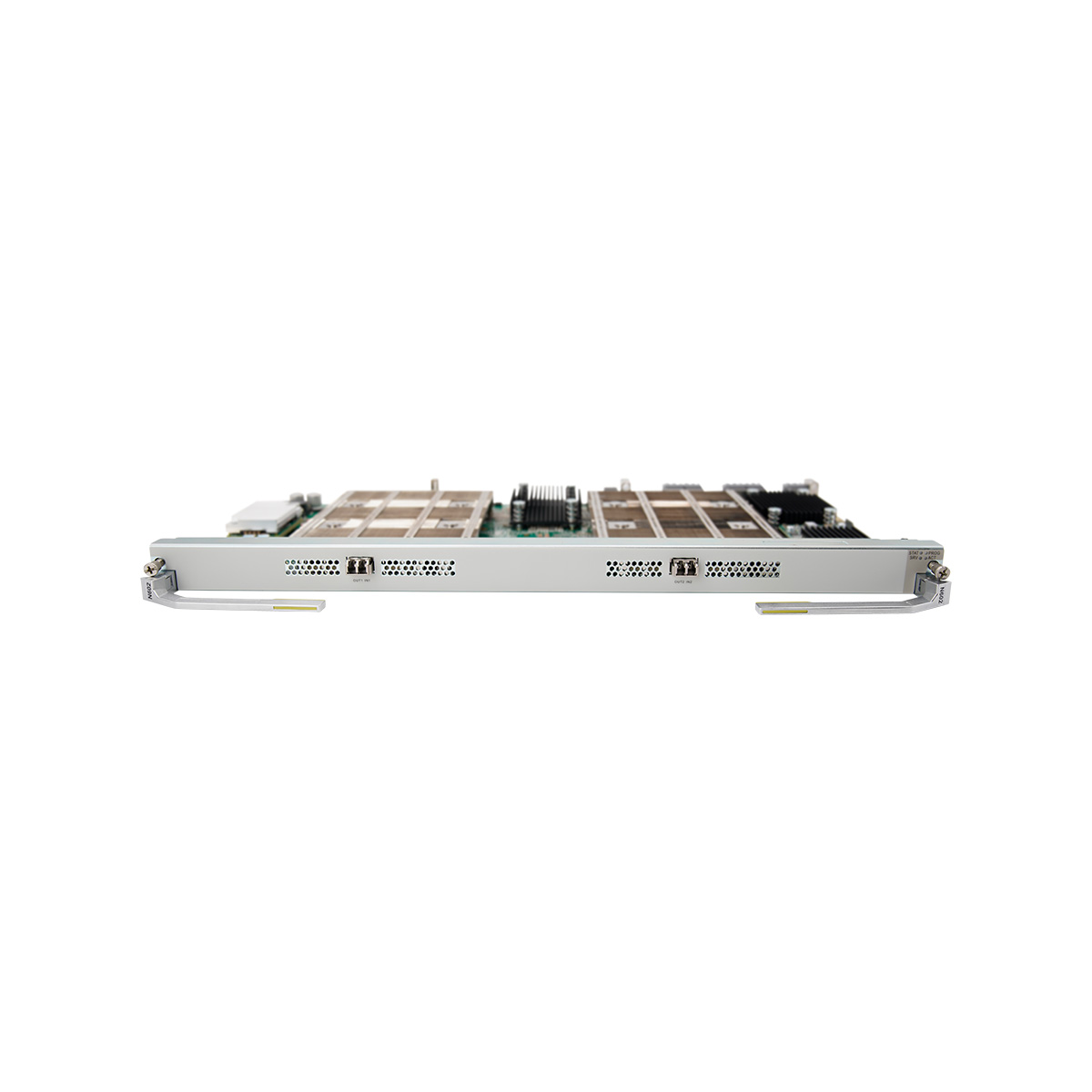

Front panel of the TNS3N602 board
Front panel of the TNS3N602 board
Valid slots for the TNS3N602 board in a U64/U32/M24 subrack
Device | Number of Occupied Slots | Physical Slot | Logical Slot |
---|---|---|---|
OptiX OSN 9800 M24 | 2 | (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) | IU1 to IU12 |
OptiX OSN 9800 U32 Enhanced | 1 | IU1 to IU32 | IU1 to IU32 |
OptiX OSN 9800 U64 Enhanced | 1 | IU1 to IU64 | IU1 to IU64 |
