Huawei OptiX OSN 9800 TNS3NP800S 1 x 400G turbo WDM Line Service Processing Board,extended to 800G(single-fiber bidirectional).

Description

TNS3NP800S overview



TNS3NP800S 10 Gbit/s tributary service processing board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The available functional version of the NP800S/NP800SE board is TNS3.

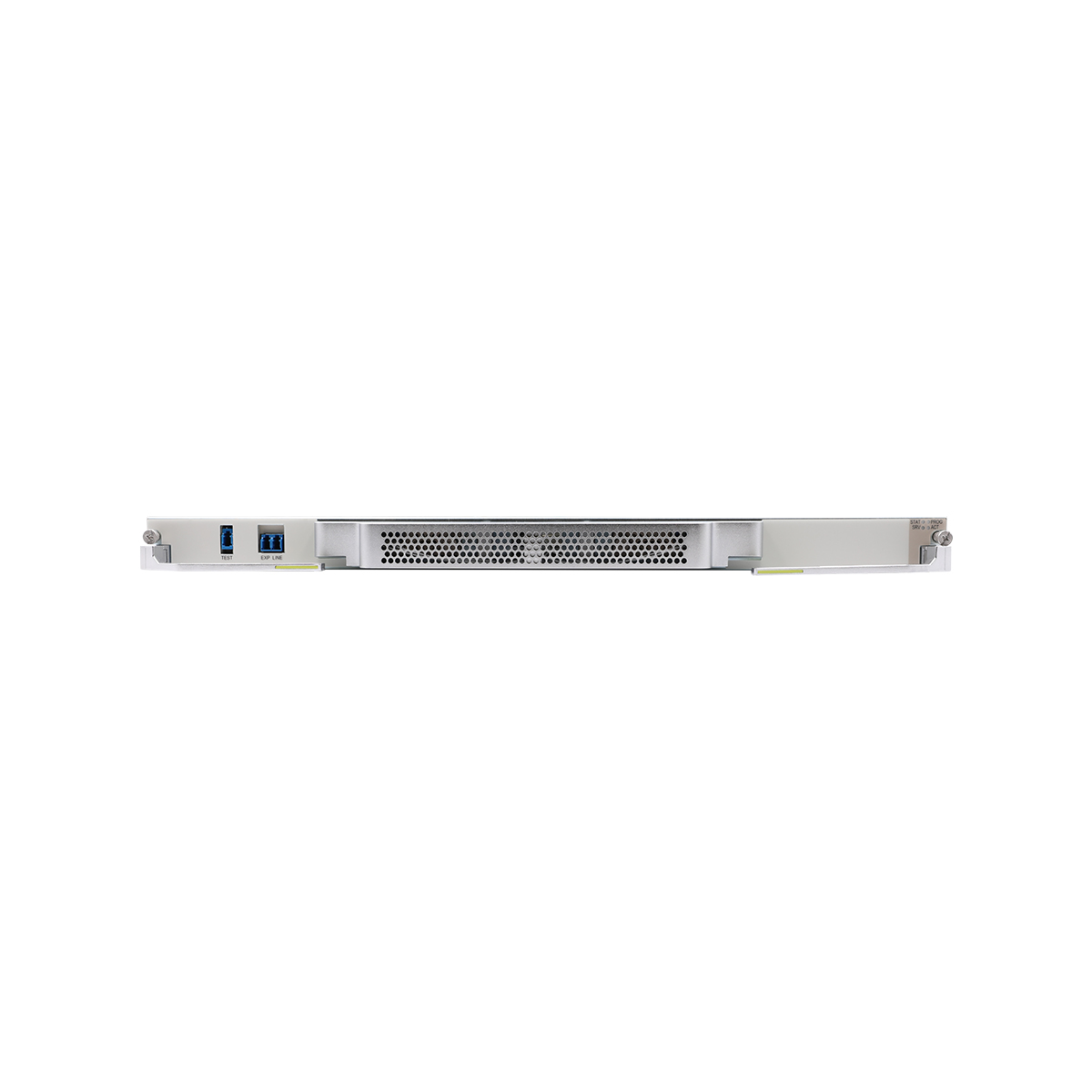

Front panel of the TNS3NP800S board

TNS3NP800S

Front panel of the TNS3NP800S board



Valid slots for the TNS3NP800S board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64
Item TNS3NP800S
Basic function NP800S/NP800SE:
  • 320 x ODU0/320 x ODUflex/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4<->OTUC4
  • Supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, ODUflex, ODU3 and ODU4 signals.
NP800S:
  • Multiplexes and demultiplexes two optical signals. That is, it can receive one OTUC4 optical signal from the NP800SE board. In addition, it integrates one channel of OTUC4 optical signals output by itself and one channel of OTUC4 optical signals output by the NP800SE board into one channel of multiplexed optical signals.
NOTE:
  • The board supports single-fiber bidirectional transmission.
  • The maximum SDH capacity of the board is 80 Gbit/s.
Cross-connect capabilities Supports the cross-connection of 320 x ODU0/ODUflex signals or 160 x ODU1 signals or 40 x ODU2/ODU2e signals or 8 x ODU3 signals or 4 x ODU4 signals between the NP800S/NP800SE and the cross-connect board.
OTN function
  • Supports the OTN frame format and overhead processing defined by ITU-T G.709.
  • OTUC4 layer: Supports SM overhead processing.
  • ODUC4 layer: Supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specifications Supports DWDM specifications.
ESC function Supported
PRBS =function Supports the PRBS function on the WDM side.
FEC coding SDFEC
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors the laser bias current, laser operating temperature, and single-wavelength optical power.
  • Monitors OTN alarms and performance events.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When higher-order ODU4 cross-connections are created on the line board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
  • The board supports PM and TCM latency measurement at the ODUCn layer.
    NOTE:
    When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
IEEE 1588v2 Supported
Physical clock Supported
ITU-T G.8275.1 Supported
Optical-layer ASON Not supported
Electrical-layer ASON Supported
Protection scheme
  • Supports ODUk SNCP.
  • Supports tributary SNCP.
Loopback WDM-side loopback ODU0 channel loopback ODU1 channel loopback ODU2 channel loopback ODU3 channel loopback ODU4 channel loopback ODUflex channel loopback
Supported Supported Supported Supported Supported Supported Supported
SDH functions and features (when the board works with the TNU2CTU/TNU4CTU/TNU5CTU/TNG1CXP/TNG3CXP/TNG4CXP board)
Backplane capacity The maximum SDH capacity of the board is 80 Gbit/s.
Overhead processing
  • Processes section overheads of STM-16/STM-64 signals.
  • Transparently transmits and terminates path overheads.
  • Supports setting and query of J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports DCC transparent transmission.
Protection scheme
  • Supports SNCP.
  • Supports 1+1 single-ended linear MSP.
  • Supports ring multiplex section protection (RMSP).
Alarms and performance events monitoring
  • Monitors B1, B2 bytes to help locate faults.
Service processing Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, and VC-4-64c services. (VC-4-4c, VC-4-16c, and VC-4-64c services are concatenation services.)
Loopback Supports VC loopbacks. Supports virtual port loopbacks.
SDH clock synchronization Supported
Outband DCN Supported
SDH ASON Supported
2M ASON Supported only by 9800 M24 subracks.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.70 kg
  • 8.16 lb.

Additional information

Item TNS3NP800S
Basic function NP800S/NP800SE:
  • 320 x ODU0/320 x ODUflex/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4<->OTUC4
  • Supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, ODUflex, ODU3 and ODU4 signals.
NP800S:
  • Multiplexes and demultiplexes two optical signals. That is, it can receive one OTUC4 optical signal from the NP800SE board. In addition, it integrates one channel of OTUC4 optical signals output by itself and one channel of OTUC4 optical signals output by the NP800SE board into one channel of multiplexed optical signals.
NOTE:
  • The board supports single-fiber bidirectional transmission.
  • The maximum SDH capacity of the board is 80 Gbit/s.
Cross-connect capabilities Supports the cross-connection of 320 x ODU0/ODUflex signals or 160 x ODU1 signals or 40 x ODU2/ODU2e signals or 8 x ODU3 signals or 4 x ODU4 signals between the NP800S/NP800SE and the cross-connect board.
OTN function
  • Supports the OTN frame format and overhead processing defined by ITU-T G.709.
  • OTUC4 layer: Supports SM overhead processing.
  • ODUC4 layer: Supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specifications Supports DWDM specifications.
ESC function Supported
PRBS =function Supports the PRBS function on the WDM side.
FEC coding SDFEC
Alarms and performance events monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors the laser bias current, laser operating temperature, and single-wavelength optical power.
  • Monitors OTN alarms and performance events.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When higher-order ODU4 cross-connections are created on the line board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
  • The board supports PM and TCM latency measurement at the ODUCn layer.
    NOTE:
    When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
IEEE 1588v2 Supported
Physical clock Supported
ITU-T G.8275.1 Supported
Optical-layer ASON Not supported
Electrical-layer ASON Supported
Protection scheme
  • Supports ODUk SNCP.
  • Supports tributary SNCP.
Loopback WDM-side loopback ODU0 channel loopback ODU1 channel loopback ODU2 channel loopback ODU3 channel loopback ODU4 channel loopback ODUflex channel loopback
Supported Supported Supported Supported Supported Supported Supported
SDH functions and features (when the board works with the TNU2CTU/TNU4CTU/TNU5CTU/TNG1CXP/TNG3CXP/TNG4CXP board)
Backplane capacity The maximum SDH capacity of the board is 80 Gbit/s.
Overhead processing
  • Processes section overheads of STM-16/STM-64 signals.
  • Transparently transmits and terminates path overheads.
  • Supports setting and query of J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports DCC transparent transmission.
Protection scheme
  • Supports SNCP.
  • Supports 1+1 single-ended linear MSP.
  • Supports ring multiplex section protection (RMSP).
Alarms and performance events monitoring
  • Monitors B1, B2 bytes to help locate faults.
Service processing Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, and VC-4-64c services. (VC-4-4c, VC-4-16c, and VC-4-64c services are concatenation services.)
Loopback Supports VC loopbacks. Supports virtual port loopbacks.
SDH clock synchronization Supported
Outband DCN Supported
SDH ASON Supported
2M ASON Supported only by 9800 M24 subracks.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.70 kg
  • 8.16 lb.
