Huawei OptiX OSN 9800 TNS4N402 2 x 100Gbit/s Programable Hybrid Line Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNS4N402 overview



TNS4N402 2 x 100Gbit/s Programable Hybrid Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNS4N402 board has two variants:TNS4N402C01 and TNS4N402C06. The two variants are interchangeable.

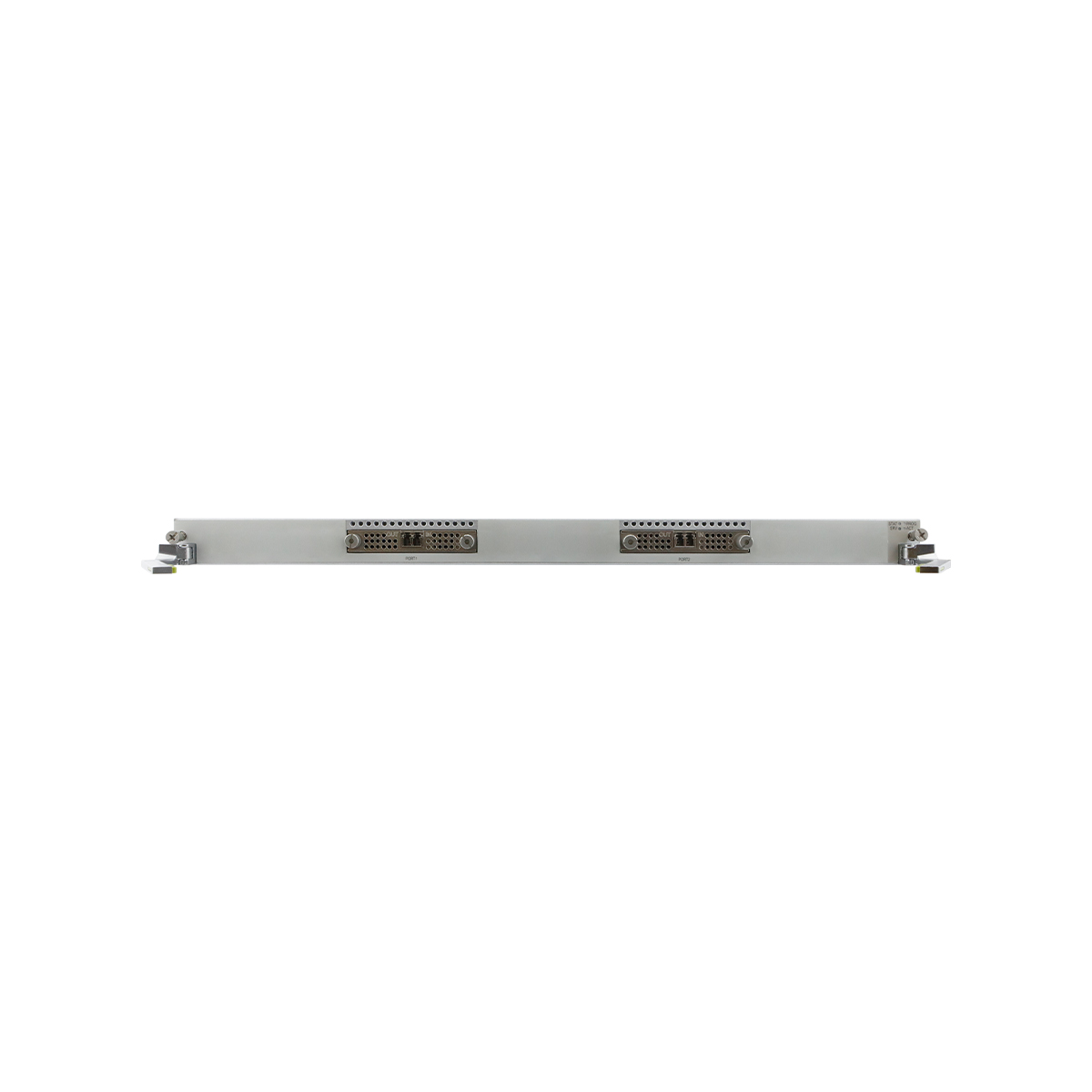

Front panel of the TNS4N402 board

TNS4N402

Front panel of the TNS4N402 board



Valid slots for the TNS4N402 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64
Item TNS4N402
Backplane capacity The total backplane bandwidth is 200 Gbit/s.
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNS4N402 Board (SDH)
Basic function A maximum of 80 Gbit/s SDH services are supported
  • 8 x STM-64<->8 x ODU2<->1 x ODU4<->1 x OTU4
  • 32 x STM-16<->32 x ODU1<->1 x ODU4<->1 x OTU4
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
Alarm and performance event monitoring
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of B2 bytes to help locate line faults.

Functions and Features of the TNS4N402 Board (Regeneration）
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode
  • Unidirectional regeneration
  • Bidirectional regeneration
Regeneration rate OTU4
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
OTN overhead
  • Supports OTU4 interfaces on the WDM side.
  • Supports the OTN frame format and overhead processing defined in ITU-T G.709.
  • OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
ALS Supported
Physical clock Not supported
IEEE 1588v2 Not supported
Outband DCN Supports ESC communication.
Test frame Not supported
Port loopback In bidirectional regeneration mode, optical port outloop is supported.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.80 kg
  • 6.17 lb.

Additional information

Item TNS4N402
Backplane capacity The total backplane bandwidth is 200 Gbit/s.
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Only ASON without optical parameters is supported in high SOP mode.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNS4N402 Board (SDH)
Basic function A maximum of 80 Gbit/s SDH services are supported
  • 8 x STM-64<->8 x ODU2<->1 x ODU4<->1 x OTU4
  • 32 x STM-16<->32 x ODU1<->1 x ODU4<->1 x OTU4
Backplane capacity The total backplane bandwidth is 80 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
Alarm and performance event monitoring
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of B2 bytes to help locate line faults.

Functions and Features of the TNS4N402 Board (Regeneration）
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode
  • Unidirectional regeneration
  • Bidirectional regeneration
Regeneration rate OTU4
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2
OTN overhead
  • Supports OTU4 interfaces on the WDM side.
  • Supports the OTN frame format and overhead processing defined in ITU-T G.709.
  • OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
ALS Supported
Physical clock Not supported
IEEE 1588v2 Not supported
Outband DCN Supports ESC communication.
Test frame Not supported
Port loopback In bidirectional regeneration mode, optical port outloop is supported.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.80 kg
  • 6.17 lb.
