Huawei OptiX OSN 9800 TNS8N502 2*200G/100G Programable Hybrid Line Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNS8N502 overview



TNS8N502 2*200G/100G Programable Hybrid Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNS8N502 board has two variants: TNS8N502C01 and TNS8N502C06. The two variants are interchangeable.

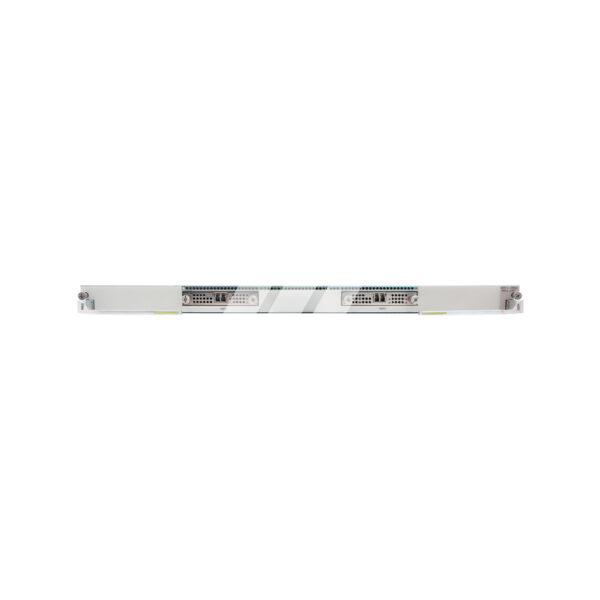

Front panel of the TNS8N502 board

TNS8N502

Front panel of the TNS8N502 board



Valid slots for the TNS8N502 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64
Item TNS8N502
Backplane capacity The total backplane bandwidth is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2, SDFEC
Line modulation format 100G mode:
  • 100G QPSK wDCM
  • 100G QPSK
200G mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
  • 200G m16QAM
400G mode:
  • 400G 16QAM(Dual_Ports)
  • 400G 16QAM-H(Dual_Ports)
  • 400G e16QAM(Dual_Ports)
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H/200G m16QAM: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
  • 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4/OTUC2/OTUC4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
  • OSUflex/ODUC2/OCUC4 layer: supports PM and TCM overhead processing.
  • OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU Supported
NOTE:
The OSU function requires a license.
Intra-board 1+1 protection Supported
NOTE:
  • Supports intra-board 1+1 protection when working with optical protection boards.
  • Port in 400G mode: Do not support intra-board 1+1 protection.
ODUk SNCP Supported
OSUflex SNCP Supported
NOTE:
  • When working with a TNU2CTU/TNG1CXP board, the TNS8N502 board supports a maximum of 1024 OSUflex SNCP protection groups.
  • When working with a TNU4CTU/TNU5CTU/TNG3CXP/TNG4CXP board, the TNS8N502 board supports a maximum of 2048 OSUflex SNCP protection groups.
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement
  • The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
  • The board supports PM and TCM latency measurement at the ODUCn layer.
  • The board supports PM and TCM latency measurement for the OSUflex channels.
NOTE:
In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback
  • Supports OSUflex Channel Loopback
  • Supports ODUk Channel Loopback
    • Port in 100G mode: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
    • Port in 200G mode or 400G mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks.
NOTE:
The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback Supports WDM Side Loopback.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNS8N502 Board (SDH)
Basic function Provides two line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
NOTE:
The maximum SDH capacity of the N502 board is 2 x 40 Gbit/s:
  • In 100G or 200G mode, each port supports 40 Gbit/s services. Ports V_SDH_1(51) to V_SDH_16 (66) can be configured only for IN1/OUT1 on the board, and ports V_SDH_17(67) to V_SDH_32(82) can be configured only for IN2/OUT2 on the board.
  • IN 400G mode, ports V_SDH_1(51) to V_SDH_32(82) can be configured only for IN1/OUT1 on the board, 1(IN1/OUT1)-OCh:1-ODUCn:1-ODU4:(1, 2) channel support a maximum of 40 Gbit/s SDH services, 1(IN1/OUT1)-OCh:1-ODUCn:1-ODU4:(3, 4) channel support a maximum of 40 Gbit/s SDH services. The IN2/OU2 port must be set to NONE Mode.
Backplane capacity The total backplane bandwidth is 2*40 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNS8N502 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU4
  • OTUC2
  • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2, SDFEC
Line modulation format 100G mode:
  • 100G QPSK wDCM
  • 100G QPSK
200G mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
  • 200G m16QAM
400G mode:
  • 400G 16QAM(Dual_Ports)
  • 400G 16QAM-H(Dual_Ports)
  • 400G e16QAM(Dual_Ports)
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H/200G m16QAM: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
  • 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • For the WDM-side A23 optical module, the receive and transmit wavelengths must be the same. A23 module does not support wavelength change by configuring regeneration boards.
ALS Supported
NOTE:
When using the WDM-side A23 optical module, the board does not support the regeneration ALS function.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.00 kg
  • 6.61 lb.

Additional information

Item TNS8N502
Backplane capacity The total backplane bandwidth is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2, SDFEC
Line modulation format 100G mode:
  • 100G QPSK wDCM
  • 100G QPSK
200G mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
  • 200G m16QAM
400G mode:
  • 400G 16QAM(Dual_Ports)
  • 400G 16QAM-H(Dual_Ports)
  • 400G e16QAM(Dual_Ports)
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H/200G m16QAM: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
  • 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4/OTUC2/OTUC4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
  • OSUflex/ODUC2/OCUC4 layer: supports PM and TCM overhead processing.
  • OSUflex layer: supports non-intrusive monitoring of PM and TCM overheads.
OSU Supported
NOTE:
The OSU function requires a license.
Intra-board 1+1 protection Supported
NOTE:
  • Supports intra-board 1+1 protection when working with optical protection boards.
  • Port in 400G mode: Do not support intra-board 1+1 protection.
ODUk SNCP Supported
OSUflex SNCP Supported
NOTE:
  • When working with a TNU2CTU/TNG1CXP board, the TNS8N502 board supports a maximum of 1024 OSUflex SNCP protection groups.
  • When working with a TNU4CTU/TNU5CTU/TNG3CXP/TNG4CXP board, the TNS8N502 board supports a maximum of 2048 OSUflex SNCP protection groups.
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
ITU-T G.8275.1 Not supported
ITU-T G.8273.2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement
  • The board supports latency measurement in the WDM-side optical port direction (upstream direction).When higher-order ODU4 cross-connections are created on the board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
  • The board supports PM and TCM latency measurement at the ODUCn layer.
  • The board supports PM and TCM latency measurement for the OSUflex channels.
NOTE:
In the OSU application scenario, unidirectional delay measurement is not supported, and only bidirectional delay measurement is supported.
Channel loopback
  • Supports OSUflex Channel Loopback
  • Supports ODUk Channel Loopback
    • Port in 100G mode: ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
    • Port in 200G mode or 400G mode: ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks.
NOTE:
The board supports a maximum of eight OSUflex channel loopbacks.
Port loopback Supports WDM Side Loopback.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNS8N502 Board (SDH)
Basic function Provides two line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
NOTE:
The maximum SDH capacity of the N502 board is 2 x 40 Gbit/s:
  • In 100G or 200G mode, each port supports 40 Gbit/s services. Ports V_SDH_1(51) to V_SDH_16 (66) can be configured only for IN1/OUT1 on the board, and ports V_SDH_17(67) to V_SDH_32(82) can be configured only for IN2/OUT2 on the board.
  • IN 400G mode, ports V_SDH_1(51) to V_SDH_32(82) can be configured only for IN1/OUT1 on the board, 1(IN1/OUT1)-OCh:1-ODUCn:1-ODU4:(1, 2) channel support a maximum of 40 Gbit/s SDH services, 1(IN1/OUT1)-OCh:1-ODUCn:1-ODU4:(3, 4) channel support a maximum of 40 Gbit/s SDH services. The IN2/OU2 port must be set to NONE Mode.
Backplane capacity The total backplane bandwidth is 2*40 Gbit/s.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC channel loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.

Functions and Features of the TNS8N502 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU4
  • OTUC2
  • OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2, SDFEC
Line modulation format 100G mode:
  • 100G QPSK wDCM
  • 100G QPSK
200G mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
  • 200G m16QAM
400G mode:
  • 400G 16QAM(Dual_Ports)
  • 400G 16QAM-H(Dual_Ports)
  • 400G e16QAM(Dual_Ports)
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H/200G m16QAM: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G e16QAM(Dual_Ports): 2*(50GHz+n*6.25GHz)(n=0,1,2...)
  • 400G 16QAM(Dual_Ports)/400G 16QAM-H(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • For the WDM-side A23 optical module, the receive and transmit wavelengths must be the same. A23 module does not support wavelength change by configuring regeneration boards.
ALS Supported
NOTE:
When using the WDM-side A23 optical module, the board does not support the regeneration ALS function.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.00 kg
  • 6.61 lb.
