TNU1N402P
TNU1N402P-1
Categories:

TNU1N402P

0 Reviews Write a review
SKU2016107
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OptiX OSN 9800 TNU1N402P  2*100G/200G or 1*400G programmable line service processing board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

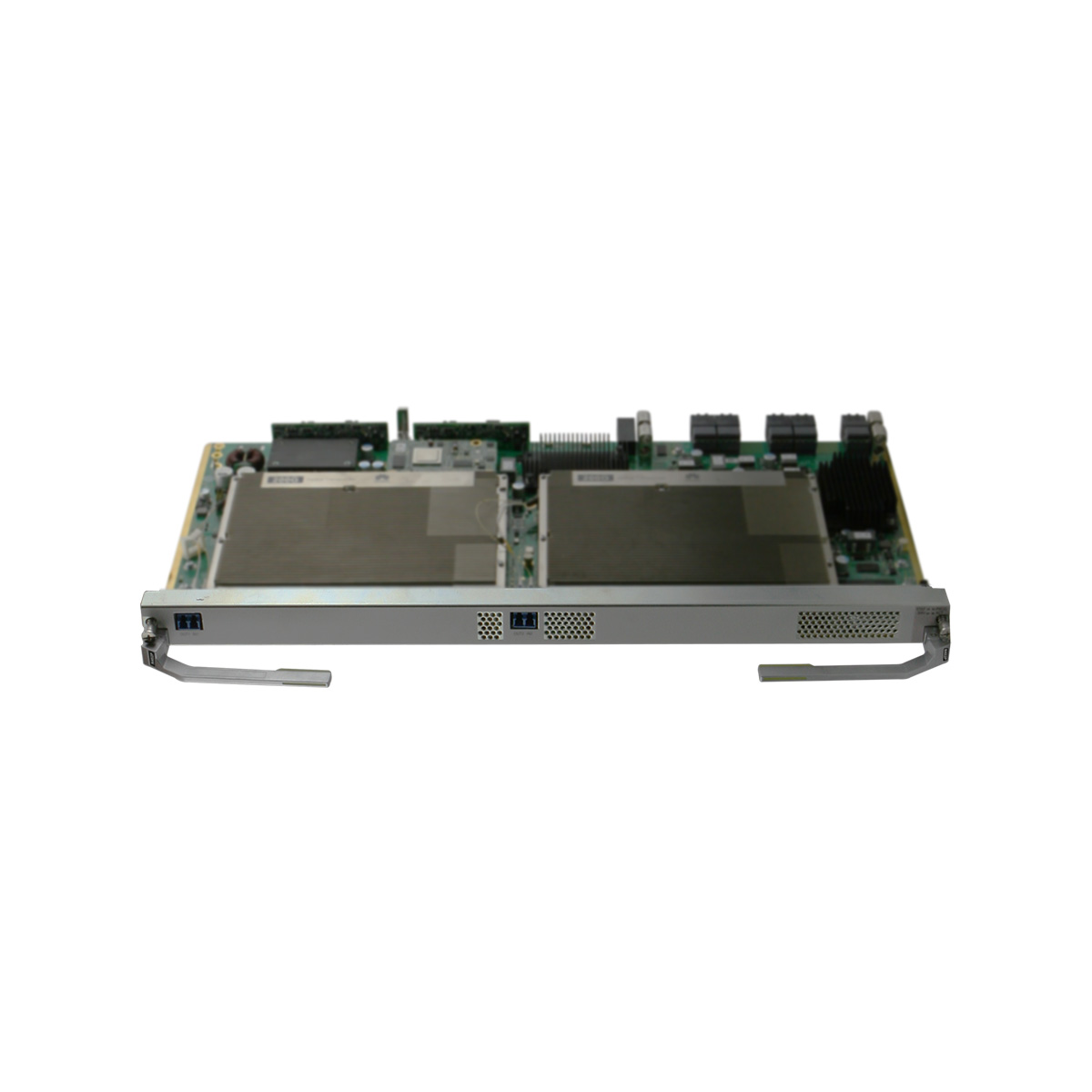

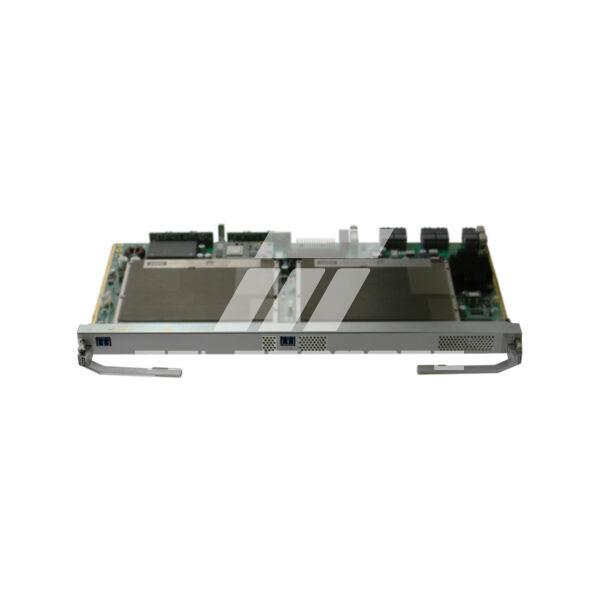

TNU1N402P overview



TNU1N402P 2*100G/200G or 1*400G programmable line service processing board applied to Huawei OptiX OSN 9800 U64/U32.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNU1N402P board has only one variant: TNU1N402PT53.

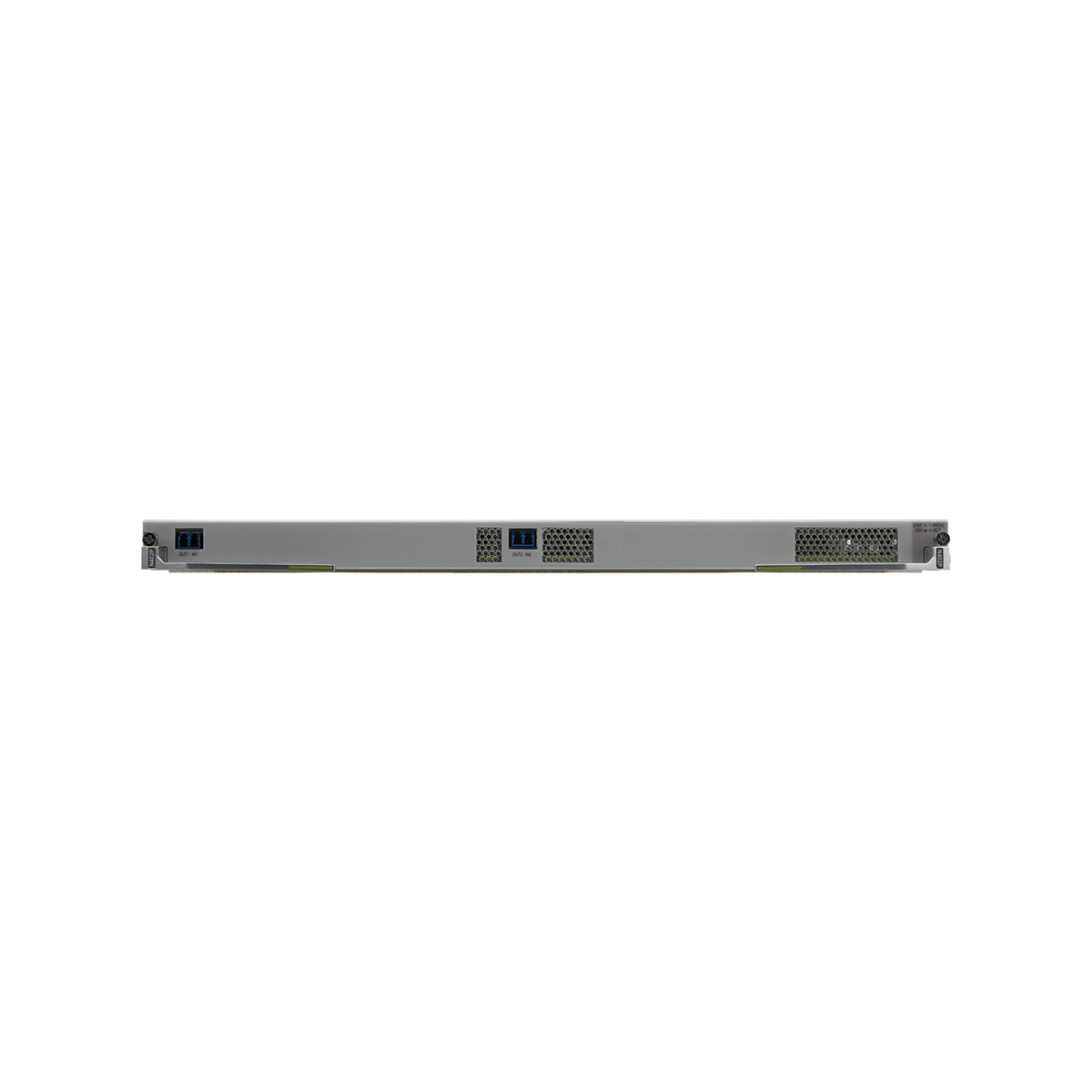

Front panel of the TNU1N402P board

TNU1N402P

Front panel of the TNU1N402P board



Valid slots for the TNU1N402P board in a U64/U32 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64
Item TNU1N402P
Backplane capacity 400G line mode: The total backplane bandwidth is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding
  • 100G line mode: SDFEC2
  • 200G line mode: SDFEC
  • 400G line mode: SDFEC
Line modulation format
  • 100G QPSK
  • 200G 16QAM
  • 400G 16QAM(Dual_Ports)
Typical channel spacing
  • 100G QPSK: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 200G 16QAM: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G 16QAM(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
NOTE:
During the modulation format switching of the board, if the channel spacing increases, the modulation format switching fails, an error message indicating wavelength conflict is displayed, and the system prompts that the current channel spacing is too small to switch the modulation format. In this case, you need to change the channel spacing to a larger value before switching the modulation format. For example, modulation format A whose channel spacing is 50G can be directly switched to modulation format B whose channel spacing is 37.5G, but cannot be directly switched to modulation format C whose channel spacing is 75G. In this case, you need to change the channel spacing to a larger value first. Otherwise, the modulation format switching fails.
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
400G line mode:
  • WDM-side OTUC4 layer: supports SM overhead processing.
  • ODUC4 layer: supports PM adn TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards. Port in 400G mode: Do not support intra-board 1+1 protection.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • Superchannel does not support ASON.
  • 400G dual-carrier does not support ASON.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supported on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels.
  • When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback
  • 100G line mode: ODUk (k=0, 1, 2, 3, flex) channel loopbacks
  • 200G line mode: ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks
  • 400G line mode: ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNU1N402P Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
NOTE:
When both port 1 and port 2 are set to 100G mode, the board electrically regenerates two channels of OTU4 signals.When both port 1 and port 2 are set to 200G mode, the board electrically regenerates two channels of OTUC2 signals.When port 1 is set to 400G mode, the board electrically regenerates one OTUC4 signal.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • 100G mode: OTU4
  • 200G mode: OTUC2
  • 400G mode: OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding
  • 100G mode: SDFEC2
  • 200G mode: SDFEC
  • 400G mode: SDFEC
Line modulation format
  • 100G QPSK
  • 200G 16QAM
  • 400G 16QAM(Dual_Ports)
Typical channel spacing
  • 100G QPSK: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 200G 16QAM: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G 16QAM(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
NOTE:
During the modulation format switching of the board, if the channel spacing increases, the modulation format switching fails, an error message indicating wavelength conflict is displayed, and the system prompts that the current channel spacing is too small to switch the modulation format. In this case, you need to change the channel spacing to a larger value before switching the modulation format. For example, modulation format A whose channel spacing is 50G can be directly switched to modulation format B whose channel spacing is 37.5G, but cannot be directly switched to modulation format C whose channel spacing is 75G. In this case, you need to change the channel spacing to a larger value first. Otherwise, the modulation format switching fails.
OTN overhead 100G mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
200G mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
400G mode:
  • WDM-side OTUC4 layer: supports SM overhead processing.
  • ODUC4 layer: supports PM and TCM overhead processing.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Superchannel does not support ASON.
  • 400G dual-carrier does not support ASON.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.60 kg
  • 7.94 lb.

Additional information

Item TNU1N402P
Backplane capacity 400G line mode: The total backplane bandwidth is 400 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding
  • 100G line mode: SDFEC2
  • 200G line mode: SDFEC
  • 400G line mode: SDFEC
Line modulation format
  • 100G QPSK
  • 200G 16QAM
  • 400G 16QAM(Dual_Ports)
Typical channel spacing
  • 100G QPSK: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 200G 16QAM: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G 16QAM(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
NOTE:
During the modulation format switching of the board, if the channel spacing increases, the modulation format switching fails, an error message indicating wavelength conflict is displayed, and the system prompts that the current channel spacing is too small to switch the modulation format. In this case, you need to change the channel spacing to a larger value before switching the modulation format. For example, modulation format A whose channel spacing is 50G can be directly switched to modulation format B whose channel spacing is 37.5G, but cannot be directly switched to modulation format C whose channel spacing is 75G. In this case, you need to change the channel spacing to a larger value first. Otherwise, the modulation format switching fails.
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
400G line mode:
  • WDM-side OTUC4 layer: supports SM overhead processing.
  • ODUC4 layer: supports PM adn TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards. Port in 400G mode: Do not support intra-board 1+1 protection.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • Superchannel does not support ASON.
  • 400G dual-carrier does not support ASON.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supported on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels.
  • When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback
  • 100G line mode: ODUk (k=0, 1, 2, 3, flex) channel loopbacks
  • 200G line mode: ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks
  • 400G line mode: ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNU1N402P Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
NOTE:
When both port 1 and port 2 are set to 100G mode, the board electrically regenerates two channels of OTU4 signals.When both port 1 and port 2 are set to 200G mode, the board electrically regenerates two channels of OTUC2 signals.When port 1 is set to 400G mode, the board electrically regenerates one OTUC4 signal.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • 100G mode: OTU4
  • 200G mode: OTUC2
  • 400G mode: OTUC4
WDM specification Supports the DWDM specifications.
Tunable wavelength Support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding
  • 100G mode: SDFEC2
  • 200G mode: SDFEC
  • 400G mode: SDFEC
Line modulation format
  • 100G QPSK
  • 200G 16QAM
  • 400G 16QAM(Dual_Ports)
Typical channel spacing
  • 100G QPSK: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 200G 16QAM: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
  • 400G 16QAM(Dual_Ports): 2*(50GHz*n)(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
NOTE:
During the modulation format switching of the board, if the channel spacing increases, the modulation format switching fails, an error message indicating wavelength conflict is displayed, and the system prompts that the current channel spacing is too small to switch the modulation format. In this case, you need to change the channel spacing to a larger value before switching the modulation format. For example, modulation format A whose channel spacing is 50G can be directly switched to modulation format B whose channel spacing is 37.5G, but cannot be directly switched to modulation format C whose channel spacing is 75G. In this case, you need to change the channel spacing to a larger value first. Otherwise, the modulation format switching fails.
OTN overhead 100G mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
200G mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
400G mode:
  • WDM-side OTUC4 layer: supports SM overhead processing.
  • ODUC4 layer: supports PM and TCM overhead processing.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Superchannel does not support ASON.
  • 400G dual-carrier does not support ASON.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.60 kg
  • 7.94 lb.

Reviews

There are no reviews yet.

Be the first to review “TNU1N402P”

Your email address will not be published. Required fields are marked *

Related products

TNV8T404Q01-1TNV8T404Q01-2
Quick view
Categories: ,

TNV8T404Q01

R.F.Q
(1)
SKU2012160
TNS7N404-1TNS7N404-2
Quick view
Categories:

TNS7N404

R.F.Q
SKU2012844
TNV7T220-1TNV7T220-2
Quick view
Categories:

TNV7T220

R.F.Q
(1)
SKU2012858
TNV5U220-1
Quick view
Categories: ,

TNV5U220

R.F.Q
SKU2012910
TNS2N401-1
Quick view
Categories:

TNS2N401

R.F.Q
(1)
SKU2012857
TNV3T230-1TNV3T230-2
Quick view
Categories: ,

TNV3T230

R.F.Q
(1)
SKU2012877
Main Menu
Back to Top

Search For Products

Popular
Product has been added to your cart
