Home/Transport Network/OSN 9800 Series/OSN 9800 U Series/TNU2N401P
TNU2N401P-1
TNU2N401P
Categories:,

TNU2N401P

0 Reviews Write a review
SKU2016082
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OptiX OSN 9800 TNU2N401P 1 * 100G/200G Programmable Line Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNU2N401P overview



TNU2N401P 20 x 10 Gbit/s Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNU2N401P board has only one variant: TNU2N401PF51.

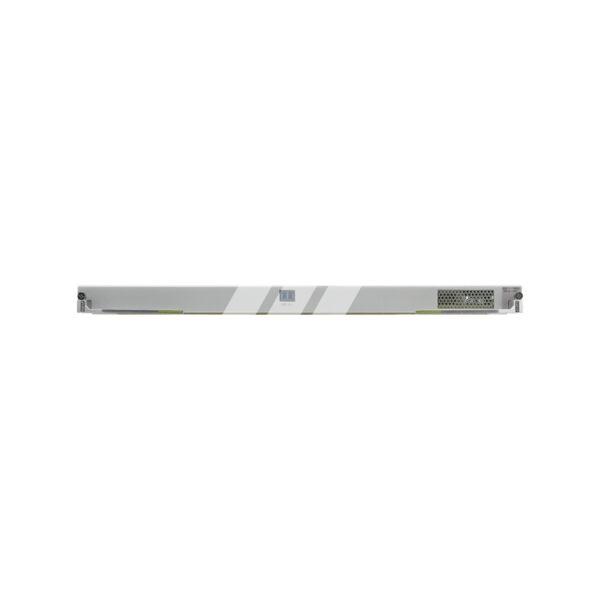

Front panel of the TNU2N401P board

TNU2N401P

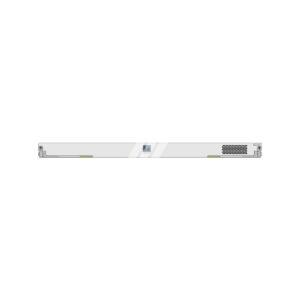

Front panel of the TNU2N401P board



Valid slots for the TNV3N220 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU5, IU8 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Item TNU2N401P
Backplane capacity
  • 100G line mode: The total backplane bandwidth is 100 Gbit/s.
  • 200G line mode: The total backplane bandwidth is 200 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding
  • 100G line mode:SDFEC2
  • 200G line mode:SDFEC
Line modulation format 100G line mode:
  • 100G QPSK
  • 100G QPSK wDCM
200G line mode:
  • 200G QPSK
  • 200G 16QAM
  • 200G 8QAM
NOTE:
  • When using a board whose line modulation format is 200G QPSK in an 80-wavelength system with a 50 GHz spacing, set the center wavelength to the median of two adjacent standard wavelengths (that is a standard wavelength plus 25 GHz), because the board must use a 100 GHz spacing during transmission.
  • To configure the board to work in 200G mode, you must obtain a license (1 x 100G/200G Programmable Line License).
Typical channel spacing
  • 100G QPSK(wDCM):50GHz Fix
  • 200G QPSK:75GHz Flex/100GHz fix
  • 200G 16QAM:50GHz Fix
  • 200G 8QAM:62.5GHz Flex/75GHz Flex/100GHz Fix
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz, including 200G 8QAM and 200G QPSK.
    • 200G 8QAM supports only 62.5 GHz/100 GHz flex ASON.
    • 200G QPSK supports only 75 GHz/100 GHz flex ASON.
  • Superchannel does not support ASON.
  • 400G dual-carrier does not support ASON.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement
  • The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
  • The board supports PM latency measurement at the ODUC2 layer.
Channel loopback
  • 100G line mode:ODUk (k=0, 1, 2, 3, flex) channel loopbacks
  • 200G line mode:ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNU2N401P Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • 100G mode: OTU4
  • 200G mode: OTUC2
WDM specification Supports the DWDM specifications.
Tunable wavelength Support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding
  • 100G mode:SDFEC2
  • 200G mode:SDFEC
Line modulation format 100G mode:
  • 100G QPSK
  • 100G QPSK wDCM
200G mode:
  • 200G QPSK
  • 200G 16QAM
  • 200G 8QAM
NOTE:
When using a board whose line modulation format is 200G QPSK in an 80-wavelength system with a 50 GHz spacing, set the center wavelength to the median of two adjacent standard wavelengths (that is a standard wavelength plus 25 GHz), because the board must use a 100 GHz spacing during transmission.
Typical channel spacing
  • 100G QPSK(wDCM):50GHz Fix
  • 200G QPSK:75GHz Flex/100GHz fix
  • 200G 16QAM:50GHz Fix
  • 200G 8QAM:62.5GHz Flex/75GHz Flex/100GHz Fix
OTN overhead 100G mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
200G mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz, including 200G 8QAM and 200G QPSK.
    • 200G 8QAM supports only 62.5 GHz/100 GHz flex ASON.
    • 200G QPSK supports only 75 GHz/100 GHz flex ASON.
  • Superchannel does not support ASON.
  • 400G dual-carrier does not support ASON.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.60 kg
  • 7.94 lb.

Additional information

Item TNU2N401P
Backplane capacity
  • 100G line mode: The total backplane bandwidth is 100 Gbit/s.
  • 200G line mode: The total backplane bandwidth is 200 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding
  • 100G line mode:SDFEC2
  • 200G line mode:SDFEC
Line modulation format 100G line mode:
  • 100G QPSK
  • 100G QPSK wDCM
200G line mode:
  • 200G QPSK
  • 200G 16QAM
  • 200G 8QAM
NOTE:
  • When using a board whose line modulation format is 200G QPSK in an 80-wavelength system with a 50 GHz spacing, set the center wavelength to the median of two adjacent standard wavelengths (that is a standard wavelength plus 25 GHz), because the board must use a 100 GHz spacing during transmission.
  • To configure the board to work in 200G mode, you must obtain a license (1 x 100G/200G Programmable Line License).
Typical channel spacing
  • 100G QPSK(wDCM):50GHz Fix
  • 200G QPSK:75GHz Flex/100GHz fix
  • 200G 16QAM:50GHz Fix
  • 200G 8QAM:62.5GHz Flex/75GHz Flex/100GHz Fix
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz, including 200G 8QAM and 200G QPSK.
    • 200G 8QAM supports only 62.5 GHz/100 GHz flex ASON.
    • 200G QPSK supports only 75 GHz/100 GHz flex ASON.
  • Superchannel does not support ASON.
  • 400G dual-carrier does not support ASON.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement
  • The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
  • The board supports PM latency measurement at the ODUC2 layer.
Channel loopback
  • 100G line mode:ODUk (k=0, 1, 2, 3, flex) channel loopbacks
  • 200G line mode:ODUk (k=0, 1, 2, 3, 4, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.

Functions and Features of the TNU2N401P Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • 100G mode: OTU4
  • 200G mode: OTUC2
WDM specification Supports the DWDM specifications.
Tunable wavelength Support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
FEC coding
  • 100G mode:SDFEC2
  • 200G mode:SDFEC
Line modulation format 100G mode:
  • 100G QPSK
  • 100G QPSK wDCM
200G mode:
  • 200G QPSK
  • 200G 16QAM
  • 200G 8QAM
NOTE:
When using a board whose line modulation format is 200G QPSK in an 80-wavelength system with a 50 GHz spacing, set the center wavelength to the median of two adjacent standard wavelengths (that is a standard wavelength plus 25 GHz), because the board must use a 100 GHz spacing during transmission.
Typical channel spacing
  • 100G QPSK(wDCM):50GHz Fix
  • 200G QPSK:75GHz Flex/100GHz fix
  • 200G 16QAM:50GHz Fix
  • 200G 8QAM:62.5GHz Flex/75GHz Flex/100GHz Fix
OTN overhead 100G mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
200G mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz, including 200G 8QAM and 200G QPSK.
    • 200G 8QAM supports only 62.5 GHz/100 GHz flex ASON.
    • 200G QPSK supports only 75 GHz/100 GHz flex ASON.
  • Superchannel does not support ASON.
  • 400G dual-carrier does not support ASON.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.60 kg
  • 7.94 lb.
