Huawei OptiX OSN 9800 TNU3UXCS Universal Cross Connect Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNU3UXCS overview



TNU3UXCS Universal Cross Connect Board applied to Huawei OptiX OSN 9800 U32/U64.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNU3UXCS board variant is TNU3UXCS01.

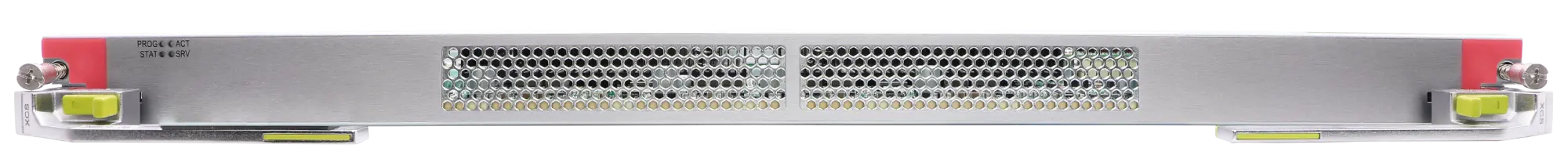

Front panel of the TNU3UXCS board

TNU3UXCS

Front panel of the TNU3UXCS board



Valid slots for the TNU3UXCS board in a U32/U64 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 U32 Enhanced 1 IU71 to IU77 IU71 to IU77
OptiX OSN 9800 U64 Enhanced 1 IU71 to IU77, IU79 to IU85 IU71 to IU77, IU79 to IU85



Show More Show Less
Item TNU3UXCS
Basic function TNU3UXCS board is a cross-connect board. The TNU3UXCS board grooms and protects ODUk (k = 0, 1, 2, 2e, 3, 4, or flex), Packet, VC-4 and OSUflex signals within a subrack.
Cross-connect Capacity U64 Enhanced
  • Cross-connects a maximum of 25.6 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s.
  • Performs packet switching of a maximum of 25.6 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s.
  • Cross-connects a maximum of 10.24 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s.
  • Cross-connects a maximum of 25.6 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s.
U32 Enhanced
  • Cross-connects a maximum of 12.8 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals, and each service slot provides a cross-connect capacity of 400 Gbit/s.
  • Performs packet switching of a maximum of 12.8 Tbit/s Ethernet services, and each service slot provides a cross-connect capacity of 400 Gbit/s.
  • Cross-connects a maximum of 5.12 Tbit/s VC-4 signals, and each service slot provides a cross-connect capacity of 160 Gbit/s.
  • Cross-connects a maximum of 12.8 Tbit/s OSUflex signals, and each service slot provides a cross-connect capacity of 400 Gbit/s.
OTN cluster Not Supported
Electrical-layer ASON Supported
SDH ASON Supported
Backup mode U64 Enhanced: The fourteen cross-connect boards form a cross-connect resource pool for service grooming. U32 Enhanced: The seven cross-connect boards form a cross-connect resource pool for service grooming. When two TNU3UXCS boards are faulty, the system can still function properly. If more than two TNU3UXCS boards become faulty, the system will fail.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.15 kg
  • 6.94 lb.
