TNU5N402 overview



TNU5N402 2*100G/200G or 1*400G programmable line service processing board tributary service processing board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNU5N402 board has only one variant: TNU5N402C01.

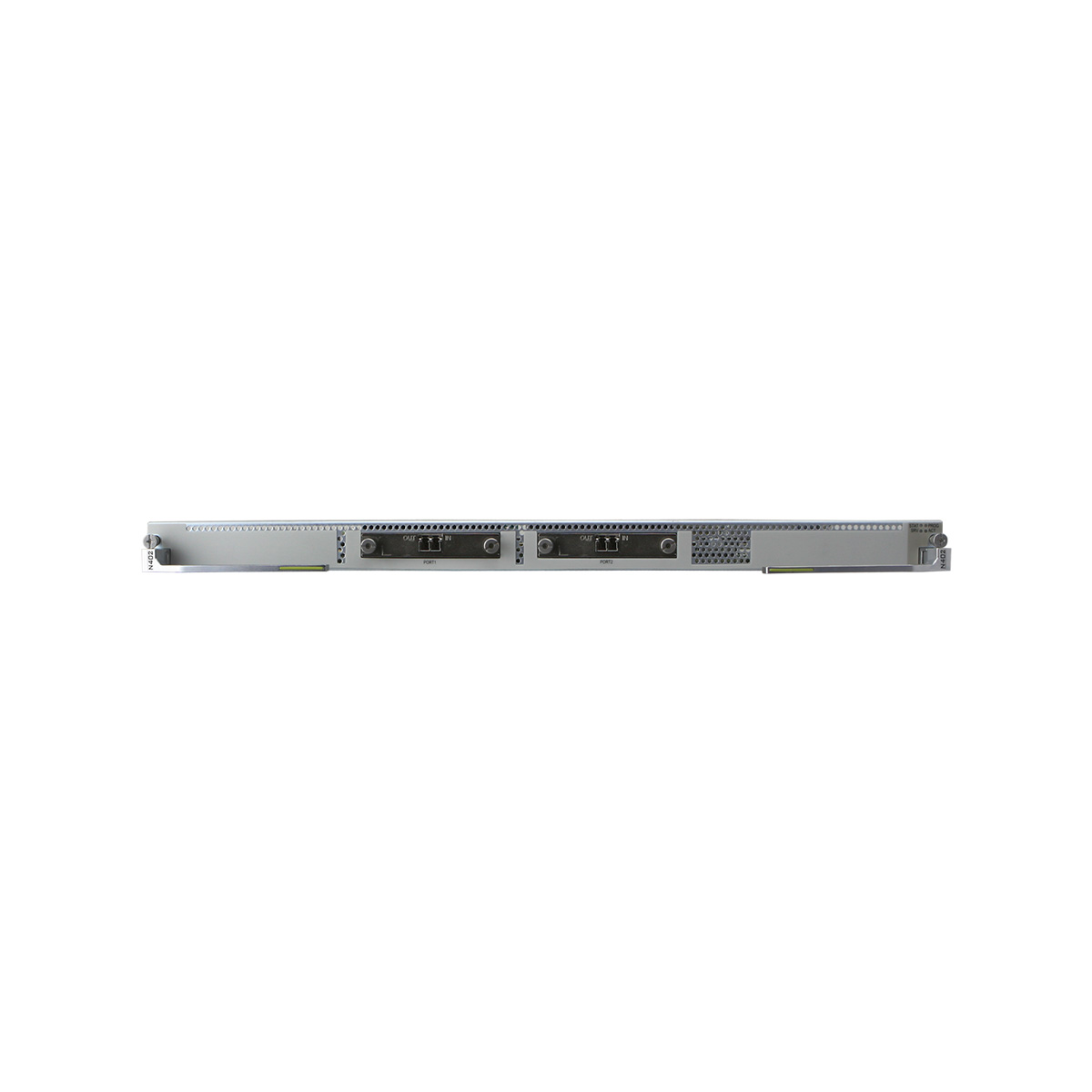

Front panel of theTNU5N402 board

TNU5N402

Front panel of the TNU5N402 board



Valid slots for the TNU5N402 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64
Show More Show Less
Item TNU5N402
Backplane capacity The total backplane bandwidth is 200 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • When CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules are used: FEC
  • When other modules are used: SDFEC2, HFEC PLUS
Line modulation format
  • NRZ
  • 100G QPSK
  • 100G QPSK wDCM
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Optical-layer ASON is not supported when a gray light optical module is used.TNU5N402: In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback ODUk (k=0, 1, 2, 3, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.

Functions and Features of the TNU5N402 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
NOTE:
When the CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules are used, the TNU5N402 board does not support relay mode.
Regeneration mode Unidirectional regeneration
Regeneration rate OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2, HFEC PLUS
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
NOTE:
  • Optical-layer ASON is not supported when a gray light optical module is used.
  • TNU5N402: In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
  • For the WDM-side A51 or A62 optical module, the receive and transmit wavelengths must be the same. Both A51 and A62 modules do not support wavelength change by configuring regeneration boards.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.62 kg
  • 7.98 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNU5N402
Backplane capacity The total backplane bandwidth is 200 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • When CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules are used: FEC
  • When other modules are used: SDFEC2, HFEC PLUS
Line modulation format
  • NRZ
  • 100G QPSK
  • 100G QPSK wDCM
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
Tributary SNCP Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
Optical-layer ASON is not supported when a gray light optical module is used.TNU5N402: In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Not supported
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODUk channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Channel loopback ODUk (k=0, 1, 2, 3, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the monitoring of OTN alarms and performance events.

Functions and Features of the TNU5N402 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
NOTE:
When the CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules are used, the TNU5N402 board does not support relay mode.
Regeneration mode Unidirectional regeneration
Regeneration rate OTU4
WDM specification Supports the DWDM specifications.
Tunable wavelength The board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding SDFEC2, HFEC PLUS
Line modulation format
  • 100G QPSK
  • 100G QPSK wDCM
OTN overhead
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
Optical-layer ASON Supported
NOTE:
  • Optical-layer ASON is not supported when a gray light optical module is used.
  • TNU5N402: In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
  • For the WDM-side A51 or A62 optical module, the receive and transmit wavelengths must be the same. Both A51 and A62 modules do not support wavelength change by configuring regeneration boards.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.62 kg
  • 7.98 lb.
