Huawei OSN 9800 U64/U32/U16/M24 Line Service Processing Board Supports 4-port Gbit/s

Description

TNU5N404C01 overview

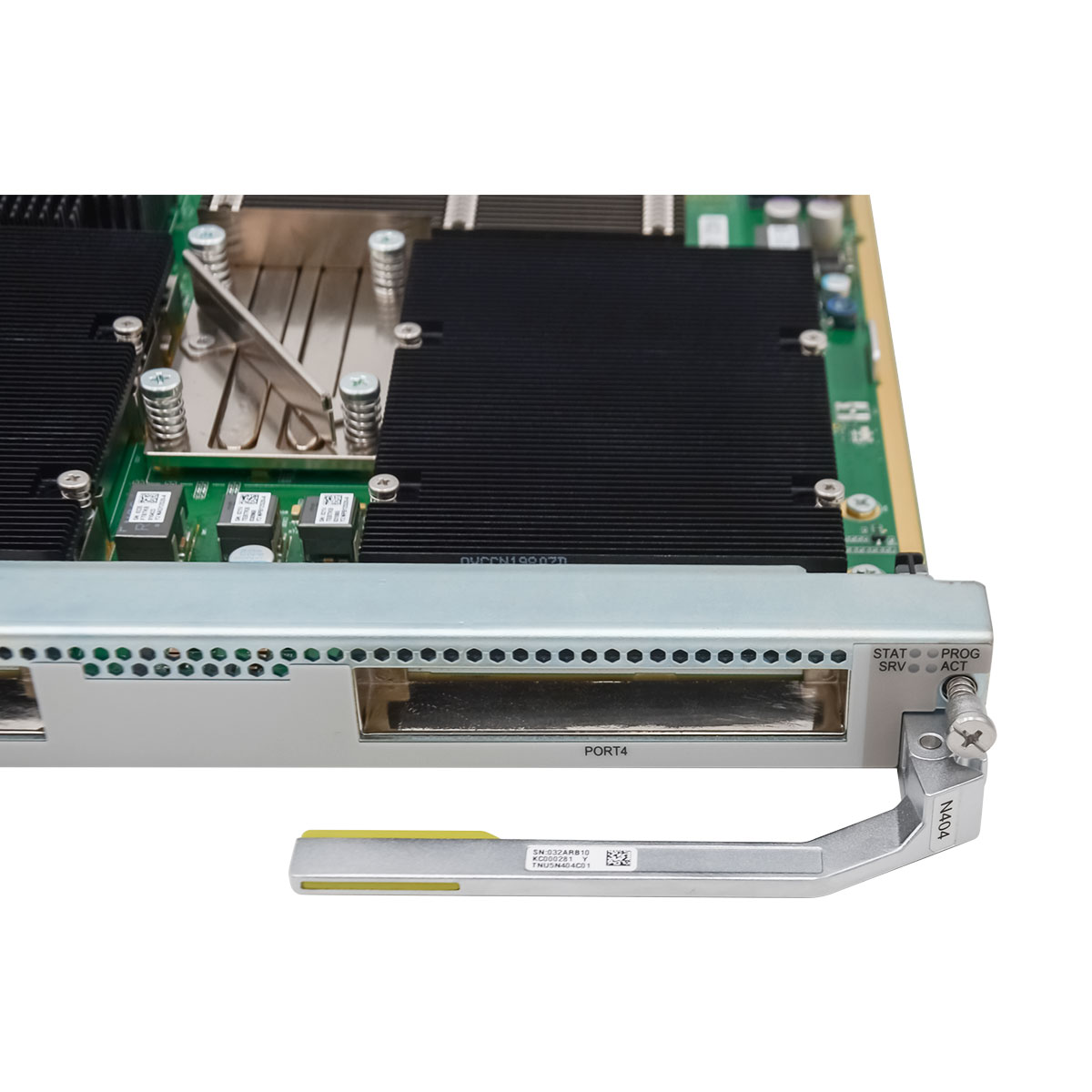

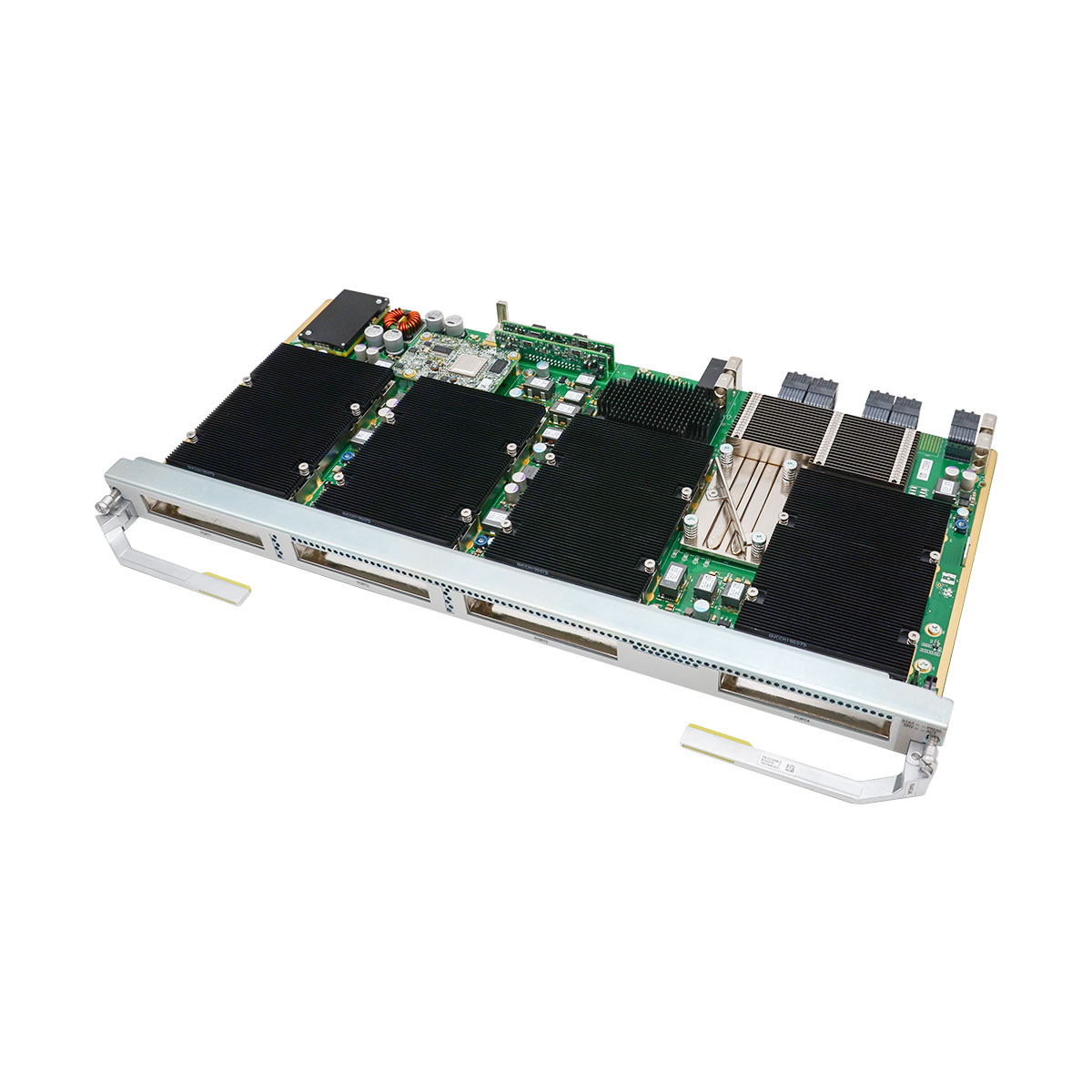

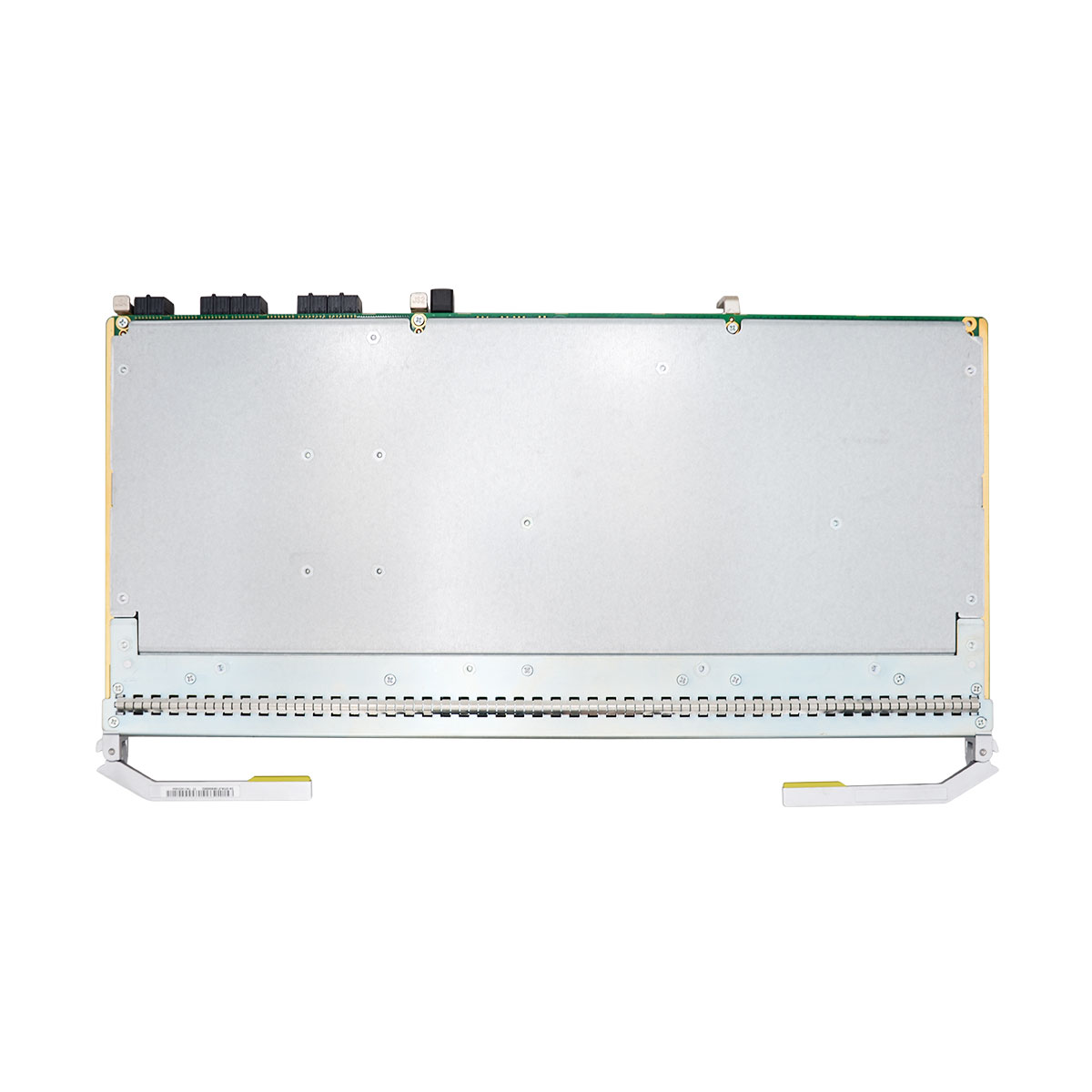

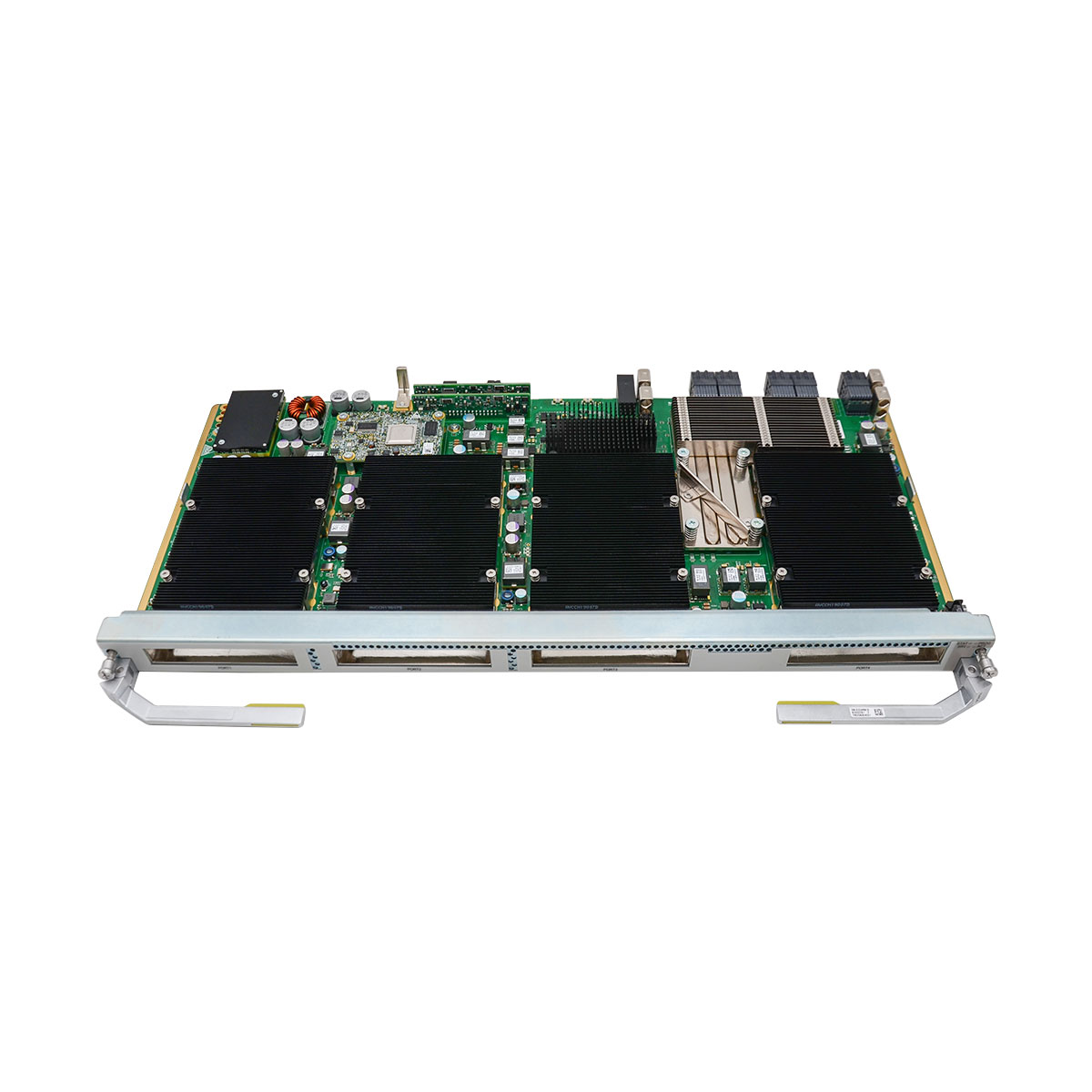

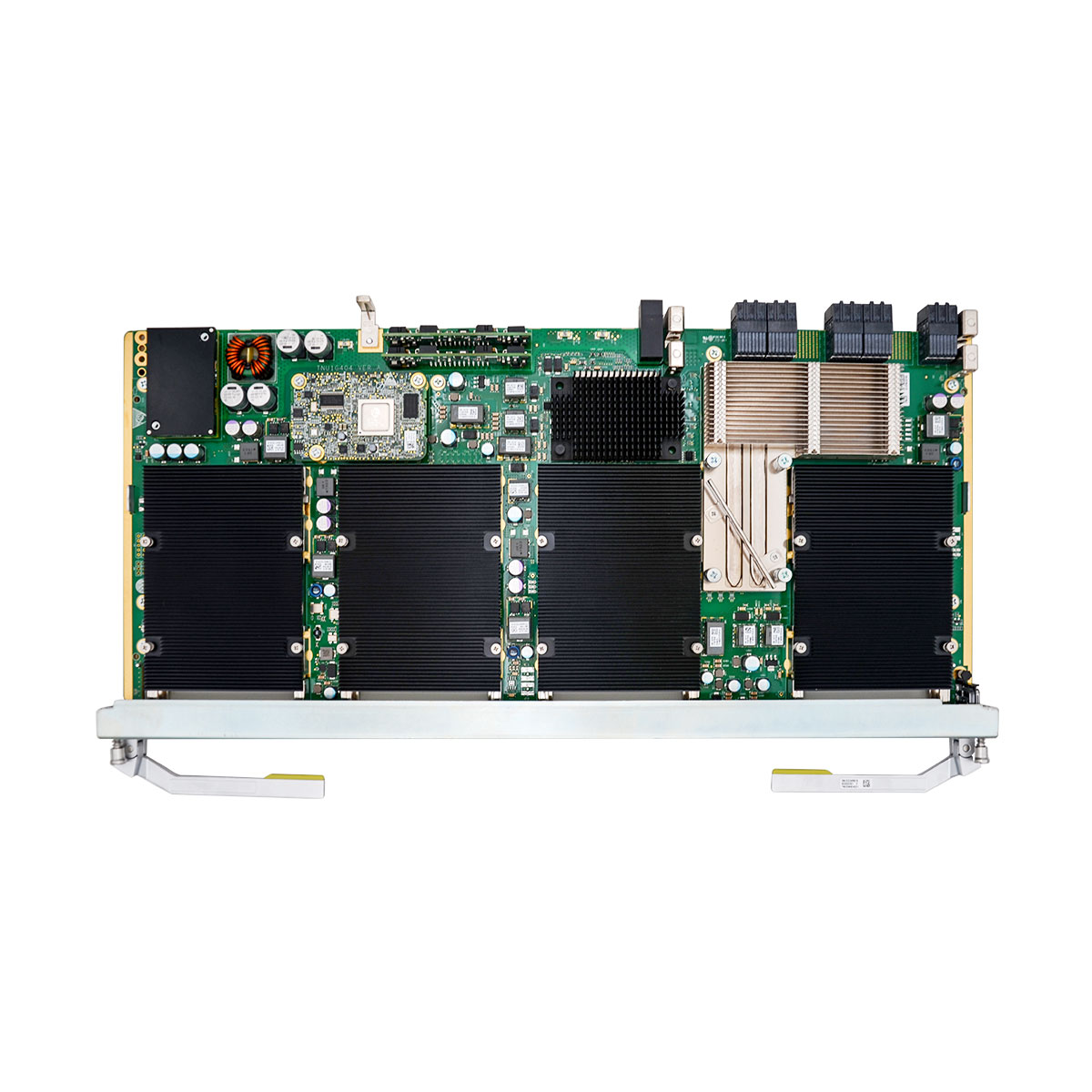

This board is a 4-port 100 Gbit/s line service processing board, which applies to Huawei OptiX OSN 9800 U64/U32/U16 and OSN 9800 M24

Functional versions of N404 board are TNU4 and TNU5

Supports WDM-side pluggable optical modules

Supports electrical cross-connections, OTN interfaces, and ESC communication



TNU5N404C01 converts 320 ODU0, 160 ODU1, 40 ODU2, 40 ODU2e, 8 ODU3, 4 ODU4, or 320 ODUflex signals into 4 OTU4 signals carried over 4 ITU-T G.694.1 compliant DWDM wavelength and vice versa. Each port on the board supports a mix of ODU0, ODU1, ODU2/ODU2e, ODU3, and ODUflex signals. When using colored light modules, the TNU5N404 board can be used in coherent systems.

TNU5N404C01
Valid Slot
OSN 9800 U64 Standard subrack: IU1-IU64 OSN 9800 U64 Enhanced subrack: IU1-IU64 OSN 9800 U32 Standard subrack: IU1-IU32 OSN 9800 U32 Enhanced subrack: IU1-IU32 OSN 9800 U16 subrack: IU1-IU14 OSN 9800 M24 subrack: (IU1, IU13), (IU2, IU14), ...... , (IU11, IU23), (IU12, IU24)
Initial Version: T5U/T62/T65/TxA/Gray light: V100R002C10SPC300 A51/A62: V100R003C10 T51/T61: V100R006C10 T52HPb/T53HPb/T63HPb: V100R007C00SPC500 F51: V100R019C10SPC300 T51 (Super C): V100R019C10SPC600 Other: V100R007C00SPC300
Functions and features (line mode)
Basic function Supports the following service conversions: 320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x OTU4 Each port on the board supports a mix of ODU0, ODU1, ODU2, ODU2e, ODU3 and ODUflex signals.
Cross-connect capabilities Supports backplane cross-connections of 320 ODU0, 160 ODU1, 40 ODU2, 40 ODU2e, 8 ODU3, 4 ODU4, or 320 ODUflex signals from/to the cross-connect board.
OTN functions Supports OTU4 on the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU4 layer: supports SM overhead processing. ODUk (k=0, 1, 2, 2e, 3, 4,flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing. TNU5N404 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function Supported
PRBS function Supports the PRBS function on the WDM side.
FEC coding When colored light optical modules are used: SDFEC2,HFEC PLUS When gray light optical modules are used: FEC
Alarm and performance event monitoring Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
Latency measurement The TNU5N404 board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels.
Physical clock Supported
Electrical-layer/Optical-layer ASON Supported
Protection scheme Supports ODUk SNCP. Supports tributary SNCP protection. Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board). Note: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Loopback Supported
Functions and features (rely mode)
Basic function Electrically regenerates optical signals at an electrical REG station.
Supported service rate OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function Supports OTU4 on the WDM side. Supports the OTN frame format and overhead processing defined by ITU-T G.709. OTU4 layer: supports SM overhead processing. ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing. The TNU5N404 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
ESC function Supported
Optical-layer ASON Supported
FEC coding When colored light optical modules are used: SDFEC2,HFEC PLUS
Alarm and performance event monitoring Monitors BIP8 bytes (Bursty mode) to help locate line failures. Monitors parameters such as the bias current, temperature, and optical power of the laser. Monitors OTN alarms and performance events.
WDM-Side Pluggable Optical Module Supported
Colored light: 40000 ps/nm-Extended C band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH+, T5U)-CFP-PIN CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T62)-SMF CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T65)-SMF 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP 55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP 16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP 55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP 40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP 16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP 100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP 100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, TxA)-SMF Gray light: CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP
Mechanical Specifications
Dimensions (H x W x D,mm) 477.3 (H) x 30.5 (W) x 220.0 mm (D)
Weight (kg) 4.53
Typical Power Consumption (W) 250
Maximum Power Consumptiona (W) 262
