TNU5N501P

0 Reviews Write a review
SKU2012939
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

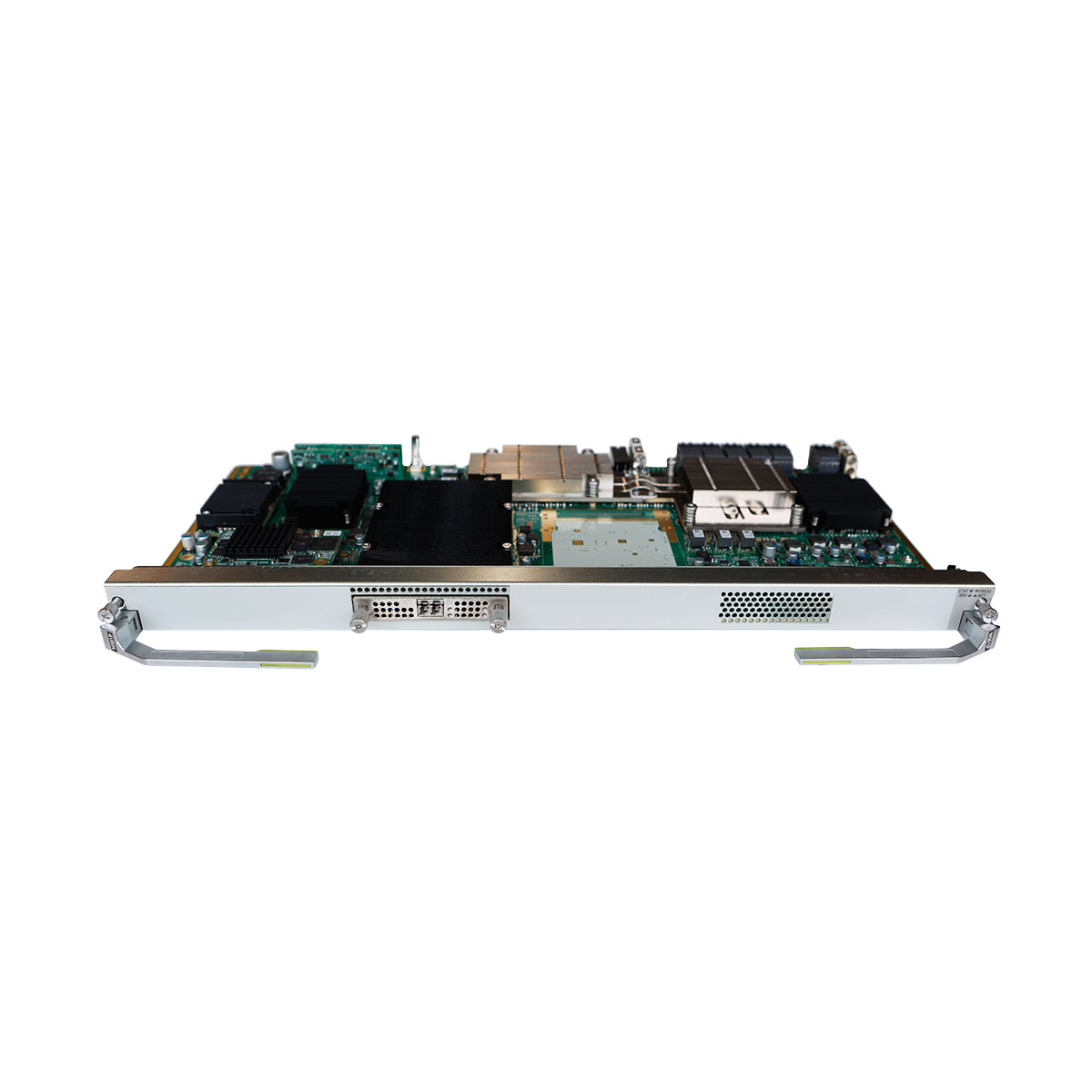

Huawei OptiX OSN 9800 TNU5N501P 1*200G/100G Programmable Line Service Processing Board

Description

TNU5N501P overview

TNU5N501P 1*200G/100G Programmable Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

Power consumption
Board Typical Power Consumption (W) Maximum Power Consumptiona (W)
TNU5N501P 217 230

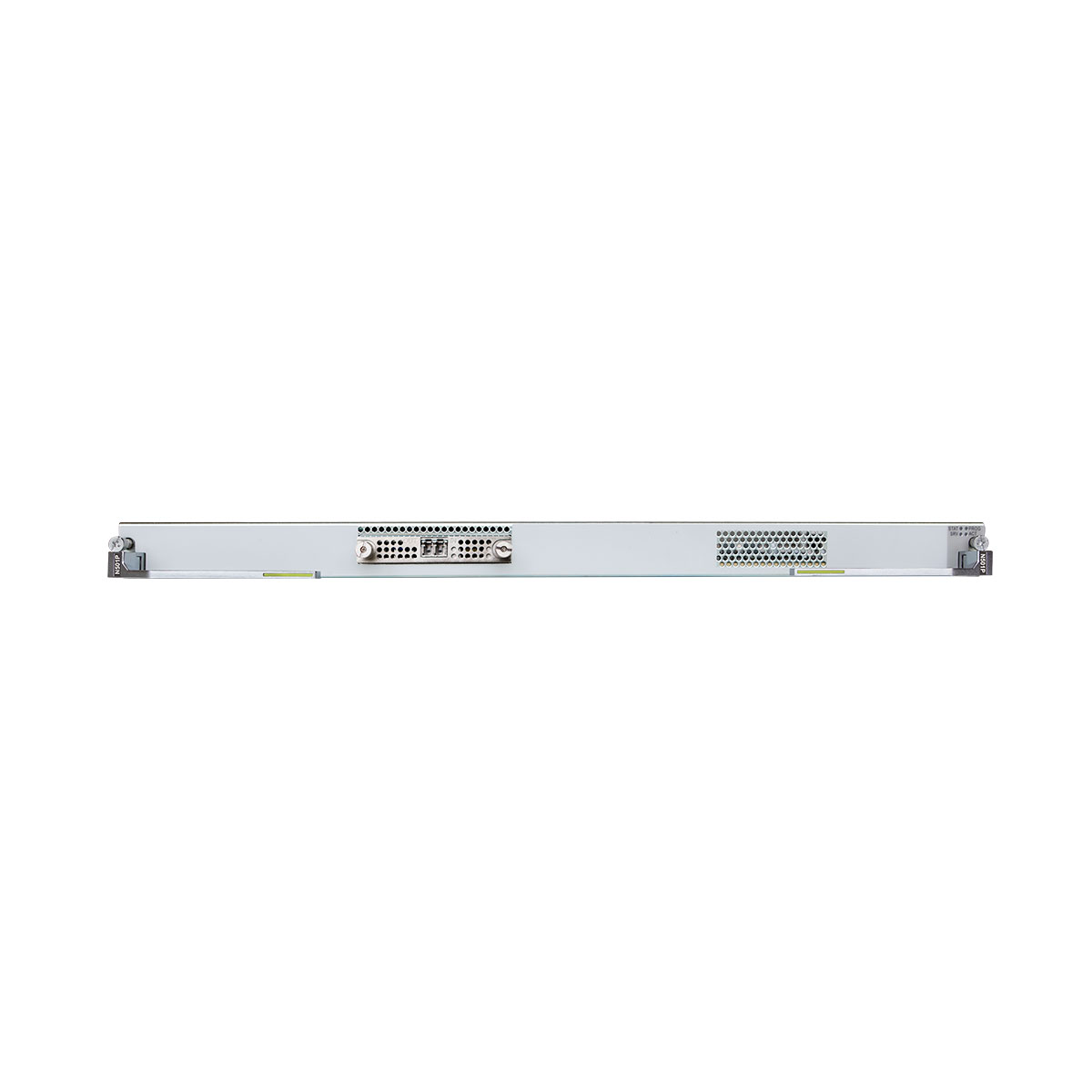

Front panel of the TNU5N501P board
front panel of the TNU5N501P board



Valid slots for the TNU5N501P board in a U64/U32/U16 subrack
Product Valid Slots
OptiX OSN 9800 U64 Standard subrack IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack IU1-IU64
OptiX OSN 9800 U32 Standard subrack IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack IU1-IU32



Valid slots for the TNU5N501P board in an M24 subrack
Product Valid Slots
OptiX OSN 9800 M24 subrack (IU1, IU13), (IU2, IU14), …, (IU11, IU23), (IU12, IU24)

Specifications for Optical Modules
Board Optical Modules Service type Optical Module Type Position
TNU5N501P CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF Specifications OTU4, OTUC2 Pluggable Optical Module WDM-Side
TNU5N501P 40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHC, T22)-200G CFP Specifications OTU4, OTUC2 Pluggable Optical Module WDM-Side
TNU5N501P 40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, high optical power, T23)-200G CFP OTU4, OTUC2 Pluggable Optical Module WDM-Side
TNU5N501P 40000ps/nm-Extended C band-Tunable wavelength-ePDM-e16QAM (configurable rate and modulation format, coherent, LHD, T23)-200G CFP Specifications OTU4, OTUC2 Pluggable Optical Module WDM-Side
TNU5N501P CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP Specifications OTU4 Pluggable Optical Module WDM-Side
Function differences between the port modes of the TNU5N501P board
Function and Feature Working Mode of the Port
100G mode 200G mode
Basic function Line mode Supports the following service conversions: Supports the following service conversions:
80 x ODU0 / 40 x ODU1 / 10 x ODU2 / 10 x ODU2e / 2 x ODU3 / 1 x ODU4/ 80 x ODUflex <-> 1 x OTU4. 160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex <-> 1 x OTUC2.
The port supports a mixture of ODU0, ODU1, ODU2, ODU2e, ODU3, and ODUflex signals. The port supports a mixture of ODU0, ODU1, ODU2, ODU2e, ODU3, ODU4, and ODUflex signals.
Relay mode Electrically regenerates OTU4 signals at an electrical REG station. Electrically regenerates OTUC2 signals at an electrical REG station.
Supported service rate: OTU4, at a rate of 111.81 Gbit/s. Supported service rate: OTUC2, at a rate of 211.45 Gbit/s.
FEC CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules: FEC CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF modules: SDFEC
Other modules: SDFEC2 Other modules: 200G_16QAM, 200G_16QAM-H: SDFEC, 200G_e16QAM: SDFEC2
Line modulation format CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules: NRZ CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF modules: 200G ePDM-16QAM
Other modules: 100G ePDM-QPSK, 100G ePDM-QPSK wDCM Other modules: 200G_16QAM, 200G_16QAM-H, 200G_e16QAM
RTU Supported.
Functions and features of the TNU5N501P board (line mode)
Item TNU5N501P
Basic function The N501P board has only one port, and the working mode of the port can be set.
Cross-connect capabilities Supports service grooming with cross-connect boards.
Port in 100G mode: 80 x ODU0/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4/80 x ODUflex
Port in 200G mode: 160 x ODU0/80 x ODU1/20 x ODU2/20 x ODU2e/4 x ODU3/2 x ODU4/160 x ODUflex
OTN function Port in 100G mode Supports the OTU4 interface on the WDM side.
Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTU4 layer: supports SM overhead processing.
ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Port in 200G mode Supports the OTUC2 interface on the WDM side.
OTUC2 layer: supports SM overhead processing.
ODUC2 layer: supports PM and TCM overhead processing.
ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specifications Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function TNU5N501P support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
ESC function Supported.
PRBS function Supported on the WDM side.
Monitoring of alarms and performance events Monitors BIP8 bytes (Bursty mode) to help locate line failures.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Monitors OTN alarms and performance events.
Regeneration board Supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
Protection scheme Supports ODUk SNCP.
Supports tributary SNCP protection.
Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback WDM-side loopback Supported
Channel loopback Port in 100G mode: ODUk (k=0, 1, 2, 3, flex)
Port in 200G mode: ODUk (k=0, 1, 2, 3, 4, flex)
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).
When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
The board supports PM and TCM latency measurement at the ODUCn layer.
Functions and features of the TNU5N501P board (relay mode)
Item TNU5N501P
Basic function Applies to electrical regenerator stations in the system to electrically regenerate optical signals.
OTN function Port in 100G mode Supports the OTU4 interface on the WDM side.
Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTU4 layer: supports SM overhead processing.
ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Port in 200G mode Supports the OTUC2 interface on the WDM side.
OTUC2 layer: supports SM overhead processing.
ODUC2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specifications Supports DWDM specifications.
Tunable wavelength function TNU5N501P support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
ESC function Supported
PRBS function Not supported
Monitoring of alarms and performance events Monitors BIP8 bytes (Bursty聽mode) to help locate line failures.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Monitors OTN alarms and performance events.
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
Protection scheme Not supported
Loopback Not supported

Additional information

Brand

Huawei

Lead Time

In Stock

Ship From

Shenzhen Warehouse

Function differences between the port modes of the TNU5N501P board
Function and Feature Working Mode of the Port
100G mode 200G mode
Basic function Line mode Supports the following service conversions: Supports the following service conversions:
80 x ODU0 / 40 x ODU1 / 10 x ODU2 / 10 x ODU2e / 2 x ODU3 / 1 x ODU4/ 80 x ODUflex <-> 1 x OTU4. 160 x ODU0/ 80 x ODU1/ 20 x ODU2/ 20 x ODU2e/ 4 x ODU3/ 2 x ODU4/ 160 x ODUflex <-> 1 x OTUC2.
The port supports a mixture of ODU0, ODU1, ODU2, ODU2e, ODU3, and ODUflex signals. The port supports a mixture of ODU0, ODU1, ODU2, ODU2e, ODU3, ODU4, and ODUflex signals.
Relay mode Electrically regenerates OTU4 signals at an electrical REG station. Electrically regenerates OTUC2 signals at an electrical REG station.
Supported service rate: OTU4, at a rate of 111.81 Gbit/s. Supported service rate: OTUC2, at a rate of 211.45 Gbit/s.
FEC CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules: FEC CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF modules: SDFEC
Other modules: SDFEC2 Other modules: 200G_16QAM, 200G_16QAM-H: SDFEC, 200G_e16QAM: SDFEC2
Line modulation format CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP modules: NRZ CFP- 200G-(1529.17nm to 1567.1nm)(DWDM,Tunable,T15)-SMF modules: 200G ePDM-16QAM
Other modules: 100G ePDM-QPSK, 100G ePDM-QPSK wDCM Other modules: 200G_16QAM, 200G_16QAM-H, 200G_e16QAM
RTU Supported.
Functions and features of the TNU5N501P board (line mode)
Item TNU5N501P
Basic function The N501P board has only one port, and the working mode of the port can be set.
Cross-connect capabilities Supports service grooming with cross-connect boards.
Port in 100G mode: 80 x ODU0/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4/80 x ODUflex
Port in 200G mode: 160 x ODU0/80 x ODU1/20 x ODU2/20 x ODU2e/4 x ODU3/2 x ODU4/160 x ODUflex
OTN function Port in 100G mode Supports the OTU4 interface on the WDM side.
Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTU4 layer: supports SM overhead processing.
ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Port in 200G mode Supports the OTUC2 interface on the WDM side.
OTUC2 layer: supports SM overhead processing.
ODUC2 layer: supports PM and TCM overhead processing.
ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specifications Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function TNU5N501P support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
ESC function Supported.
PRBS function Supported on the WDM side.
Monitoring of alarms and performance events Monitors BIP8 bytes (Bursty mode) to help locate line failures.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Monitors OTN alarms and performance events.
Regeneration board Supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Supported
Electrical-layer ASON Supported
Optical-layer ASON Supported
Protection scheme Supports ODUk SNCP.
Supports tributary SNCP protection.
Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board).
Loopback WDM-side loopback Supported
Channel loopback Port in 100G mode: ODUk (k=0, 1, 2, 3, flex)
Port in 200G mode: ODUk (k=0, 1, 2, 3, 4, flex)
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction).
When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
The board supports PM and TCM latency measurement at the ODUCn layer.
Functions and features of the TNU5N501P board (relay mode)
Item TNU5N501P
Basic function Applies to electrical regenerator stations in the system to electrically regenerate optical signals.
OTN function Port in 100G mode Supports the OTU4 interface on the WDM side.
Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTU4 layer: supports SM overhead processing.
ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
Port in 200G mode Supports the OTUC2 interface on the WDM side.
OTUC2 layer: supports SM overhead processing.
ODUC2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specifications Supports DWDM specifications.
Tunable wavelength function TNU5N501P support tunable wavelength optical modules that provide for 96 wavelengths tunable in the extended C band with 50 GHz channel spacing.
ESC function Supported
PRBS function Not supported
Monitoring of alarms and performance events Monitors BIP8 bytes (Bursty聽mode) to help locate line failures.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Monitors OTN alarms and performance events.
Test frame Not supported
IEEE 1588v2 Not supported
Physical clock Not supported
Optical-layer ASON Supported
Protection scheme Not supported
Loopback Not supported
