Huawei OptiX OSN 9800 TNU5NP200 1 x 100G turbo WDM Universal Line Service Processing Extended Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNU5NP200 overview



TNU5NP200 1 x 100G turbo WDM Universal Line Service Processing Extended Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

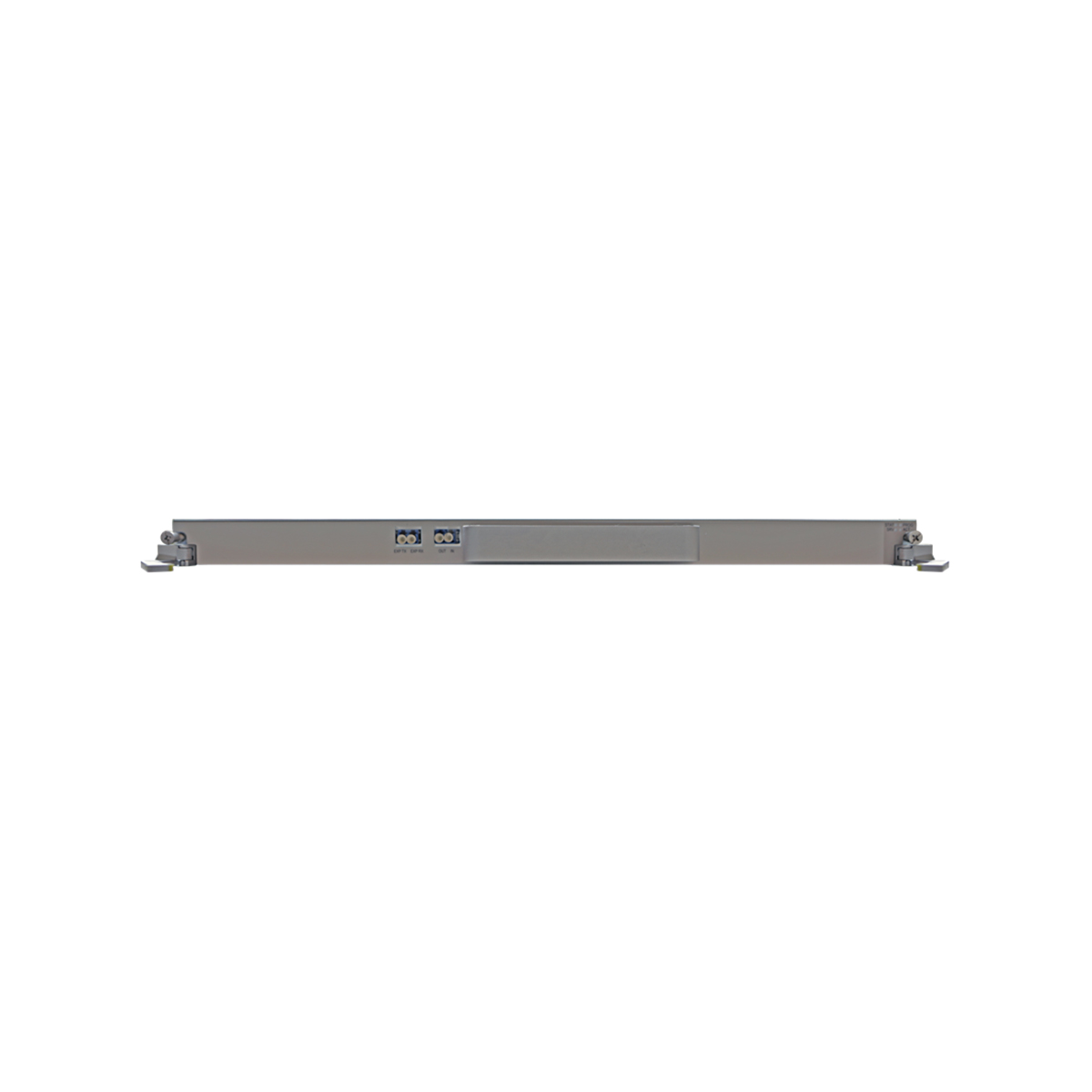

Front panel of the TNU5NP200 board

TNU5NP200



Front panel of the TNU5NP200 board



Valid slots for the TNU5NP200 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Show More Show Less
Item TNU5NP200
OTN functions and features of the board
Basic function NP200/NP200E:
  • 80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4
  • Supports hybrid transmission of ODU0, ODU1, ODUflex, ODU2, ODU2e, and ODU3 signals.
NP200:
  • Multiplexes and demultiplexes two optical signals. That is, the NP200 board receives one OTU4 optical signal from the NP200E board and converts its own OTU4 optical signal and the received OTU4 optical signal into one multiplexed optical signal.
Cross-connect capabilities Supports the cross-connection of 80 x ODU0/ODUflex signals or 40 x ODU1 signals or 10 x ODU2/ODU2e signals or 2 x ODU3 signals or 1 x ODU4 signal between the NP200/NP200E and the cross-connect board.
OTN function
  • Supports the OTN frame format and overhead processing as defined in ITU-T G.709.
  • OTU4 layer: Supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: Supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification Supports DWDM specifications.
ESC function Supported
PRBS test function Supported on the WDM side.
FEC coding SDFEC2
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors the laser bias current, laser operating temperature, and single-wavelength optical power.
  • Monitors OTN alarms and performance events.
IEEE 1588v2 Supports the BC and OC modes.
Physical-layer clock Supported
ITU-T G.8273.2 Supported
NOTE:
The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
ITU-T G.8275.1 Supported
Optical-layer ASON Not supported
Electrical-layer ASON Supported
NOTE:
When both NP200 and NP200E boards are configured on a network, the ODUk TE links of electrical-layer ASON must be configured to the same shared risk link group (SRLG).
Protection scheme
  • Supports ODUk SNCP.
Loopback WDM-side Loopback ODU0 Channel Loopback ODU1 Channel Loopback ODU2 Channel Loopback ODU3 Channel Loopback ODUflex Channel Loopback
Supported Supported Supported Supported Supported Supported
Delay measurement The TNU5NP200/TNU5NP200E board supports delay measurement in the WDM-side optical port direction (upstream direction). When higher-order ODUk cross-connections are created on the line board, TCM delay measurement is supported for higher-order ODUk channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM delay measurement is supported for higher-order ODUk channels, and TCM delay measurement is supported for lower-order ODUk channels. When VPs are configured and lower-order ODUk cross-connections are created, the TNU5NP200/TNU5NP200E board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
SDH functions and features of the board
Basic function

  • When being installed in an M24 subrack in 1:1 mode:

    • The total bandwidth cannot exceed 40 Gbit/s.
    • 4 x STM-64<->4 x ODU2<->1 x ODU4<->1 x OTU4 or 16 x STM-16<->16 x ODU1<->1 x ODU4<->1 x OTU4.

  • When being installed in a U series subrack or in an M24 subrack in 1:3 mode:

    • The total bandwidth cannot exceed 80 Gbit/s.
    • 8 x STM-64<->8 x ODU2<->1 x ODU4<->1 x OTU4 or 32 x STM-16<->32 x ODU1<->1 x ODU4<->1 x OTU4.
Overhead processing
  • Processes section overheads of STM-64 signals.
  • Supports transparent transmission and termination of path overheads.
  • Supports setting and query of J0, J1, and C2 bytes.
Protection schemes
  • Supports SNCP protection.
  • Supports 1+1 single-ended linear MSP.
  • Supports ring MSP.
Alarm and performance event monitoring
  • Monitors B1 bytes to help locate faults.
  • Monitors B2 bytes to help locate faults.
Service processing Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, and VC-4-64c services. (VC-4-4c, VC-4-16c, and VC-4-64c services are concatenation services.)
NOTE:
When being installed in a U series subrack, the board must work with a lower-order cross-connect board to support VC-12 and VC-3 services.
Loopback Supports VC loopbacks. Supports virtual port loopbacks.
SDH clock Supported
IEEE 1588v2 Not supported
Outband DCN Supported
SDH ASON Supported
2M ASON Supported only by 9800 M24 subracks.
Packet service functions of the board (when working with the TNU2CTU/TNU4CTU/TNU5CTU/TNG1CXP/TNG3CXP/TNG4CXP board)
QoS Diffserv Supported, compliant with RFC 2474 and RFC 2475
Traffic classification
  • Simple traffic classification.
  • Complex traffic classification. ACL rules are customized based on packet information.
Traffic policing Committed access rate (CAR), two rate three color marker (trTCM) compliant with RFC 2698
Congestion management Class of service (CoS), supporting SP/WFQ scheduling algorithms
Congestion avoidance WRED, tail dropping
Traffic shaping Port-based traffic shaping, queue-based traffic shaping
HQoS Supports service PW polices, QinQ polices, tunnel rate limiting, V-UNI egress policies.
IGMP Snooping  V1/V2/V3 Not supported
Protection schemes Tunnel APS: Supports 1:1 protection compliant with ITU-T G.8131. PW APS: Supports 1:1 protection compliant with ITU-T G.8131. MC-PW APS: Supports 1:1 protection compliant with ITU-T G.8131. LAG: Supports either intra-board or inter-board LAG compliant with IEEE 802.1ax. MC-LAG: Supported, compliant with IEEE 802.1ax. ERPS V1/V2: Supported, compliant with ITU-T G.8032/Y.1344.
Maintenance Ethernet service OAM (CFM) Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730
Ethernet port OAM (EFM) Not supported
MPLS-TP OAM Supported, compliant with ITU-T G.8113.1
RMON Supported
Port mirroring Not supported
Inband DCN Supported
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MTU 9600 bytes.
Flow control at ports Not supported
Service type E-Line (VPWS), E-LAN (VPLS)
Service bearing medium PW, QinQ
QinQ Supports basic QinQ.
E-Line PW-based service models Port<->PW
CVLAN<->PW
SVLAN<->PW
PW<->PW (MS-PW)
UNI-UNI service models Port<->Port
CVLAN<->CVLAN, VLAN translation supported
SVLAN<->SVLAN, VLAN translation supported
E-LAN Bridge type IEEE 802.1d, IEEE 802.1q
Bridge learning mode SVL, IVL
VSI tag type C-Aware, S-Aware, T-Aware
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 4.14 kg
  • 9.13 lb.
