Description

TNU5U402 overview

TNU5U402 supports Huawei OptiX OSN 9800 board TNU5U402 2*100 Gbit/s Universal Line Service Processing Board.

The TNU5U402 board is a hybrid line board and supports a mixture of OTN, SDH, and packet services.

The TNU5U402 board processes and converts the received service signals into two OTU4 signals, which are carried over ITU-T G.694.1-compliant DWDM wavelengths.

The TNU5U402 board uses coherent receiving technologies and applies to coherent systems.

The optional versions of TNU5U402 are TNU6U402, TNU6U402C.

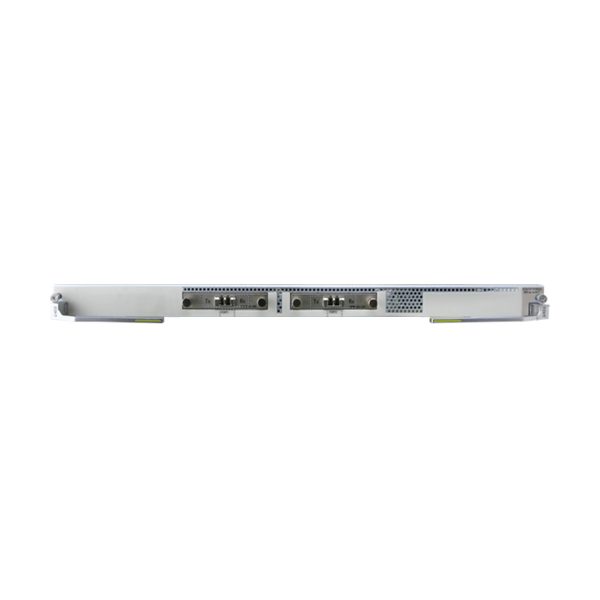

Appearance of the TNU5U402

Appearance of the TNU5U402

Valid slots for the TNU5U402 board in a U64/U32/U16 subrack
Product Valid Slots
OptiX OSN 9800 U32 Standard subrack IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack IU1-IU32
OptiX OSN 9800 U64 Standard subrack IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack IU1-IU64
OptiX OSN 9800 U16 subrack IU1-IU14
Valid slots for the TNU5U402 board in an M24 subrack
Product Valid Slots
OptiX OSN 9800 M24 subrack (IU1, IU13), (IU2, IU14), …… , (IU11, IU23), (IU12, IU24)

NOTE:

The slot ID displayed on the NMS is the ID of the lower one of the two slots occupied by the U402 board in a subrack. For example, when the U402 board occupies slots IU1 and IU13 in a subrack, the slot ID displayed on the NMS is IU1.

In the 1:3 mode, service boards cannot be installed in slots (IU6, IU18) and (IU7, IU19).
Item TNU5U402
OTN functions
  • Supports the OTU4 interface on the WDM side.
  • Supports the OTN frame format and overhead processing defined in ITU-T G.709.
  • OTU4 layer: supports SM overhead processing.
  • ODUk (k = 0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function The TNU5U402 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function Supports the PRBS function on the WDM side.
FEC coding
TNU4U402:
  • Gray light optical module: Supports FEC encoding.
  • Other modules: Supports SDFEC2 and HFEC PLUS encoding.
TNU5U402:
  • Gray light optical module: Supports FEC encoding.
  • Other modules: Supports SDFEC2 and HFEC PLUS encoding.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Regeneration board The WDM-side signals from an U402 board can be regenerated by another U401, N402, LTX board of the same type.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels. When VPs are configured and lower-order ODUk cross-connections are created, the U5U402 board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
NOTE:
The TNU4U402 board supports latency measurement only for higher-order ODU4 channels.
Test frame Not supported
Physical clock Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
IEEE 1588v2 Supported
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Only the TNU5U402 board of an 9800 M24 subrack supports ITU-T G.8273.2.
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:

In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
Protection schemes
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
  • Supports intra-board 1+1 protection (when working with the OLP or DCP board).
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. ODUk SNCP protection and tributary SNCP are not supported when packet services are cross-connected from the backplane.
Loopback WDM-Side Loopback Supported
Channel Loopback ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
ESC Supported
Specifications for Optical Modules
Board Optical Module Service Type Optical Module Type Position
TNU4U402/TNU5U402 CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP Specifications OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 40000 ps/nm-Extended C band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH+, T5U)-CFP-PIN OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T65)-SMF OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T62)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, TxA)-SMF Specifications
NOTE:
  • Configurable FEC types: SDFEC2, HFEC PLUS.
  • In a coherent network, the recommended modulation format for the TxA module is QPSK.
  • In a wDCM network, the modulation format can only be QPSK wDCM for the TxA module.
  • The QPSK and QPSK wDCM modulation formats cannot interconnect with each other.
 OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
TNU5U402 100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU5U402 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU5U402 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, high optical power, T65)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable,high optical power, T69)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
TNU5U402 100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN OTU4 Pluggable Optical Module WDM-Side

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item TNU5U402
OTN functions
  • Supports the OTU4 interface on the WDM side.
  • Supports the OTN frame format and overhead processing defined in ITU-T G.709.
  • OTU4 layer: supports SM overhead processing.
  • ODUk (k = 0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
WDM specification Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength function The TNU5U402 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
PRBS test function Supports the PRBS function on the WDM side.
FEC coding
TNU4U402:
  • Gray light optical module: Supports FEC encoding.
  • Other modules: Supports SDFEC2 and HFEC PLUS encoding.
TNU5U402:
  • Gray light optical module: Supports FEC encoding.
  • Other modules: Supports SDFEC2 and HFEC PLUS encoding.
NOTE:
Boards that use different FEC modes cannot interconnect with each other.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Regeneration board The WDM-side signals from an U402 board can be regenerated by another U401, N402, LTX board of the same type.
Latency measurement The board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels. When VPs are configured and lower-order ODUk cross-connections are created, the U5U402 board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
NOTE:
The TNU4U402 board supports latency measurement only for higher-order ODU4 channels.
Test frame Not supported
Physical clock Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
IEEE 1588v2 Supported
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Only the TNU5U402 board of an 9800 M24 subrack supports ITU-T G.8273.2.
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:

In versions earlier than V100R007C00SPC500, ASON is not supported in high SOP mode. In V100R007C00SPC500 and later versions, only ASON without optical parameters is supported in high SOP mode.
Protection schemes
  • Supports ODUk SNCP.
  • Supports tributary SNCP protection.
  • Supports intra-board 1+1 protection (when working with the OLP or DCP board).
NOTE:
When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection. ODUk SNCP protection and tributary SNCP are not supported when packet services are cross-connected from the backplane.
Loopback WDM-Side Loopback Supported
Channel Loopback ODUk (k = 0, 1, 2, 2e, 3, or flex) channel loopbacks
ESC Supported
Specifications for Optical Modules
Board Optical Module Service Type Optical Module Type Position
TNU4U402/TNU5U402 CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP Specifications OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 40000 ps/nm-Extended C band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH+, T5U)-CFP-PIN OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T65)-SMF OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T62)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, TxA)-SMF Specifications
NOTE:
  • Configurable FEC types: SDFEC2, HFEC PLUS.
  • In a coherent network, the recommended modulation format for the TxA module is QPSK.
  • In a wDCM network, the modulation format can only be QPSK wDCM for the TxA module.
  • The QPSK and QPSK wDCM modulation formats cannot interconnect with each other.
 OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
TNU4U402/TNU5U402 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP Specifications OTU4 Pluggable Optical Module WDM-Side
TNU5U402 100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU5U402 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU5U402 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP OTU4 Pluggable Optical Module WDM-Side
TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, high optical power, T65)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
TNU5U402 CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable,high optical power, T69)-SMF Specifications OTU4 Pluggable Optical Module WDM-Side
TNU5U402 100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN OTU4 Pluggable Optical Module WDM-Side
