Huawei OptiX OSN 9800 TNU6U501 1*200G/100G Programmable Hybrid Line Service Processing Board (CFP, OTN & SDH & Packet)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNU6U501 overview



TNU6U501 1*200G/100G Programmable Hybrid Line Service Processing Board (CFP, OTN & SDH & Packet) applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNU6U501 board has only one variant: TNU6U501C01.

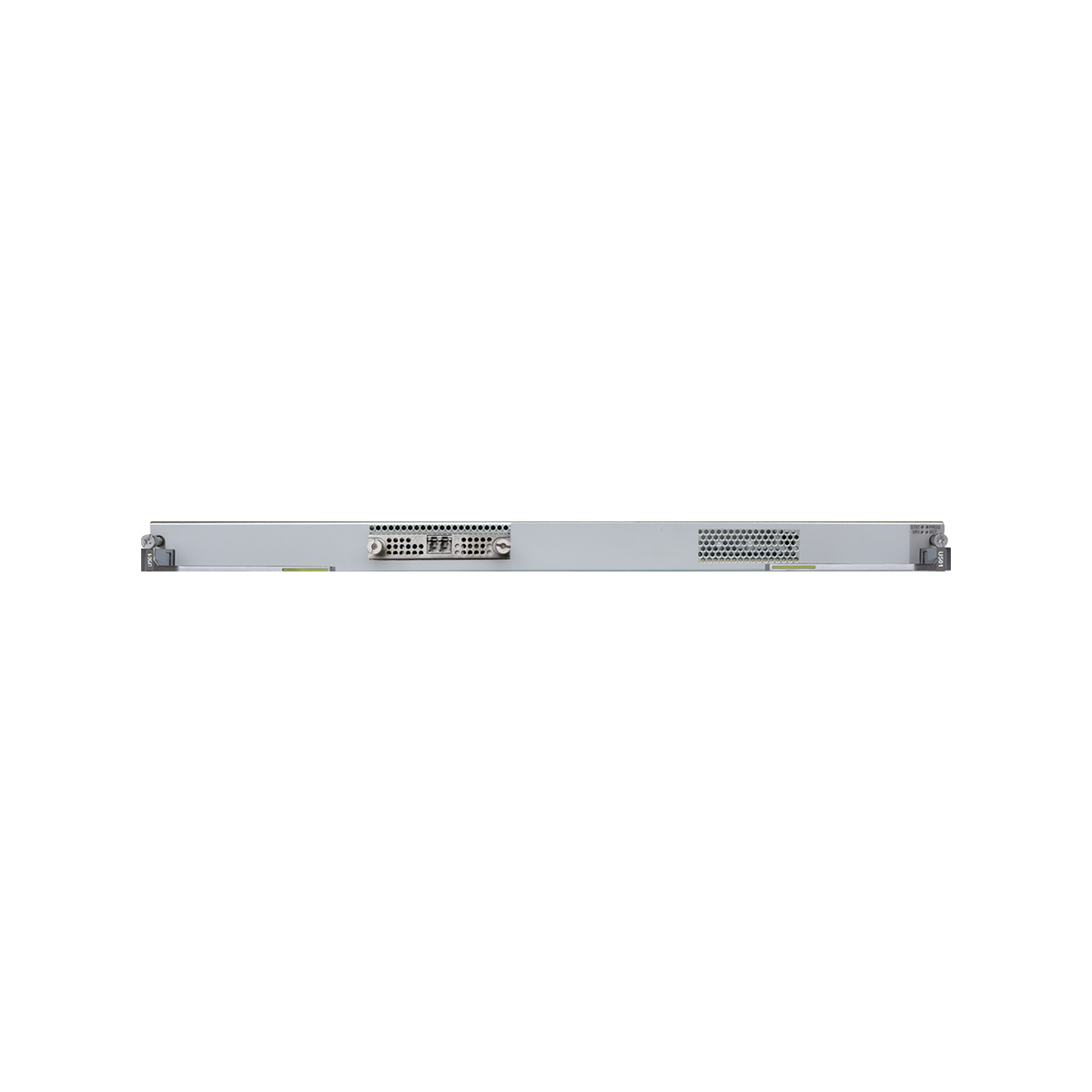

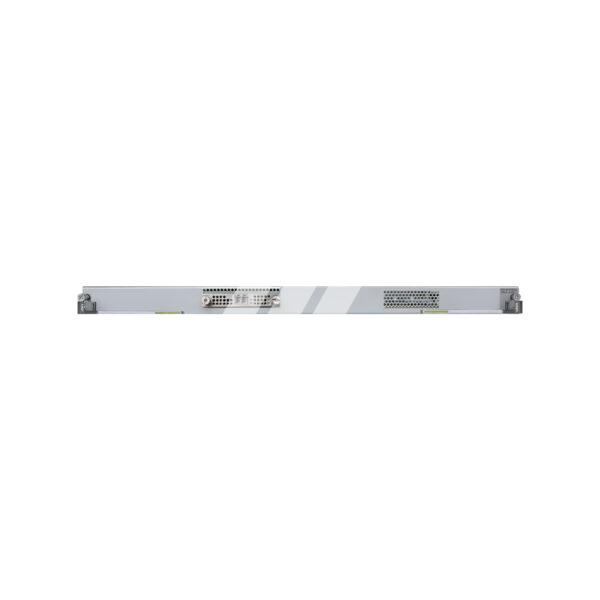

Front panel of the TNU6U501 board

TNU6U501

Front panel of the TNU6U501 board



Valid slots for the TNU6U501 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Show More Show Less
Item TNU6U501
Functions and Features of the TNU6U501 Board (OTN Line)
Backplane capacity The total backplane bandwidth is 200 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G line mode: SDFEC2
  • 200G line mode:
    • 200G 16QAM: SDFEC
    • 200G 16QAM-H: SDFEC
    • 200G e16QAM: SDFEC2
Line modulation format 100G line mode:
  • 100G QPSK
  • 100G QPSK wDCM
200G line mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
NOTE:
ODUk SNCP protection is not supported when packet services are cross-connected from the backplane.
Tributary SNCP Supported
NOTE:
Tributary SNCP are not supported when packet services are cross-connected from the backplane.
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Supported
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
NOTE:
The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
  • Supports PM and TCM latency measurement at the ODUCn layer.
NOTE:
When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Channel loopback
  • 100G line mode:
  • ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
  • 200G line mode:
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Functions and Features of the TNU6U501 Board (SDH)
Basic function Provides one line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.
Functions and Features of the TNU6U501 Board (Packet)
Backplane bandwidth
  • 100G line mode: The total backplane bandwidth is 100 Gbit/s.
  • 200G line mode: The total backplane bandwidth is 200 Gbit/s.
TAG attribute Supports the following TAG attributes: tag aware, access, and hybrid.
QinQ Supports basic QinQ.
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
Maximum frame length for a port 9600 bytes.
Service type
  • Native E-Line services
  • Native E-LAN services
  • E-Line services carried by PWs (VPWS services)
  • E-LAN services carried by PWs (VPLS services)
Service bearing medium PW, QinQ
Native E-Line service type
  • Point-to-point transparently transmitted E-Line services
  • VLAN-based E-Line services (supporting VLAN tag switching)
  • QinQ-based E-Line services
Native E-LAN service type
  • E-LAN services based on Tag-Transparent (802.1d bridge)
  • E-LAN services based on C-Aware (802.1q bridge)
PW-carried E-Line service (VPWS) type
  • Port-based transparently transmitted E-Line services
  • VLAN-based E-Line services (supporting the adding, deleting, and switching of VLAN tags)
PW-carried E-LAN service (VPLS) type
  • VPLS services based on Tag-Transparent
  • VPLS services based on C-Aware
  • VPLS services based on S-Aware
MS-PW Supported
Diffserv Supported, compliant with RFC 2474 and RFC 2475
Traffic classification
  • Supported simple traffic classification.
  • Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance WRED, tail dropping
Congestion management Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS Supported
ERPS ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG Intra-board and inter-board LAG, compliant with IEEE 802.1ax.
MC-LAG Supported, compliant with IEEE 802.1ax.
MC-PW APS 1:1 protection compliant with ITU-T G.8131.
PW APS 1:1 protection compliant with ITU-T G.8131.
PW FPS 1:1 protection compliant with ITU-T G.8131.
Tunnel APS 1:1 protections compliant with ITU-T G.8131.
MRPS Not supported
Packet service protection against multiple fiber cuts Not supported
IGMP Snooping Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP Not supported
Ethernet service OAM Supports Ethernet service OAM that complies with IEEE 802.1ag
NOTE:
Compliant with ITU-T Y.1731(ETH LM/DM), ITU-T G.8013 and ITU-T Y.1730.
Ethernet port OAM Not supported
MPLS OAM Not supported
MPLS-TP OAM Supported, compliant with ITU-T G.8013/Y.1731, ITU-T G.8113.1.
RMON Supported
Port flow control Not supported
Port mirroring Not supported
Inband DCN Supported
Functions and Features of the TNU6U501 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU4
  • OTUC2
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G line mode: SDFEC2
  • 200G line mode:
    • 200G 16QAM: SDFEC
    • 200G 16QAM-H: SDFEC
    • 200G e16QAM: SDFEC2
Line modulation format 100G line mode:
  • 100G QPSK
  • 100G QPSK wDCM
200G line mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUC2 layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
  • For the WDM-side A23 optical module, the receive and transmit wavelengths must be the same. A23 module does not support wavelength change by configuring regeneration boards.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.95 kg
  • 8.71 lb.

Additional information

Brand
Lead Time
Ship From
Warranty
Condition
Item TNU6U501
Functions and Features of the TNU6U501 Board (OTN Line)
Backplane capacity The total backplane bandwidth is 200 Gbit/s.
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G line mode: SDFEC2
  • 200G line mode:
    • 200G 16QAM: SDFEC
    • 200G 16QAM-H: SDFEC
    • 200G e16QAM: SDFEC2
Line modulation format 100G line mode:
  • 100G QPSK
  • 100G QPSK wDCM
200G line mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead protocol Supports the OTN frame format and overhead processing defined by ITU-T G.709.
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports PM and TCM overhead processing.
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) layer: supports non-intrusive monitoring of PM and TCM overheads.
Intra-board 1+1 protection Supported
NOTE:
Supports intra-board 1+1 protection when working with optical protection boards.
ODUk SNCP Supported
NOTE:
ODUk SNCP protection is not supported when packet services are cross-connected from the backplane.
Tributary SNCP Supported
NOTE:
Tributary SNCP are not supported when packet services are cross-connected from the backplane.
Electrical-layer ASON Supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
Digital optical label When LS Ability is enabled, the board supports loading low-frequency pilot-tone modulation signals and overheads during wavelength conversion, and can work the optical-layer board that supports the digital optical label function to detect optical power and overheads and report optical performance data.
Physical clock Supported
NOTE:
When the ODU cross-connect granularity of an OTN line port is set to the maximum granularity supported by the port, physical clock synchronization is not supported. The physical clock can be used only after lower-order ODU cross-connections are configured.
IEEE 1588v2 Supported
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
NOTE:
The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
Outband DCN Supports communication over ESCs.
Test frame Not supported
PRBS Supports the PRBS function on the WDM side.
Latency measurement Supports latency measurement in the WDM-side optical port direction (upstream direction).
  • When higher-order ODU4 cross-connections are created on the board, TCM latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the board, PM/TCM latency measurement is supported for higher-order ODU4 channels, and TCM latency measurement is supported for lower-order ODUk channels.
  • Supports PM and TCM latency measurement at the ODUCn layer.
NOTE:
When VPs are configured, the board supports measuring the PM/TCM latency of higher-order and lower-order ODUk channels.
Channel loopback
  • 100G line mode:
  • ODUk (k=0, 1, 2, 2e, 3, flex) channel loopbacks
  • 200G line mode:
  • ODUk (k=0, 1, 2, 2e, 3, 4, flex) channel loopbacks
Port loopback Supports WDM Side Loopback
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Functions and Features of the TNU6U501 Board (SDH)
Basic function Provides one line ports and supports conversions between SDH signals from the backplane and ODUk signals. For details about the service mapping path, see Application.
Service processing VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, VC-4-64c
Overhead processing
  • Processes the section overheads of STM-16/STM-64 signals.
  • Supports the transparent transmission and termination of path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports ECC communication.
  • Supports transparent transmission of DCC channels.
SDH SNCP Supported
Linear MSP Supported
Ring MSP Supports two-fiber bidirectional ring MSP
SDH ASON Supported
Physical clock Supports SDH clock synchronization.
Outband DCN Supported
Channel loopback Supports VC loopbacks.
Port loopback Supports Virtual Port loopbacks.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Alarm and performance event monitoring Provides various alarms and performance events, facilitating equipment management and maintenance.
Functions and Features of the TNU6U501 Board (Packet)
Backplane bandwidth
  • 100G line mode: The total backplane bandwidth is 100 Gbit/s.
  • 200G line mode: The total backplane bandwidth is 200 Gbit/s.
TAG attribute Supports the following TAG attributes: tag aware, access, and hybrid.
QinQ Supports basic QinQ.
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
Maximum frame length for a port 9600 bytes.
Service type
  • Native E-Line services
  • Native E-LAN services
  • E-Line services carried by PWs (VPWS services)
  • E-LAN services carried by PWs (VPLS services)
Service bearing medium PW, QinQ
Native E-Line service type
  • Point-to-point transparently transmitted E-Line services
  • VLAN-based E-Line services (supporting VLAN tag switching)
  • QinQ-based E-Line services
Native E-LAN service type
  • E-LAN services based on Tag-Transparent (802.1d bridge)
  • E-LAN services based on C-Aware (802.1q bridge)
PW-carried E-Line service (VPWS) type
  • Port-based transparently transmitted E-Line services
  • VLAN-based E-Line services (supporting the adding, deleting, and switching of VLAN tags)
PW-carried E-LAN service (VPLS) type
  • VPLS services based on Tag-Transparent
  • VPLS services based on C-Aware
  • VPLS services based on S-Aware
MS-PW Supported
Diffserv Supported, compliant with RFC 2474 and RFC 2475
Traffic classification
  • Supported simple traffic classification.
  • Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance WRED, tail dropping
Congestion management Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS Supported
ERPS ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG Intra-board and inter-board LAG, compliant with IEEE 802.1ax.
MC-LAG Supported, compliant with IEEE 802.1ax.
MC-PW APS 1:1 protection compliant with ITU-T G.8131.
PW APS 1:1 protection compliant with ITU-T G.8131.
PW FPS 1:1 protection compliant with ITU-T G.8131.
Tunnel APS 1:1 protections compliant with ITU-T G.8131.
MRPS Not supported
Packet service protection against multiple fiber cuts Not supported
IGMP Snooping Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP Not supported
Ethernet service OAM Supports Ethernet service OAM that complies with IEEE 802.1ag
NOTE:
Compliant with ITU-T Y.1731(ETH LM/DM), ITU-T G.8013 and ITU-T Y.1730.
Ethernet port OAM Not supported
MPLS OAM Not supported
MPLS-TP OAM Supported, compliant with ITU-T G.8013/Y.1731, ITU-T G.8113.1.
RMON Supported
Port flow control Not supported
Port mirroring Not supported
Inband DCN Supported
Functions and Features of the TNU6U501 Board (Regeneration)
Basic function Electrically regenerates optical signals at an electrical REG station.
Regeneration mode Unidirectional regeneration
Regeneration rate
  • OTU4
  • OTUC2
WDM specification Supports the DWDM specifications.
Tunable wavelength Supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm).
FEC coding
  • 100G line mode: SDFEC2
  • 200G line mode:
    • 200G 16QAM: SDFEC
    • 200G 16QAM-H: SDFEC
    • 200G e16QAM: SDFEC2
Line modulation format 100G line mode:
  • 100G QPSK
  • 100G QPSK wDCM
200G line mode:
  • 200G 16QAM
  • 200G 16QAM-H
  • 200G e16QAM
Typical channel spacing
  • 200G e16QAM: 50GHz+n*6.25GHz(n=0,1,2...)
  • 100G QPSK/100G QPSK wDCM/200G 16QAM/200G 16QAM-H: 50GHz*n(n=1,2...)(Only the standard center frequency of 50 GHz is supported.)
OTN overhead 100G line mode:
  • WDM-side OTU4 layer: supports SM overhead processing.
  • ODU4 layer: supports PM and TCM overhead processing.
  • ODU4 layer: supports non-intrusive monitoring of PM and TCM overheads.
200G line mode:
  • WDM-side OTUC2 layer: supports SM overhead processing.
  • ODUC2 layer: supports PM and TCM overhead processing.
  • ODUC2 layer: supports non-intrusive monitoring of PM and TCM overheads.
Electrical-layer ASON Not supported
Optical-layer ASON Supported
NOTE:
  • Only ASON without optical parameters is supported in high SOP mode.
  • The flex ASON must be enabled for the modulation formats whose channel spacing is greater than 50 GHz.
  • For the WDM-side A23 optical module, the receive and transmit wavelengths must be the same. A23 module does not support wavelength change by configuring regeneration boards.
Outband DCN Supports ESC communication.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 3.95 kg
  • 8.71 lb.

Reviews

There are no reviews yet.

Be the first to review “TNU6U501”

Your email address will not be published. Required fields are marked *

Related products

WS-C3850-48P-S
Quick view
Categories:

WS-C3850-48P-S

R.F.Q
SKU2011323
J9783A-1
Quick view
Categories:

J9783A

R.F.Q
SKU2011896
Quick view
Categories:

ETP48400-C6A2

R.F.Q
SKU2017502
WS-C3850-24P-S
Quick view
Categories:

WS-C3850-24P-S

R.F.Q
SKU2011322
JL322A-1
Quick view
Categories:

JL322A

R.F.Q
PNJL322A
J9547A-1
Quick view
Categories:

J9547A

R.F.Q
SKU2011971
Main Menu
Back to Top

Search For Products

Popular
Product has been added to your cart
