Huawei OptiX OSN 9800 TNV1EMS12 12-port Gigabit Ethernet Switching Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

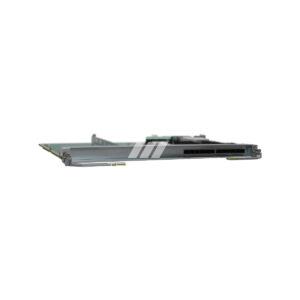

TNV1EMS12 overview



TNV1EMS12 12-port Gigabit Ethernet Switching Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV1EMS12 board has only one variant: TNV1EMS1201.

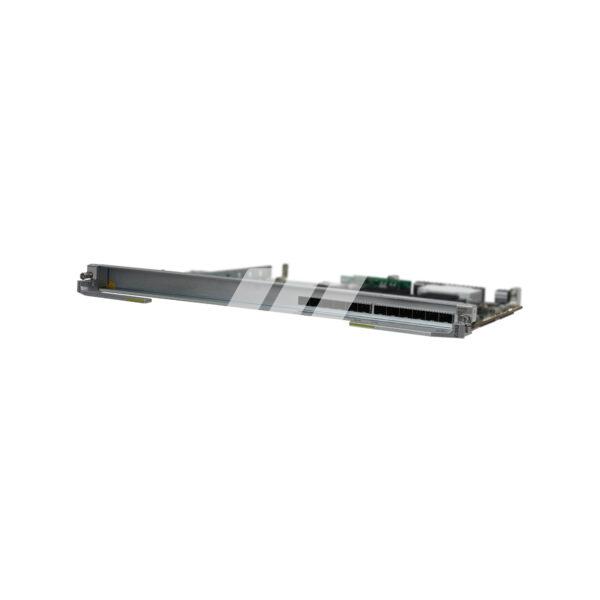

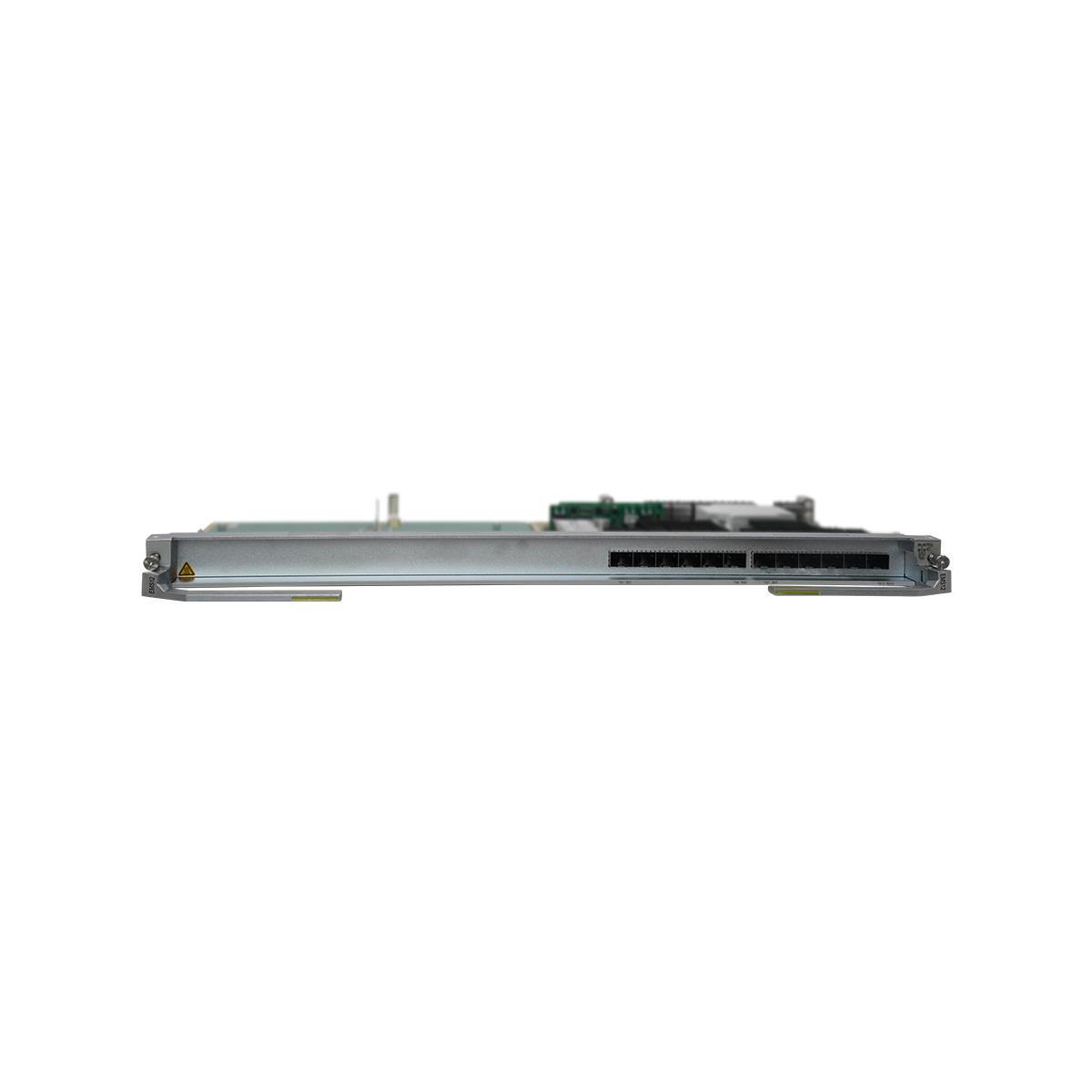

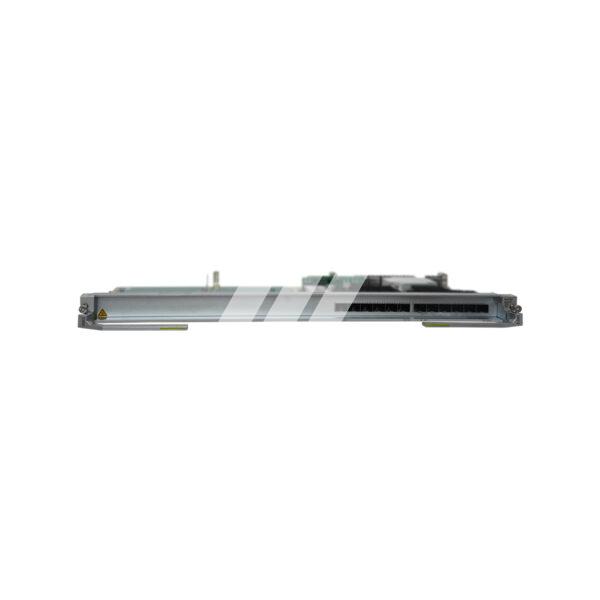

Front panel of the TNV1EMS12 board

TNV1EMS12



Front panel of the TNV1EMS12 board



Valid slots for the TNV1EMS12 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Item TNV1EMS12
Basic function Provides 12 Ethernet ports. Transmits/Receives Ethernet services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals to the SDH plane for transmission.
Bound bandwidth 128 x VC-4, 384 x VC-3, 1008 x VC-12.
NOTE:
The first 1 to 16 VC-4s can be configured as VC-12s.
Maximum uplink bandwidth 20Gbit/s
Number of services 2000. A maximum of 16,000 MAC addresses can be dynamically learned.
Bound Path Level VC-12-Xv(X≤63), VC-3-Xv(X≤24) and VC-4-Xv(X≤64).
Encapsulation formats
  • HDLC
  • LAPS
  • GFP-F
Port working mode
  • GE electrical port: auto-negotiation, 1000M full-duplex, 100M full-duplex, and 10M full-duplex.
  • FE optical port: 100M full-duplex.
  • GE optical port: auto-negotiation, 1000M full-duplex.
  • 10GE optical port: 10GE full-duplex LAN.
NOTE:
  • All ports on the TNV1EMS12 board support FE optical ports, GE optical ports and GE electrical ports. If a port is configured as an FE optical port, a 100M optical module must be installed.
  • Only TX1/RX1 to TX4/RX4 ports support 10GE LAN.
  • The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode.
Overhead processing
  • Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709.
  • Supports the setting and query of the J1, J2, C2 and V5 bytes.
Traffic monitoring Supports port-based and VCTRUNK-based traffic monitoring.
QinQ Supported
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes. Supports a jumbo frame with a maximum length of 9600 bytes.
EPL service
  • Supports PORT-based transparent transmission.
  • Supports the query and deletion of EPL services.
EVPL service
  • Supports PORT-shared EVPL services.
  • Supports a maximum of 2000 link services.
  • Supports the query and deletion of EVPL services.
  • Supports VCTRUNK-shared EVPL services.
    • The services are isolated by VLAN tags.
    • The services are isolated by QinQ tags.
  • For C-VLAN transparently transmitted services of the EVPL type, the VLAN list can be configured, and each VLAN ID occupies one service.
EPLAN service
  • Supports the EPLAN services that are based on the IEEE 802.1d MAC bridge.
  • Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 108.
  • Blacklist, static MAC address, and dynamic MAC address sharing 16K.
    • Supports the blacklist that can contain 512 records and also the static MAC address table that can contain 512 records.
    • A maximum of 16K dynamic MAC addresses are supported.
  • Supports the self-learning of the source MAC address. The aging time of the MAC address can be set and queried.
  • Supports the configuration of static MAC routes.
  • Supports the query of dynamic MAC addresses.
NOTE:
TNV1EMS12 boards support SVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
EVPLAN service
  • Supports the EVPLAN services that are based on the IEEE 802.1q virtual bridge and IEEE 802.1ad provider bridge.
  • Supports data isolation based on VB+VLAN.
  • Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 108.
  • Supports the setting of a maximum of 4095 VLAN filtering tables.
NOTE:
TNV1EMS12 boards support SVL and IVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
VLAN technology Supports a total number of 4095 VLANs, which comply with IEEE 802.1q/p/ad.
MPLS technology Not supported
VCTRUNK specifications 96 Configuration principles are as follows:
  • A VCTRUNK can be bound to a maximum of 64 VC4s, 24 VC3s or 63 VC12s.
  • VC4 is divided into two areas: [VC4-1 ~ VC4-64], [VC4-65 ~ VC4-128]. VC-4s in two areas cannot be bound to the same VCTRUNK. VC3 is divided into two areas: [VC3-1 ~ VC3-192], [VC3-193 ~ VC3-384]. VC-3s in two areas cannot be bound to the same VCTRUNK.
Traffic classification Supports PORT, PORT+VLAN, PORT+SVLAN, PORT+VLAN+PRI, and service flows.
NOTE:
The service flow supports only the C-VLAN transparently transmitted E-Line services with the VLAN list configured.
Traffic policing Support the CAR.
NOTE:
A maximum of 512 CAR IDs are supported. A maximum of 60 CAR parameter groups are supported.
Traffic shaping Supports queue shaping on ports.
Congestion avoidance Supports random early detection (RED).
Congestion management CoS, supporting SP and WRR scheduling algorithms.
NOTE:
The default queue scheduling mode of ports is SP.
Class of service (CoS) Supports CoS types including simple, VLAN priority, DSCP, and IP TOS.
NOTE:
IPTOS and DSCP profiles are mutually exclusive.
LPT Supported
NOTE:
  • Supports P2P LPT and P2MP LPT in compliance with Huawei proprietary protocol.
  • Supports the setting of the point-to-multipoint strict or non-strict mode.
SDH SNCP Supported
NOTE:
Functions as a service sink board.
SDH ASON Supported
LAG
  • Supports intra-board LAG. A maximum of 12 LAGs are supported.
  • Supports the load sharing mode and non-load sharing mode.
  • Supports manual link aggregation and static link aggregation.
  • Complies with IEEE 802.3ad and IEEE 802.1ax.
DLAG
  • Supports 24 DLAGs. Inter-subrack configuration is not supported.
  • Supports static DLAGs.
  • Supports the non-load sharing mode.
  • Complies with IEEE 802.3ad and IEEE 802.1ax.
LCAS Dynamically increases or decreases the bandwidth and protects the bandwidth in compliance with ITU-T G.7042.
BPS Supported
NOTE:
  • Inter-subrack protection is not supported.
  • A maximum of 16 protection groups on the NE level are supported.
PPS Supported
NOTE:
  • Inter-subrack protection is not supported.
  • A maximum of 192 protection groups on the NE level are supported.
STP/RSTP Supports the RSTP, which complies with IEEE 802.1w.
MSTP Not supported
IGMP Snooping Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP Supported
Ethernet service OAM Supports Ethernet service OAM that complies with IEEE 802.1ag
Ethernet port OAM Supports Ethernet service OAM that complies with IEEE 802.3ah
RMON Supported
NOTE:
Supports RMON of the Ethernet performance of Ethernet ports and VCTRUNKs.
Port flow control Supports auto-negotiation and non-auto-negotiation flow control.
Port mirroring Supported
NOTE:
Supports ingress/egress port mirroring. Egress port mirroring and ingress port mirroring are mutually exclusive.
Physical clock Supported
NOTE:
SFP electrical modules do not support physical clock.
IEEE 1588v2 Not supported
Test frame Supports test frames in GFP bearer mode.
MAC layer loopback Supports MAC inloops and outloops.
PHY layer loopback Supports PHY inloops and outloops.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Response to ping Not supported
Quantity 1000
Dimensions (H x W x D)
  • 447.30 × 30.50 × 220.00 (mm)
  • 17.62 × 1.20 × 8.67 (in.)
Weight
  • 2.38 kg
  • 5.25 lb.

Additional information

Item TNV1EMS12
Basic function Provides 12 Ethernet ports. Transmits/Receives Ethernet services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals to the SDH plane for transmission.
Bound bandwidth 128 x VC-4, 384 x VC-3, 1008 x VC-12.
NOTE:
The first 1 to 16 VC-4s can be configured as VC-12s.
Maximum uplink bandwidth 20Gbit/s
Number of services 2000. A maximum of 16,000 MAC addresses can be dynamically learned.
Bound Path Level VC-12-Xv(X≤63), VC-3-Xv(X≤24) and VC-4-Xv(X≤64).
Encapsulation formats
  • HDLC
  • LAPS
  • GFP-F
Port working mode
  • GE electrical port: auto-negotiation, 1000M full-duplex, 100M full-duplex, and 10M full-duplex.
  • FE optical port: 100M full-duplex.
  • GE optical port: auto-negotiation, 1000M full-duplex.
  • 10GE optical port: 10GE full-duplex LAN.
NOTE:
  • All ports on the TNV1EMS12 board support FE optical ports, GE optical ports and GE electrical ports. If a port is configured as an FE optical port, a 100M optical module must be installed.
  • Only TX1/RX1 to TX4/RX4 ports support 10GE LAN.
  • The FE electrical signals are accessed through the GE electrical port in 100M full-duplex mode.
Overhead processing
  • Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041 and ITU-T G.709.
  • Supports the setting and query of the J1, J2, C2 and V5 bytes.
Traffic monitoring Supports port-based and VCTRUNK-based traffic monitoring.
QinQ Supported
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port Supports the setting of the frame length to a value ranging from 1518 bytes to 9600 bytes. Supports a jumbo frame with a maximum length of 9600 bytes.
EPL service
  • Supports PORT-based transparent transmission.
  • Supports the query and deletion of EPL services.
EVPL service
  • Supports PORT-shared EVPL services.
  • Supports a maximum of 2000 link services.
  • Supports the query and deletion of EVPL services.
  • Supports VCTRUNK-shared EVPL services.
    • The services are isolated by VLAN tags.
    • The services are isolated by QinQ tags.
  • For C-VLAN transparently transmitted services of the EVPL type, the VLAN list can be configured, and each VLAN ID occupies one service.
EPLAN service
  • Supports the EPLAN services that are based on the IEEE 802.1d MAC bridge.
  • Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 108.
  • Blacklist, static MAC address, and dynamic MAC address sharing 16K.
    • Supports the blacklist that can contain 512 records and also the static MAC address table that can contain 512 records.
    • A maximum of 16K dynamic MAC addresses are supported.
  • Supports the self-learning of the source MAC address. The aging time of the MAC address can be set and queried.
  • Supports the configuration of static MAC routes.
  • Supports the query of dynamic MAC addresses.
NOTE:
TNV1EMS12 boards support SVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
EVPLAN service
  • Supports the EVPLAN services that are based on the IEEE 802.1q virtual bridge and IEEE 802.1ad provider bridge.
  • Supports data isolation based on VB+VLAN.
  • Supports a maximum of 16 VBs. The maximum number of logical ports for each VB is 108.
  • Supports the setting of a maximum of 4095 VLAN filtering tables.
NOTE:
TNV1EMS12 boards support SVL and IVL bridge learning modes. Ensure that all bridges on a board apply the same learning mode.
VLAN technology Supports a total number of 4095 VLANs, which comply with IEEE 802.1q/p/ad.
MPLS technology Not supported
VCTRUNK specifications 96 Configuration principles are as follows:
  • A VCTRUNK can be bound to a maximum of 64 VC4s, 24 VC3s or 63 VC12s.
  • VC4 is divided into two areas: [VC4-1 ~ VC4-64], [VC4-65 ~ VC4-128]. VC-4s in two areas cannot be bound to the same VCTRUNK. VC3 is divided into two areas: [VC3-1 ~ VC3-192], [VC3-193 ~ VC3-384]. VC-3s in two areas cannot be bound to the same VCTRUNK.
Traffic classification Supports PORT, PORT+VLAN, PORT+SVLAN, PORT+VLAN+PRI, and service flows.
NOTE:
The service flow supports only the C-VLAN transparently transmitted E-Line services with the VLAN list configured.
Traffic policing Support the CAR.
NOTE:
A maximum of 512 CAR IDs are supported. A maximum of 60 CAR parameter groups are supported.
Traffic shaping Supports queue shaping on ports.
Congestion avoidance Supports random early detection (RED).
Congestion management CoS, supporting SP and WRR scheduling algorithms.
NOTE:
The default queue scheduling mode of ports is SP.
Class of service (CoS) Supports CoS types including simple, VLAN priority, DSCP, and IP TOS.
NOTE:
IPTOS and DSCP profiles are mutually exclusive.
LPT Supported
NOTE:
  • Supports P2P LPT and P2MP LPT in compliance with Huawei proprietary protocol.
  • Supports the setting of the point-to-multipoint strict or non-strict mode.
SDH SNCP Supported
NOTE:
Functions as a service sink board.
SDH ASON Supported
LAG
  • Supports intra-board LAG. A maximum of 12 LAGs are supported.
  • Supports the load sharing mode and non-load sharing mode.
  • Supports manual link aggregation and static link aggregation.
  • Complies with IEEE 802.3ad and IEEE 802.1ax.
DLAG
  • Supports 24 DLAGs. Inter-subrack configuration is not supported.
  • Supports static DLAGs.
  • Supports the non-load sharing mode.
  • Complies with IEEE 802.3ad and IEEE 802.1ax.
LCAS Dynamically increases or decreases the bandwidth and protects the bandwidth in compliance with ITU-T G.7042.
BPS Supported
NOTE:
  • Inter-subrack protection is not supported.
  • A maximum of 16 protection groups on the NE level are supported.
PPS Supported
NOTE:
  • Inter-subrack protection is not supported.
  • A maximum of 192 protection groups on the NE level are supported.
STP/RSTP Supports the RSTP, which complies with IEEE 802.1w.
MSTP Not supported
IGMP Snooping Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP Supported
Ethernet service OAM Supports Ethernet service OAM that complies with IEEE 802.1ag
Ethernet port OAM Supports Ethernet service OAM that complies with IEEE 802.3ah
RMON Supported
NOTE:
Supports RMON of the Ethernet performance of Ethernet ports and VCTRUNKs.
Port flow control Supports auto-negotiation and non-auto-negotiation flow control.
Port mirroring Supported
NOTE:
Supports ingress/egress port mirroring. Egress port mirroring and ingress port mirroring are mutually exclusive.
Physical clock Supported
NOTE:
SFP electrical modules do not support physical clock.
IEEE 1588v2 Not supported
Test frame Supports test frames in GFP bearer mode.
MAC layer loopback Supports MAC inloops and outloops.
PHY layer loopback Supports PHY inloops and outloops.
2M ASON Supported
NOTE:
Only supported when the 9800 M24 is used.
Response to ping Not supported
Quantity 1000
Dimensions (H x W x D)
  • 447.30 × 30.50 × 220.00 (mm)
  • 17.62 × 1.20 × 8.67 (in.)
Weight
  • 2.38 kg
  • 5.25 lb.
