Huawei OptiX OSN 9800 TNV2SXCL 160G VC3/VC12 Low Order Universal Cross-Connect Board

Description

TNV2SXCL overview



TNV2SXCL 160G VC3/VC12 Low Order Universal Cross-Connect Board applied to Huawei OptiX OSN 9800 U64/U32.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV2SXCL board variant is TNV2SXCL.

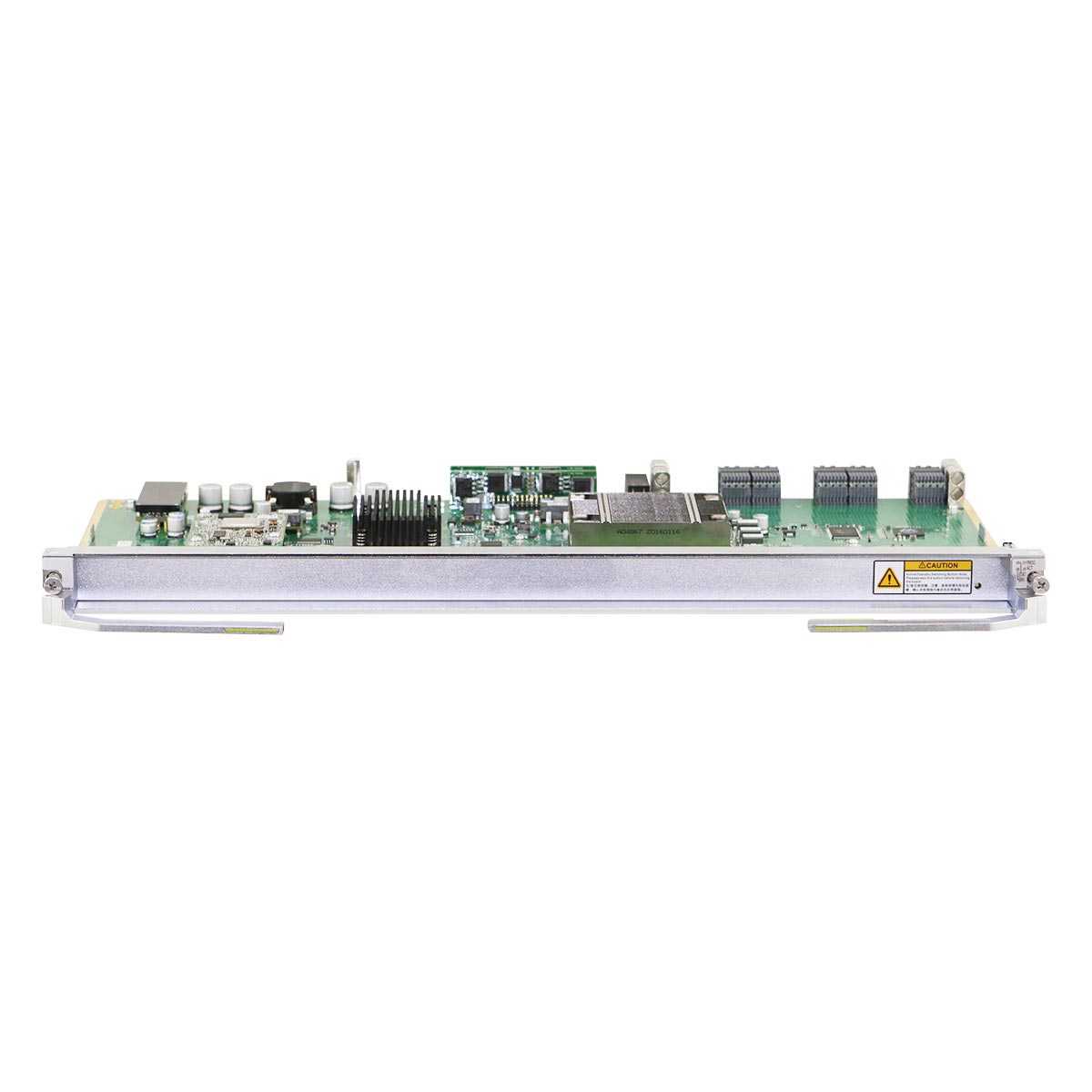

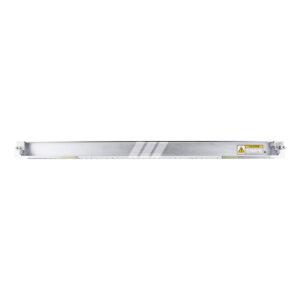

Front panel of the TNV2SXCL board

TNV2SXCL

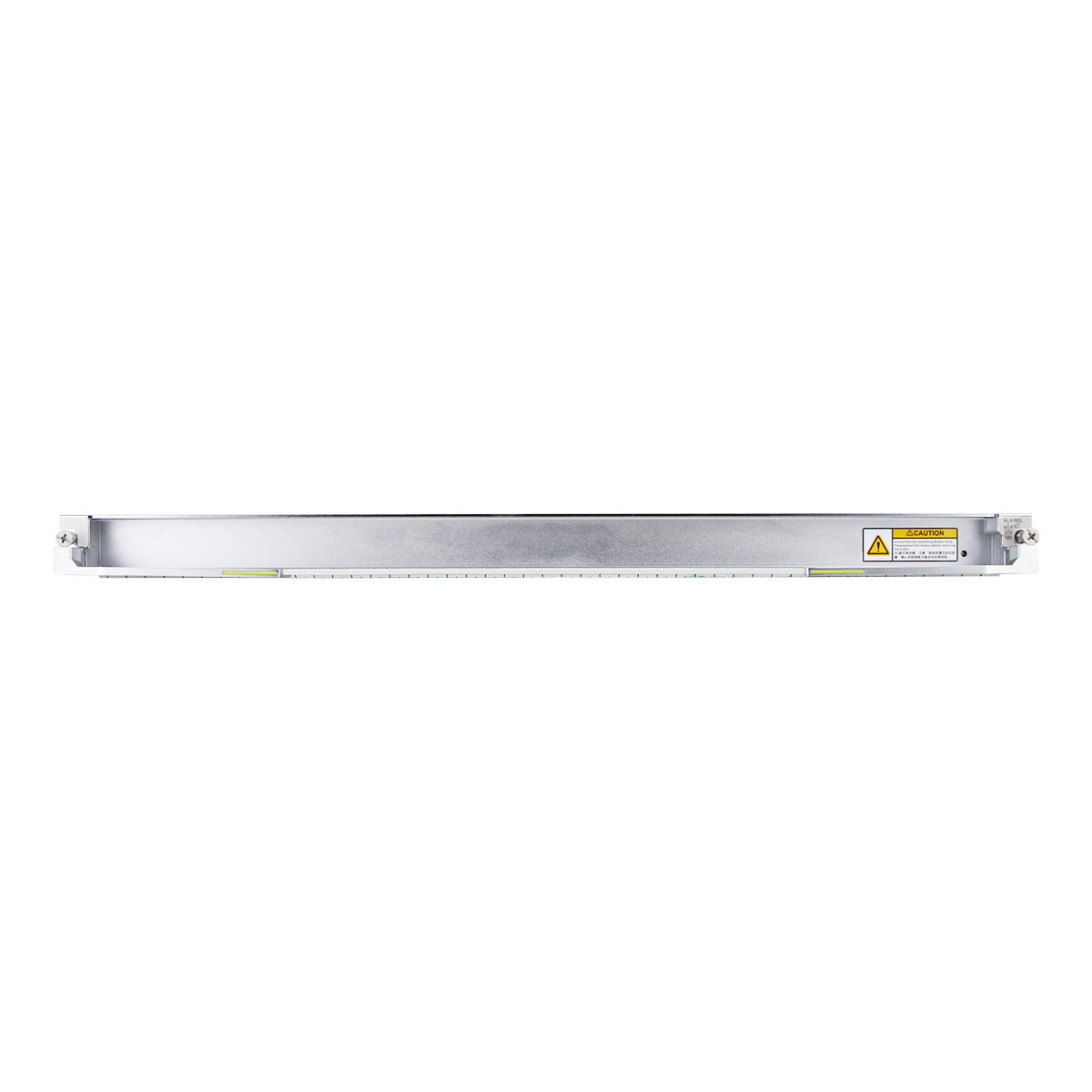

Front panel of the TNV2SXCL board



Valid slots for the TNV2SXCL board in a U64/U32 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Item TNV2SXCL
Basic function Performs centralized grooming of VC-3/VC-12 signals in a subrack.
Cross-connect Capacity Cross-connects a maximum of 160 Gbit/s VC-3/VC-12 signals.
OTN cluster Not Supported
Electrical-layer ASON Supported
SDH ASON Supported
Backup mode 1+1 backup.
Switching mode Automatic switching, manual switching, and forced switching by pressing the active switching button or turning on micro switches are supported. Non-revertive switching is supported.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.85 kg
  • 6.28 lb.

Additional information

Brand
Lead Time
Ship From
Warranty
Condition
Item TNV2SXCL
Basic function Performs centralized grooming of VC-3/VC-12 signals in a subrack.
Cross-connect Capacity Cross-connects a maximum of 160 Gbit/s VC-3/VC-12 signals.
OTN cluster Not Supported
Electrical-layer ASON Supported
SDH ASON Supported
Backup mode 1+1 backup.
Switching mode Automatic switching, manual switching, and forced switching by pressing the active switching button or turning on micro switches are supported. Non-revertive switching is supported.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.85 kg
  • 6.28 lb.
