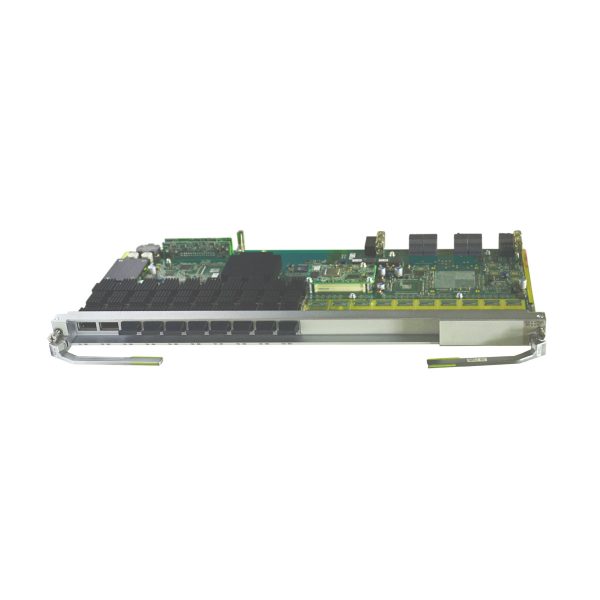

TNV3T210 1
TNV3T210-2
Categories:,

TNV3T210

0 Reviews Write a review
SKU2012843
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OptiX OSN 9800 TNV3T210 10 Gbit/s Tributary Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNV3T210 overview

TNV3T210 10 Gbit/s tributary service processing board applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

TNV3T210 also comes with TNV1T210U board version.



Front panel of the TNV3T210 board
Front panel of the TNV3T210 board

Front panel of the TNV3T210 board

Valid slots for the TNV3T210 board in a U64/U32/U16 subrack
Product Valid Slots
OptiX OSN 9800 U64 Standard subrack IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack IU1-IU64
OptiX OSN 9800 U32 Standard subrack IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack IU1-IU32
OptiX OSN 9800 U16 subrack IU1-IU14



Valid slots for the TNV3T210 board in an M24 subrack
Product Valid Slots
OptiX OSN 9800 M24 subrack (IU1, IU13), (IU2, IU14), …… , (IU11, IU23), (IU12, IU24)





Items TNV3T210
Basic function Supports the following service conversions:
ODU0 non-convergence mode (Any->ODU0)
n x (125 Mbit/s to 1.25 Gbit/s signals) <-> n x ODU0.
ODU1 non-convergence mode (Any->ODU1)
n x (1.49 Gbit/s to 2.67 Gbit/s signals) <-> n x ODU1.
ODU2 non-convergence mode (OTU2/Any->ODU2)
n x 10GE LAN(GFP-F)/10GE WAN/STM-64/OC-192/OTU2/FC800/FICON8G<-> n x ODU2
n x 10GE LAN(BMP)/OTU2e/FC1200<-> n x ODU2e
ODUflex non-convergence mode (Any->ODUflex)
n x聽3G-SDI/3G-SDIRBR/FC400/FICON4G/FC800/FICON8G/10GE LAN(GFP-F)<-> n x ODUflex
TNV3T210:2 x FC1600<->2 x ODUflex
TNV3T220:4 x FC1600<->4 x ODUflex
TNV3T230:8 x FC1600<->8 x ODUflex
ODU1_ODU0 mode (OTU1->ODU1->ODU0)
n x OTU1<-> 2n x ODU0
ODU1 convergence mode (n*Any->ODU1)
n x (125 Mbit/s to 2.5 Gbit/s signals) <-> ODU1
Service encryption Supports setting the encryption function by port.
Client-side service type SDH/SONET service:
STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s
STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s
STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s
STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s
Ethernet service:
FE: Ethernet service at a rate of 125 Mbit/s
GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals.
10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
OTN service:
OTU1: OTN service at a rate of 2.67 Gbit/s
OTU2: OTN service at a rate of 10.71 Gbit/s
OTU2e: OTN service at a rate of 11.1 Gbit/s
SAN service:
FC100: SAN service at a rate of 1.06 Gbit/s
FC200: SAN service at a rate of 2.12 Gbit/s
FC400: SAN service at a rate of 4.25 Gbit/s
FICON: SAN service at a rate of 1.06 Gbit/s
FICON Express: SAN service at a rate of 2.12 Gbit/s
FICON4G: SAN service at a rate of 4.25 Gbit/s
FC800: SAN service at a rate of 8.5 Gbit/s
FICON8G: SAN service at a rate of 8.5 Gbit/s
FC1200: SAN service at a rate of 10.51 Gbit/s
FC1600: SAN service at a rate of 14.025 Gbit/s
ESCON: SAN service at a rate of 200 Mbit/s
FDDI: SAN service at a rate of 125 Mbit/s
Video service:
SDI: Serial digital interface at a rate of 270 Mbit/s
HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
3G-SDI: Video service at a rate of 2.97 Gbit/s
3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
DVB-ASI: Video service at a rate of 270 Mbit/s
Cross-connect capabilities T210: Supports backplane cross-connections of 10 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
T220: Supports backplane cross-connections of 20 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
T230: Supports backplane cross-connections of 30 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
OTN function Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
ODUflex layer: supports PM overhead processing.
ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
OTU1/OTU2 layer: supports SM overhead processing.
ESC function Supported when the client-side service type is OTU1/OTU2/OTU2e.
PRBS test function Supported.
LPT function Supported when the client-side service type is FE, GE or 10GE LAN.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
Alarms and performance events monitoring Monitors BIP8 bytes (Bursty mode) to help locate line failures.
Monitors B1 bytes to help locate faults.
Monitors OTN alarms and performance events.
Monitors parameters such as the bias current, temperature, and optical power of the laser.
Supports the remote monitoring (RMON) of Ethernet services.
ALS function Supports the ALS function on the client side when client services are non-OTN services.
Test frame Supported
Electrical-layer ASON Supported
Latency measurement When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2 Supports TC mode, TC+OC mode, BC mode and OC mode.
ITU-T G.8275.1 Supports BC mode
ITU-T G.8273.2 Only the board of an OptiX OSN 9800 M24 subrack supports ITU-T G.8273.2.
Physical clock GE(TTT-GMP): Supports synchronous Ethernet transparent transmission
10GE LAN, Bit transparent Mapping (11.1 G): Supports synchronous Ethernet transparent transmission
GE(GFP-T): Supports synchronous Ethernet processing
10GE LAN, MAC transparent Mapping (10.7 G): Supports synchronous Ethernet processing
Protection scheme Supports client 1+1 protection.
Supports ODUk SNCP.
Supports tributary SNCP protection.
Port MTU The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Ethernet service mapping mode GE: GE(TTT-GMP), GE(GFP-T)
10GE LAN: Bit transparent Mapping (11.1G), MAC transparent Mapping (10.7G)
Dimensions of the front panel (H x W x D) 477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
Weight 1.2 kg (2.6 lb.)
Typical Power Consumption (W) 60-66

Specifications for Optical Modules
Board Optical Modules Service type Service type Position
TNV3T210 eSFP-2.125G-850nm-MMF-0.5km-I FC200, GE, FC100, FDDI, FICON, FICON Express, FE Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-1310nm-SMF-40km Specifications OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI Pluggable Optical Module Client-Side
TNV3T210 eSFP-1.25G-1310nm-SMF-40km Specifications GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI Pluggable Optical Module Client-Side
TNV3T210 eSFP-1.25G-1550nm-SMF-80km-01 Specifications GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI Pluggable Optical Module Client-Side
TNV3T210 eSFP-4.25G-850nm-MMF-0.3km-I Specifications FC400, FICON4G Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-120km Specifications OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI, FE Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-40km Specifications GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI Pluggable Optical Module Client-Side
TNV3T210 eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-10km Specifications GE Pluggable Optical Module Client-Side
TNV3T210 eSFP-4.25G-1310nm-SMF-10km Specifications FC400, FICON4G Pluggable Optical Module Client-Side
TNV3T210 eSFP-1.25G-1310nm-SMF-10km GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI Pluggable Optical Module Client-Side
TNV3T210 eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-10km Specifications GE Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km Specifications OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI, FE Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-1310nm-SMF-2km Specifications OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-1310nm-SMF-15km Specifications OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, FE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-1550nm-SMF-80km Specifications OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI Pluggable Optical Module Client-Side
TNV3T210 eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-40km Specifications GE Pluggable Optical Module Client-Side
TNV3T210 eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-40km Specifications GE Pluggable Optical Module Client-Side
TNV3T210 eSFP-3G-1310nm-SMF-10km Specifications DVB-ASI, SDI, HD-SDI, HD–SDIRBR, 3G-SDI, 3G-SDIRBR Pluggable Optical Module Client-Side
TNV3T210 SFP-1000Base-T-autonegotiation-100 m-RJ45 GE Pluggable Optical Module Client-Side
TNV3T210 SFP28-28.05G-1310nm-SMF-10km Specifications FC800, FICON8G, FC1600 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -14G-850nm-MMF-0.1km FC400, FC800, FICON8G, FC1600 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -8.5G to 10.5G-850nm-MMF-0.3km Specifications 10GE WAN, 10GE LAN, FC800, FICON8G, FC1200 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km 10GE WAN, 10GE LAN, FC800, FICON8G, FC1200 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -10G-1550nm-SMF-40km Specifications 10GE WAN, 10GE LAN, FC800, FICON8G, FC1200 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -10G(10GE,ZR/ZW)-1550nm-SMF-80km 10GE WAN, 10GE LAN Pluggable Optical Module Client-Side
TNV3T210 SFP+ -10G(with CDR)-1310nm-SMF-10km 10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -10G(with CDR)-1550nm-SMF-40km Specifications 10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -10G(with CDR)-1550nm-SMF-80km Specifications 10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I Specifications 10GE WAN, 10GE LAN, FC800, FICON8G, FC1200 Pluggable Optical Module Client-Side
TNV3T210 SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I Specifications 10GE WAN, 10GE LAN, FC800, FICON8G, FC1200 Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-15km-I Specifications OTU1, STM1, STM4, STM16, FC200, FC100, GE, ESCON, DVB-ASI, FE, FICON, FICON EXPRESS Pluggable Optical Module Client-Side
TNV3T210 eSFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-15km-I Specifications OTU1, STM1, STM4, STM16, FC200, FC100, GE, ESCON, DVB-ASI, FE, FICON, FICON EXPRESS Pluggable Optical Module Client-Side
TNV3T210 SFP+ -GE(LX)/10GE(LR/LW)-1310nm-SMF-10km GE, 10GE WAN, 10GE LAN Pluggable Optical Module Client-Side
TNV3T210 SFP+ -0.125G to 11.3G-1310nm-SMF-10km Specifications STM-1, STM-4, STM-16, STM-64, OC-3, OC-12, OC-48, FE, GE, 10GE LAN, 10GE WAN, OTU1, OTU2, OTU2e, FC100, FC200, FC400, FICON, FICON Express, FICON4G, FC800, FICON8G, FC1200, ESCON, FDDI, DVB-ASI Pluggable Optical Module Client-Side
