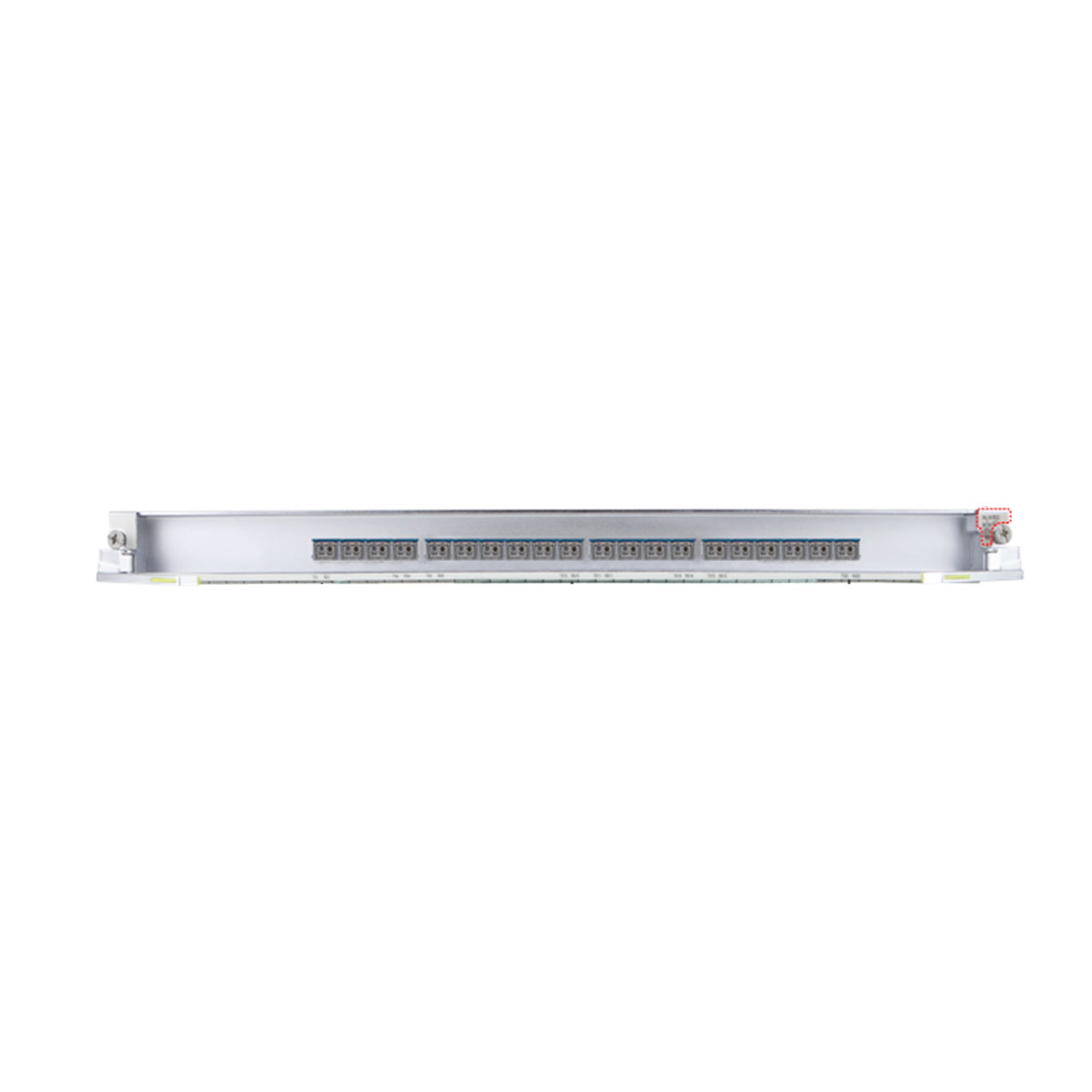

TNV3T220-1
Categories:,

TNV3T220

0 Reviews Write a review
SKU2016043
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OptiX OSN 9800 TNV3T220 10 Gbit/s Tributary Service Processing Board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNV3T220 overview



TNV3T220 10 Gbit/s Tributary Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV3T220 board has only one variant: TNV3T220S01.

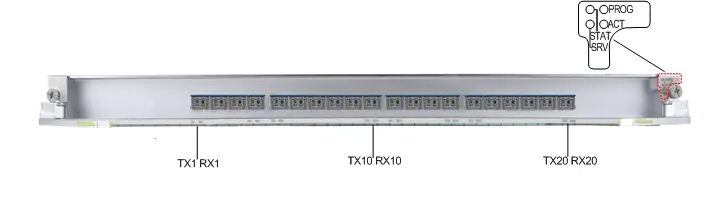

Front panel of the TNV3T220 board

TNV3T220 1



Front panel of the TNV3T220 board



Valid slots for the TNV3T220 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Item TNV3T220
Backplane capacity There are differences in cross-connect capacity when work with different control boards and cross-connect boards. Please refer to "Mappings and Substitution Relationships".
NOTE:
Supports backplane cross-connections of 20 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
Client-side service type SDH service:
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDH service at a rate of 9.95 Gbit/s
SONET service:
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
Ethernet service:
  • FE: Ethernet service at a rate of 125 Mbit/s
  • GE: Ethernet service at a rate of 1.25 Gbit/s.
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
OTN service:
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
SAN service:
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FICON 4G: SAN service at a rate of 4.25 Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FICON 8G: SAN service at a rate of 8.5 Gbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
Video service:
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
NOTE:
Supports FE optical signals. Supports GE optical signals and GE electrical signals.
Service mapping mode
  • Supports encapsulating GE services into GE (TTT-GMP) or GE (GFP-T) services.
  • Supports encapsulating 10GE LAN services into bit transparent mapping (11.1G) or MAC transparent mapping (10.7G) services.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU1/OTU2 layer: supports SM overhead processing.
NOTE:
Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Supported on the client side when FE/GE/10GE LAN services are received.
NOTE:
The port equipped with an electrical module does not support LPT.
Client 1+1 protection Supported
NOTE:
When OTU1 services are received on the client side of a T220 board, client 1+1 protection is only supported in ODU1 non-convergence mode.
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
  • The board supports tributary SNCP protection only when the client-side service type is OTN, SDH, SONET or 10G WAN.
  • When OTU1 services are received on the client side and the mapping path is OTU1->ODU1->ODU0, tributary SNCP protection at the ODU0 level is supported.
Electrical-layer ASON Supported
L1 service encryption Supported
NOTE:
When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS Supported on the client side when non-OTN services are received.
NOTE:
The port equipped with an electrical module does not support ALS.
LLDP Not supported
Physical clock
  • Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving GE(GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
  • Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving GE(TTT-GMP)/10GE LAN(Bit Transparent Mapping(11.1G)) services on the client side.
IEEE 1588v2 Supported
NOTE:
  • Only ports 1-15 support IEEE 1588v2.
  • The board supports the TC, TC+OC, BC, and OC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support IEEE 1588v2.
ITU-T G.8275.1 Supported
NOTE:
  • Only ports 1-15 support ITU-T G.8275.1.
  • The board supports BC mode when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support ITU-T G.8275.1.
ITU-T G.8273.2 Supported
NOTE:
  • The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
  • Only ports 1-15 support ITU-T G.8273.2.
  • The port equipped with an electrical module does not support ITU-T G.8273.2.
Outband DCN Supported communication over ESCs when the client-side service type is OTU1/OTU2/OTU2e.
Test frame Supported
NOTE:
  • The board supports this function only in ODU1 convergence mode when receiving FE services on the client side.
  • The board supports this function when receiving GE (GFP-T) services on the client side.
  • The board supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
PRBS Supported
NOTE:
  • A maximum of three ports on a TNV3T220 board support PRBS testing.
  • When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction.
  • The PRBS function in the optical port direction is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2 or OTU2e.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Supports inloops and outloops on channels.
NOTE:
ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • When the board works in ODU1 convergence mode, you must configure intra-board cross-connections before loopbacks. Otherwise, the loopbacks become abnormal.
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
Alarm and performance event monitoring
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 1.30 kg
  • 2.87 lb.

Additional information

Item TNV3T220
Backplane capacity There are differences in cross-connect capacity when work with different control boards and cross-connect boards. Please refer to "Mappings and Substitution Relationships".
NOTE:
Supports backplane cross-connections of 20 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
Client-side service type SDH service:
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDH service at a rate of 9.95 Gbit/s
SONET service:
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
Ethernet service:
  • FE: Ethernet service at a rate of 125 Mbit/s
  • GE: Ethernet service at a rate of 1.25 Gbit/s.
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
OTN service:
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
SAN service:
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FICON 4G: SAN service at a rate of 4.25 Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FICON 8G: SAN service at a rate of 8.5 Gbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
Video service:
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
NOTE:
Supports FE optical signals. Supports GE optical signals and GE electrical signals.
Service mapping mode
  • Supports encapsulating GE services into GE (TTT-GMP) or GE (GFP-T) services.
  • Supports encapsulating 10GE LAN services into bit transparent mapping (11.1G) or MAC transparent mapping (10.7G) services.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
OTN overhead
  • ODUflex layer: supports PM overhead processing.
  • ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU1/OTU2 layer: supports SM overhead processing.
NOTE:
Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Supported on the client side when FE/GE/10GE LAN services are received.
NOTE:
The port equipped with an electrical module does not support LPT.
Client 1+1 protection Supported
NOTE:
When OTU1 services are received on the client side of a T220 board, client 1+1 protection is only supported in ODU1 non-convergence mode.
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
  • The board supports tributary SNCP protection only when the client-side service type is OTN, SDH, SONET or 10G WAN.
  • When OTU1 services are received on the client side and the mapping path is OTU1->ODU1->ODU0, tributary SNCP protection at the ODU0 level is supported.
Electrical-layer ASON Supported
L1 service encryption Supported
NOTE:
When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS Supported on the client side when non-OTN services are received.
NOTE:
The port equipped with an electrical module does not support ALS.
LLDP Not supported
Physical clock
  • Supports synchronous Ethernet processing instead of synchronous Ethernet transparent transmission when receiving GE(GFP-T)/10GE LAN(MAC transparent mapping(10.7G)) services on the client side.
  • Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving GE(TTT-GMP)/10GE LAN(Bit Transparent Mapping(11.1G)) services on the client side.
IEEE 1588v2 Supported
NOTE:
  • Only ports 1-15 support IEEE 1588v2.
  • The board supports the TC, TC+OC, BC, and OC modes when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support IEEE 1588v2.
ITU-T G.8275.1 Supported
NOTE:
  • Only ports 1-15 support ITU-T G.8275.1.
  • The board supports BC mode when the client-side service type is GE(GFP-T) or 10GE LAN with the MAC Transparent Mapping (10.7 G).
  • The port equipped with an electrical module does not support ITU-T G.8275.1.
ITU-T G.8273.2 Supported
NOTE:
  • The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
  • Only ports 1-15 support ITU-T G.8273.2.
  • The port equipped with an electrical module does not support ITU-T G.8273.2.
Outband DCN Supported communication over ESCs when the client-side service type is OTU1/OTU2/OTU2e.
Test frame Supported
NOTE:
  • The board supports this function only in ODU1 convergence mode when receiving FE services on the client side.
  • The board supports this function when receiving GE (GFP-T) services on the client side.
  • The board supports this function when receiving 10GE LAN services on the client side and Port Mapping is set to MAC Transparent Mapping (10.7G).
PRBS Supported
NOTE:
  • A maximum of three ports on a TNV3T220 board support PRBS testing.
  • When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction.
  • The PRBS function in the optical port direction is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, STM-64, OC-192, OTU2 or OTU2e.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Supports inloops and outloops on channels.
NOTE:
ODU0 channel loopbacks are supported only when the port working mode is the ODU1_ODU0 mode (OTU1->ODU1->ODU0).
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • When the board works in ODU1 convergence mode, you must configure intra-board cross-connections before loopbacks. Otherwise, the loopbacks become abnormal.
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors B1 bytes to help locate faults.
  • Monitors OTN alarms and performance events.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Supports the remote monitoring (RMON) of Ethernet services.
Alarm and performance event monitoring
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 1.30 kg
  • 2.87 lb.
