Huawei OptiX OSN 9800 TNV4E404 4*50G/100G Packet Service Processing Board

Description

TNV4E404 overview



TNV4E404 4*50G/100G Packet Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV4E404 board has only one variant: TNV4E404Q01.

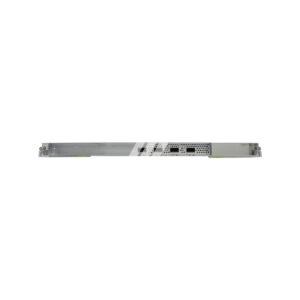

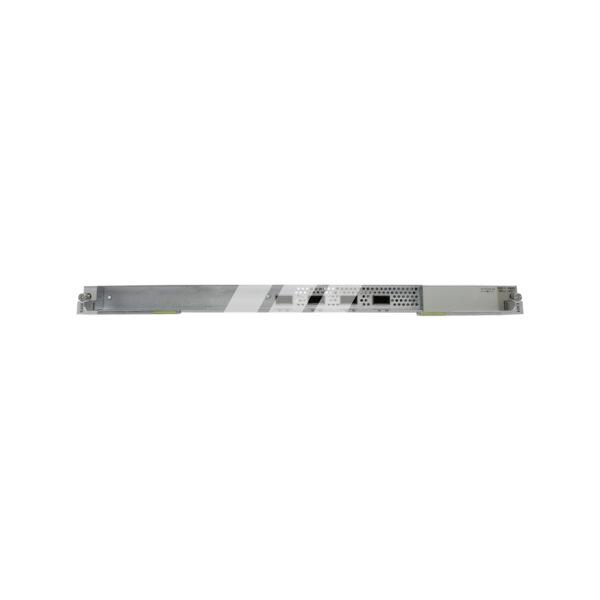

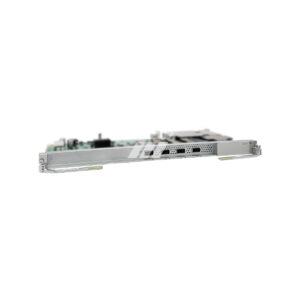

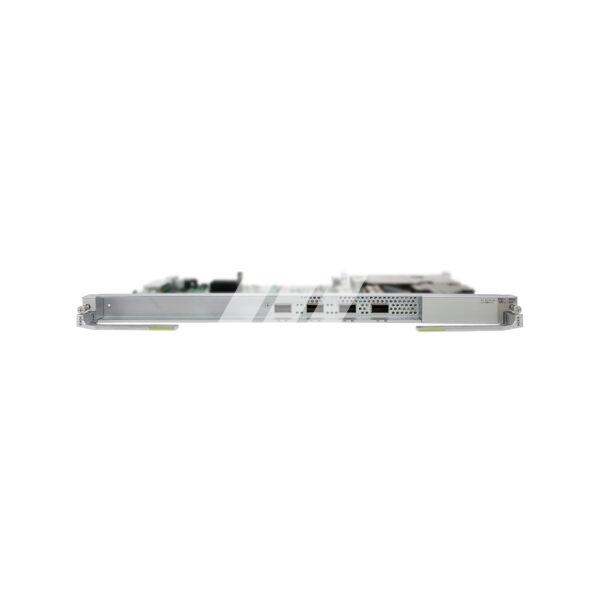

Front panel of the TNV4E404 board

TNV4E404

Front panel of the TNV4E404 board



Valid slots for the TNV4E404 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64
Item TNV4E404
Basic function Provides four Ethernet ports to receive Ethernet service signals and process packet services. For details about service access capabilities, see Application.
Backplane bandwidth The total backplane bandwidth is 400 Gbit/s.
Port rate
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s.
  • 50GE: Ethernet service at a rate of 51.5625 Gbit/s.
Port working mode
  • 100GE optical port: 100GE Full-Duplex
  • 50GE optical port: 50GE Full-Duplex
TAG attribute Supports the following TAG attributes: tag aware, access, and hybrid.
QinQ Supports basic QinQ.
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port The MFL value ranges from 960 bytes to 9600 bytes. Supports a jumbo frame containing a maximum of 9600 bytes.
Service type
  • Native E-Line services
  • Native E-LAN services
  • E-Line services carried by PWs (VPWS services)
  • E-LAN services carried by PWs (VPLS services)
Service bearing medium PW, QinQ
Native E-Line service type
  • Point-to-point transparently transmitted E-Line services
  • VLAN-based E-Line services (supporting VLAN tag switching)
  • QinQ-based E-Line services
Native E-LAN service type
  • E-LAN services based on Tag-Transparent (802.1d bridge)
  • E-LAN services based on C-Aware (802.1q bridge)
  • E-LAN services based on S-Aware
PW-carried E-Line service (VPWS) type
  • Port-based transparently transmitted E-Line services
  • VLAN-based E-Line services (supporting the adding, deleting, and switching of VLAN tags)
PW-carried E-LAN service (VPLS) type
  • VPLS services based on Tag-Transparent
  • VPLS services based on C-Aware
  • VPLS services based on S-Aware
MS-PW Supported
Diffserv Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification
  • Supported simple traffic classification.
  • Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance WRED, tail dropping
Congestion management Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS Supported
LPT Supported
ERPS ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG Intra-board and inter-board LAG, compliant with IEEE 802.1ax.
MC-LAG Supported, compliant with IEEE 802.1ax.
MC-PW APS 1:1 protection compliant with ITU-T G.8131.
PW APS 1:1 protection compliant with ITU-T G.8131.
PW FPS 1:1 protection compliant with ITU-T G.8131.
Tunnel APS 1:1 protections compliant with ITU-T G.8131.
MRPS Not supported
Packet service protection against multiple fiber cuts Not supported
IGMP Snooping Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP Supported
Ethernet service OAM Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730
Ethernet port OAM Supported, compliant with IEEE 802.3ah
NOTE:
Compliant with ITU-T Y.1731(ETH LM/DM), ITU-T G.8013 and ITU-T Y.1730.
MPLS OAM Not supported
MPLS-TP OAM Supported, compliant with ITU-T G.8013/Y.1731, ITU-T G.8113.1.
RMON Supported
Port mirroring Not supported
Physical clock Synchronous Ethernet processing supported; synchronous Ethernet transparent transmission not supported
IEEE 1588v2 Supported
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
NOTE:
  • The port equipped with an electrical module does not support the function.
  • The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
High-precision clock synchronization Supported
NOTE:
  • This function is not supported when the board uses the QSFP28,1310,100GE,-3.1dBm,4dBm,-4.5dBm,LC,SMF,2km,PAM4 module.
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide.
Inband DCN Supported
MAC layer loopback Supported
PHY layer loopback Not supported
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.94 kg
  • 6.48 lb.

Additional information

Brand
Condition
Lead Time
Ship From
Warranty
Item TNV4E404
Basic function Provides four Ethernet ports to receive Ethernet service signals and process packet services. For details about service access capabilities, see Application.
Backplane bandwidth The total backplane bandwidth is 400 Gbit/s.
Port rate
  • 100GE: Ethernet service at a rate of 103.125 Gbit/s.
  • 50GE: Ethernet service at a rate of 51.5625 Gbit/s.
Port working mode
  • 100GE optical port: 100GE Full-Duplex
  • 50GE optical port: 50GE Full-Duplex
TAG attribute Supports the following TAG attributes: tag aware, access, and hybrid.
QinQ Supports basic QinQ.
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1Q, IEEE 802.1p
Maximum frame length for a port The MFL value ranges from 960 bytes to 9600 bytes. Supports a jumbo frame containing a maximum of 9600 bytes.
Service type
  • Native E-Line services
  • Native E-LAN services
  • E-Line services carried by PWs (VPWS services)
  • E-LAN services carried by PWs (VPLS services)
Service bearing medium PW, QinQ
Native E-Line service type
  • Point-to-point transparently transmitted E-Line services
  • VLAN-based E-Line services (supporting VLAN tag switching)
  • QinQ-based E-Line services
Native E-LAN service type
  • E-LAN services based on Tag-Transparent (802.1d bridge)
  • E-LAN services based on C-Aware (802.1q bridge)
  • E-LAN services based on S-Aware
PW-carried E-Line service (VPWS) type
  • Port-based transparently transmitted E-Line services
  • VLAN-based E-Line services (supporting the adding, deleting, and switching of VLAN tags)
PW-carried E-LAN service (VPLS) type
  • VPLS services based on Tag-Transparent
  • VPLS services based on C-Aware
  • VPLS services based on S-Aware
MS-PW Supported
Diffserv Supported, compliant with RFC 2474 and RFC 2475.
Traffic classification
  • Supported simple traffic classification.
  • Supported complex traffic classification. The ACL rules are customized based on packet information.
Traffic policing Committed access rate (CAR), two rate three color marker (trTCM), compliant with RFC 2698.
Traffic shaping Port-based traffic shaping, queue-based traffic shaping
Congestion avoidance WRED, tail dropping
Congestion management Class of service (CoS), supporting SP+WFQ scheduling algorithms
HQoS Supported
LPT Supported
ERPS ERPS V1/V2, Supported, Comply with ITU-T G.8032/Y.1344.
LAG Intra-board and inter-board LAG, compliant with IEEE 802.1ax.
MC-LAG Supported, compliant with IEEE 802.1ax.
MC-PW APS 1:1 protection compliant with ITU-T G.8131.
PW APS 1:1 protection compliant with ITU-T G.8131.
PW FPS 1:1 protection compliant with ITU-T G.8131.
Tunnel APS 1:1 protections compliant with ITU-T G.8131.
MRPS Not supported
Packet service protection against multiple fiber cuts Not supported
IGMP Snooping Supports protocol enabling in compliance with IGMPv1 and IGMPv2.
LLDP Supported
Ethernet service OAM Supported, compliant with IEEE 802.1ag, ITU-T Y.1731/ITU-T G.8013 and ITU-T Y.1730
Ethernet port OAM Supported, compliant with IEEE 802.3ah
NOTE:
Compliant with ITU-T Y.1731(ETH LM/DM), ITU-T G.8013 and ITU-T Y.1730.
MPLS OAM Not supported
MPLS-TP OAM Supported, compliant with ITU-T G.8013/Y.1731, ITU-T G.8113.1.
RMON Supported
Port mirroring Not supported
Physical clock Synchronous Ethernet processing supported; synchronous Ethernet transparent transmission not supported
IEEE 1588v2 Supported
ITU-T G.8275.1 Supported
ITU-T G.8273.2 Supported
NOTE:
  • The port equipped with an electrical module does not support the function.
  • The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
High-precision clock synchronization Supported
NOTE:
  • This function is not supported when the board uses the QSFP28,1310,100GE,-3.1dBm,4dBm,-4.5dBm,LC,SMF,2km,PAM4 module.
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide.
Inband DCN Supported
MAC layer loopback Supported
PHY layer loopback Not supported
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.94 kg
  • 6.48 lb.
