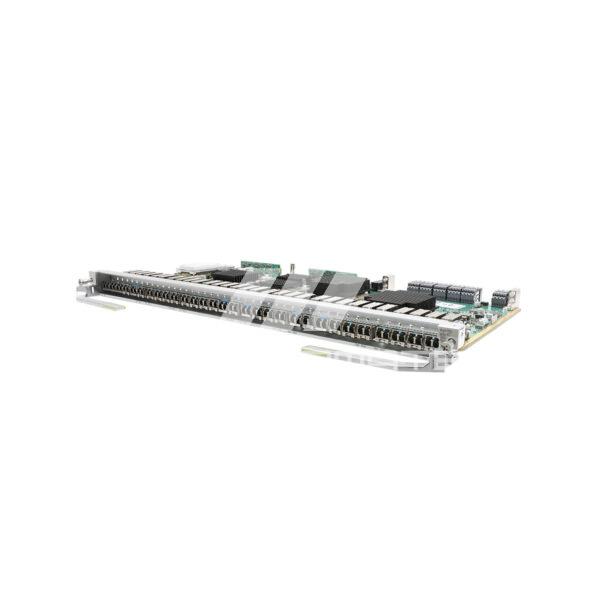

Huawei OptiX OSN 9800 TNV6T230 30 x 10G tributary service processing board

Description

TNV6T230 overview



TNV6T230 30 x 10G tributary service processing board tributary service processing board applied to Huawei OptiX OSN 9800 U64/U32/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

The TNV6T230 board has only one variant: TNV6T230S01.





Front panel of the TNV6T230 board

TNV6T230

Front panel of the TNV6T230 board



Valid slots for the TNV6T230 board in a U64/U32/M24 subrack

Device Number of Occupied Slots Physical Slot Logical Slot
OptiX OSN 9800 M24 2 (IU1, IU13), (IU2, IU14), ……, (IU11, IU23), (IU12, IU24) IU1 to IU12
OptiX OSN 9800 U32 Enhanced 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U32 Standard 1 IU1 to IU32 IU1 to IU32
OptiX OSN 9800 U64 Enhanced 1 IU1 to IU64 IU1 to IU64
OptiX OSN 9800 U64 Standard 1 IU1 to IU64 IU1 to IU64



Item TNV6T230
Backplane capacity The total bandwidth is 400 Gbit/s.
Client-side service type SDH service:
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDH service at a rate of 9.95 Gbit/s
SONET service:
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
OTN service:
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
Ethernet service:
  • FE optical signals: Ethernet service at a rate of 125 Mbit/s
  • GE optical signals: Ethernet service at a rate of 1.25 Gbit/s
  • GE electrical signals: Ethernet service at a rate of 1.25 Gbit/s
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
  • 25GE: Ethernet service at a rate of 25.78 Gbit/s
SAN service:
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON 4G: SAN service at a rate of 4.25 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FICON 8G: SAN service at a rate of 8.5 Gbit/s
  • FICON 10G: SAN service at a rate of 10.51 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • FC3200: SAN service at a rate of 28.05 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
Video and audio service:
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
Service mapping mode
  • Supports encapsulation of GE services in Generic Framing Procedure - Transparent (GFP-T) or timing transparent transcoding - Generic Mapping Procedure (TTT-GMP) mode.
  • Supports encapsulation of 10GE LAN services in Generic Framing Procedure - 10GE LAN(MAC transparent mapping(10.7G)) or 10GE LAN(Bit Transparent Mapping(11.1G)) mode.
  • Supports encapsulation of 25GE services in Generic Framing Procedure - Transparent (GFP-T) or Bit Transparent Mapping (BMP) mode.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) encoding on the client side only when receiving OTU1/OTU2/OTU2e signals.
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU1/OTU2 layer: supports SM overhead processing.
  • ODUflex layer: supports PM overhead processing.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Supported on the client side when FE/GE/10GE LAN services are received.
NOTE:
The port equipped with an electrical module does not support LPT.
Client 1+1 protection Supported
NOTE:
When OTU1 services are received on the client side, client 1+1 protection is only supported in ODU1 non-convergence mode.
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
  • The board supports tributary SNCP protection only when the client-side service type is OTN, SDH, SONET or 10G WAN.
  • When OTU1 services are received on the client side and the mapping path is OTU1->ODU1->ODU0, tributary SNCP protection at the ODU0 level is supported.
Electrical-layer ASON Supported
L1 service encryption Supported
NOTE:
When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS Supported on the client side when non-OTN services are received.
NOTE:
The port equipped with an electrical module does not support ALS.
LLDP Supported on the client side when ethernet services are received.
NOTE:
  • The LLDP function is not supported when the client-side service is 10GE WAN/GE/FE.
  • When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • GE(TTT-GMP), 10GE LAN(Bit Transparent Mapping(11.1G)), 25GE(BMP): Supports synchronous Ethernet transparent transmission
  • GE(GFP-T), 10GE LAN(MAC transparent mapping(10.7G)), 25GE(GFP-F): Supports synchronous Ethernet processing
IEEE 1588v2 When GE (GFP-T), 25GE (GFP-F), or 10GE LAN(MAC transparent mapping(10.7G)) services, the TC, TC+OC, BC, and OC modes are supported.
NOTE:
  • The port equipped with an electrical module does not support IEEE 1588v2.
  • Only ports 1 to 15 support IEEE 1588v2.
ITU-T G.8275.1 Supported when GE (GFP-T), 25GE (GFP-F), or 10GE LAN(MAC transparent mapping(10.7G)) services are received on the client side.
NOTE:
  • The port equipped with an electrical module does not support ITU-T G.8275.1.
  • Only ports 1 to 15 support ITU-T G.8275.1.
ITU-T G.8273.2 Supported
NOTE:
  • The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
  • Only 1 to 15 ports support ITU-T G.8273.2.
High-precision clock synchronization Supported
NOTE:
  • Supported when GE (GFP-T), 25GE (GFP-F), or 10GE LAN(MAC transparent mapping(10.7G)) services are received on the client side.
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide.
  • The port equipped with an electrical module does not support High-precision clock synchronization.
  • Only 1 to 15 ports support High-precision clock synchronization.
Outband DCN Supported communication over ESCs on the client side when OTU1/OTU2/OTU2e services are received.
Test frame Supports test frames when receiving GE (GFP-T)/10GE LAN(MAC transparent mapping(10.7G))/25GE (GFP-F) services on the client side.
NOTE:
Supports this function only in ODU1 convergence mode when receiving FE services on the client side.
PRBS The PRBS function in the optical port direction is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, OTU2, or OTU2e.
NOTE:
When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Supports inloops and outloops on channels.
NOTE:
The board supports ODU0 channel loopback only in ODU1_ODU0 mode.
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • When the board works in ODU1 convergence mode, you must configure intra-board cross-connections before loopbacks. Otherwise, the loopbacks become abnormal.
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the remote monitoring (RMON) of Ethernet services.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.70 kg
  • 5.95 lb.

Additional information

Item TNV6T230
Backplane capacity The total bandwidth is 400 Gbit/s.
Client-side service type SDH service:
  • STM-1: SDH service at a rate of 155.52 Mbit/s
  • STM-4: SDH service at a rate of 622.08 Mbit/s
  • STM-16: SDH service at a rate of 2488.32 Mbit/s
  • STM-64: SDH service at a rate of 9.95 Gbit/s
SONET service:
  • OC-3: SONET service at a rate of 155.52 Mbit/s
  • OC-12: SONET service at a rate of 622.08 Mbit/s
  • OC-48: SONET service at a rate of 2488.32 Mbit/s
  • OC-192: SONET service at a rate of 9.95 Gbit/s
OTN service:
  • OTU1: OTN service at a rate of 2.67 Gbit/s
  • OTU2: OTN service at a rate of 10.71 Gbit/s
  • OTU2e: OTN service at a rate of 11.1 Gbit/s
Ethernet service:
  • FE optical signals: Ethernet service at a rate of 125 Mbit/s
  • GE optical signals: Ethernet service at a rate of 1.25 Gbit/s
  • GE electrical signals: Ethernet service at a rate of 1.25 Gbit/s
  • 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
  • 10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
  • 25GE: Ethernet service at a rate of 25.78 Gbit/s
SAN service:
  • FC100: SAN service at a rate of 1.06 Gbit/s
  • FC200: SAN service at a rate of 2.12 Gbit/s
  • FC400: SAN service at a rate of 4.25 Gbit/s
  • FICON: SAN service at a rate of 1.06 Gbit/s
  • FICON 4G: SAN service at a rate of 4.25 Gbit/s
  • FICON Express: SAN service at a rate of 2.12 Gbit/s
  • FC800: SAN service at a rate of 8.5 Gbit/s
  • FICON 8G: SAN service at a rate of 8.5 Gbit/s
  • FICON 10G: SAN service at a rate of 10.51 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FC1200: SAN service at a rate of 10.51 Gbit/s
  • FC1600: SAN service at a rate of 14.025 Gbit/s
  • FC3200: SAN service at a rate of 28.05 Gbit/s
  • ESCON: SAN service at a rate of 200 Mbit/s
  • FDDI: SAN service at a rate of 125 Mbit/s
Video and audio service:
  • SDI: Serial digital interface at a rate of 270 Mbit/s
  • HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
  • HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
  • 3G-SDI: Video service at a rate of 2.97 Gbit/s
  • 3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
  • DVB-ASI: Video service at a rate of 270 Mbit/s
Service mapping mode
  • Supports encapsulation of GE services in Generic Framing Procedure - Transparent (GFP-T) or timing transparent transcoding - Generic Mapping Procedure (TTT-GMP) mode.
  • Supports encapsulation of 10GE LAN services in Generic Framing Procedure - 10GE LAN(MAC transparent mapping(10.7G)) or 10GE LAN(Bit Transparent Mapping(11.1G)) mode.
  • Supports encapsulation of 25GE services in Generic Framing Procedure - Transparent (GFP-T) or Bit Transparent Mapping (BMP) mode.
FEC coding Supports ITU-T G.709-compliant forward error correction (FEC) encoding on the client side only when receiving OTU1/OTU2/OTU2e signals.
OTN overhead protocol Uses the frame format and overhead processing compliant with ITU-T G.709.
OTN overhead
  • ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
  • OTU1/OTU2 layer: supports SM overhead processing.
  • ODUflex layer: supports PM overhead processing.
Maximum frame length for a port 1518 to 9600 Bytes, supports a jumbo frame with a maximum length of 9600 bytes.
LPT Supported on the client side when FE/GE/10GE LAN services are received.
NOTE:
The port equipped with an electrical module does not support LPT.
Client 1+1 protection Supported
NOTE:
When OTU1 services are received on the client side, client 1+1 protection is only supported in ODU1 non-convergence mode.
ODUk SNCP Supported
Tributary SNCP Supported
NOTE:
  • The board supports tributary SNCP protection only when the client-side service type is OTN, SDH, SONET or 10G WAN.
  • When OTU1 services are received on the client side and the mapping path is OTU1->ODU1->ODU0, tributary SNCP protection at the ODU0 level is supported.
Electrical-layer ASON Supported
L1 service encryption Supported
NOTE:
When working in ODU1 convergence mode and ODU1_ODU0 mode, the board does not support encryption.
ALS Supported on the client side when non-OTN services are received.
NOTE:
The port equipped with an electrical module does not support ALS.
LLDP Supported on the client side when ethernet services are received.
NOTE:
  • The LLDP function is not supported when the client-side service is 10GE WAN/GE/FE.
  • When the service mapping mode is MAC transparent mapping, the LLDP mode of the port is the Receive mode by default. In this case, LLDP packets are not transparently transmitted.
Physical clock
  • GE(TTT-GMP), 10GE LAN(Bit Transparent Mapping(11.1G)), 25GE(BMP): Supports synchronous Ethernet transparent transmission
  • GE(GFP-T), 10GE LAN(MAC transparent mapping(10.7G)), 25GE(GFP-F): Supports synchronous Ethernet processing
IEEE 1588v2 When GE (GFP-T), 25GE (GFP-F), or 10GE LAN(MAC transparent mapping(10.7G)) services, the TC, TC+OC, BC, and OC modes are supported.
NOTE:
  • The port equipped with an electrical module does not support IEEE 1588v2.
  • Only ports 1 to 15 support IEEE 1588v2.
ITU-T G.8275.1 Supported when GE (GFP-T), 25GE (GFP-F), or 10GE LAN(MAC transparent mapping(10.7G)) services are received on the client side.
NOTE:
  • The port equipped with an electrical module does not support ITU-T G.8275.1.
  • Only ports 1 to 15 support ITU-T G.8275.1.
ITU-T G.8273.2 Supported
NOTE:
  • The board does not support ITU-T G.8273.2 when the system control board is U2CTU.
  • Only 1 to 15 ports support ITU-T G.8273.2.
High-precision clock synchronization Supported
NOTE:
  • Supported when GE (GFP-T), 25GE (GFP-F), or 10GE LAN(MAC transparent mapping(10.7G)) services are received on the client side.
  • The high-precision clock synchronization function can be implemented only after the corresponding license is obtained.
  • The board must work with the subrack and system control board that support high-precision clock to support the high-precision clock synchronization function. For details, see Clock Synchronization Feature Guide.
  • The port equipped with an electrical module does not support High-precision clock synchronization.
  • Only 1 to 15 ports support High-precision clock synchronization.
Outband DCN Supported communication over ESCs on the client side when OTU1/OTU2/OTU2e services are received.
Test frame Supports test frames when receiving GE (GFP-T)/10GE LAN(MAC transparent mapping(10.7G))/25GE (GFP-F) services on the client side.
NOTE:
Supports this function only in ODU1 convergence mode when receiving FE services on the client side.
PRBS The PRBS function in the optical port direction is supported only when the client-side service type is STM-1, OC–3, STM-4, OC-12, STM-16, OC-48, OTU1, OTU2, or OTU2e.
NOTE:
When working in ODU1_ODU0 mode, the board does not support the PRBS test function in the backplane direction.
Latency measurement
  • When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction).
  • When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
Channel loopback Supports inloops and outloops on channels.
NOTE:
The board supports ODU0 channel loopback only in ODU1_ODU0 mode.
Port loopback
  • Supports inloops and outloops on the client side.
  • Supports ODUk inloops and ODUk outloops on the client side.
NOTE:
  • When the board works in ODU1 convergence mode, you must configure intra-board cross-connections before loopbacks. Otherwise, the loopbacks become abnormal.
  • The board supports ODUk inloop and ODUk outloop only when non-OTN services are received, the port working mode is non-convergence, and bidirectional cross-connections are configured.
  • When the service type is set to None, Inloop, Outloop, and ODUk Outloop are not supported.
  • When non-OTN services are received, the PRBS in the backplane direction can be used only with ODUk loopback.
Alarm and performance event monitoring
  • Supports the monitoring of BIP8 bytes (Bursty mode) to help locate line faults.
  • Supports the monitoring of B1 bytes to help locate line faults.
  • Supports the monitoring of OTN alarms and performance events.
  • Supports the monitoring of the laser bias current.
  • Supports the laser temperature monitoring.
  • Supports the optical power monitoring.
  • Supports the remote monitoring (RMON) of Ethernet services.
Dimensions (H x W x D)
  • 477.30 × 30.50 × 220.00 (mm)
  • 18.81 × 1.20 × 8.67 (in.)
Weight
  • 2.70 kg
  • 5.95 lb.
