TNZ5EX4

0 Reviews Write a review
PN03023FWH
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

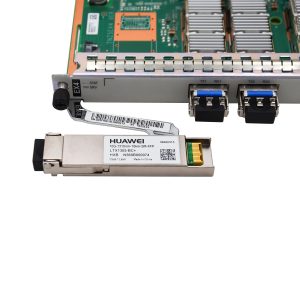

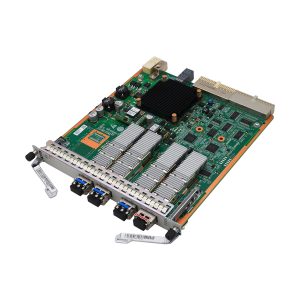

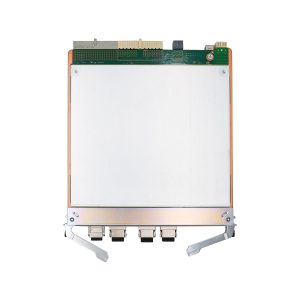

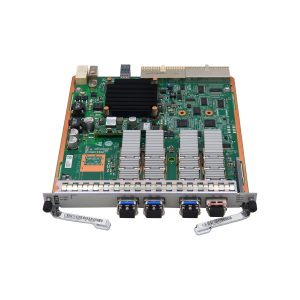

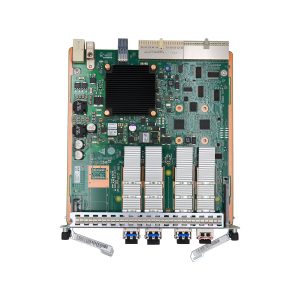

Huawei OSN1800V TNZ5EX4 4*10GE(XFP) ethernet processing board, 03023FWH

Description

TNZ5EX4 overview

TNZ5EX4 4*10GE(XFP) ethernet processing board applied to Huawei OSN 1800V.

The EX4 board is a packet board. It supports access of 10GE LAN services and transmits service signals to cross-connect boards for packet data processing and centralized grooming at the equipment level. On the WDM side, the EX4 board works with a board providing the packet service processing function to implement packet service transmission on the WDM network.

The EX4 board receives and transmits a maximum of 4 10GE LAN optical services. The EX4 board implements Ethernet service functions by working with packet switching units on the system control, switching, and timing boards.



Item TNZ5EX4
Basic function Receives and transmits the following services:
4 x 10GE LAN
Backplane bandwidth 40 Gbit/s
Supported service 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Working mode 10G Full-Duplex LAN
Port flow control When working with TNZ5UXCMS, the EX4 board complies with IEEE802.3x and supports only response requests.
When working with TNZ1UXCL and TNZ2UXCL, the EX4 board complies with IEEE802.3x and supports response and sent requests.
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MFL The MFL value ranges from 1518 bytes to 9600 bytes with a default value of 1522 bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+ 72 bytes.
Service type E-Line (VPWS), E-LAN (VPLS)
Service bearing medium Port, PW, QinQ
E-Line services Native ETH services:
E-Line services based on point-to-point transparent transmission
E-Line services based on virtual local area networks (VLANs)
E-Line services based on 802.1q in 802.1q (QinQ)
ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services)
E-LAN services Native ETH services:
E-LAN services based on IEEE 802.1d bridges
E-LAN services based on IEEE 802.1q bridges
MS-PW Supported
Features supported by the EX4 board
Feature Description
Protection scheme Tunnel APS Supports 1:1 tunnel automatic protection switching (APS).
Supports 1+1 tunnel automatic protection switching (APS).
MC-PW APS Supported
NOTE:
The board is not supported on the 1800 II Enhanced chassis.
PW FPS Supports 1:1 PW FPS.
PW APS Supports 1:1 PW APS.
LAG Supported intra-board LAG and inter-board LAG.
Comply with IEEE 802.1ax.
MC-LAG Supported.
NOTE:
The board is not supported on the 1800 II Enhanced chassis.
MSTP Not supported.
LPT Supports point-to-point and point-to-multipoint link-state pass through (LPT) functions.
MRPS Supported
NOTE:
MRPS protection can be configured together with PW APS but cannot be configured with tunnel APS.
ERPS Supported
Overtemperature protection If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
LLDP Supported
QoS Diffserv Supported, compliant with RFC 2474 and RFC 2475.
traffic classification Complex traffic classification. The ACL rules are customized based on packet information.
traffic policing Committed access rate (CAR), two rate three color marker (trTCM) compliant with RFC 4115.
Congestion management Class of service (CoS), supporting SP/WFQ scheduling algorithms.
Congestion avoidance WRED, tail dropping.
traffic shaping Supports packet shaping at egress ports and in egress port queues
IGMP Snooping V1/V2 Supported
Maintenance Ethernet service OAM (CFM) Supported
Ethernet port OAM (EFM) Not supported
MPLS-TP OAM Supported, compliant with ITU-T G.8113.1
RMON Supported
Support for port traffic mirroring
Loopback MAC Outloop
MAC Inloop
PHY Outloop
PHY Inloop
Synchronization Physical clock Supported
IEEE 1588v2 Supported
G.8273.2 When working with Z5UXCMS/Z1UXCL/Z2UXCL, the board supports this function.
G.8275.1 When working with Z5UXCMS/Z1UXCL/Z2UXCL, the board supports this function.
Inband DCN Supported
HQoS Supported

Additional information

Brand

Huawei

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item TNZ5EX4
Basic function Receives and transmits the following services:
4 x 10GE LAN
Backplane bandwidth 40 Gbit/s
Supported service 10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
Working mode 10G Full-Duplex LAN
Port flow control When working with TNZ5UXCMS, the EX4 board complies with IEEE802.3x and supports only response requests.
When working with TNZ1UXCL and TNZ2UXCL, the EX4 board complies with IEEE802.3x and supports response and sent requests.
Ethernet data frame format IEEE 802.3, Ethernet II, IEEE 802.1q, IEEE 802.1p
MFL The MFL value ranges from 1518 bytes to 9600 bytes with a default value of 1522 bytes. The length of a permitted packet must be no less than 64 bytes and no greater than the specified MFL+ 72 bytes.
Service type E-Line (VPWS), E-LAN (VPLS)
Service bearing medium Port, PW, QinQ
E-Line services Native ETH services:
E-Line services based on point-to-point transparent transmission
E-Line services based on virtual local area networks (VLANs)
E-Line services based on 802.1q in 802.1q (QinQ)
ETH pseudo wire emulation edge-to-edge (PWE3) services: E-Line services carried by PWs (VPWS services)
E-LAN services Native ETH services:
E-LAN services based on IEEE 802.1d bridges
E-LAN services based on IEEE 802.1q bridges
MS-PW Supported
Features supported by the EX4 board
Feature Description
Protection scheme Tunnel APS Supports 1:1 tunnel automatic protection switching (APS).
Supports 1+1 tunnel automatic protection switching (APS).
MC-PW APS Supported
NOTE:
The board is not supported on the 1800 II Enhanced chassis.
PW FPS Supports 1:1 PW FPS.
PW APS Supports 1:1 PW APS.
LAG Supported intra-board LAG and inter-board LAG.
Comply with IEEE 802.1ax.
MC-LAG Supported.
NOTE:
The board is not supported on the 1800 II Enhanced chassis.
MSTP Not supported.
LPT Supports point-to-point and point-to-multipoint link-state pass through (LPT) functions.
MRPS Supported
NOTE:
MRPS protection can be configured together with PW APS but cannot be configured with tunnel APS.
ERPS Supported
Overtemperature protection If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
LLDP Supported
QoS Diffserv Supported, compliant with RFC 2474 and RFC 2475.
traffic classification Complex traffic classification. The ACL rules are customized based on packet information.
traffic policing Committed access rate (CAR), two rate three color marker (trTCM) compliant with RFC 4115.
Congestion management Class of service (CoS), supporting SP/WFQ scheduling algorithms.
Congestion avoidance WRED, tail dropping.
traffic shaping Supports packet shaping at egress ports and in egress port queues
IGMP Snooping V1/V2 Supported
Maintenance Ethernet service OAM (CFM) Supported
Ethernet port OAM (EFM) Not supported
MPLS-TP OAM Supported, compliant with ITU-T G.8113.1
RMON Supported
Support for port traffic mirroring
Loopback MAC Outloop
MAC Inloop
PHY Outloop
PHY Inloop
Synchronization Physical clock Supported
IEEE 1588v2 Supported
G.8273.2 When working with Z5UXCMS/Z1UXCL/Z2UXCL, the board supports this function.
G.8275.1 When working with Z5UXCMS/Z1UXCL/Z2UXCL, the board supports this function.
Inband DCN Supported
HQoS Supported
