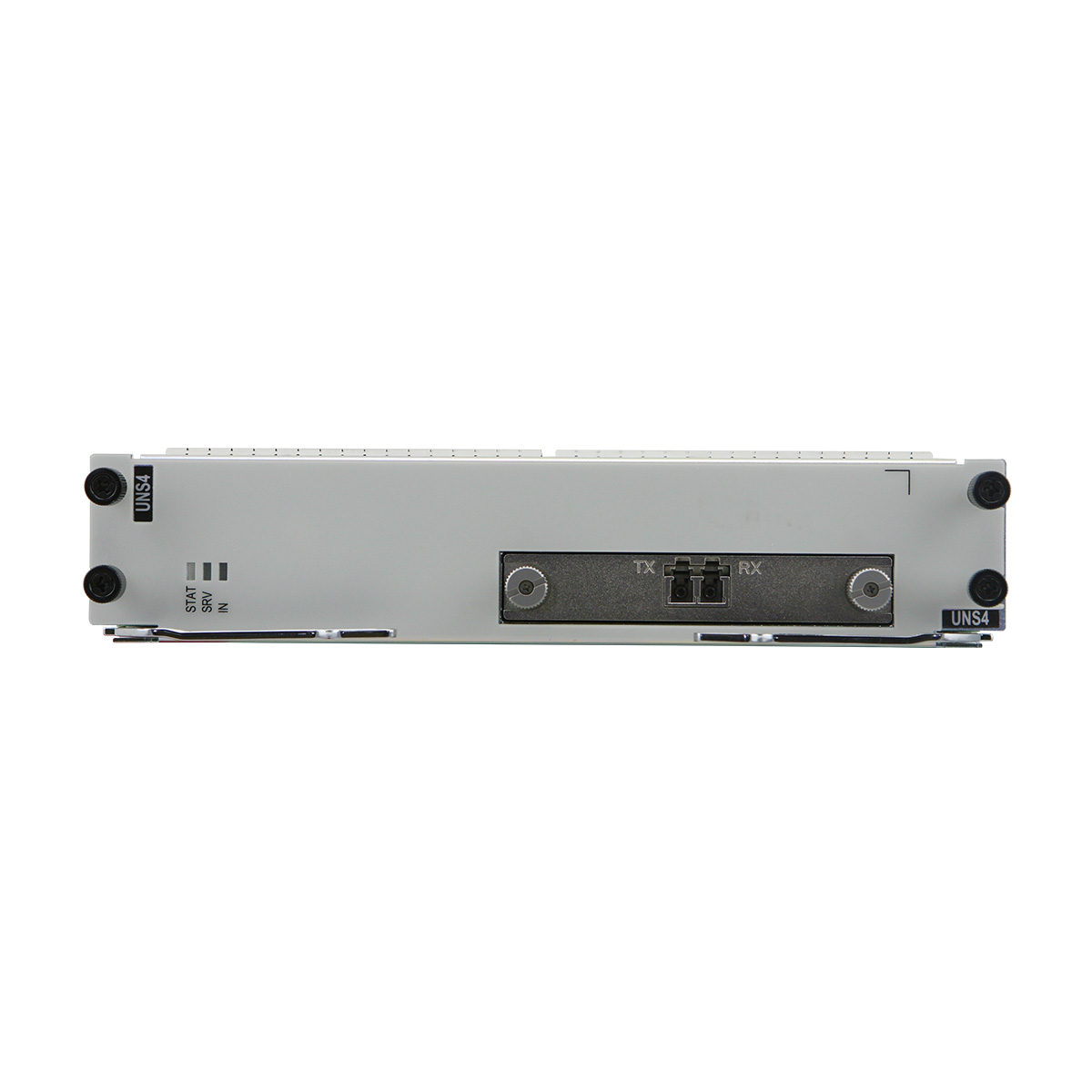

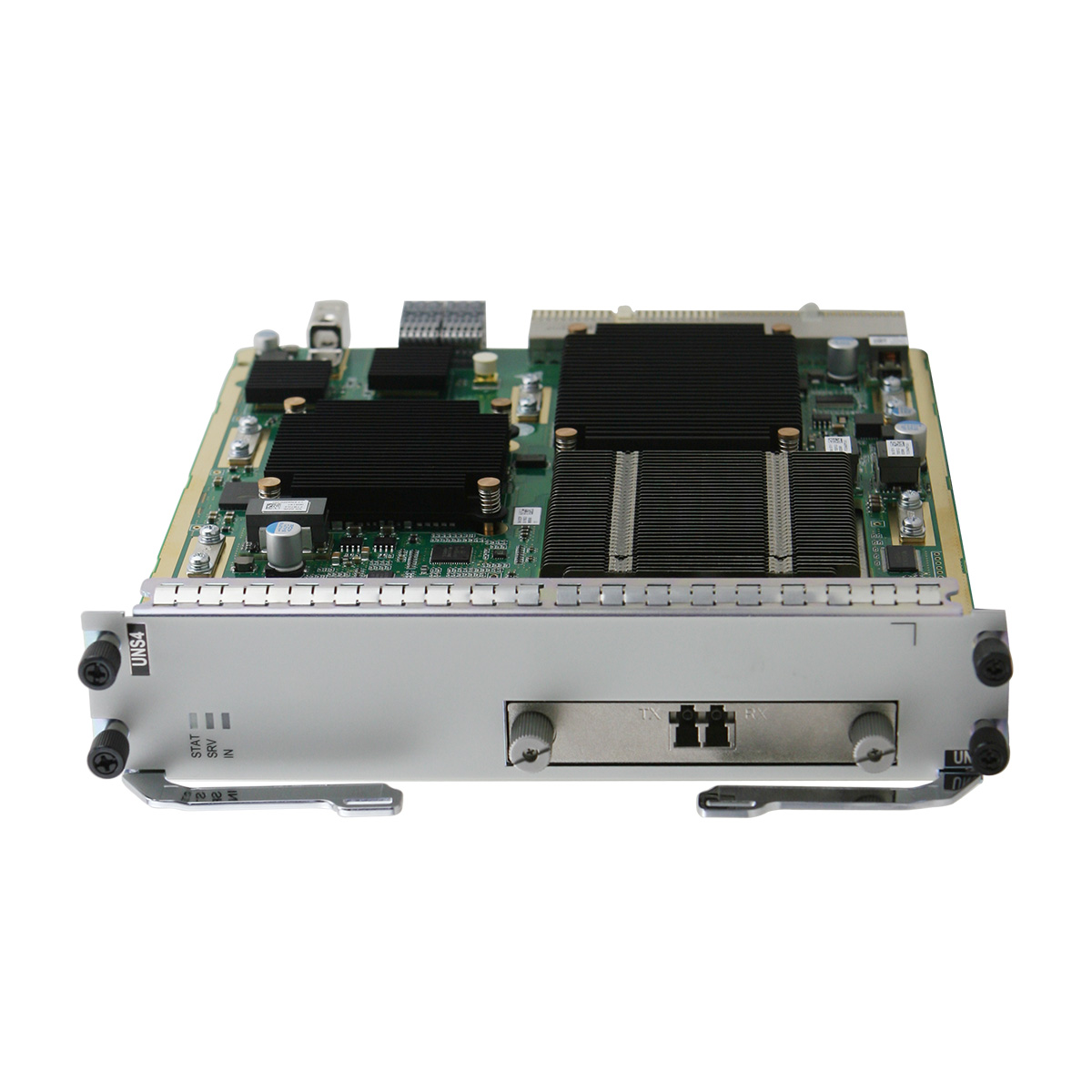

UNS4 1
UNS4 2
Categories:

TNZ6UNS4

0 Reviews Write a review
SKU2012382
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei OSN1800V TNZ6UNS4 1*100G universal line service processing board

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

TNZ6UNS4 overview

TNZ5UNS4 1*100G universal line service processing board applied to Huawei OSN 1800V.

The UNS4 board is a universal line board. It supports hybrid transmission of OTN, SDH and packet services with a maximum bandwidth of 100 Gbit/s. The UNS4 board processes and converts the received service signals into one OTU4 signal carried over an ITU-T G.694.1-compliant DWDM wavelength.

The UNS4 board supports hybrid transmission of OTN, SDH and packet services, and functions such as Layer 2 switching, OTN ports, and SDH overhead processing. One UNS4 board supports hybrid transmission of OTN, SDH and packet services with a maximum bandwidth of 100 Gbit/s.



Item TNZ6UNS4
Working Mode Input Signal Basic Function
Line mode OTN 80 x ODU0<->ODU4<->OTU4
40 x ODU1<->ODU4<->OTU4
10 x ODU2<->ODU4<->OTU4
10 x ODU2e<->ODU4<->OTU4
2 x ODU3<->ODU4<->OTU4
ODU4<->OTU4
ODUflex(n=1, 80)<->ODU4<->OTU4
SDH 8 x STM-16<->8 x ODU1<->1 x ODU4<->1 x OTU4
2 x STM-64<->2 x ODU2<->1 x ODU4<->1 x OTU4
Packet A maximum of 100 Gbit/s packets<->80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4
Regeneration mode - 1 x OTU4<->1 x OTU4
Clock synchronization OTN services: Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
SDH services: SDH clock synchronization is supported when SDH virtual ports are configured.
Packet services: Physical-layer (ODU0/ODU1/ODUflex) clock synchronization is supported when packet virtual ports are configured.
IEEE 1588v2 Supported
G.8273.2 Supported
G.8275.1 Supported

OTN functions supported by the TNZ6UNS4 board
Basic functions Supports conversion of the following signals: 80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4 Supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, and ODUflex signals.
Cross-connect functionality Implements the following service grooming when working with cross-connect boards: 80 x ODU0/ODUflex, 40 x ODU1, 10 x ODU2/ODU2e, 2 x ODU3, 1 x ODU4.
OTN function
  • Supports OTU4 interfaces on the WDM side.
  • Adopts the frame formats and overhead processing methods defined in ITU-T G.709.
  • Supports the SM function at the OTU4 layer.
  • Supports the PM and TCM functions at the ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer, and non-intrusive monitoring of PM and TCM overheads.
WDM specifications Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelengths Tunes the optical signals output on the WDM side within the range of 80 wavelengths in C-band at a 50 GHz channel spacing.
ESC function Supported
PRBS function Supports the PRBS function on the WDM side.
LPT function Not supported
Error correction encoding FEC, SDFEC2 NOTE: Boards that use different error correction encoding modes cannot interconnect with each other.
Performance and alarm monitoring
  • Monitors BIP8 bytes (burst mode) to help locate line failures.
  • Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
  • Monitors OTN alarms and performance events.
Regeneration The WDM-side signals from an UNS4 board can be regenerated by another UNS4 board of the same type.
ALS function Not supported
Delay measurement (DM) Supported
Test frames Not supported
Protection scheme
  • Supports ODUk SNCP.
  • Supports intra-board 1+1 protection (when working with the OLP board).
  • Supports tributary SNCP protection.
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Overtemperature protection If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Outband DCN Supports ESC communication. NOTE: General communication channels (GCCs) support 9-byte and 18-byte modes. General communication channels (GCCs) support 9-byte mode only when the board works with Z5UXCMS.
Loopback
  • Supports system-side channel inloops and outloops.
  • Supports WDM-side inloops and outloops.
NOTE: The total bandwidth of channel inloops on the TNZ5UNS4 board must not exceed 40G.
Electrical-layer ASON Supported
Optical-layer ASON Supported

SDH functions supported by the TNZ6UNS4 board
Overhead processing
  • Processes section overheads of STM-16/STM-64 signals.
  • transparently transmits and terminates path overheads.
  • Supports the setting and querying of J0 (to be received) bytes.
  • Provides transparent DCCs and orderwire byte channels.
Protection scheme
  • Supports SNCP protection.
  • Supports SNCTP protection.
  • Supports 1+1 linear MSP protection.
  • Supports ring MSP protection.
Overtemperature protection If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Performance and alarm monitoring Monitors B1 and B2 bytes to help locate line failures.
Service processing Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, and VC-4-64c services. (VC-4-4c, VC-4-16c, and VC-4-64c services are concatenated services.)
Loopback Supports outloops on VC-12, VC-3 channels, and supports inloops/outloops on VC-4 channels.
Outband DCN Supported
SDH ASON When working with TNZ5UXCMS, the board supports this function.
2M ASON When working with TNZ5UXCMS, the board supports this function.

Packet functions supported by TNZ6UNS4 board
Service specifications Processing capability 100 Gbit/s
Service bearing media MultiProtocol Label Switching transport Profile (MPLS-TP) Supported
802.1q in 802.1q (QinQ) link Supported
Port Supported
Ethernet line (E-Line)
  • Native ETH service:
  • Point-to-point transparently transmitted E-Line service
  • VLAN-based E-Line service
  • QinQ-based E-Line service
  • ETH PWE3 service: PW-based E-Line service (VPWS service)
Ethernet local area network (E-LAN)
  • Native ETH service:
  • E-LAN service based on the IEEE 802.1d bridge
  • E-LAN service based on the IEEE 802.1q bridge
  • ETH PWE3 service: PW-based E-LAN service (VPLS service)
MS-PW Supported
Ethernet data frame format IEEE 802.3/Ethernet II/IEEE 802.1q/IEEE 802.1p
Jumbo frame Supports a jumbo frame containing a maximum of 9600 bytes.
Maximum frame length (MFL) for a port 9600 bytes.
Protection schemes Tunnel APS
  • Supports 1:1 tunnel automatic protection switching (APS).
  • Supports 1+1 tunnel automatic protection switching (APS).
PW FPS Supports 1:1 PW FPS.
PW APS Supports 1:1 PW APS.
Multiple Spanning tree Protocol (MSTP) Not supported
ERPS Supported
LAG
  • Supports load sharing and non-load sharing.
  • Supports manual and static aggregation.
MC-LAG Supported
LPT Supports point-to-point and point-to-multipoint link-state pass through (LPT) functions. NOTE: If the LPT function is configured, the ports on the UNS4 board cannot be configured as UNI-side ports.
Packet SNCP Supported
MC-PW APS Supported
MRPS Supported NOTE: MRPS protection can be configured together with PW APS but cannot be configured with tunnel APS.
LLDP Supported
Maintenance features MPLS-TP OAM Supported
ETH-OAM Supports Ethernet service OAM.
RMON Supported
Support for port traffic mirroring
HQoS Supported
Inband DCN Supported
IGMP Snooping Supported

Regeneration functions supported by the TNZ6UNS4 board
Basic functions The UNS4 board applies to electrical regeneration sites to provide the electrical regeneration function for optical signals.
Regeneration rate OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function
  • Supports OTU4 interfaces on the WDM side.
  • Adopts the frame formats and overhead processing methods defined in ITU-T G.709.
  • Supports the PM and TCM functions at the ODU4 layer, and non-intrusive monitoring on PM and TCM overheads.
  • Supports the SM function at the OTU4 layer.
WDM specifications Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength Tunes the optical signals output on the WDM side within the range of 80 wavelengths in C-band at a 50 GHz channel spacing.
ESC function Supported
PRBS function Not supported
Error correction encoding SDFEC2 NOTE: Boards that use different FEC modes cannot interconnect with each other.
Performance and alarm monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
ALS function Not supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clocks Not supported
Protection scheme Not supported
Overtemperature protection If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Optical-layer ASON Supported

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse

Item TNZ6UNS4
Working Mode Input Signal Basic Function
Line mode OTN 80 x ODU0<->ODU4<->OTU4
40 x ODU1<->ODU4<->OTU4
10 x ODU2<->ODU4<->OTU4
10 x ODU2e<->ODU4<->OTU4
2 x ODU3<->ODU4<->OTU4
ODU4<->OTU4
ODUflex(n=1, 80)<->ODU4<->OTU4
SDH 8 x STM-16<->8 x ODU1<->1 x ODU4<->1 x OTU4
2 x STM-64<->2 x ODU2<->1 x ODU4<->1 x OTU4
Packet A maximum of 100 Gbit/s packets<->80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4
Regeneration mode - 1 x OTU4<->1 x OTU4
Clock synchronization OTN services: Supported (ODU0/ODU1/ODU2/ODU2e/ODU3/ODUflex)
SDH services: SDH clock synchronization is supported when SDH virtual ports are configured.
Packet services: Physical-layer (ODU0/ODU1/ODUflex) clock synchronization is supported when packet virtual ports are configured.
IEEE 1588v2 Supported
G.8273.2 Supported
G.8275.1 Supported

OTN functions supported by the TNZ6UNS4 board
Basic functions Supports conversion of the following signals: 80 x ODU0/80 x ODUflex/40 x ODU1/10 x ODU2/10 x ODU2e/2 x ODU3/1 x ODU4<->1 x OTU4 Supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, and ODUflex signals.
Cross-connect functionality Implements the following service grooming when working with cross-connect boards: 80 x ODU0/ODUflex, 40 x ODU1, 10 x ODU2/ODU2e, 2 x ODU3, 1 x ODU4.
OTN function
  • Supports OTU4 interfaces on the WDM side.
  • Adopts the frame formats and overhead processing methods defined in ITU-T G.709.
  • Supports the SM function at the OTU4 layer.
  • Supports the PM and TCM functions at the ODUk (k = 0, 1, 2, 2e, 3, 4, or flex) layer, and non-intrusive monitoring of PM and TCM overheads.
WDM specifications Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelengths Tunes the optical signals output on the WDM side within the range of 80 wavelengths in C-band at a 50 GHz channel spacing.
ESC function Supported
PRBS function Supports the PRBS function on the WDM side.
LPT function Not supported
Error correction encoding FEC, SDFEC2 NOTE: Boards that use different error correction encoding modes cannot interconnect with each other.
Performance and alarm monitoring
  • Monitors BIP8 bytes (burst mode) to help locate line failures.
  • Monitors parameters such as the bias current, operating temperature, and optical power of a laser.
  • Monitors OTN alarms and performance events.
Regeneration The WDM-side signals from an UNS4 board can be regenerated by another UNS4 board of the same type.
ALS function Not supported
Delay measurement (DM) Supported
Test frames Not supported
Protection scheme
  • Supports ODUk SNCP.
  • Supports intra-board 1+1 protection (when working with the OLP board).
  • Supports tributary SNCP protection.
NOTE: When the cross-connect granularity is ODUflex, the board does not support tributary SNCP protection.
Overtemperature protection If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Outband DCN Supports ESC communication. NOTE: General communication channels (GCCs) support 9-byte and 18-byte modes. General communication channels (GCCs) support 9-byte mode only when the board works with Z5UXCMS.
Loopback
  • Supports system-side channel inloops and outloops.
  • Supports WDM-side inloops and outloops.
NOTE: The total bandwidth of channel inloops on the TNZ5UNS4 board must not exceed 40G.
Electrical-layer ASON Supported
Optical-layer ASON Supported

SDH functions supported by the TNZ6UNS4 board
Overhead processing
  • Processes section overheads of STM-16/STM-64 signals.
  • transparently transmits and terminates path overheads.
  • Supports the setting and querying of J0 (to be received) bytes.
  • Provides transparent DCCs and orderwire byte channels.
Protection scheme
  • Supports SNCP protection.
  • Supports SNCTP protection.
  • Supports 1+1 linear MSP protection.
  • Supports ring MSP protection.
Overtemperature protection If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Performance and alarm monitoring Monitors B1 and B2 bytes to help locate line failures.
Service processing Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-16c, and VC-4-64c services. (VC-4-4c, VC-4-16c, and VC-4-64c services are concatenated services.)
Loopback Supports outloops on VC-12, VC-3 channels, and supports inloops/outloops on VC-4 channels.
Outband DCN Supported
SDH ASON When working with TNZ5UXCMS, the board supports this function.
2M ASON When working with TNZ5UXCMS, the board supports this function.

Packet functions supported by TNZ6UNS4 board
Service specifications Processing capability 100 Gbit/s
Service bearing media MultiProtocol Label Switching transport Profile (MPLS-TP) Supported
802.1q in 802.1q (QinQ) link Supported
Port Supported
Ethernet line (E-Line)
  • Native ETH service:
  • Point-to-point transparently transmitted E-Line service
  • VLAN-based E-Line service
  • QinQ-based E-Line service
  • ETH PWE3 service: PW-based E-Line service (VPWS service)
Ethernet local area network (E-LAN)
  • Native ETH service:
  • E-LAN service based on the IEEE 802.1d bridge
  • E-LAN service based on the IEEE 802.1q bridge
  • ETH PWE3 service: PW-based E-LAN service (VPLS service)
MS-PW Supported
Ethernet data frame format IEEE 802.3/Ethernet II/IEEE 802.1q/IEEE 802.1p
Jumbo frame Supports a jumbo frame containing a maximum of 9600 bytes.
Maximum frame length (MFL) for a port 9600 bytes.
Protection schemes Tunnel APS
  • Supports 1:1 tunnel automatic protection switching (APS).
  • Supports 1+1 tunnel automatic protection switching (APS).
PW FPS Supports 1:1 PW FPS.
PW APS Supports 1:1 PW APS.
Multiple Spanning tree Protocol (MSTP) Not supported
ERPS Supported
LAG
  • Supports load sharing and non-load sharing.
  • Supports manual and static aggregation.
MC-LAG Supported
LPT Supports point-to-point and point-to-multipoint link-state pass through (LPT) functions. NOTE: If the LPT function is configured, the ports on the UNS4 board cannot be configured as UNI-side ports.
Packet SNCP Supported
MC-PW APS Supported
MRPS Supported NOTE: MRPS protection can be configured together with PW APS but cannot be configured with tunnel APS.
LLDP Supported
Maintenance features MPLS-TP OAM Supported
ETH-OAM Supports Ethernet service OAM.
RMON Supported
Support for port traffic mirroring
HQoS Supported
Inband DCN Supported
IGMP Snooping Supported

Regeneration functions supported by the TNZ6UNS4 board
Basic functions The UNS4 board applies to electrical regeneration sites to provide the electrical regeneration function for optical signals.
Regeneration rate OTU4: OTN service at a rate of 111.81 Gbit/s
OTN function
  • Supports OTU4 interfaces on the WDM side.
  • Adopts the frame formats and overhead processing methods defined in ITU-T G.709.
  • Supports the PM and TCM functions at the ODU4 layer, and non-intrusive monitoring on PM and TCM overheads.
  • Supports the SM function at the OTU4 layer.
WDM specifications Supports ITU-T G.694.1-compliant DWDM specifications.
Tunable wavelength Tunes the optical signals output on the WDM side within the range of 80 wavelengths in C-band at a 50 GHz channel spacing.
ESC function Supported
PRBS function Not supported
Error correction encoding SDFEC2 NOTE: Boards that use different FEC modes cannot interconnect with each other.
Performance and alarm monitoring
  • Monitors BIP8 bytes (Bursty mode) to help locate line failures.
  • Monitors parameters such as the bias current, temperature, and optical power of the laser.
  • Monitors OTN alarms and performance events.
ALS function Not supported
Test frame Not supported
IEEE 1588v2 Not supported
Physical clocks Not supported
Protection scheme Not supported
Overtemperature protection If the working temperature of the board exceeds the configured threshold and services are affected, the board will automatically reset the key chip to prevent damages to the board.
Optical-layer ASON Supported
