Troubleshooting Flow Imbalance Across Multi-Tier Racks Connected to a Central CDU: Configuration, Compatibility & Error Resolving

Overview & Thematic Scope

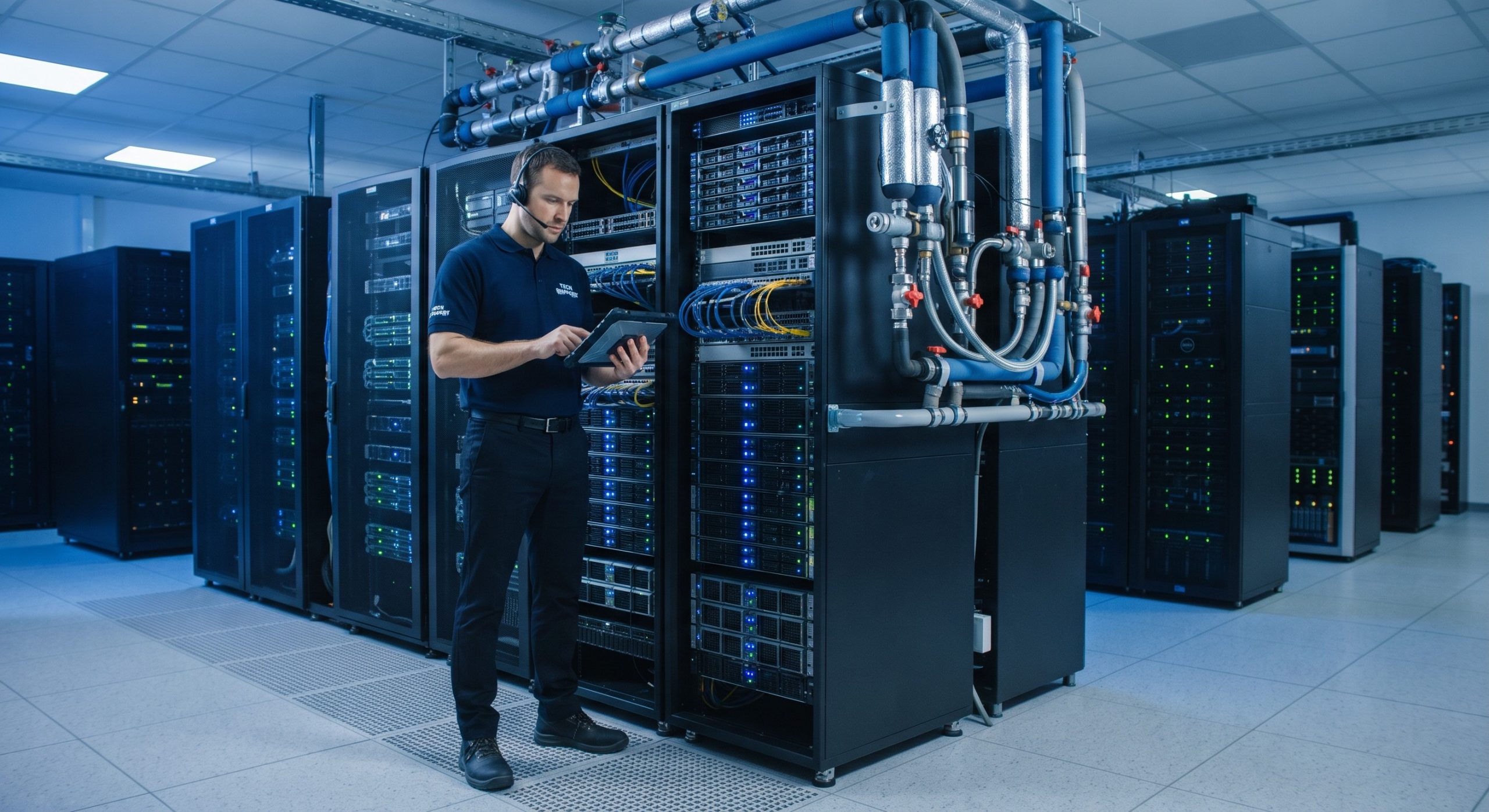

Flow imbalance across multi-tier racks served by a central Coolant Distribution Unit (CDU) is a common hydraulic challenge in liquid-cooled data centers. Uneven coolant distribution can lead to hot spots in upper racks, over-cooling in lower racks, and reduced overall thermal efficiency. This troubleshooting FAQ addresses the root causes—from manifold physics to valve control strategies—and provides actionable guidance for network engineers and facility operators seeking to stabilize their CDU-cooled rack deployments.

Frequently Asked Questions

Q1: What is the most common physical cause of flow imbalance in vertically stacked racks fed by a central CDU?

The most common physical cause is the hydraulic gradient inherent in vertical supply manifolds, often described as the “large bottom flow, small top flow” phenomenon. In a vertically rising supply manifold, gravity and friction losses exceed the dynamic pressure recovery available from the flow, causing static pressure to decrease from the bottom inlet toward the top outlet. This means server cold plates at the bottom of the rack receive higher coolant flow rates than those at the top, which can leave upper-tier equipment under-cooled and susceptible to thermal throttling. This effect is well-documented in rack manifold design and can be mitigated through reverse-return piping topology, enlarged manifold diameters, or graded throttling orifices that intentionally add resistance at lower connection points to equalize pressure across all tiers .

Q2: How does CDU control mode (constant pressure vs. constant flow) affect flow distribution across multiple racks?

Constant differential pressure control at the CDU generally provides the most stable flow distribution across racks with varying impedance, whereas constant flow rate control can cause severe pressure spikes and uneven distribution. When the CDU operates in constant flow mode, it attempts to maintain a fixed total flow regardless of changes in circuit resistance. If one rack’s flow control valve adjusts or a server is removed, the CDU pump must increase speed to compensate, which can raise supply pressure dramatically and force excess flow into other racks. In experimental testing, a constant flow CDU reached 500 kPa supply pressure and 100% pump speed while attempting to hold total flow, creating conditions that risk cold plate erosion and leakage. Constant differential pressure control, by contrast, allows flow to redistribute more gracefully when individual rack impedances change, making it the preferred strategy for multi-rack deployments with dynamic workloads .

Q3: Why does removing or decommissioning a server from one rack cause flow imbalance in the remaining racks?

Decommissioning a server changes the hydraulic impedance of that rack’s branch, causing the CDU’s total system resistance to drop and inadvertently increasing flow to other racks unless the control system compensates. When a server tray (TTV) is removed, the rack-level pressure drop decreases because there is one fewer parallel flow path. If the CDU maintains constant pressure, the rack flow control valve must be adjusted to restore the original pressure drop setpoint and return flow to the remaining servers. Without this active compensation, the remaining cold plates in that rack receive excessive flow, while other racks may see reduced flow due to the CDU’s total flow being redistributed. A pressure-drop-based control strategy—where the rack valve target is recalculated based on the new pressure drop after server removal—has been experimentally validated to restore per-server flow to its design value and prevent downstream imbalance .

Q4: What role does flow restrictor sizing play in preventing imbalance across parallel cold plates?

Properly sized passive flow restrictors (fixed orifices) are effective at reducing flow deviation among parallel cold plates, particularly in high-density two-phase or single-phase direct-to-chip systems with non-uniform heat loads. In rack-level cooling loops, flow maldistribution occurs because parallel branches with different impedance characteristics—due to tubing length, fitting count, or cold plate design—receive unequal shares of the total available flow. A fixed orifice introduces a calibrated pressure drop that dominates the branch-to-branch impedance variation, forcing flow to distribute more evenly regardless of downstream differences. Experimental evaluation of flow restrictors in a 160 kW CDU system demonstrated that correctly sized restrictors reduced flow deviation while maintaining stable operation without active feedback control, confirming passive regulation as a scalable approach for AI workload cooling .

Q5: How does heat load imbalance across tiers contribute to perceived flow imbalance?

Non-uniform heat loads across tiers can create the appearance of flow imbalance even when hydraulic distribution is nominally equal, because coolant temperature rise varies by load and affects viscosity and control valve response. When upper-tier racks host higher-power GPUs or CPUs than lower tiers, the return coolant from those racks is warmer and less viscous. In systems using differential pressure control, lower viscosity can cause slightly higher flow through the hot branch for the same valve position. More critically, if the CDU or rack valves are controlled based on temperature feedback, a heavily loaded rack may “demand” more flow, effectively starving lightly loaded racks unless the control logic explicitly balances flow allocation. Best practice is to decouple flow balancing from thermal load by using pressure-based or fixed-orifice balancing at the rack level, and to verify that CDU flow fractions are optimized for the actual heat load distribution across subloops .

Q6: What are the consequences of connecting multiple ITE platforms with different pressure requirements to a single CDU?

Connecting IT equipment from different vendors or platforms to one CDU forces the CDU to satisfy the highest pressure differential required by any connected system, and flow balancing valves must then be used to throttle flow to lower-pressure systems, increasing energy consumption and control complexity. ASHRAE TC 9.9 explicitly recommends dedicating a CDU to a single ITE platform precisely because temperature, pressure, and flow rate requirements differ between vendors. When a shared CDU serves mixed platforms, any flow or pressure instability caused by one vendor’s equipment—such as a valve adjustment or server replacement—can propagate to all other systems on that loop. The necessary use of balancing valves to compensate adds parasitic pressure loss and makes the system less responsive to dynamic load changes, worsening rather than resolving imbalance .

Q7: How should rack-level flow control valves be configured to minimize imbalance during normal operation?

Rack-level flow control valves should be configured to maintain a constant pressure drop across the rack’s supply and return, rather than a fixed flow rate, so that flow redistributes automatically when server impedances change. Constant differential pressure control at the rack level uses an “energy valve” or equivalent controller that measures pressure across the supply and return branches and modulates the valve position to hold the target ΔP. When a server is added or removed, the valve adjusts to maintain the same pressure drop, which keeps the remaining servers’ flow rates stable without requiring CDU-level intervention. This approach saves pump energy compared to constant flow control and avoids the over-pumping that occurs when a fixed total flow is forced through a changing circuit resistance. The valve setpoint must be established during commissioning based on the fully populated rack’s measured pressure drop .

Q8: Can manifold piping design alone solve flow imbalance, or is active control always required?
