W0PSA5000 overview

Huawei W0PSA5000 supports 500 W AC PoE Power Module apply to S5700/5710 series switch.

Product support for a 500 W AC PoE power module
Power Module Name Product Support
W0PSA5000 (purple gray) S5700-28C-PWR-EI, S5700-52C-PWR-EI, S5700-28C-PWR-SI, S5700-52C-PWR-SI, S5700-24TP-PWR-SI, S5700-48TP-PWR-SI, S5710-28C-PWR-LI, S5710-52C-PWR-LI
PAC-500WA-BE (black) S5720-28X-PWR-SI-AC, S5720-28X-PWR-SI-DC, S5720-52X-PWR-SI-AC, S5720-52X-PWR-SI-DC, S5720-36C-PWR-EI-AC, S5720-36C-PWR-EI-DC, S5720-56C-PWR-EI-DC, S5720-56C-PWR-EI-AC, S5730-48C-PWR-SI-AC, S5730S-48C-PWR-EI, S5730-68C-PWR-SI-AC, S5730-68C-PWR-SI, S5730S-68C-PWR-EI, S5730-36C-PWH-HI, S5730-44C-PWH-HI, S5730-60C-PWH-HI, S5730-68C-PWH-HI
Functions of a 500 W AC PoE power module
Function Description
PoE power supply Complying with IEEE 802.3af and IEEE 802.3at, the PoE power module is able to remotely provide power for the devices of different vendors. IEEE 802.3af supports a maximum of 15.4 W power and IEEE 802.3at supports a maximum of 30 W power.
Input protection Input overcurrent and undervoltage protection is provided.
Output protection Output undervoltage, overvoltage, overcurrent, and short-circuit protection is provided.
Overtemperature protection
Surge protection
Hot swapping Supported

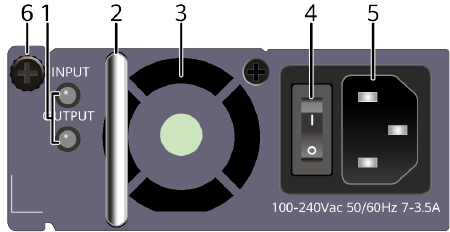

Panel of a 500 W AC PoE power module (W0PSA5000)


1. Power status indicator 2. Handle 3. Fan 4. Switch
5. AC power socket 6. Captive screw
Technical specifications of a 500 W AC PoE power module
Item Description
Dimensions (H x W x D) 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.)
Weight 1.06 kg (2.34 lb)
Rated input voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current 7 A to 3.5 A
Maximum output current
  • +12 V: 10 A
  • -53.5 V: 7.11 A
Maximum output power
  • +12 V: 120 W
  • -53.5 V: 380 W (PoE: 369.6 W)
Part number W0PSA5000: 02130879

PAC-500WA-BE: 02311BXV

Additional information

Weight 2.0000 kg
Dimensions 27.0000 × 21.0000 × 8.0000 cm
