Description

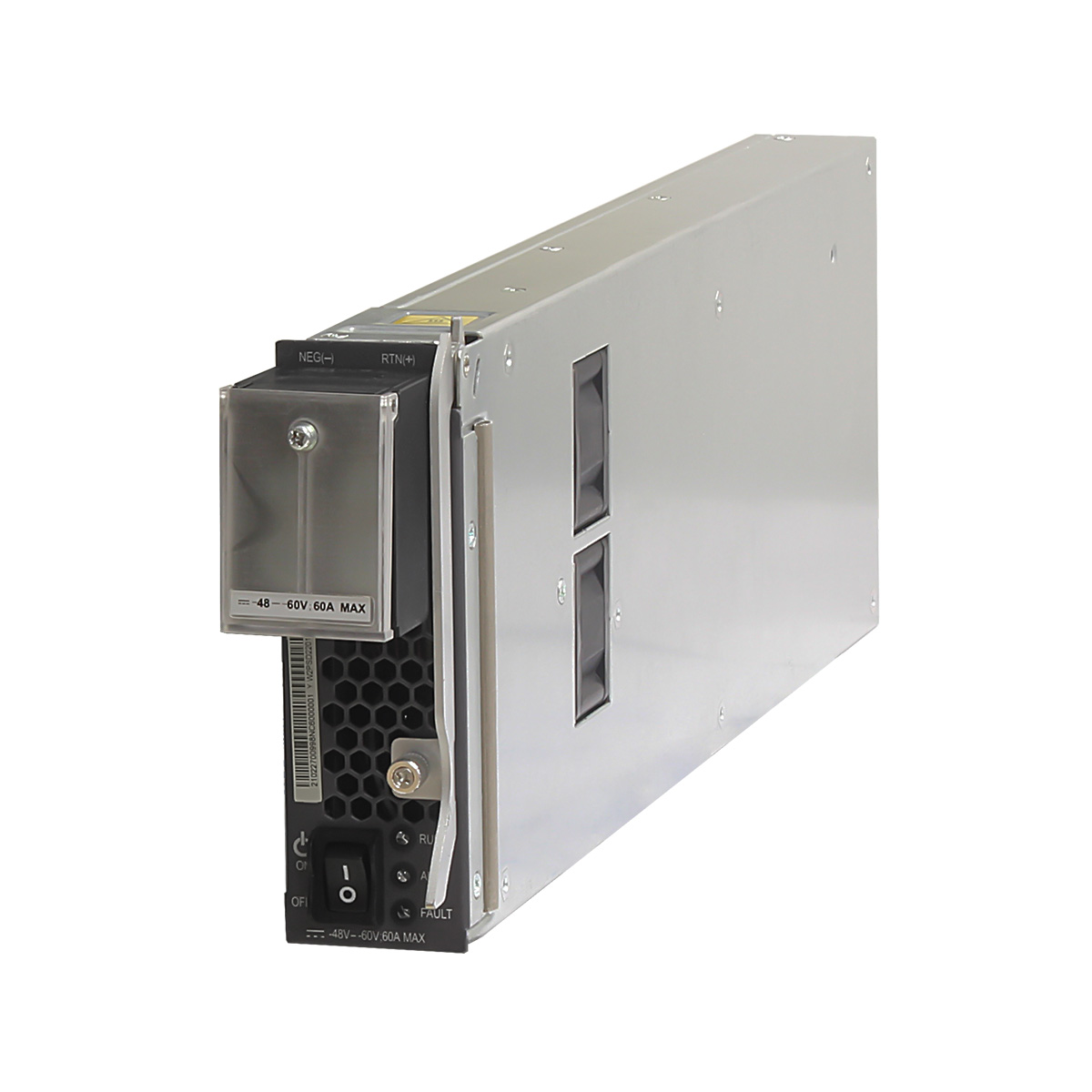

W2PSD2200 Overview
W2PSD2200 2200W DC Power Module (Black) apply to S7700/S9700/S12700 series switch
Mappings between W2PSD2200 and product models
Product | Product Model | First Supported Version |
---|---|---|
S12700 | S12704 | V200R019C00 |
S12700 | S12708 | V200R019C00 |
S12700 | S12710 | V200R019C00 |
S12700 | S12712 | V200R019C00 |
S12700E | S12700E-4 | V200R019C00 |
S12700E | S12700E-8 | V200R019C00 |
S12700E | S12700E-12 | V200R019C00 |
S9700 | S9700 | V200R001C00 |
S7700 | S7700 | V200R003C00 |
Functions of a 2200 W DC power module
Function |
Description |
|
---|---|---|
Input protection |
Input undervoltage protection |
In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again. |
Input overcurrent protection |
In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced. |
|
Output protection |
Output overvoltage protection |
In this protection state:
|
Output overcurrent protection |
In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again. |
|
Output short-circuit protection |
In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again. |
|
Overtemperature protection |
When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
|
Hot swapping |
The power module is hot swappable. |

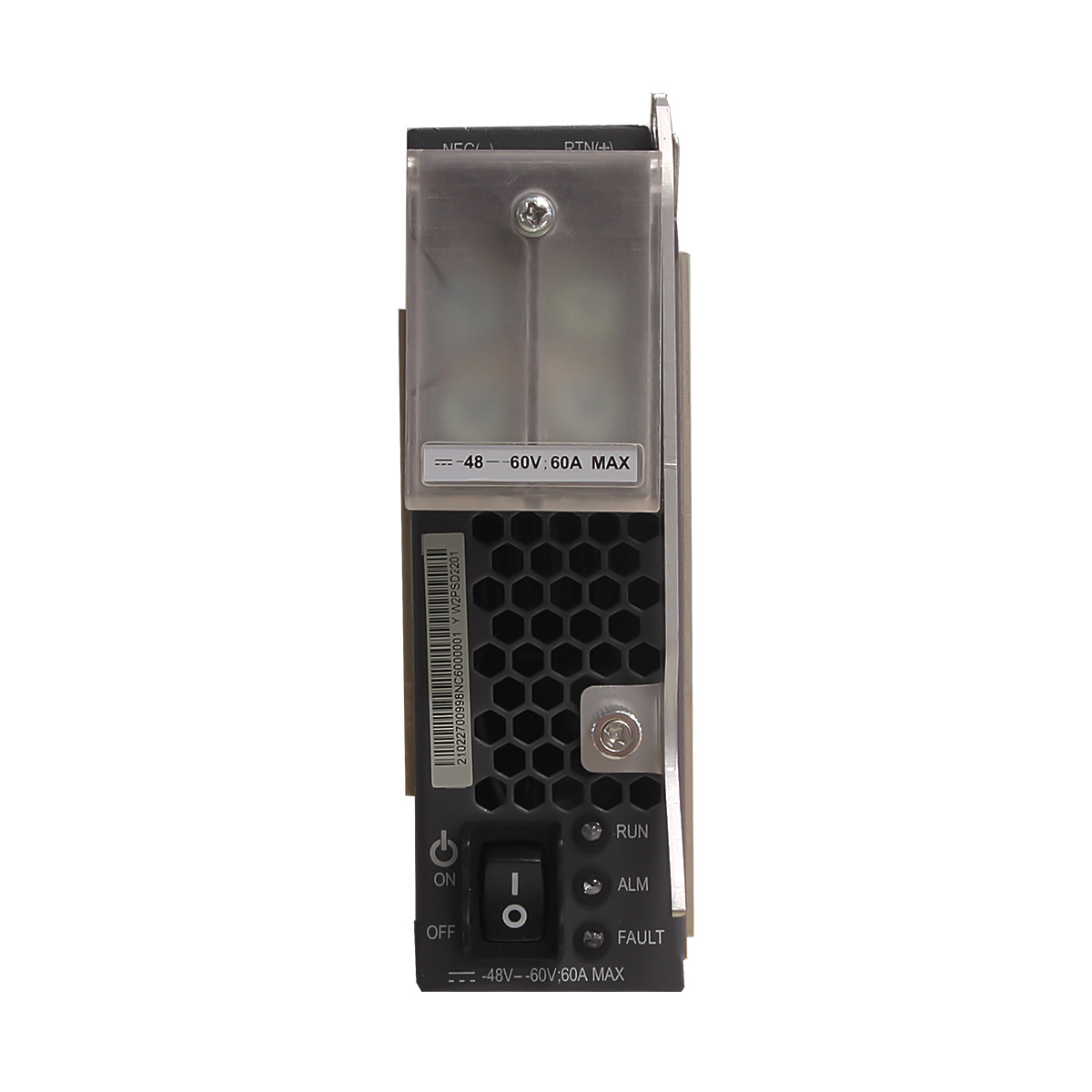

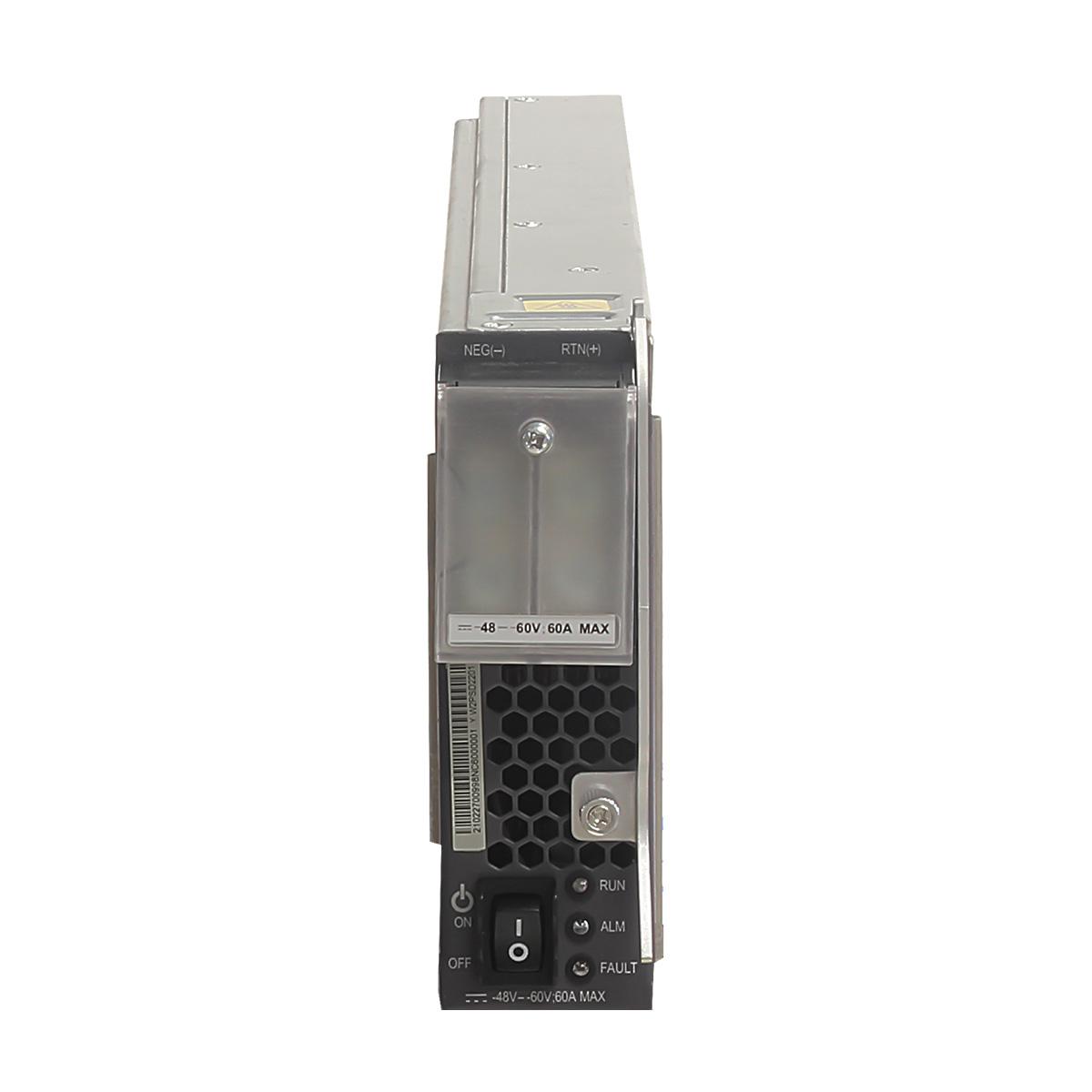

Front Panel
1 | NEG terminal |
2 | Power switch |
3 | Power socket |
4 | ALARM indicator |
5 | OUTPUT indicator |
6 | INPUT indicator |
W2PSD2200 Datasheet
Item | W2PSD2200 | |
Apply to S7700/S9700/S12700 Switch | ||
Input | Rated input voltage | -48 V DC/-60 V DC |
Input voltage range | -40 V DC to -72 V DC | |
Maximum input current | 60 A | |
Output | Maximum output current | 42 A |
Maximum output power | 2200 W | |
Dimensions (W x D x H) | 41 mm x 393 mm x 130 mm (1.6 in. x 15.5 in. x 5.1 in.) | |
Weight | < 2.5 kg | |
Environment parameters | Operating temperature: 0°C to 45°C (32°F to 113°F) Operating relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage relative humidity: 5% RH to 95% RH (noncondensing) |
Additional information
Weight | 3.5000 kg |
---|---|
Dimensions | 52.0000 × 22.0000 × 13.0000 cm |
