WS-C3560V2-24TS-E

WS-C3560V2-24TS-E

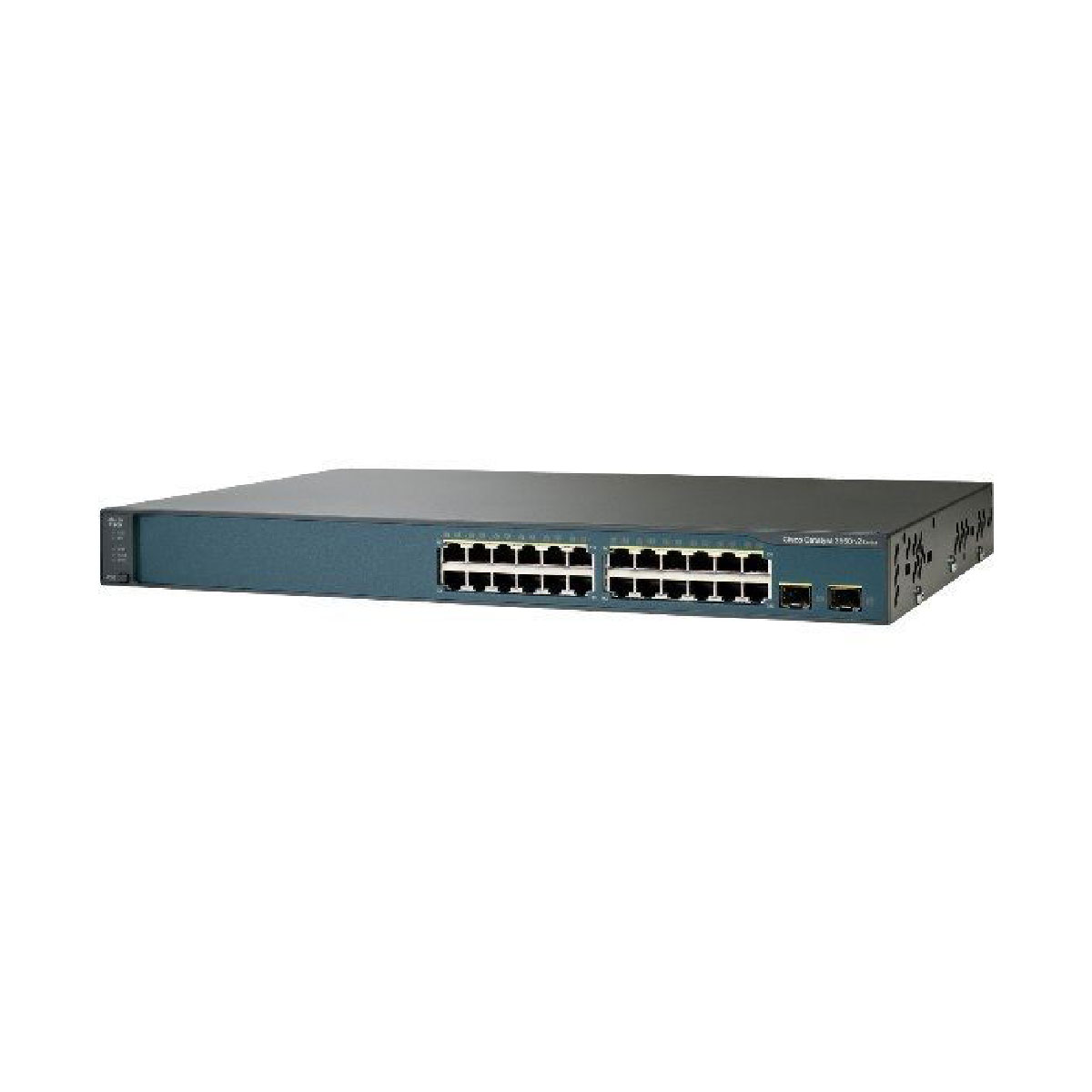

Cisco WS-C3560V2-24TS-E switch supports 24* 10/100 Ethernet ports, 2 SFP-based Gigabit Ethernet ports

Cisco

3-5 days

Shenzhen Warehouse

SKU: 2011160 Category: Tags: ,

Description

WS-C3560V2-24TS-E overview

Cisco Catalyst 3560 V2 Series switch WS-C3560V2-24TS-E is the next-generation energy-efficient Layer 3 fast Ethernet switches. This 3560V2 switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560V2 Series switch consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.

• 24 Ethernet 10/100 ports and 2 SFP-based Gigabit Ethernet ports
• 1RU fixed-configuration, multilayer switch
• IPv6
• IP Services software feature set

Items WS-C3560V2-24TS-E
Product Type Switch – 24 ports – L3 – Managed
Form Factor Rack mountable – 1U
Switch Ports 24 x 10/100 + 2 x SFP
MAC Address table Size 12K entries
Routing Protocol OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, DVMRP, PIM-SM, static IP routing, PIM-DM
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c
Authentication Method Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic trunking Protocol (DTP) support, trivial File transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Flash Memory 32 MB Flash
Power Device Power supply – internal
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Weight 3.7 kg
MTBF 377,260 hour(s)
Compliant Standards CE, GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A
Software Included Cisco IOS IP Services
