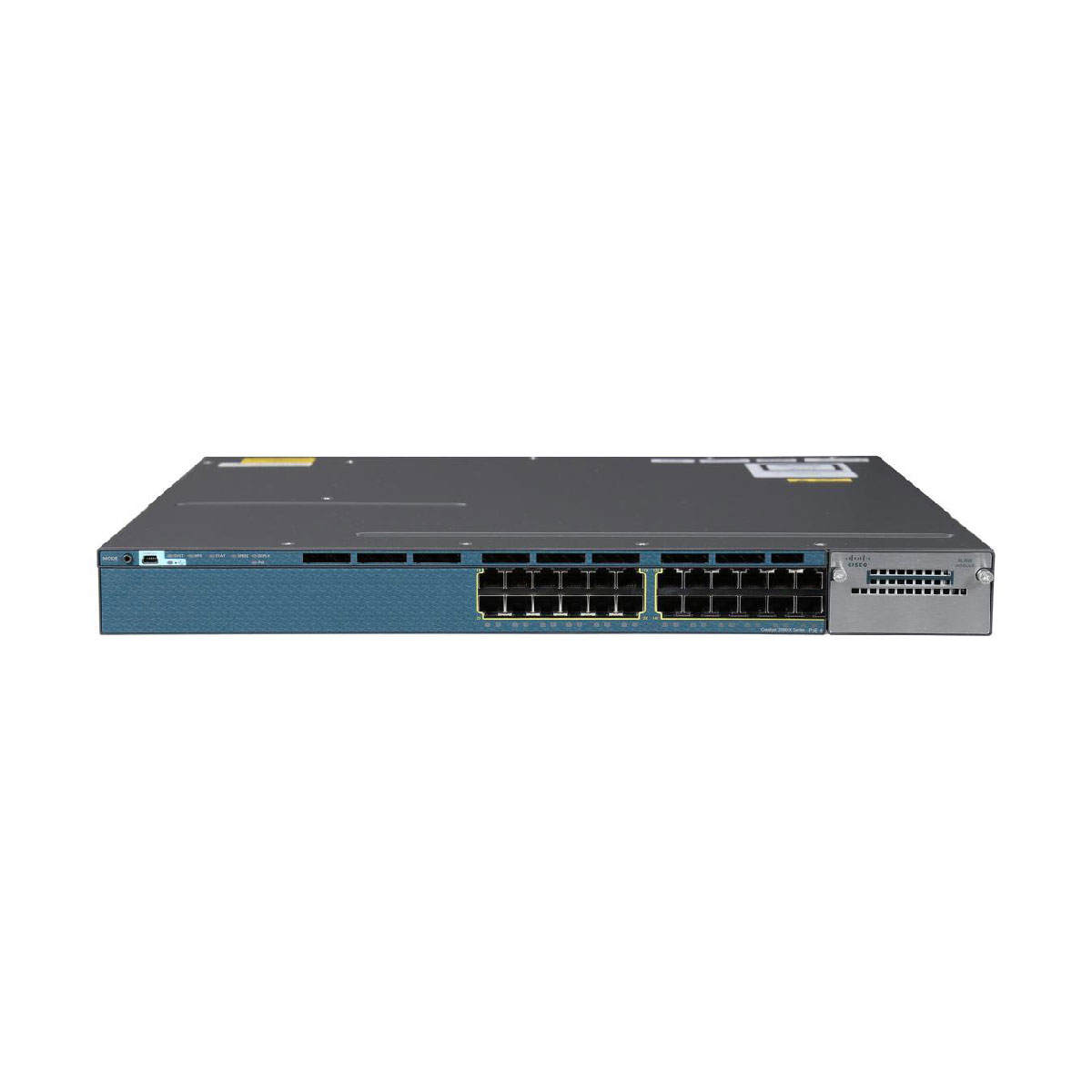

WS-C3560X-24P-E overview
Cisco Catalyst WS-C3560X-24P-E is 24 Gigabit Ethernet POE+ ports standalone switch with four optional 1G/10G network uplink module and no option to stack in IP service feature set. WS-C3560X-24P-E support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. IP service feature set provides up to 1005-Vlans and advanced layer 3 routing features, advanced security features and management features.
WS-C3560X-24P-E is designed for enterprise distribution layer switching in full layer 3 capability includes BGP, EIGRP, OSFP, IPv4/v6, multicast routing, IPSLA, Netflow, advanced Qos, VRF-lite. WS-C3560X-24P-E switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.
- 24 * 10/100/1000 Gigabit Ethernet POE+ ports with optional uplink network modules
- 435W POE power budget with up to 30W per port
- Dual redundant, modular power supplies and fans
- IP service feature set with full Layer 3 routing features, VRF-lite, IPSLA, advanced QoS, PIM, Netflow, PBR\
- 64MB flash and 256 memory (DRAM)
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Cisco Catalyst 3560-X Series Switches support 4 optional network modules for uplink ports:
The default switch configuration doesn’t include the uplink module;
When purchasing switch, customers have flexibility to choose any group of network modules described below:
Product Number | Product Description |
C3KX-NM-1G | Four GbE port network module |
C3KX-NM-10G | Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports |
C3KX-NM-10GT | Two 10GB-T ports network module |
C3KX-SM-10G | Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption |
