WS-C3560X-24P-S

WS-C3560X-24P-S

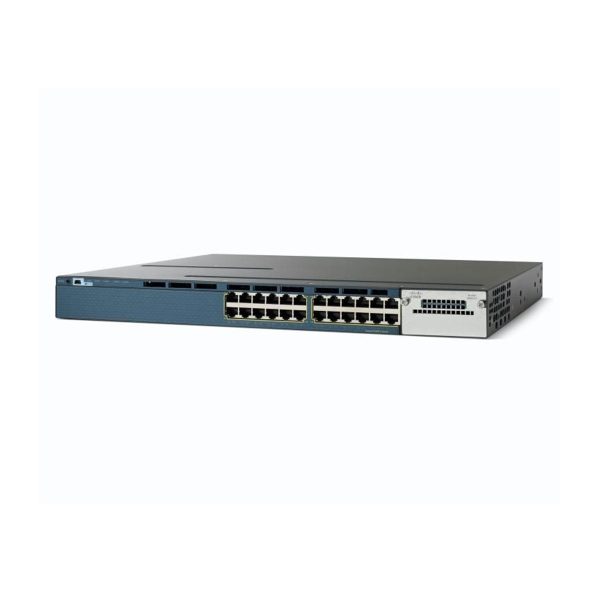

Cisco WS-C3560X-24P-S switch supports 24 10/100/1000 Ethernet Ports, PoE supported

Cisco

3-5 days

Shenzhen Warehouse

Description

WS-C3560X-24P-S overview

Cisco Catalyst WS-C3560X-24P-S is 24 Gigabit Ethernet POE+ ports standalone switch in IP base feature set with no stacking option. Four optional network modules and license-base software feature provide flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. WS-C3560X-24P-S support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. IP base feature set provide up to 1005-Vlans and basic layer 3 routing features, advanced security features and management features.

WS-C3560X-24P-S is designed for enterprise access/aggregation layer switching; however, customers can transparently upgrade the software feature to by purchasing IP services license to activity advanced layer 3 routing capability to fully support BGP, EIGRP, OSFP routing. WS-C3560X-24P-S switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.

  • 24 * 10/100/1000 Ethernet PoE+ ports
  • Four optional uplink network modules with GE or 10GE ports
  • 435W POE power budget with up to 30W per port
  • Dual redundant, modular power supplies and fans
  • baseline Layer 3 routing features
  • Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
  • USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Optional network modules:
Product Number Product Description
C3KX-NM-1G Four GbE port network module
C3KX-NM-10G Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports
C3KX-NM-10GT Two 10GB-T ports network module
C3KX-SM-10G Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption





Items  WS-C3560X-24P-S
Manufacturer Part Number WS-C3560X-24P-S
Product Type Switch – 24 ports – L3 – Managed
Form Factor Rack mountable – 1U
Switch Ports 24 x 10/100/1000 Ethernet Ports Ethernet Ports
Power Over Ethernet (PoE) Yes
Routing Protocol OSPF stub, Eigrp Stub, PIM stub, RIP-1, RIP-2, HSRP, VRRP, GLBP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning tree Protocol (RSTP) support, DHCP snooping, Dynamic trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning tree Plus (PVST+), EIGRP Stub Routing
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
DRAM Memory 256 MB
Flash Memory 64 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 PIN USB Type A
1 x console – mini-USB Type B – management
1 x RS-232 – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Rack Mounting Kit Optional
MTBF 181,370 hour(s)
Compliant Standards CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
Software Included Cisco IOS IP Base
