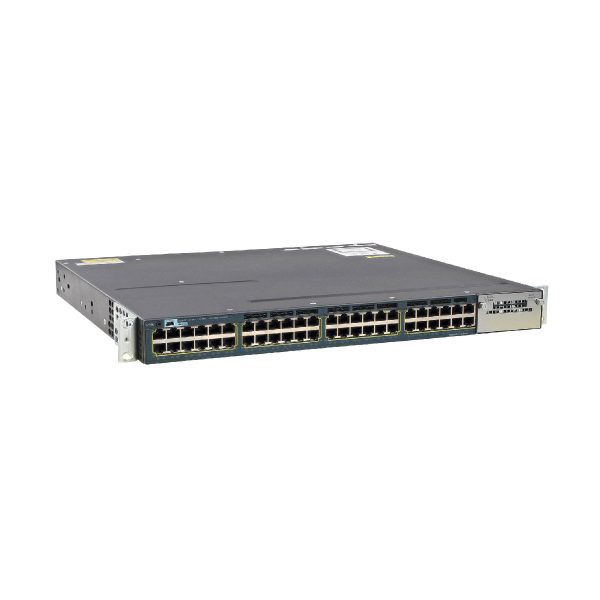

WS-C3560X-48P-E

0 Reviews Write a review
SKU2011152
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Cisco WS-C3560X-48P-E switch supports 48 * 10/100/1000 Ethernet ports, 4 optional uplink network modules, PoE supported

Description

WS-C3560X-48P-E overview

Cisco Catalyst WS-C3560X-48P-E is 48 Gigabit Ethernet POE+ ports standalone switch with four optional 1G/10G network uplink module and no option to stack in IP service feature set. WS-C3560X-48P-E support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. IP service feature set provides up to 1005-Vlans and advanced layer 3 routing features, advanced security features and management features.

WS-C3560X-48P-E is designed for enterprise distribution layer switching in full layer 3 capability includes BGP, EIGRP, OSFP, IPv4/v6, multicast routing, IPSLA, Netflow, advanced Qos, VRF-lite. WS-C3560X-48P-E switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.

  • 48 * 10/100/1000 Ethernet PoE+ ports
  • Four optional uplink network modules with GE or 10GE ports
  • 435W POE power budget with up to 30W per port
  • Dual redundant, modular power supplies and fans
  • IP service feature set with full Layer 3 routing features, VRF-lite, IPSLA, advanced QoS, PIM, Netflow, PBR
  • 64MB flash and 256 memory (DRAM)
  • USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Cisco Catalyst 3560-X Series Switches support 4 optional network modules for uplink ports:
The default switch configuration doesn’t include the uplink module;
When purchasing switch, customers have flexibility to choose any group of network modules described below:

Product Number Product Description
C3KX-NM-1G Four GbE port network module
C3KX-NM-10G Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports
C3KX-NM-10GT Two 10GB-T ports network module
C3KX-SM-10G Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption
Items WS-C3560X-48P-E
Product Type Switch - 48 ports - L3 - Managed
Form Factor Rack mountable - 1U
Switch Ports 48 x 10/100/1000 Ethernet POE+ Ports
Power Over Ethernet (PoE) Yes
Routing Protocol OSPF, Eigrp, PIM, RIP-1, RIP-2, HSRP, VRRP, GLBP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning tree Protocol (RSTP) support, DHCP snooping, Dynamic trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning tree Plus (PVST+), EIGRP, OSPF, BGP, PIM
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
DRAM Memory 256 MB
Flash Memory 64 MB Flash
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Device Power supply - redundant - plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Weight 7.4 kg
Rack Mounting Kit Optional
MTBF 149,594 hour(s)
Software Included Cisco IOS IP Service

Additional information

Brand

Cisco

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Items WS-C3560X-48P-E
Product Type Switch - 48 ports - L3 - Managed
Form Factor Rack mountable - 1U
Switch Ports 48 x 10/100/1000 Ethernet POE+ Ports
Power Over Ethernet (PoE) Yes
Routing Protocol OSPF, Eigrp, PIM, RIP-1, RIP-2, HSRP, VRRP, GLBP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning tree Protocol (RSTP) support, DHCP snooping, Dynamic trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning tree Plus (PVST+), EIGRP, OSPF, BGP, PIM
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
DRAM Memory 256 MB
Flash Memory 64 MB Flash
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Device Power supply - redundant - plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Weight 7.4 kg
Rack Mounting Kit Optional
MTBF 149,594 hour(s)
Software Included Cisco IOS IP Service
