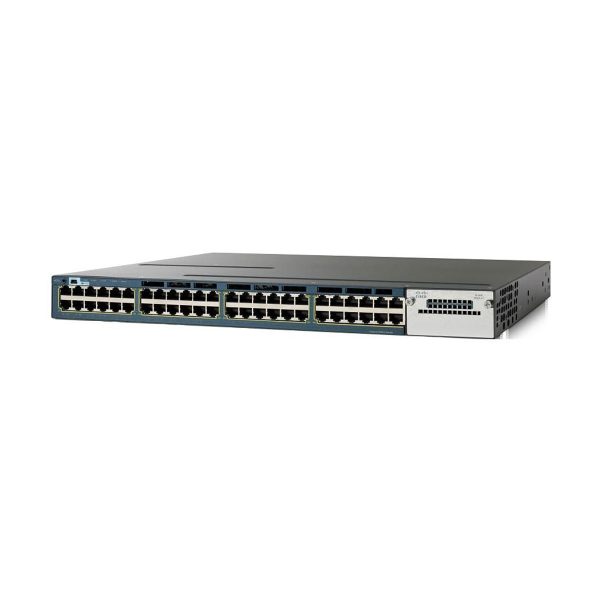

WS-C3560X-48T-S
Cisco WS-C3560X-48T-S switch supports 48 x 10/100/1000 Ethernet Ports
Cisco
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (0)
Description
WS-C3560X-48T-S overview
Cisco Catalyst WS-C3560X-48T-S is 48 Gigabit Ethernet ports standalone switch with no stacking option in IP base feature set. Four optional network modules and license-base software feature offer flexibility, scalability and feature extensibility in order to reduce the cost of development of business needs. IP base feature set provide up to 1005-Vlans and basic layer 3 routing features, advanced security features and management features. WS-C3560X-48T-S is designed for enterprise access/aggregation layer switching; however, customers can transparently upgrade the software feature to by purchasing IP services license to activity advanced layer 3 capability to fully support BGP, EIGRP, OSFP routing. WS-C3560X-48T-S switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.
- 48 * 10/100/1000 Ethernet ports
- Four optional uplink network modules with GE or 10GE ports
- Dual redundant, modular power supplies and fans
- Baseline Layer 3 routing features
- Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
- USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port
Optional network modules:
| Product Number | Product Description |
| C3KX-NM-1G | Four GbE port network module |
| C3KX-NM-10G | Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports |
| C3KX-NM-10GT | Two 10GB-T ports network module |
| C3KX-SM-10G | Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption |
| Items | WS-C3560X-48T-S |
| Product Type | Switch – 48 ports – L3 – Managed |
| Form Factor | Rack mountable – 1U |
| Switch Ports | 48 x 10/100/1000 Ethernet Ports Ethernet Ports |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning tree Protocol (RSTP) support, DHCP snooping, Dynamic trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning tree Plus (PVST+), EIGRP Stub Routing |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae |
| DRAM Memory | 256 MB |
| Flash Memory | 64 MB Flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| USB : 1 x 4 PIN USB Type A | |
| 1 x console – mini-USB Type B – management | |
| 1 x RS-232 – RJ-45 – management | |
| 1 x 10Base-T/100Base-TX – RJ-45 – management | |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| ower Device | Power supply – redundant – plug-in module |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Rack Mounting Kit | Optional |
| MTBF | 186,778 hour(s) |
| Compliant Standards | CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1 |
| Software Included | Cisco IOS IP Base |
