WS-C3850-48F-S
Categories:

WS-C3850-48F-S

0 Reviews Write a review
SKU2011325
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

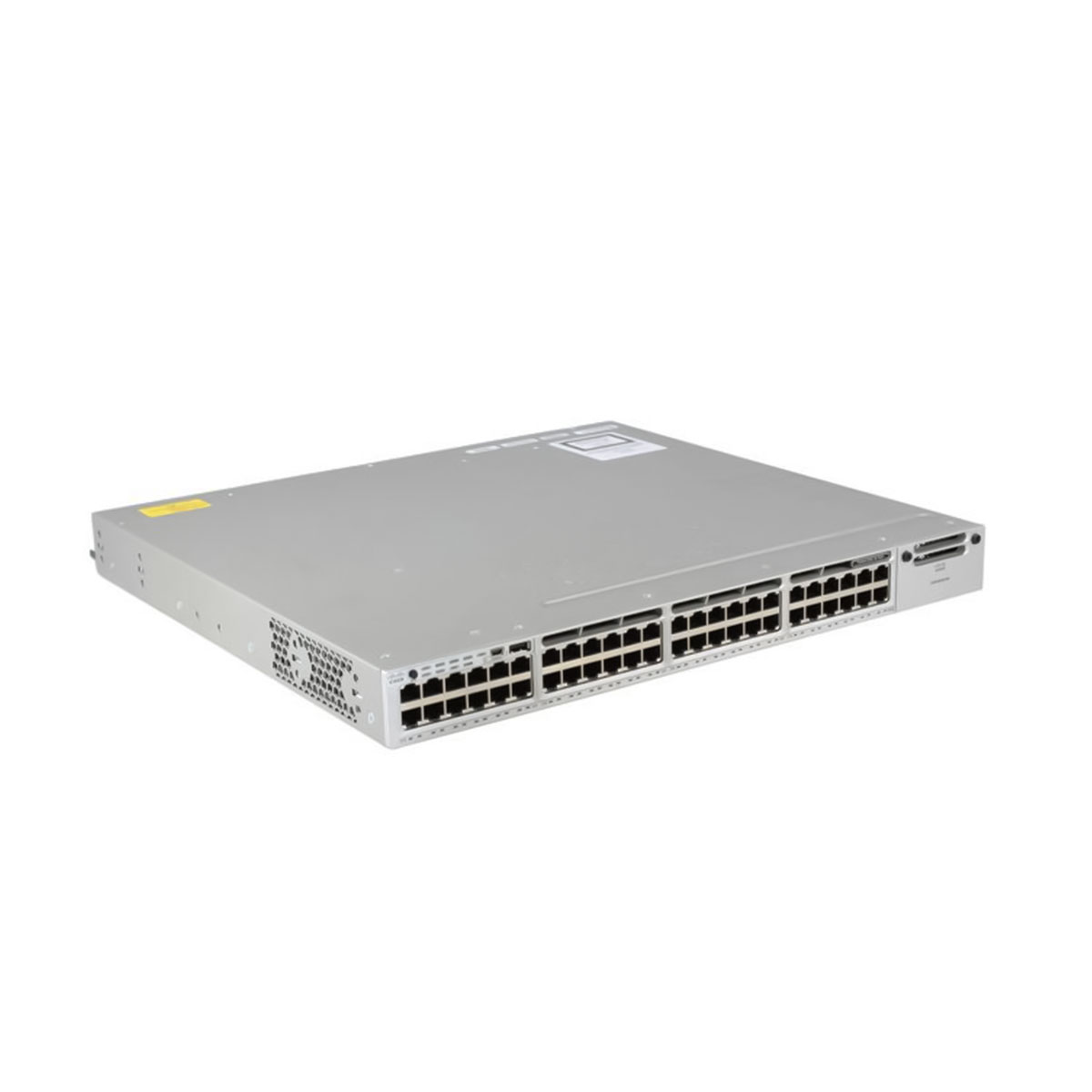

Cisco WS-C3850-48F-S switch supports 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

WS-C3850-48F-S overview

Cisco WS-C3850-48F-S switch supports 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply.

The Catalyst 3850 family of switches are Ethernet switches to which you can connect devices such as Cisco IP Phones, Cisco Wireless Access Points, workstations, and other network devices such as servers, routers, and other switches.

The Catalyst 3850 switches support stacking through Cisco StackWise-480 technology and power management through StackPower. The StackWise technology for the Catalyst 3850 switches is called StackWise-480.

WS-C3850-48F-S performance

Converged wired plus wireless access

Distributed intelligent services

  • Flexible NetFlow (FNF)
  • QoS
  • Security

Resiliency

  • Cisco StackWise-480 technology
  • Cisco StackPower technology
  • Foundation for Open Network Environment
Show More Show Less
Item
WS-C3850-48F-S
Operating temperature 23 to 113°F (-5 to 45°C)
Storage temperature -40 to 158°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing 5 to 90% noncondensing
Altitude 10,000 ft. (3000 meters), up to 45°C
MTBF Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC compliance

FCC Part 15 (CFR 47) Class A

ICES-003 Class A

EN 55022 Class A

CISPR 22 Class A

AS/NZS 3548 Class A

BSMI Class A (AC input models only)

VCCI Class A

EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3

EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Safety compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
LED indicators

“AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK
Flash 2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)

Switching capacity

176 Gbps on 48-port Gigabit Ethernet model

92 Gbps on 24-port Gigabit Ethernet model

68 Gbps on 12-port Gigabit Ethernet model

640 Gbps on 24-port Multigigabit Ethernet model

472 Gbps on 48-port Multigigabit Ethernet model

1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model

640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model

320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model

Stacking bandwidth

480 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

24,000

Additional information

Brand
Lead Time
Ship From
Item
WS-C3850-48F-S
Operating temperature 23 to 113°F (-5 to 45°C)
Storage temperature -40 to 158°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing 5 to 90% noncondensing
Altitude 10,000 ft. (3000 meters), up to 45°C
MTBF Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC compliance

FCC Part 15 (CFR 47) Class A

ICES-003 Class A

EN 55022 Class A

CISPR 22 Class A

AS/NZS 3548 Class A

BSMI Class A (AC input models only)

VCCI Class A

EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3

EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Safety compliance UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
LED indicators

“AC OK”: Input power to the power supply is OK

“PS OK”: Output power from the power supply is OK
Flash 2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)

Switching capacity

176 Gbps on 48-port Gigabit Ethernet model

92 Gbps on 24-port Gigabit Ethernet model

68 Gbps on 12-port Gigabit Ethernet model

640 Gbps on 24-port Multigigabit Ethernet model

472 Gbps on 48-port Multigigabit Ethernet model

1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model

640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model

320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model

Stacking bandwidth

480 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

24,000
